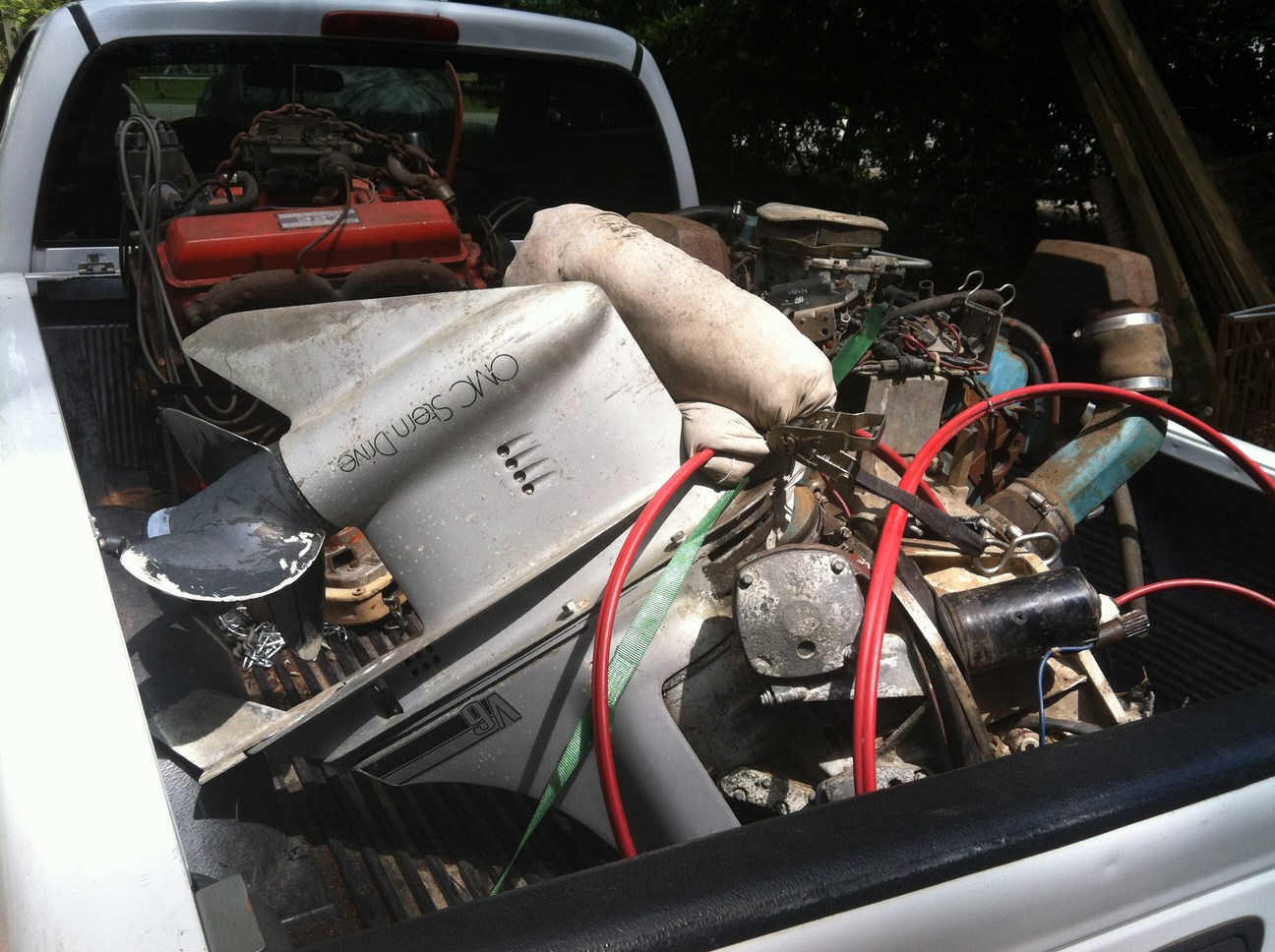

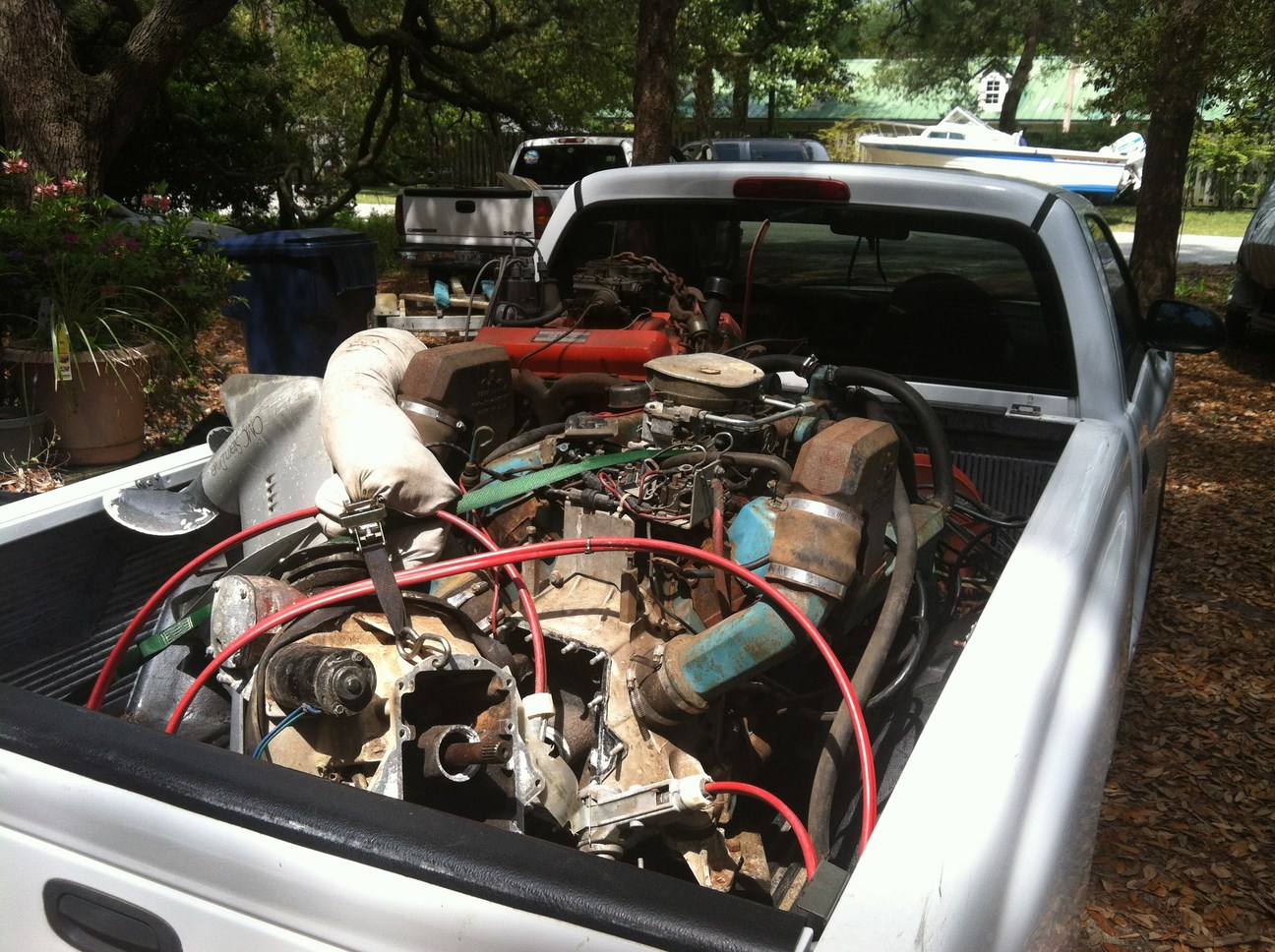

This is what Rosie refers to as "A Truck Load of Junk"



Attachments:

Please Log in to join the conversation.

Re:1964 Johnson Deluxe Resto-Mod 4 years 2 months ago #89909

  • agleason
  • agleason's Avatar Topic Author
  • Offline
  • Expert Boarder
  • Expert Boarder
  • Posts: 314
  • Karma: 25
  • Thank you received: 1

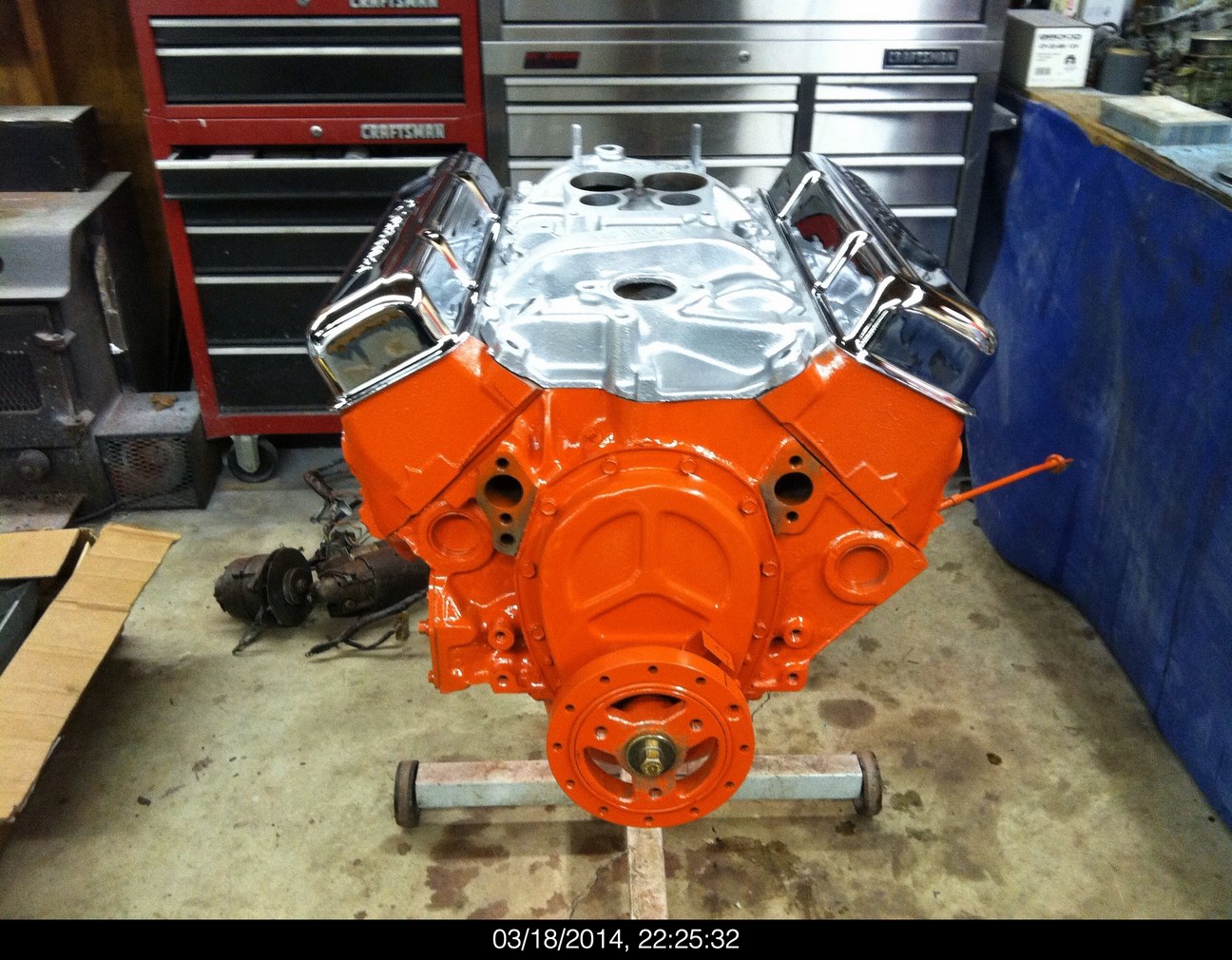

Hidden in that "pile of junk" is my 327 and the 800 series stringer that I'm going to rebuild for the Deluxe. I got the drive super cheap and the old engine that it was hooked to was free. The old Ford engine is JUNK but I wanted as many parts from it as possible and sold the rest for scrap.

So... the 800 Stringer rebuild will be next up!



Watch it go from this...



to this!
Attachments:

Please Log in to join the conversation.

Re:1964 Johnson Deluxe Resto-Mod 4 years 2 months ago #89910

That's what i call a treasure chest!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

Bob

Please Log in to join the conversation.

Re:1964 Johnson Deluxe Resto-Mod 4 years 2 months ago #90054

  • agleason
  • agleason's Avatar Topic Author
  • Offline
  • Expert Boarder
  • Expert Boarder
  • Posts: 314
  • Karma: 25
  • Thank you received: 1

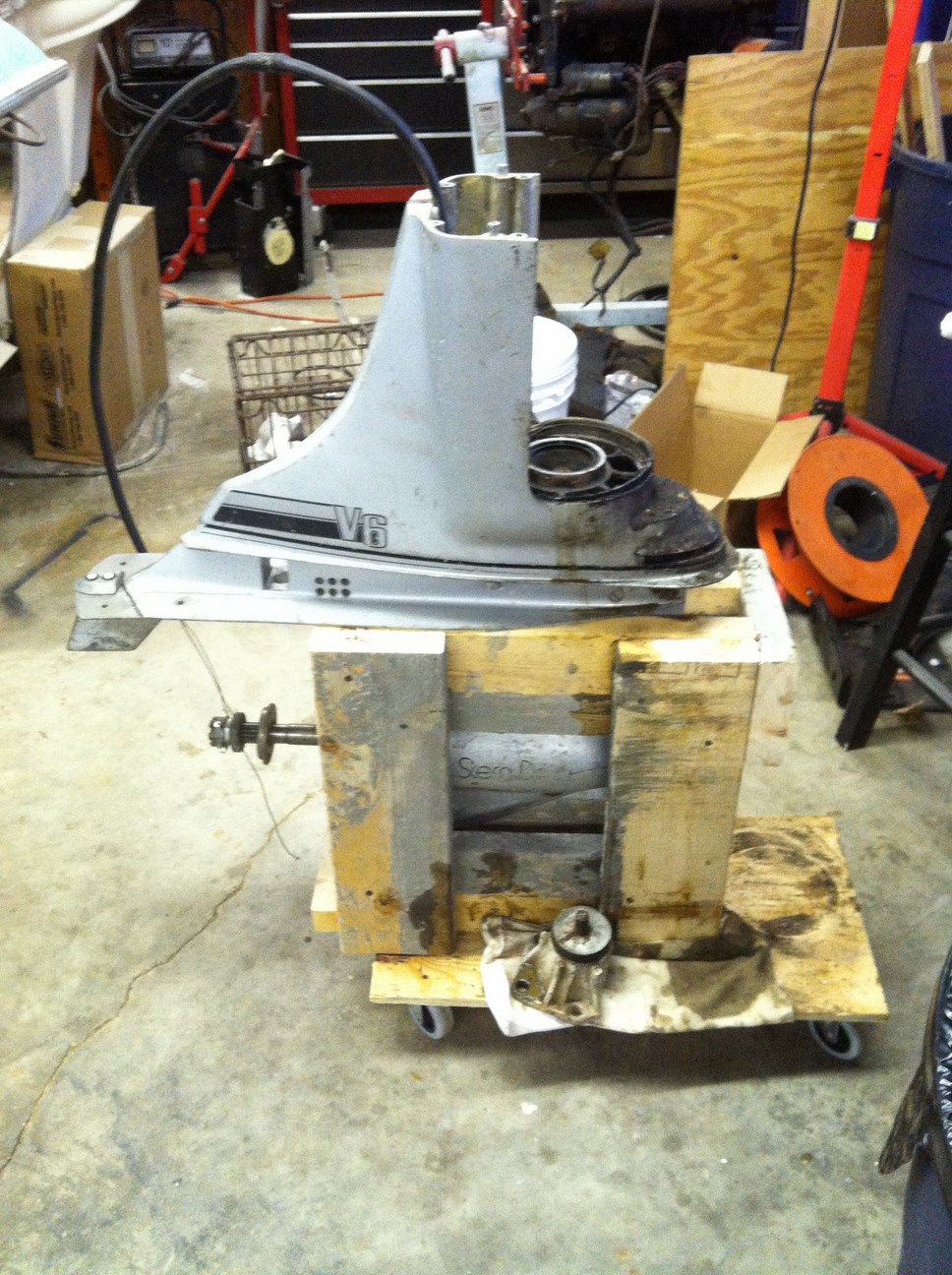

First thing was to build a cheap dolly for the drive to sit on.

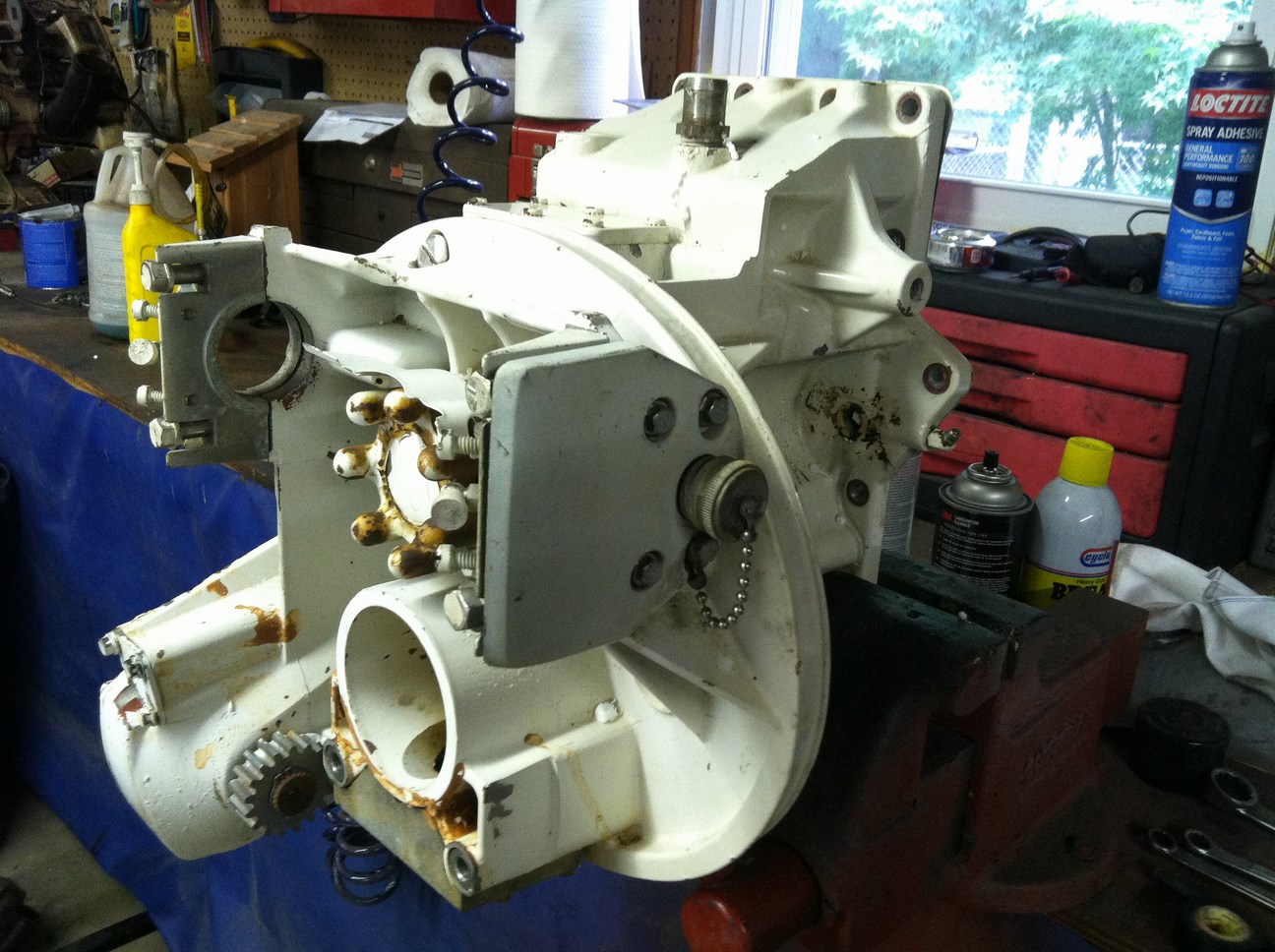

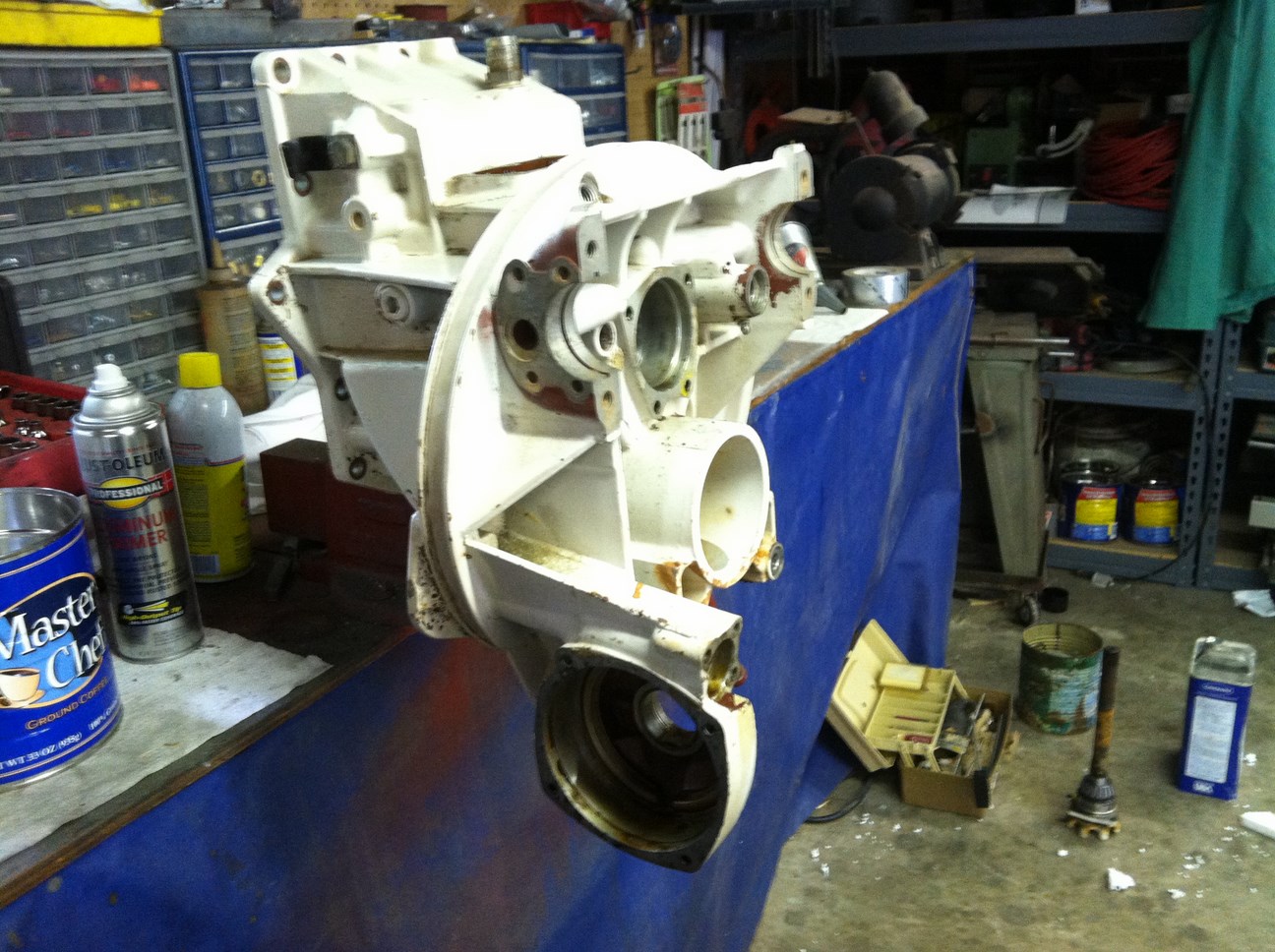

Then I started cleaning the bellhousing...

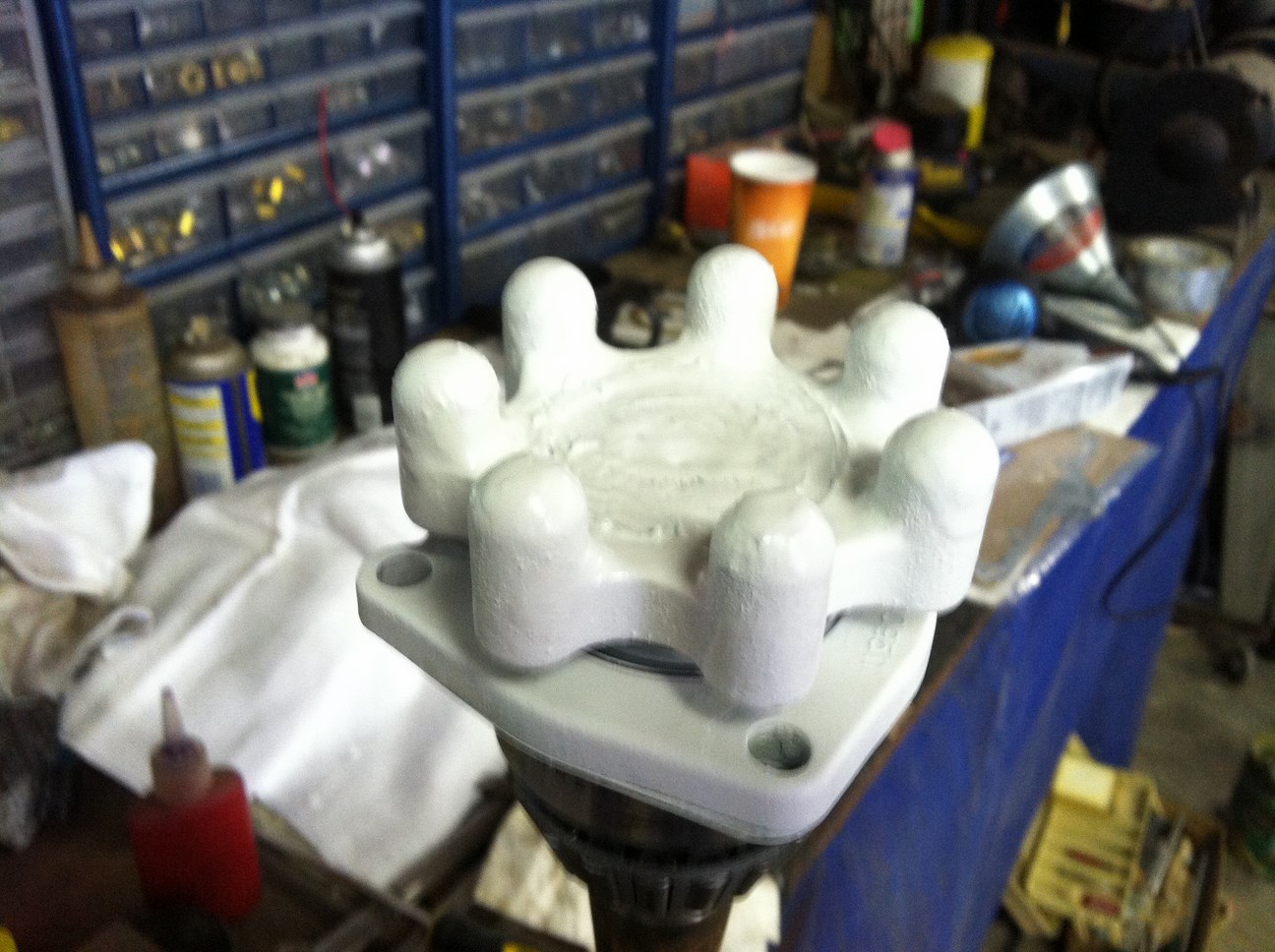

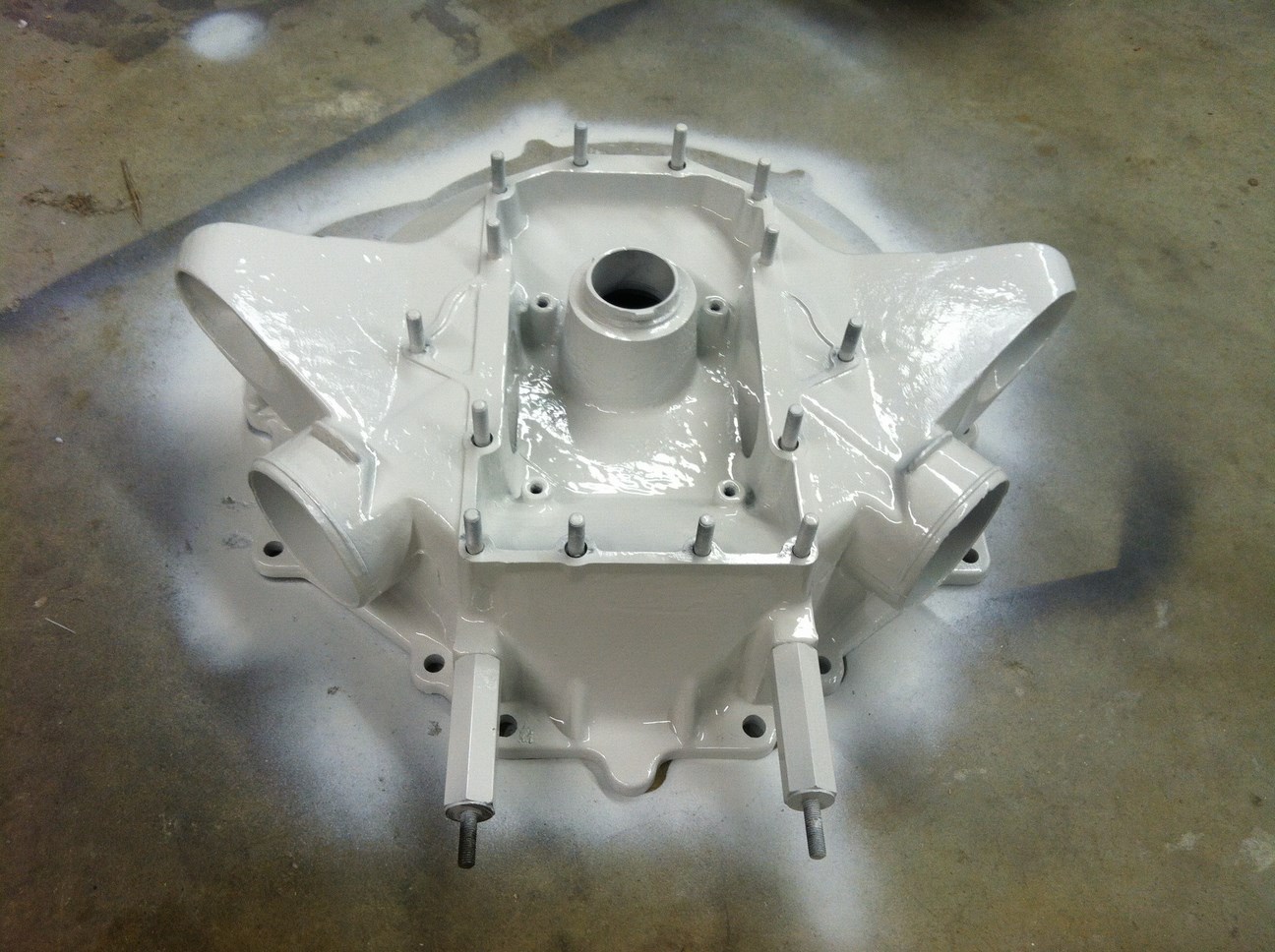

Cleaned and primed. Ready to be painted later.
Attachments:

Please Log in to join the conversation.

Re:1964 Johnson Deluxe Resto-Mod 4 years 2 months ago #90057

  • Shake
  • Shake's Avatar
  • Offline
  • Gold Boarder
  • Gold Boarder
  • Posts: 864
  • Karma: 29
  • Thank you received: 1
Ummm, I see a potential problem... I know in Mercruiser gearing, a v6 lower unit on a v8 engine = no planing......

Please Log in to join the conversation.

Golden Rule number one; While working in the bilge, absolutely under no circumstances, NO FARTING!!!! Captn Shake aka Joe.

Re:1964 Johnson Deluxe Resto-Mod 4 years 2 months ago #90076

  • agleason
  • agleason's Avatar Topic Author
  • Offline
  • Expert Boarder
  • Expert Boarder
  • Posts: 314
  • Karma: 25
  • Thank you received: 1
Shake wrote:

Ummm, I see a potential problem... I know in Mercruiser gearing, a v6 lower unit on a v8 engine = no planing......


Great point. Luckily the gearing difference in a stringer occurs in the upper gear housing.

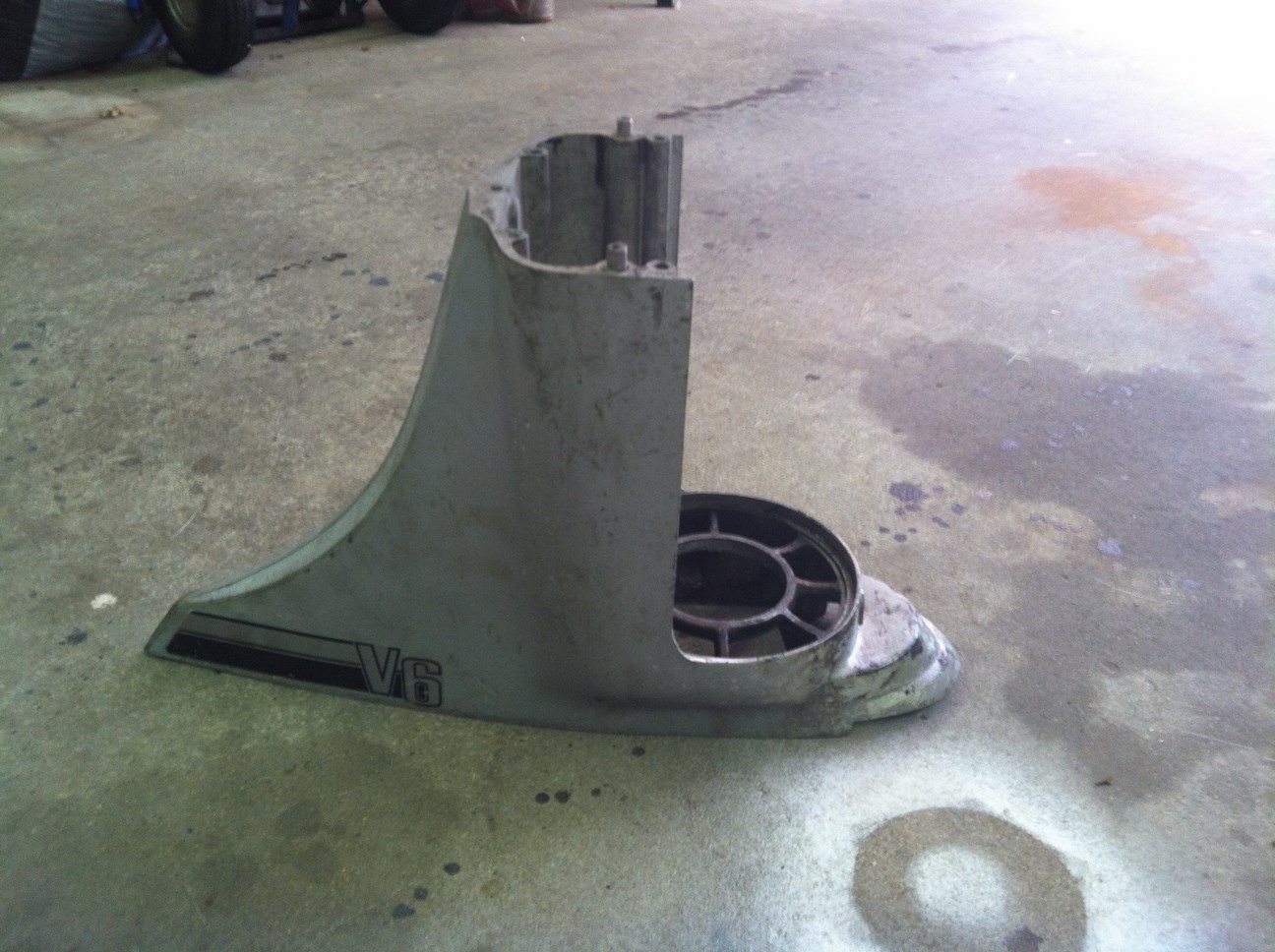

The only difference between a V-6 and V-8 lower unit was the decal on the side. Same part number for either.

Please Log in to join the conversation.

Re:1964 Johnson Deluxe Resto-Mod 4 years 2 months ago #90082

  • l98tpi
  • l98tpi's Avatar
  • Offline
  • Senior Boarder
  • Senior Boarder
  • Posts: 223
  • Karma: 16
  • Thank you received: 0
Let me ask a potentially, brilliant or stupid, question. I'm not familiar with the old omc drives, but the one I have been up close to is so different different to the Merc alpha's I know. I see where the engine in this case a chevy bolted up to the drive like a car or inboard transmission would. Unlike the way a merc sets off the engine on its mounts and there is a short "drive shaft" to the drive housing thats bolted to the transom.

So after that windy setup the question is:
Will that drive that came with a (I assume) 302 Ford, fit up to the Chevy? Including the flywheel, drive plate or whatever they use. Plus all the marine cooling bits like chevy manifolds, parts to hook the manifolds to the drives exhaust, or a thru transom exhaust.

My buddy still has the stringer off his checkmate. There was no engine. most of the drive is there. I am sure he will get off any bits you might need cheap. (or a 12 pack :) ) This one is the fancy version with the trim jacks that raise/lower the front of the engine for trim.

Please Log in to join the conversation.

Boats: 76 Chrysler Conqueror S3, 61 Larson Playmate. Outboards: 76 Chrysler 105, 70 Chrysler 70, 57 Evinrude Bigtwin 35, 80 Johnson 35 looper, 74 Chrysler 45, 67 Mercury 650SS, and others.

Re:1964 Johnson Deluxe Resto-Mod 4 years 2 months ago #90088

  • agleason
  • agleason's Avatar Topic Author
  • Offline
  • Expert Boarder
  • Expert Boarder
  • Posts: 314
  • Karma: 25
  • Thank you received: 1
Brilliant question!

The answer is no.

To use my 327 I needed to locate a flywheel and adapter that is splined to the input shaft of the 800. New exhaust manifolds of course. The risers on the Ford were standard Barr replacements so those I can use! The exhaust is going through the hull. I picked up a few other items like a thermostat housing, dipstick and tube, front mount, etc. I took my time and searched Craigslist until found a guy with a junk 305 I could get most of stuff for $150!

The bell house had the marks for a Chevy bolt pattern. I just drilled it out on the drill press and it bolted right up.

Does your buddy have any of the trim stuff left?

Please Log in to join the conversation.

Re:1964 Johnson Deluxe Resto-Mod 4 years 2 months ago #90095

  • l98tpi
  • l98tpi's Avatar
  • Offline
  • Senior Boarder
  • Senior Boarder
  • Posts: 223
  • Karma: 16
  • Thank you received: 0
When next I am out at his place which might be this weekend I will take pics and scope what is there. I think there might be manifolds, but I am not sure what shape they are in.

Mark

Please Log in to join the conversation.

Boats: 76 Chrysler Conqueror S3, 61 Larson Playmate. Outboards: 76 Chrysler 105, 70 Chrysler 70, 57 Evinrude Bigtwin 35, 80 Johnson 35 looper, 74 Chrysler 45, 67 Mercury 650SS, and others.

Re:1964 Johnson Deluxe Resto-Mod 4 years 2 months ago #90107

  • agleason
  • agleason's Avatar Topic Author
  • Offline
  • Expert Boarder
  • Expert Boarder
  • Posts: 314
  • Karma: 25
  • Thank you received: 1
Thanks Mark!

I cant seem to get the email feature here to work... please email me at This email address is being protected from spambots. You need JavaScript enabled to view it.

Please Log in to join the conversation.

Re:1964 Johnson Deluxe Resto-Mod 4 years 1 month ago #90305

  • agleason
  • agleason's Avatar Topic Author
  • Offline
  • Expert Boarder
  • Expert Boarder
  • Posts: 314
  • Karma: 25
  • Thank you received: 1

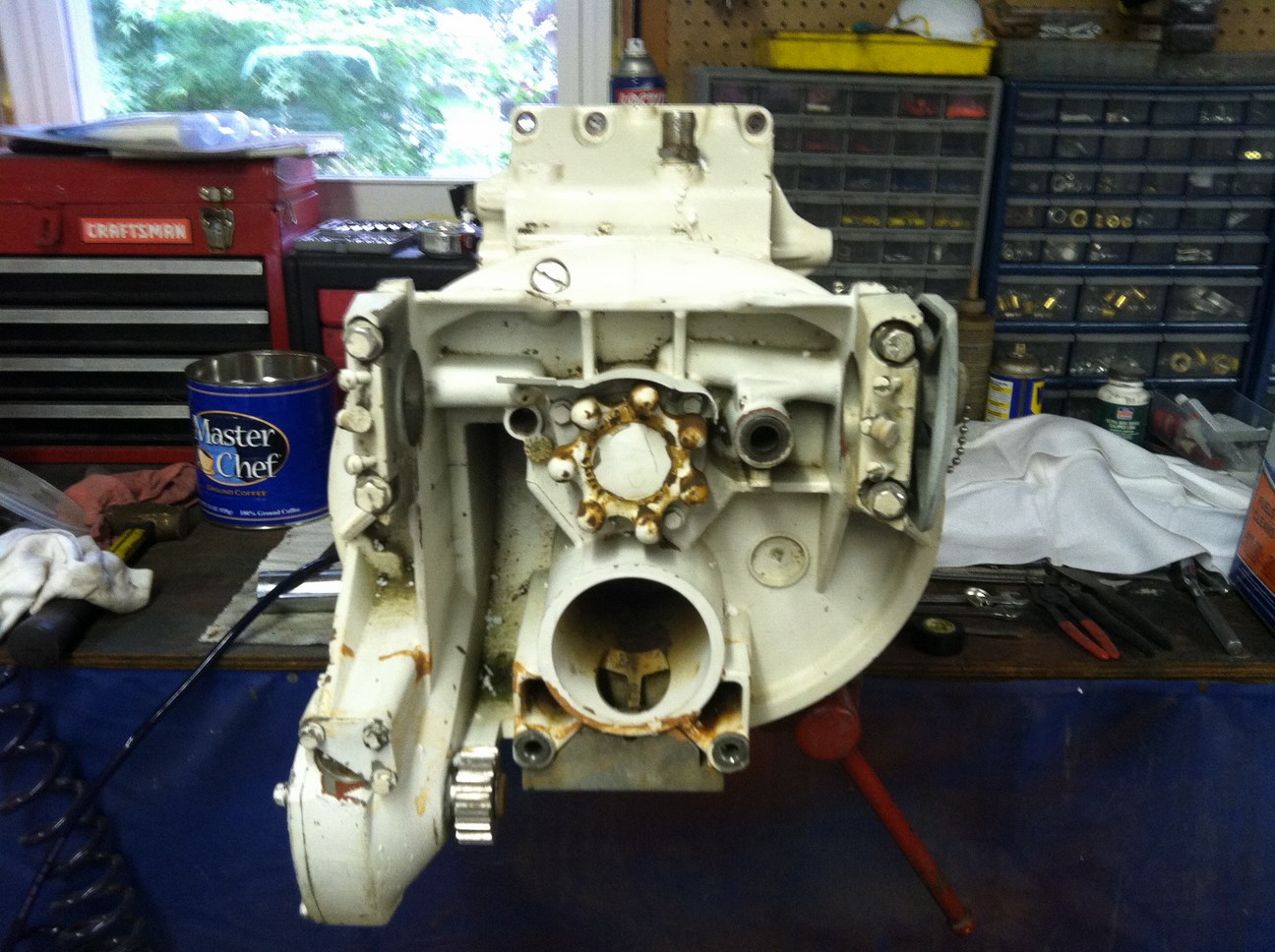

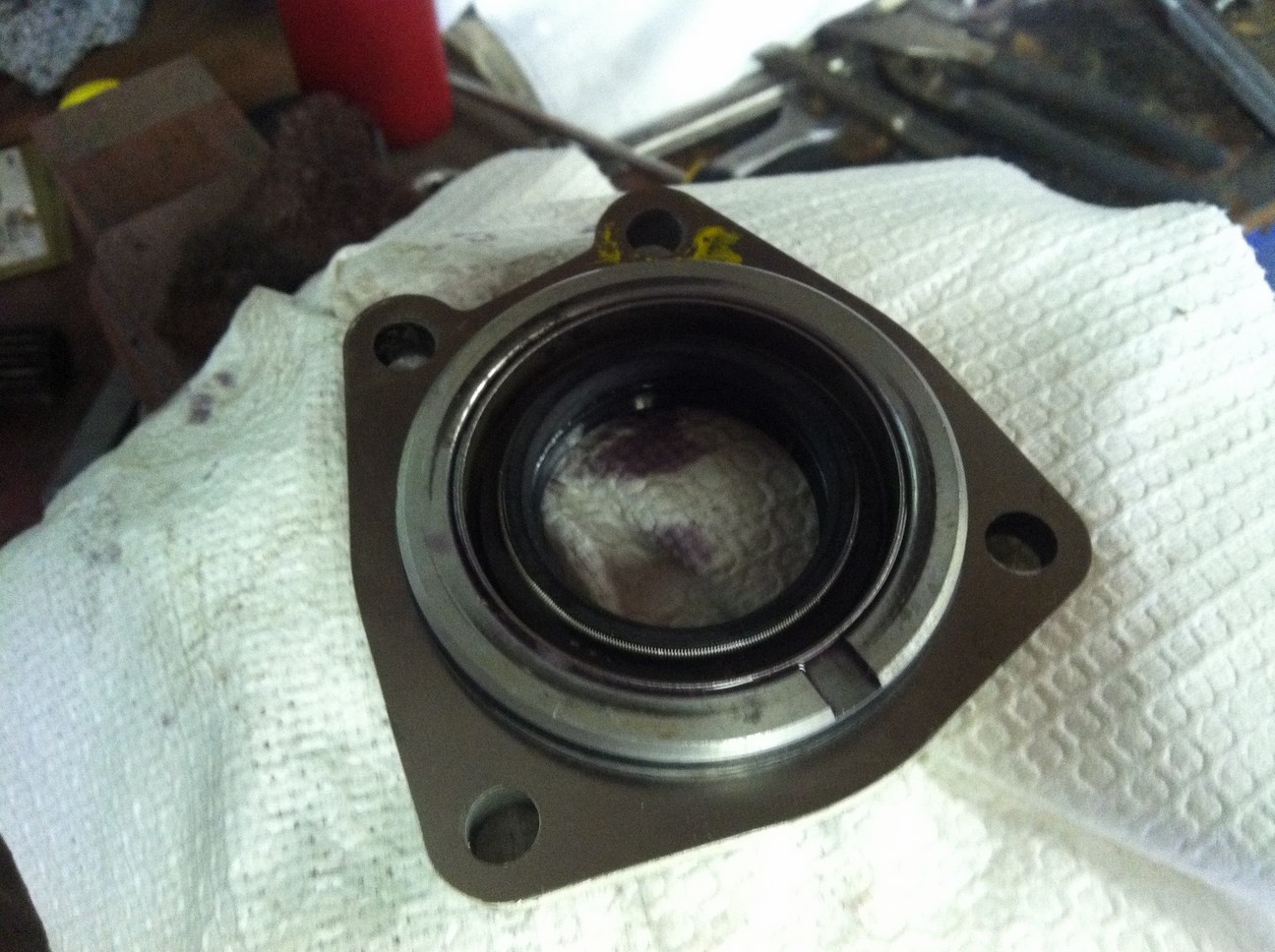

Update: rebuilding the intermediate housing. disassembled, cleaned, primed, inspected, and all seals replaced.















Please Log in to join the conversation.

Re:1964 Johnson Deluxe Resto-Mod 4 years 1 month ago #90315

  • Nautilus
  • Nautilus's Avatar
  • Away
  • Contributing Member
  • Contributing Member
  • Posts: 1163
  • Karma: 84
  • Thank you received: 9
Damned nice looking unit. I'm thinking that maybe I should sub-out some of my work to you. Wanna do a couple more stringer units?

Please Log in to join the conversation.

Website: NautilusRestorations.com

Mentor to the unenlightened!

"Never allow logic to interfere with a boat purchase." - J. S. Hadley
"Vintage quality beats new junk every time." - J. S. Hadley
"Anything supposed to do two things does both of them half-assed." - J. S. Hadley
"Success makes...

Re:1964 Johnson Deluxe Resto-Mod 4 years 1 month ago #90336

  • agleason
  • agleason's Avatar Topic Author
  • Offline
  • Expert Boarder
  • Expert Boarder
  • Posts: 314
  • Karma: 25
  • Thank you received: 1
Nautilus wrote:

Damned nice looking unit. I'm thinking that maybe I should sub-out some of my work to you. Wanna do a couple more stringer units?


Sure, shoot me an email with what you have in mind.

Please Log in to join the conversation.

Re:1964 Johnson Deluxe Resto-Mod 4 years 1 month ago #90341

  • agleason
  • agleason's Avatar Topic Author
  • Offline
  • Expert Boarder
  • Expert Boarder
  • Posts: 314
  • Karma: 25
  • Thank you received: 1
Update: The 800 rebuild continues...

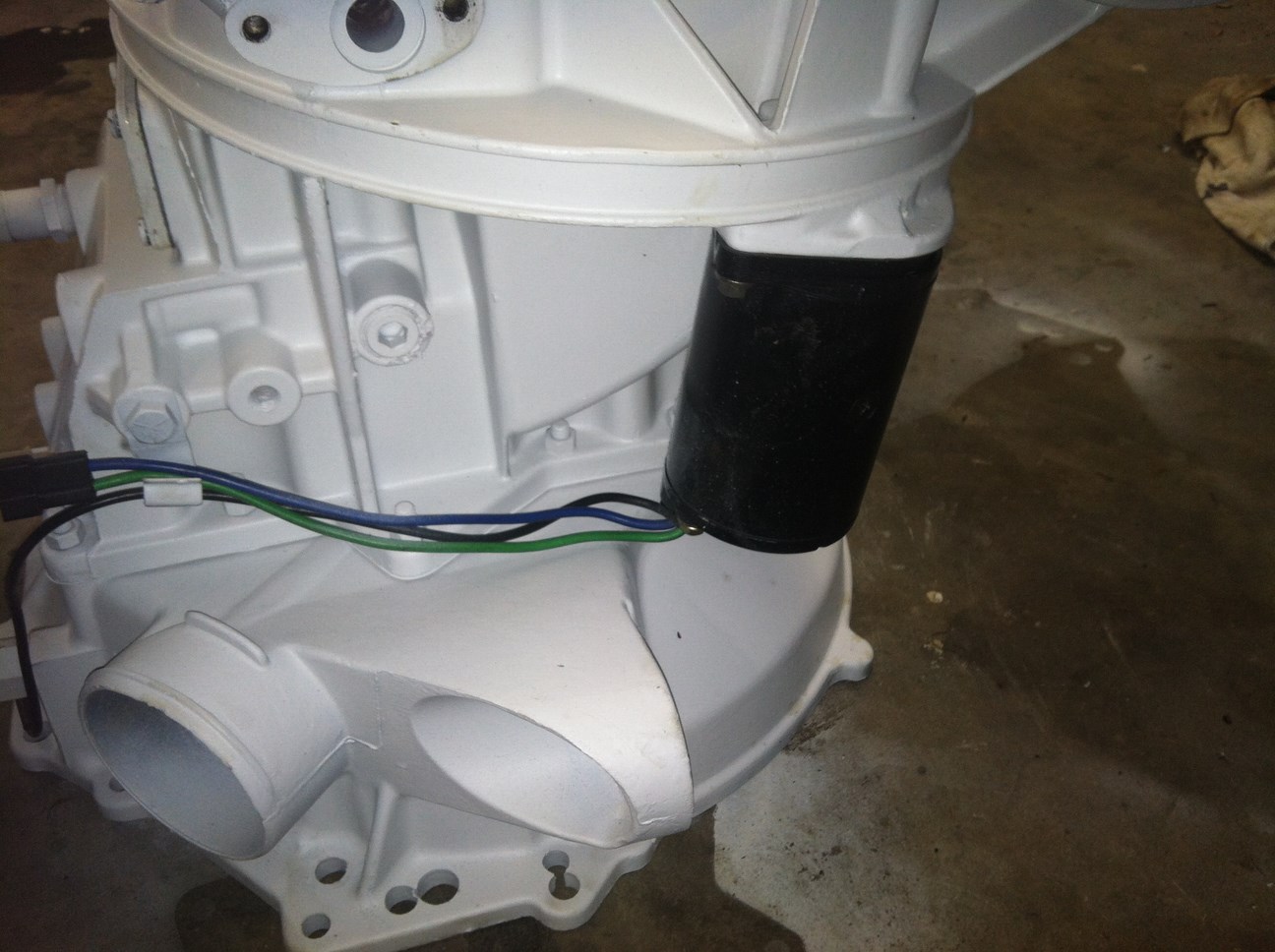

new tilt motor

The 800 has a shield on the ball gear

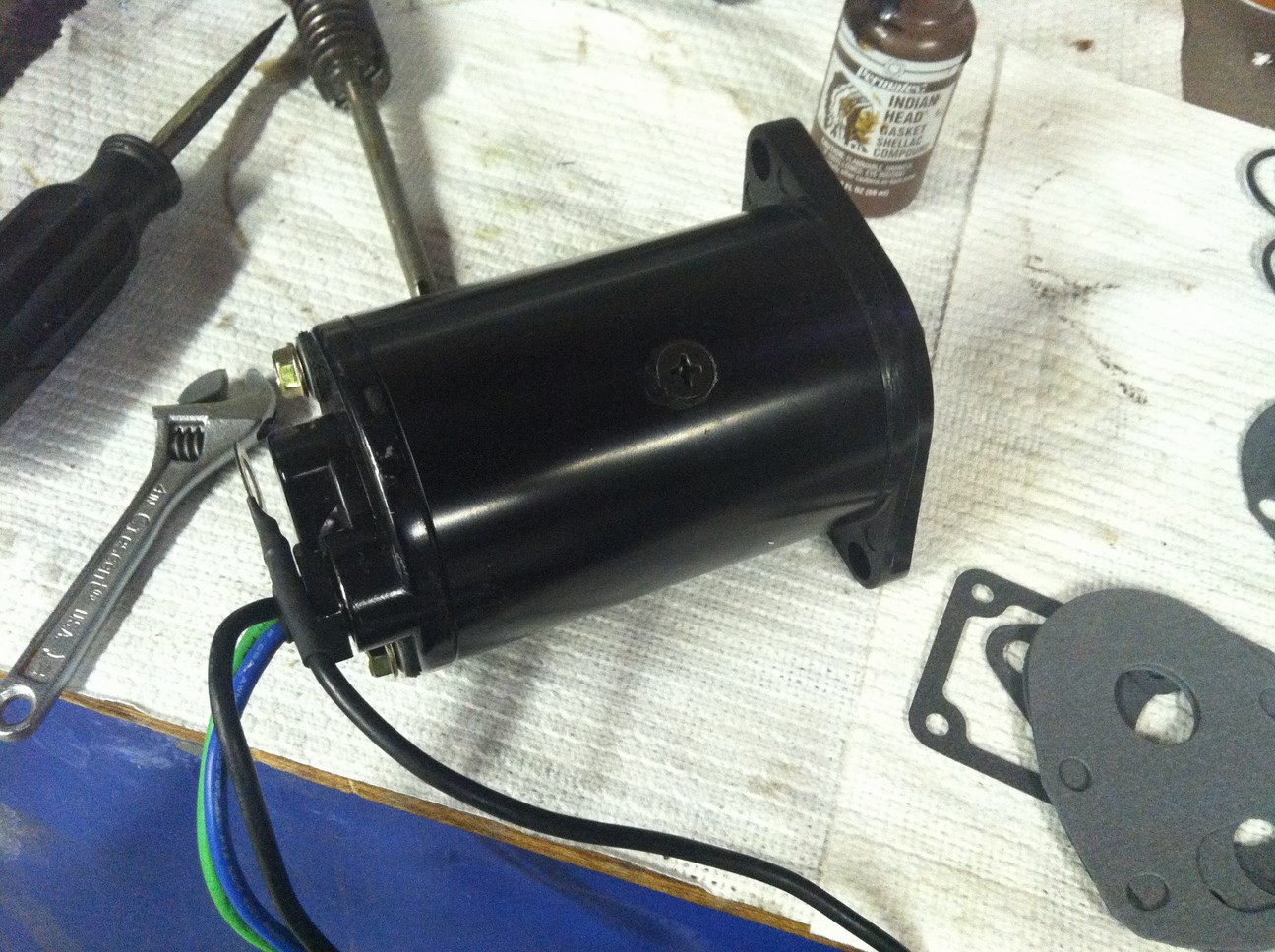

new trim motor mounted

Be sure to tap ever hole.

New anode

Please Log in to join the conversation.

Re:1964 Johnson Deluxe Resto-Mod 4 years 1 month ago #90374

  • agleason
  • agleason's Avatar Topic Author
  • Offline
  • Expert Boarder
  • Expert Boarder
  • Posts: 314
  • Karma: 25
  • Thank you received: 1

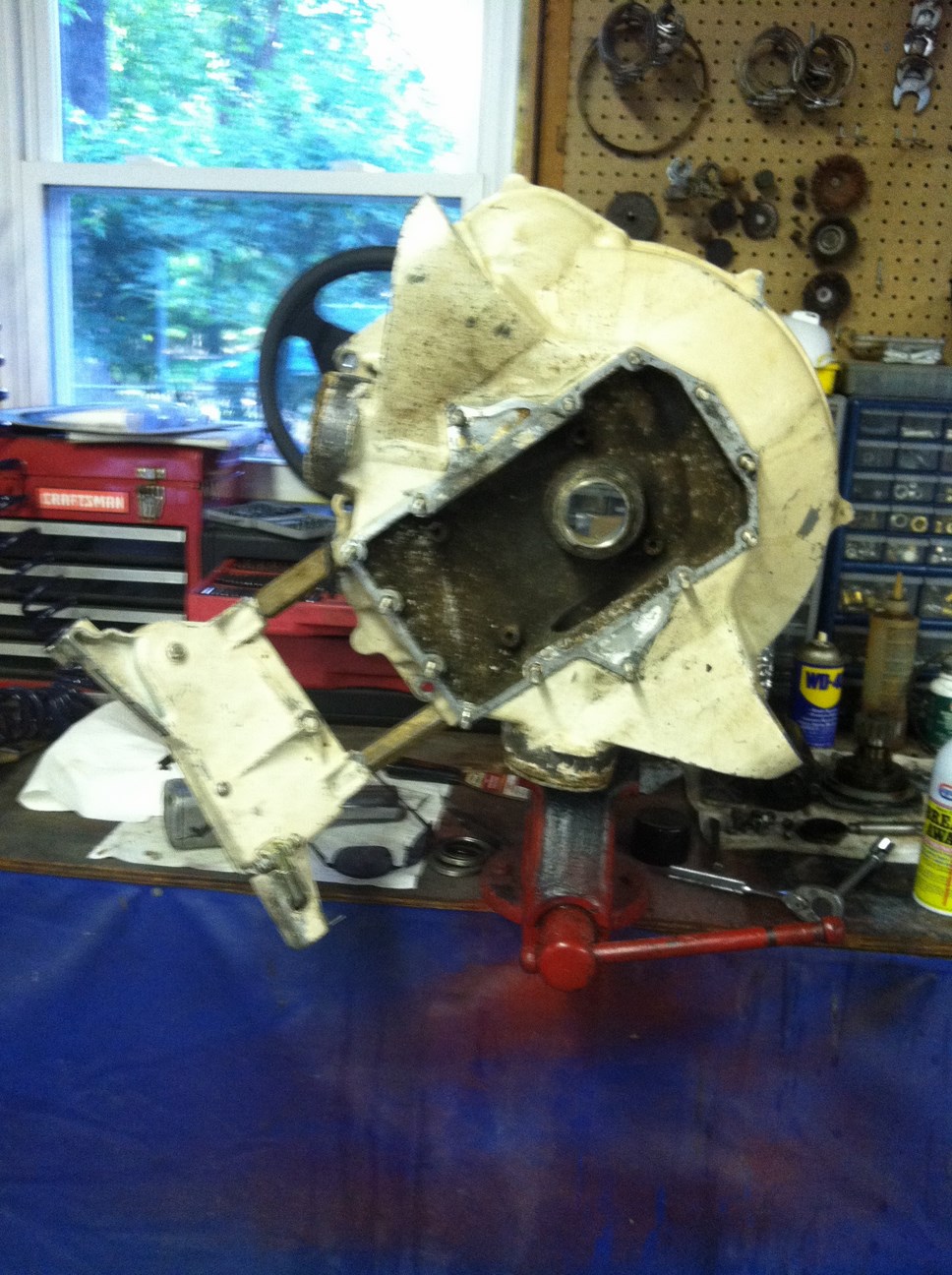

Stringer work continues. Regrettably I didn't take any pictures of me rebuilding the upper gear housing. This is the heart and soul of a Stringer and where most problems occur.

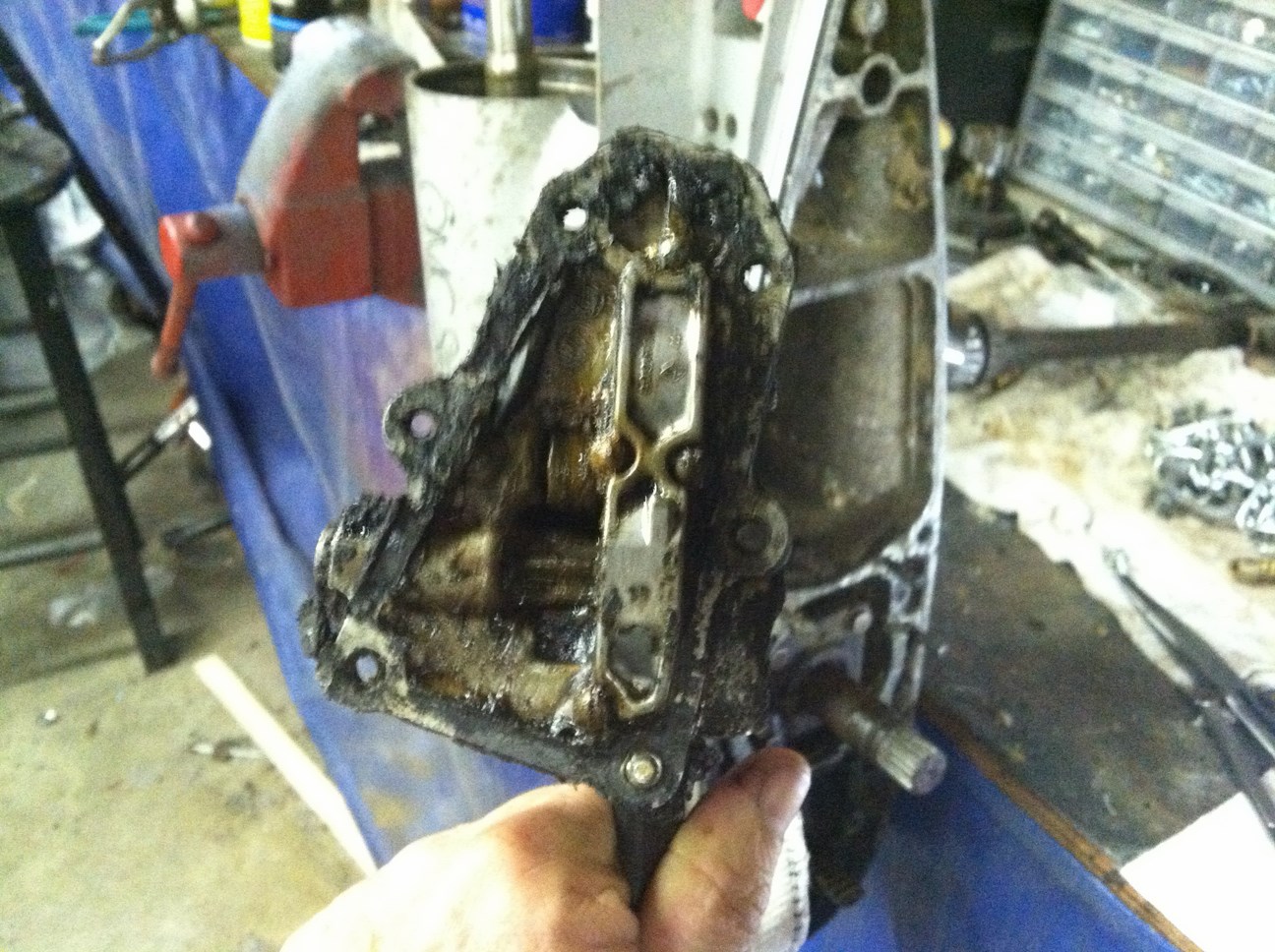

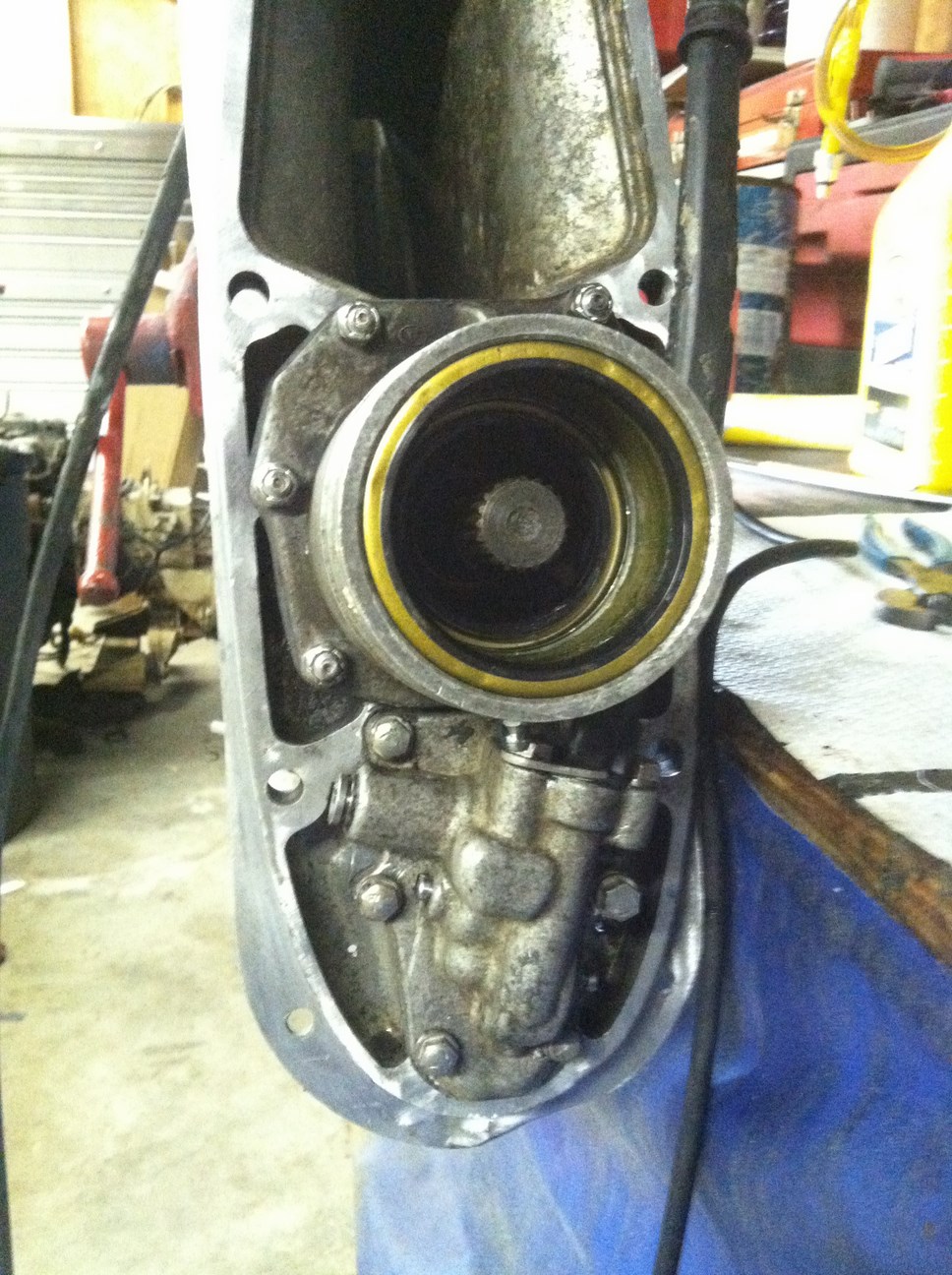

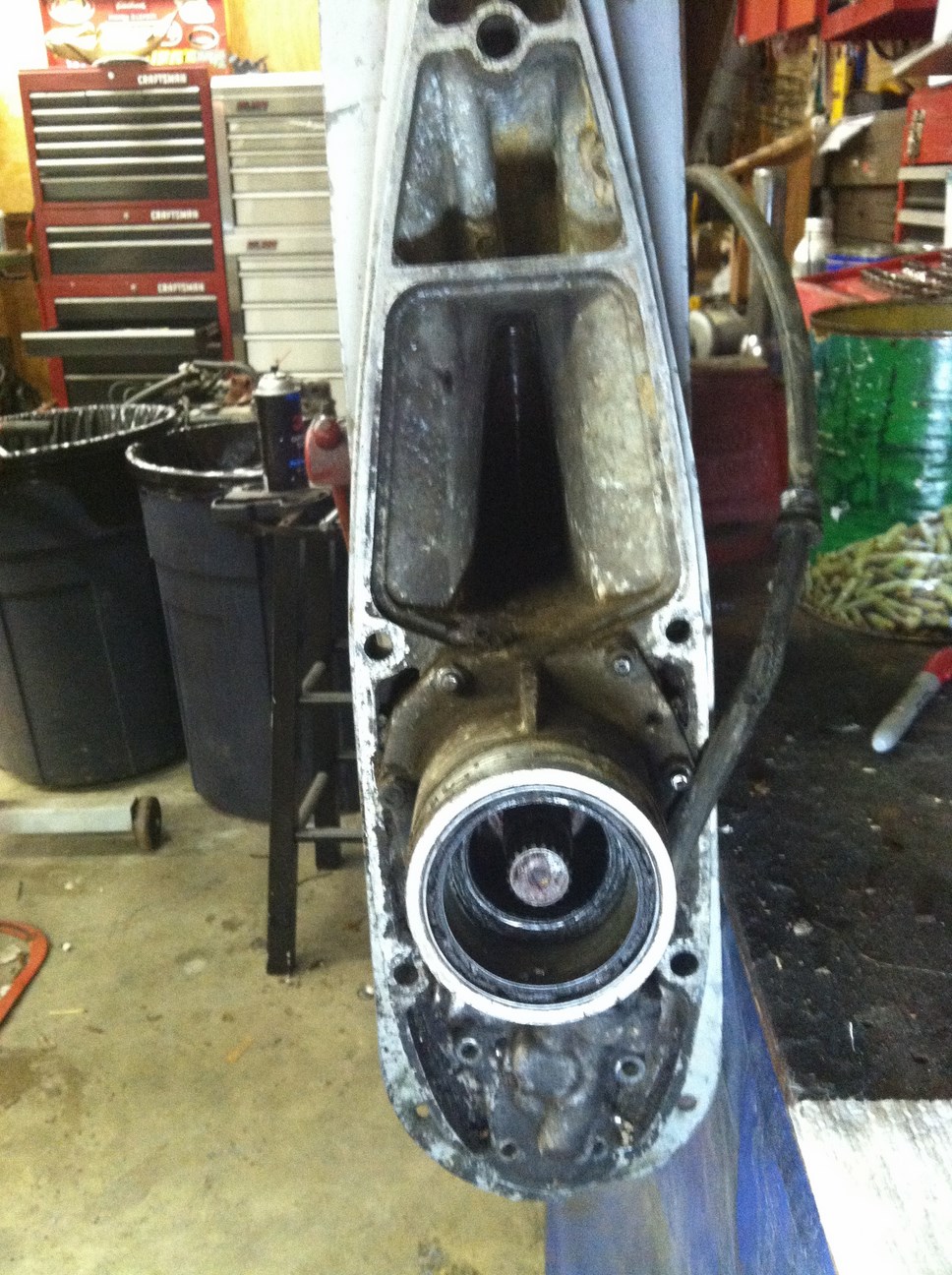

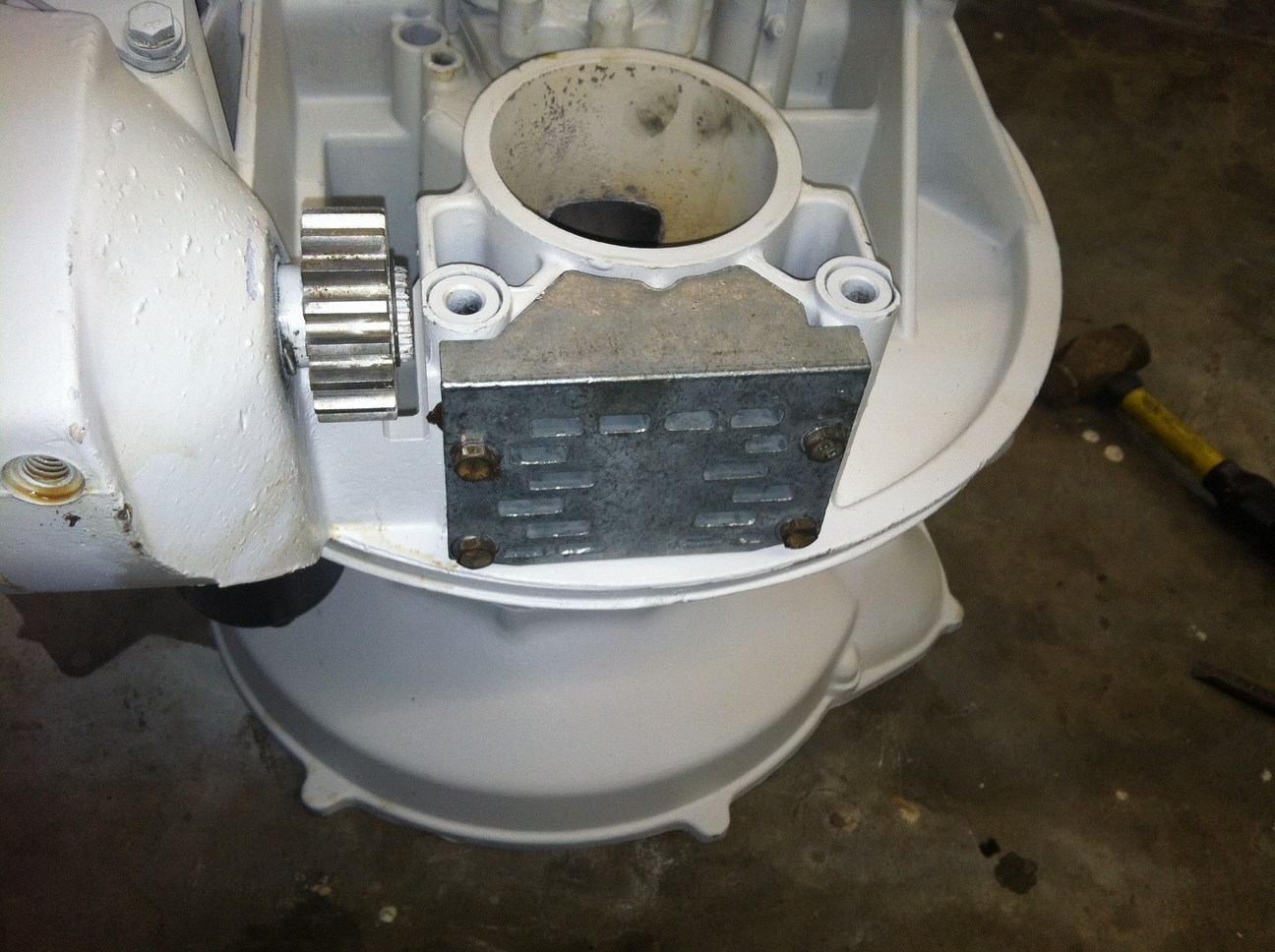

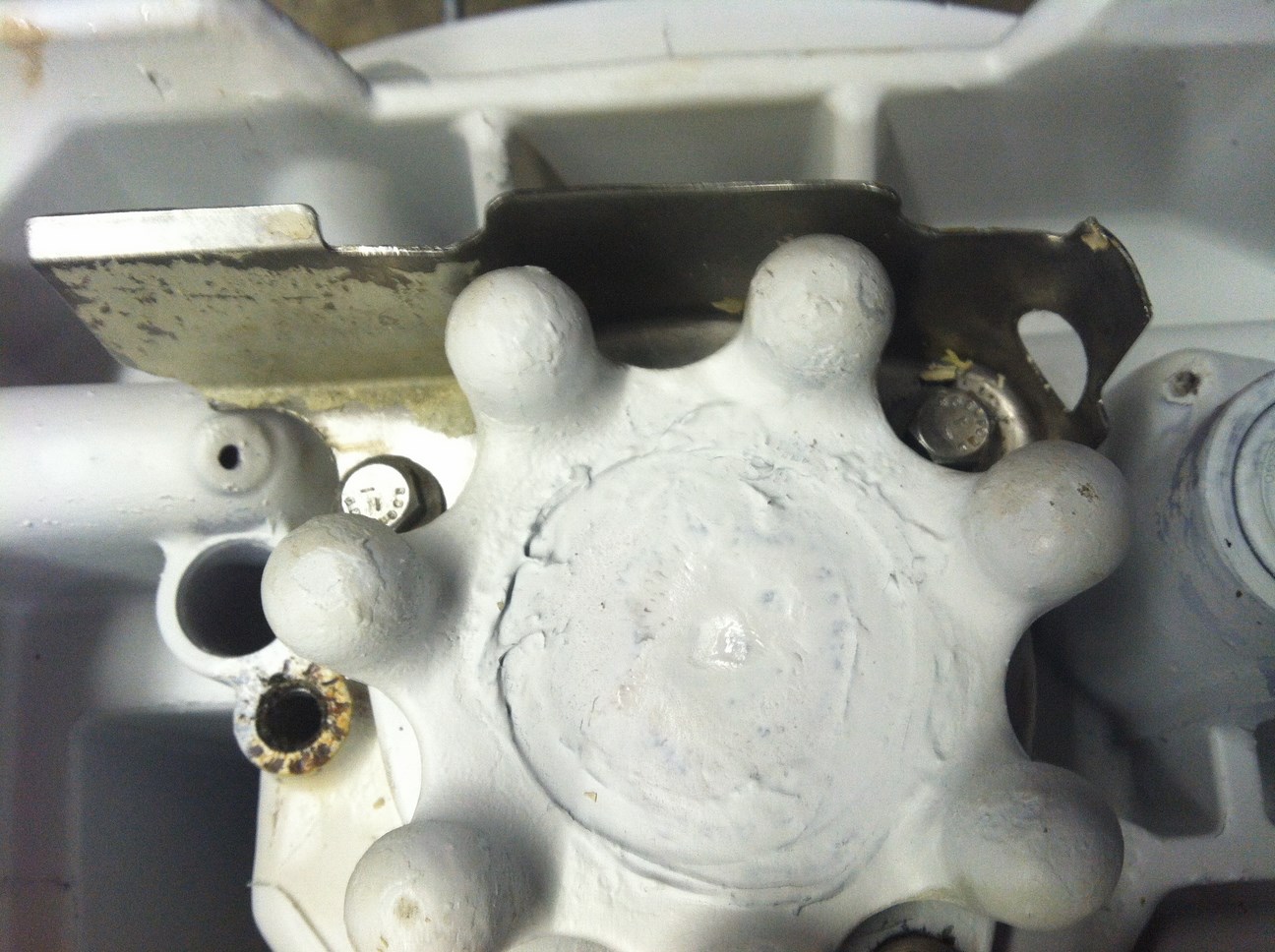

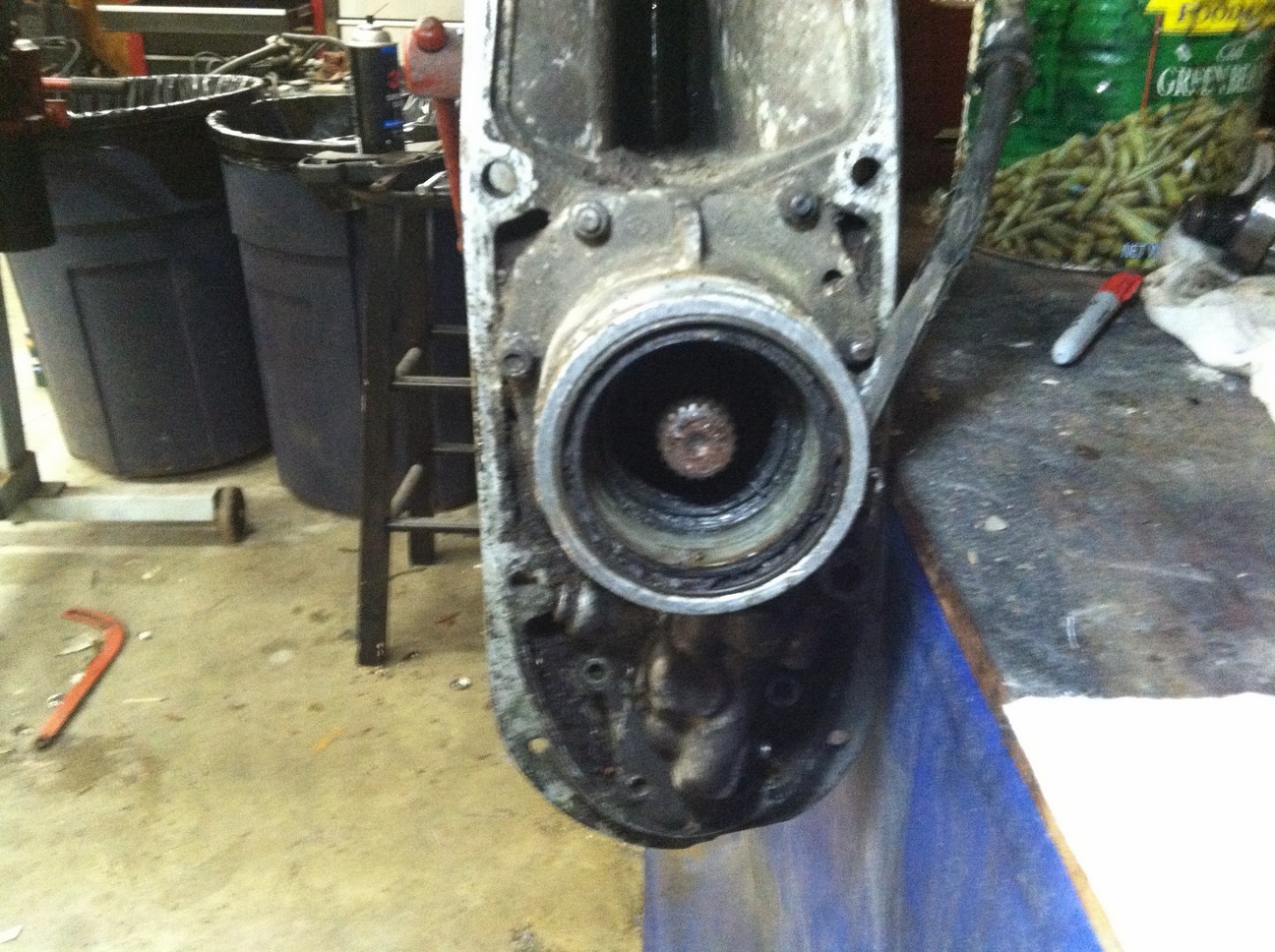

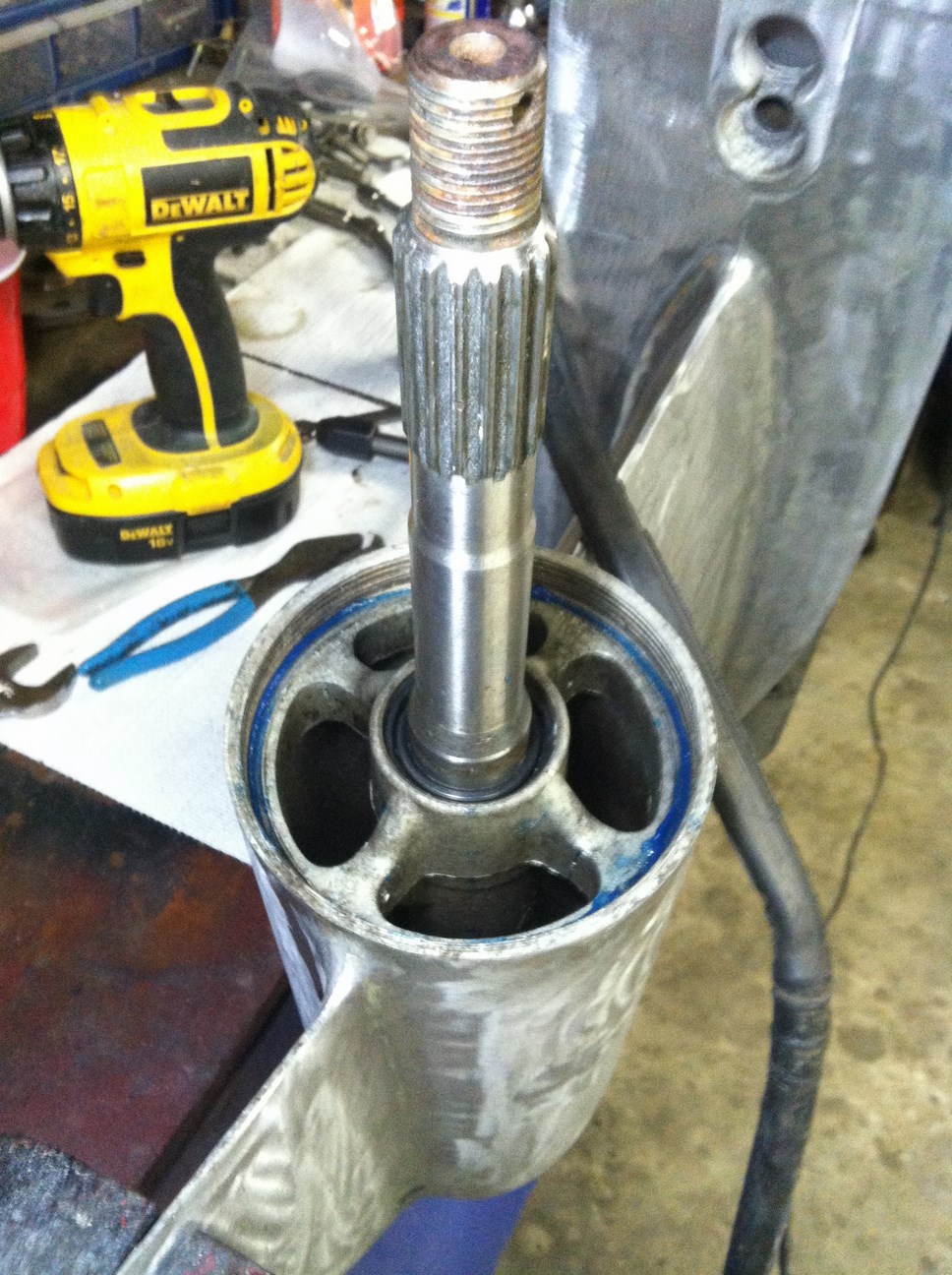

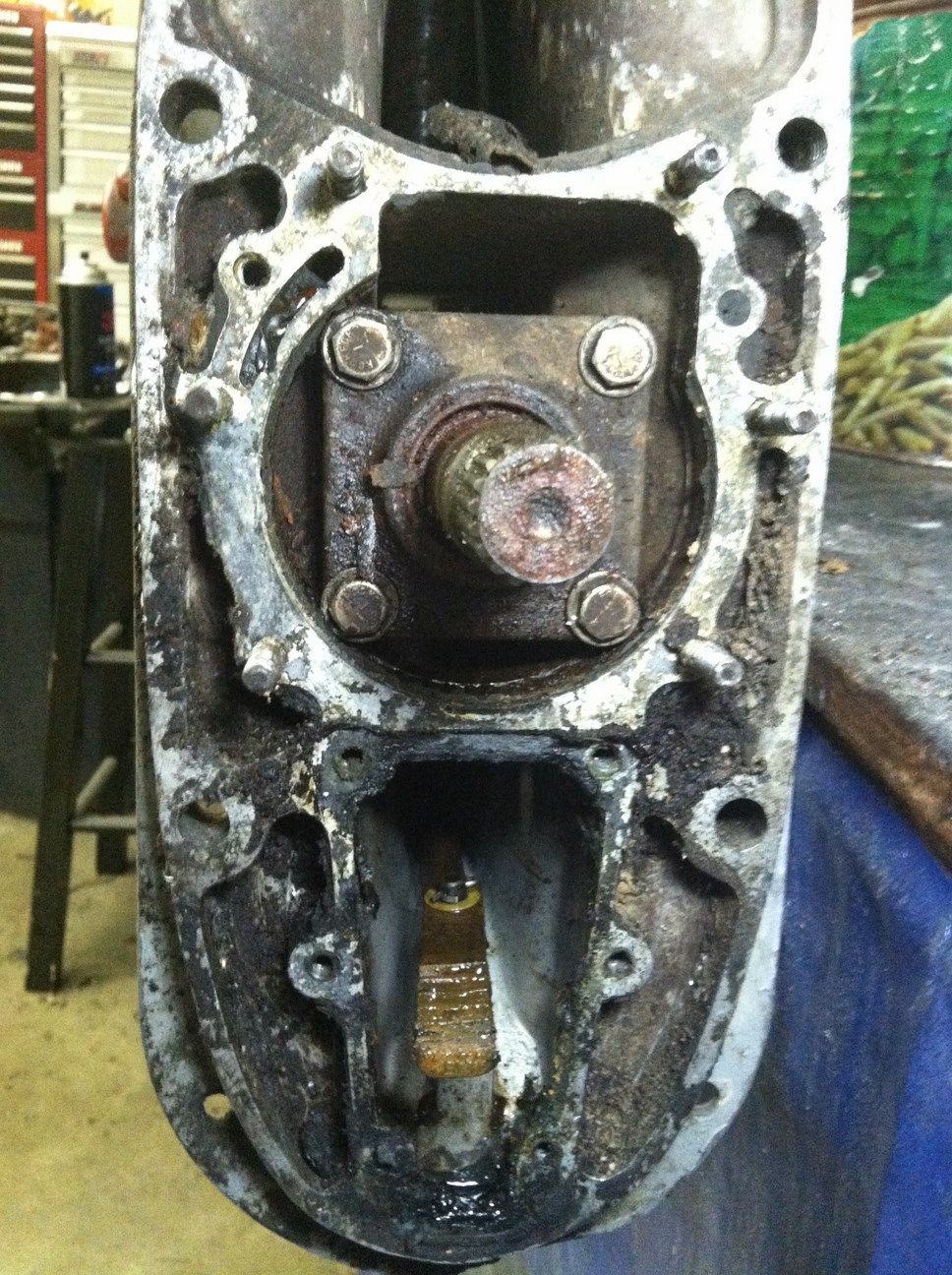

This little gear housing contains the steering, shifter cable, exhaust, cooling water, water pump, 3 shafts, and numerous bearing and seals.

If you neglect or misuse a Stringer the damage usually begins here.





Attachments:

Please Log in to join the conversation.

Re:1964 Johnson Deluxe Resto-Mod 4 years 1 month ago #90607

  • agleason
  • agleason's Avatar Topic Author
  • Offline
  • Expert Boarder
  • Expert Boarder
  • Posts: 314
  • Karma: 25
  • Thank you received: 1

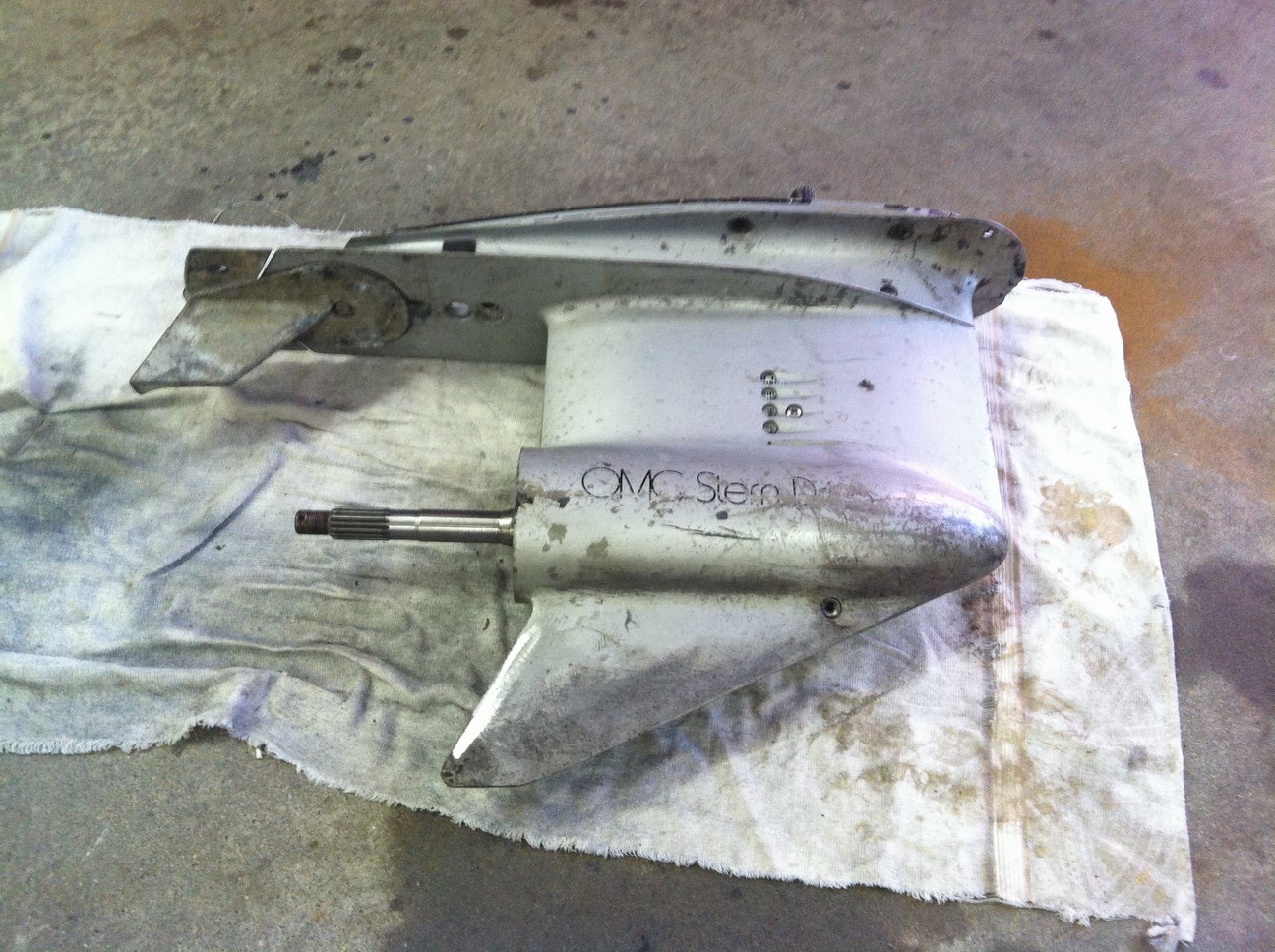

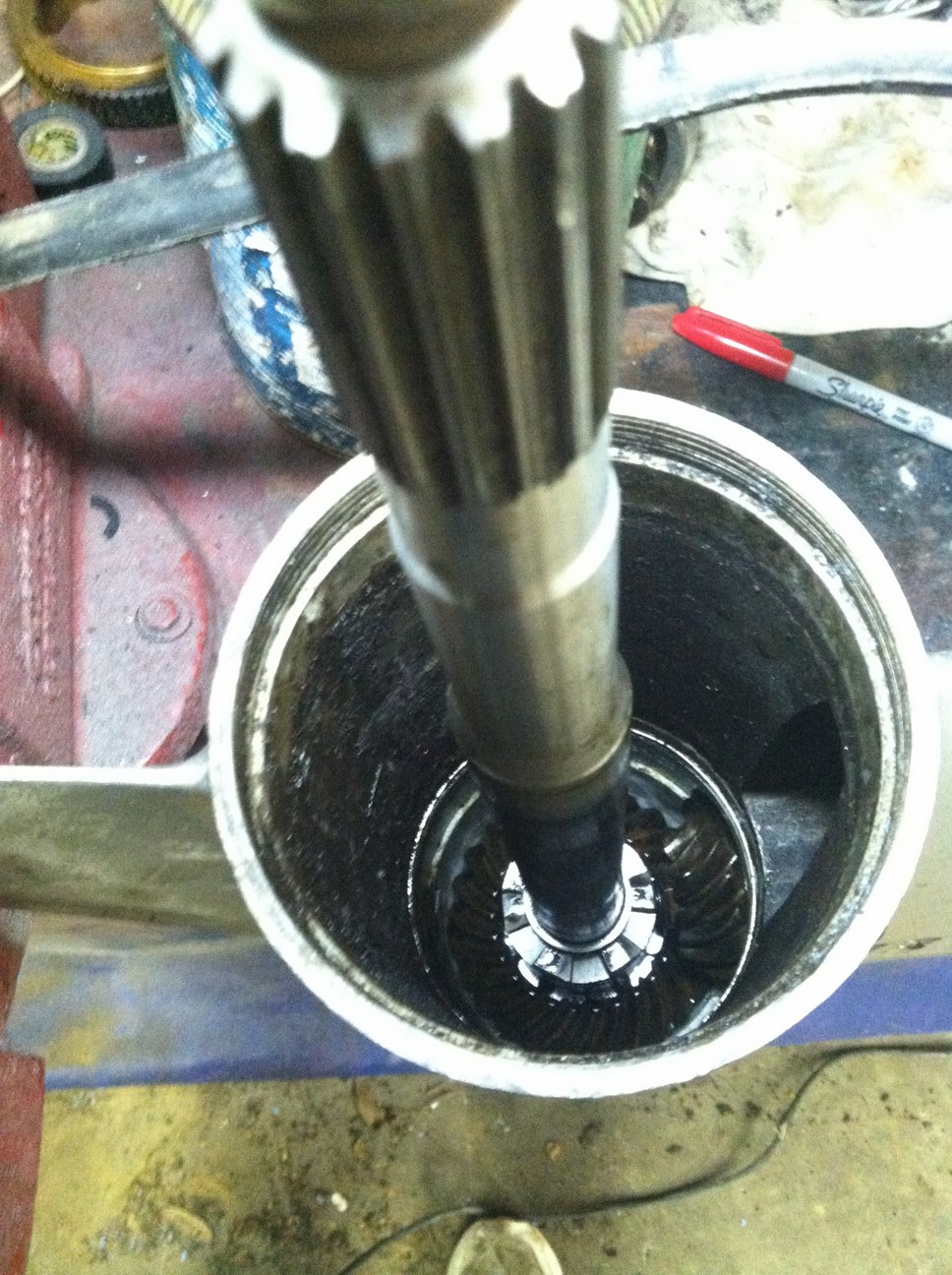

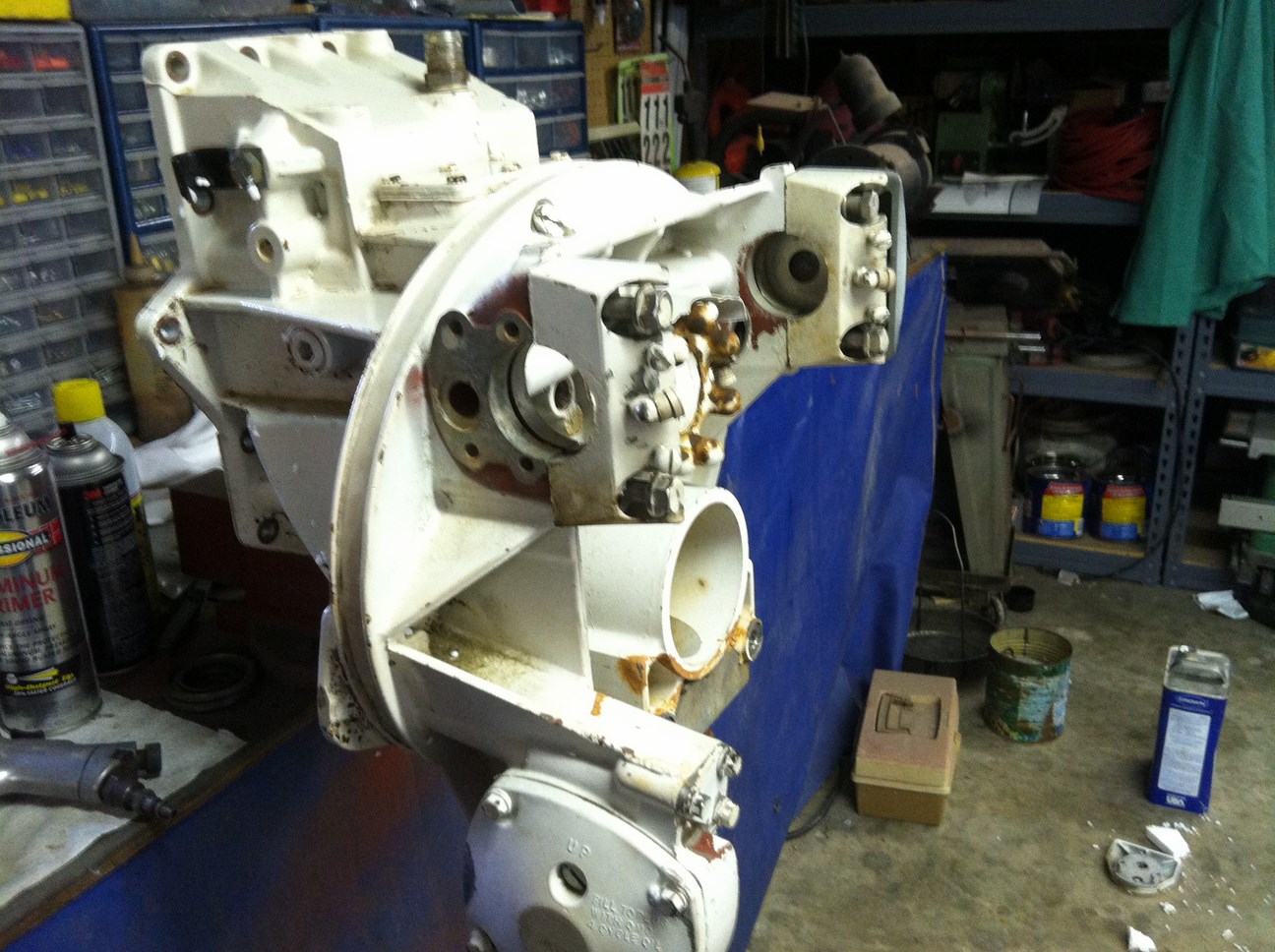

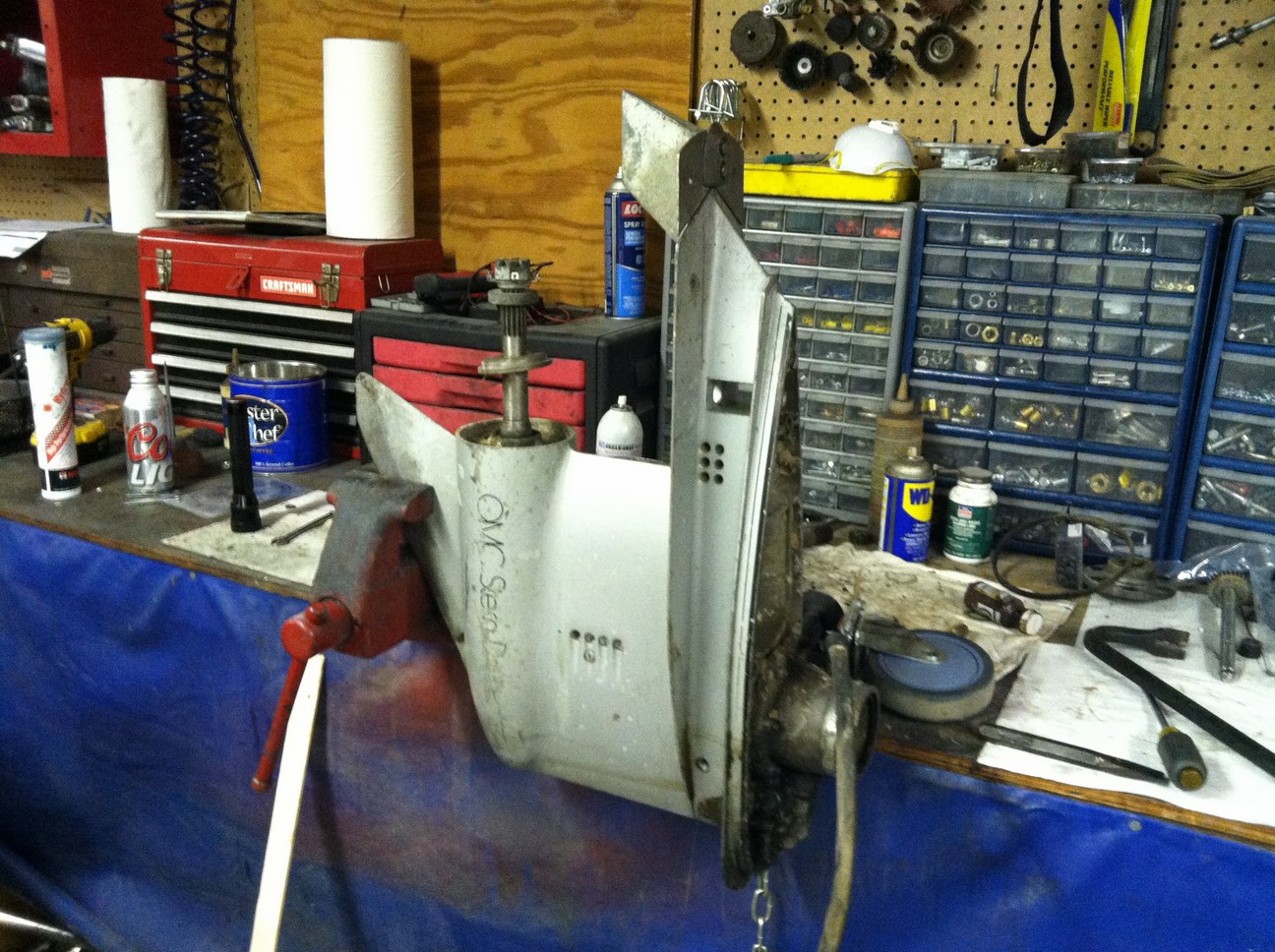

Update: the lower unit dis-assembly.

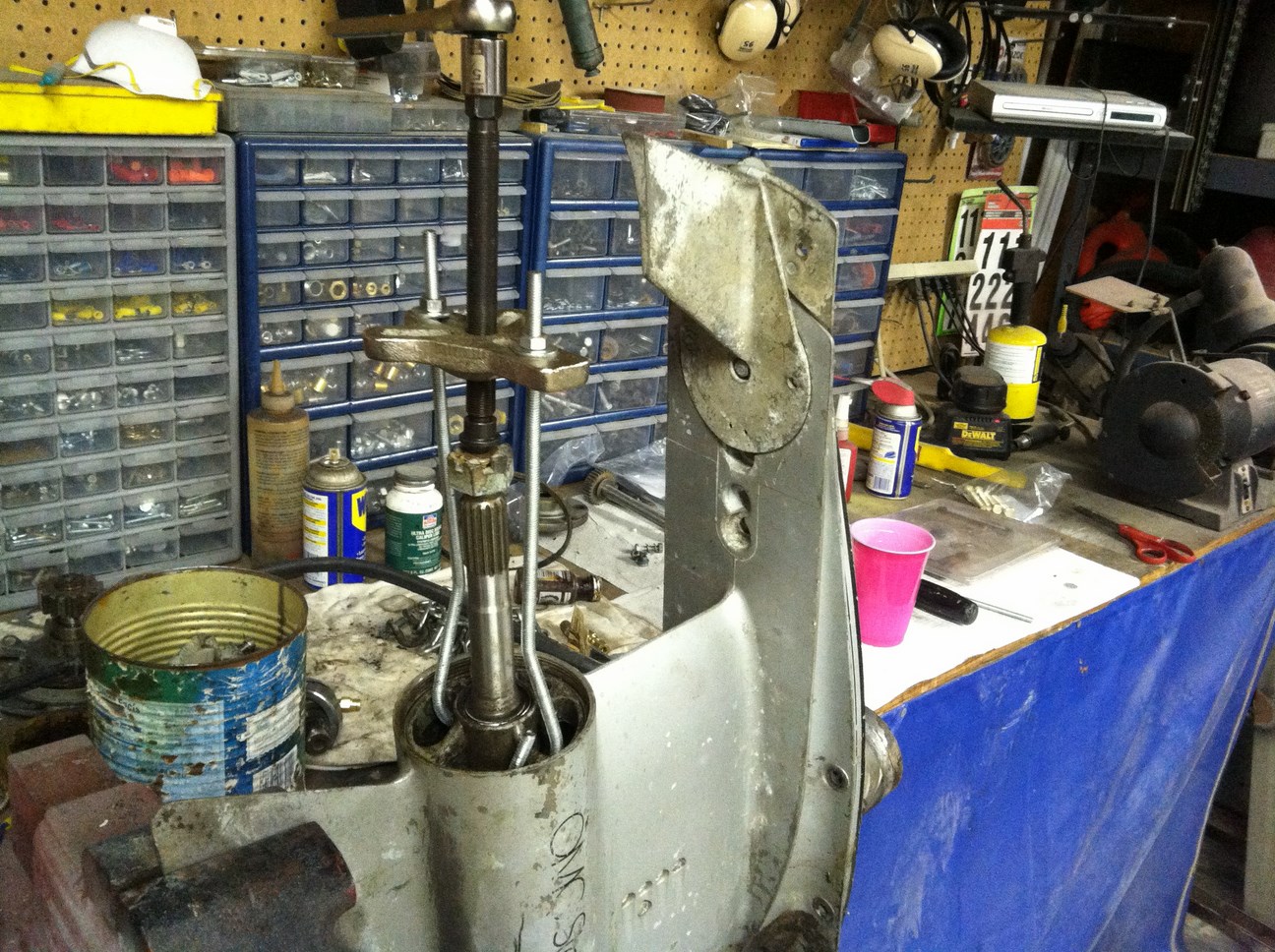

Andrew's special tool number 7

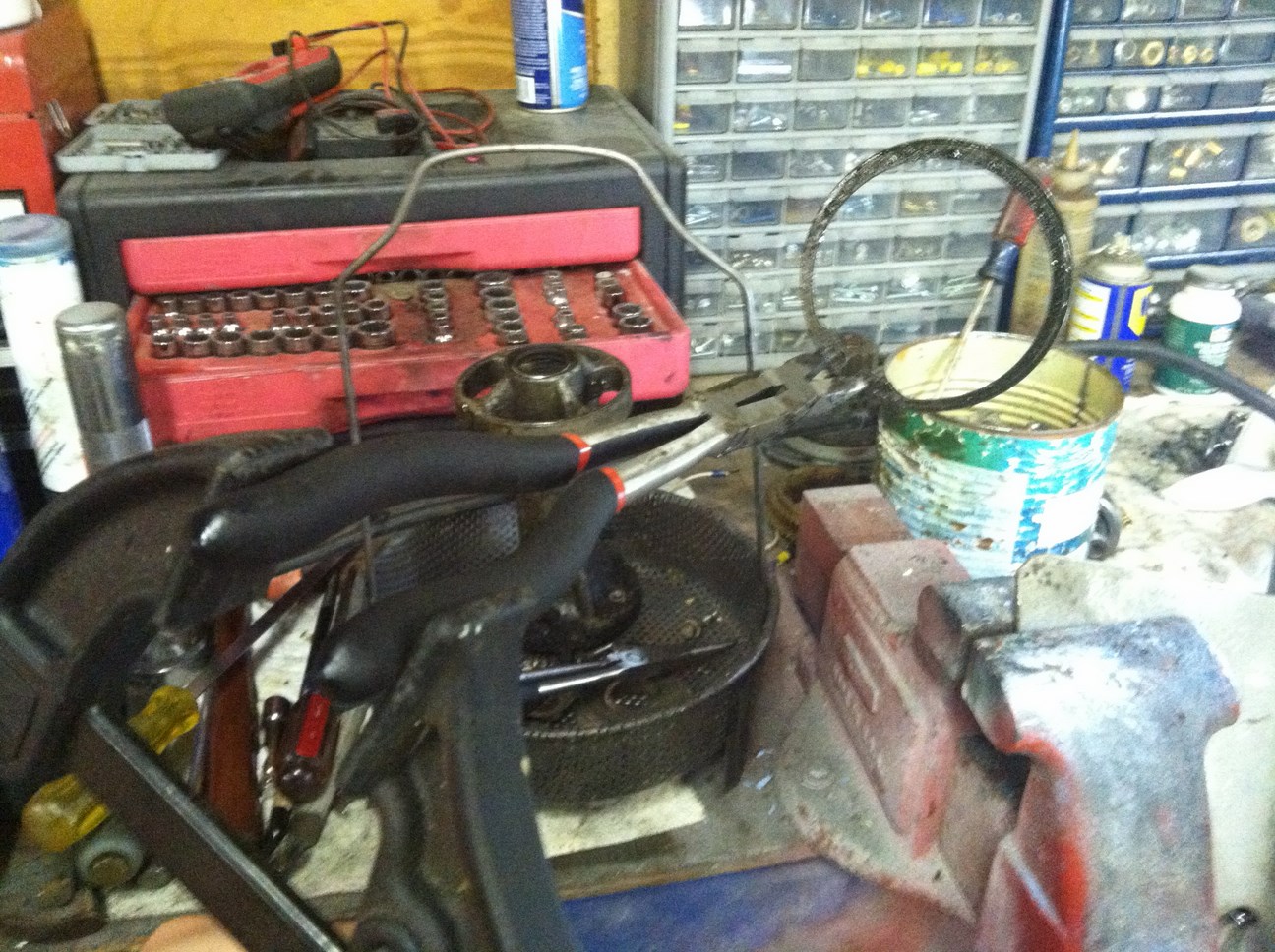

The tightest snap ring known to man!

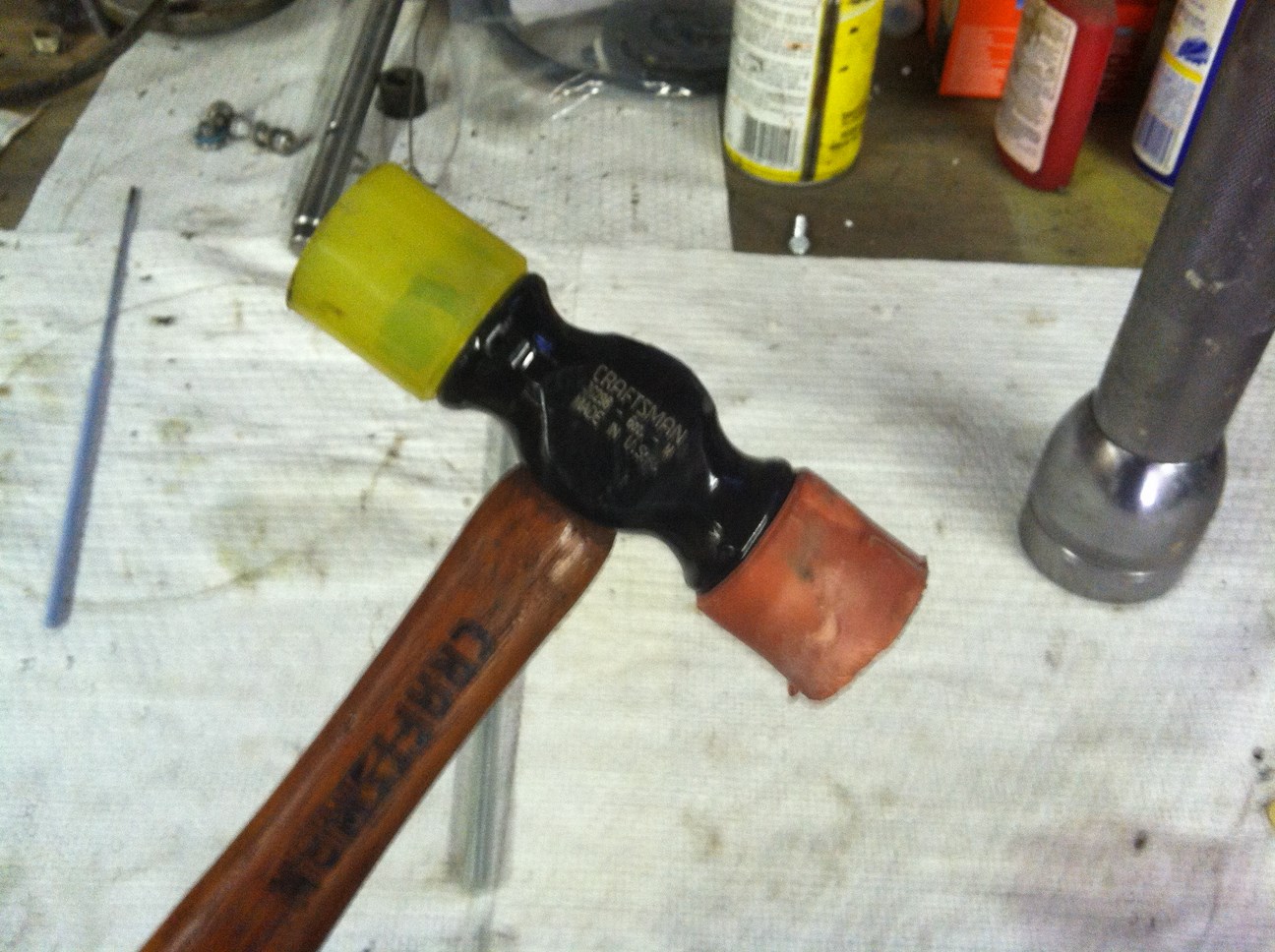

The only approved hammer for Stringer repair!

Please Log in to join the conversation.

Re:1964 Johnson Deluxe Resto-Mod 4 years 1 month ago #90776

  • agleason
  • agleason's Avatar Topic Author
  • Offline
  • Expert Boarder
  • Expert Boarder
  • Posts: 314
  • Karma: 25
  • Thank you received: 1

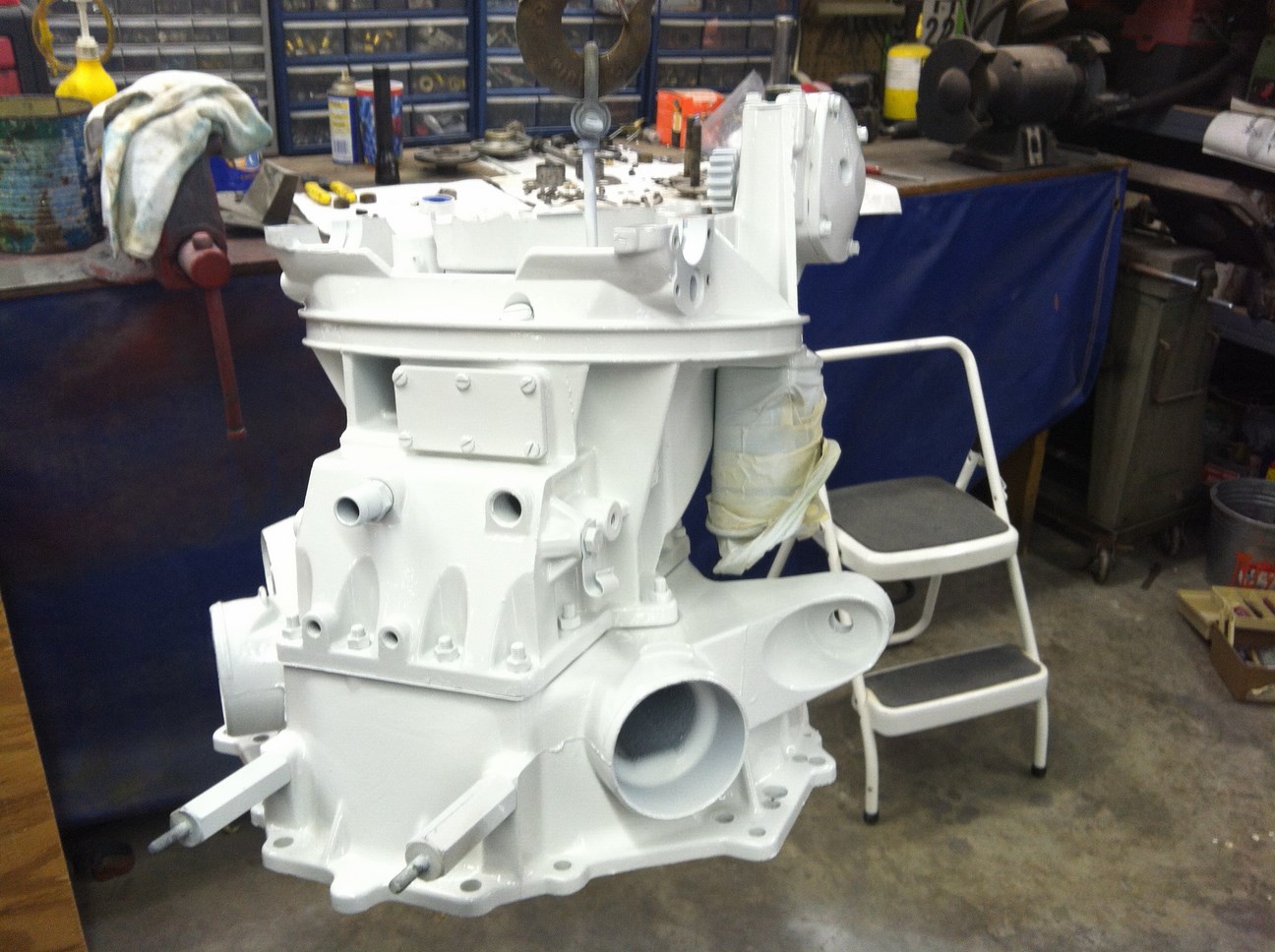

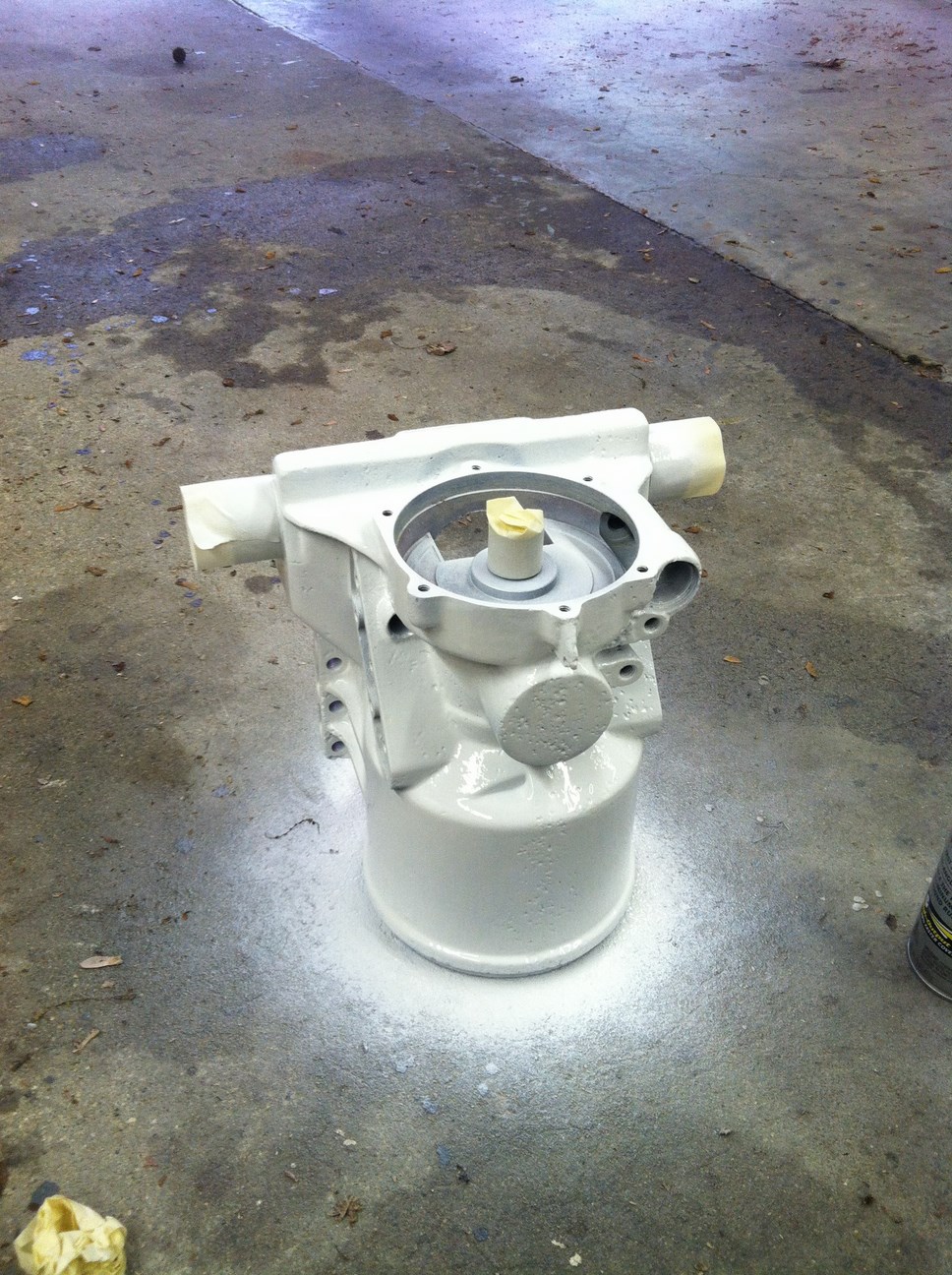

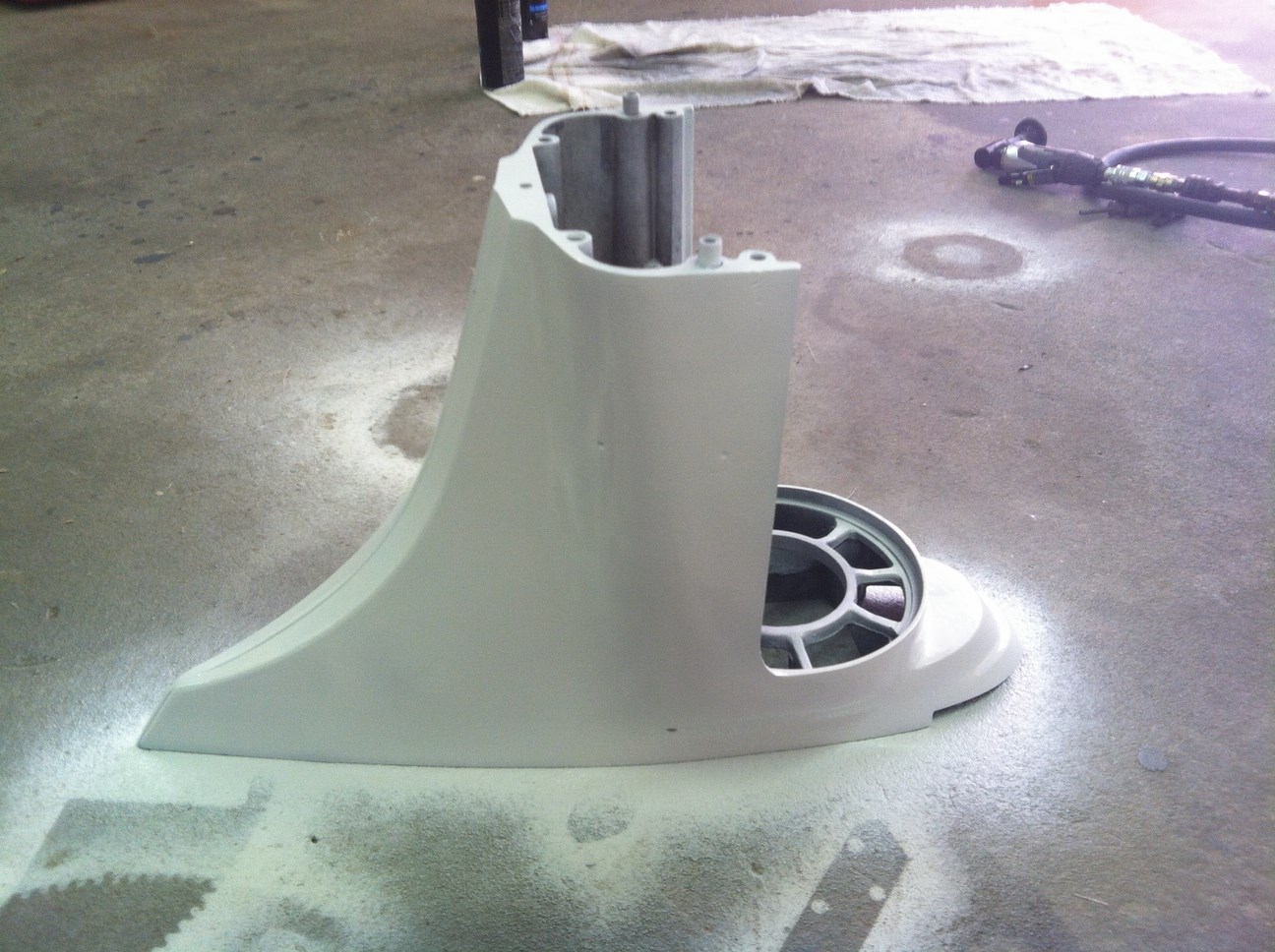

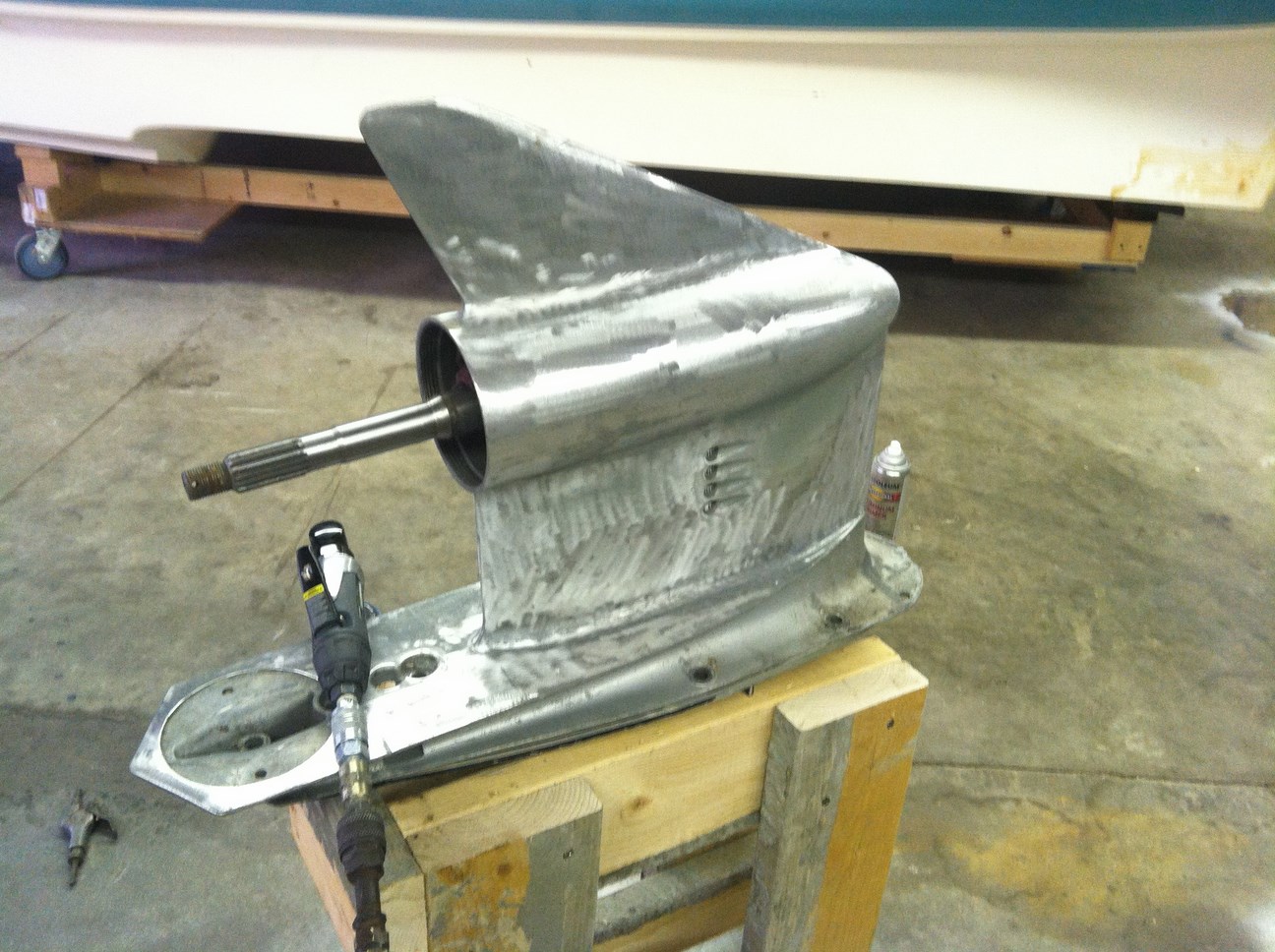

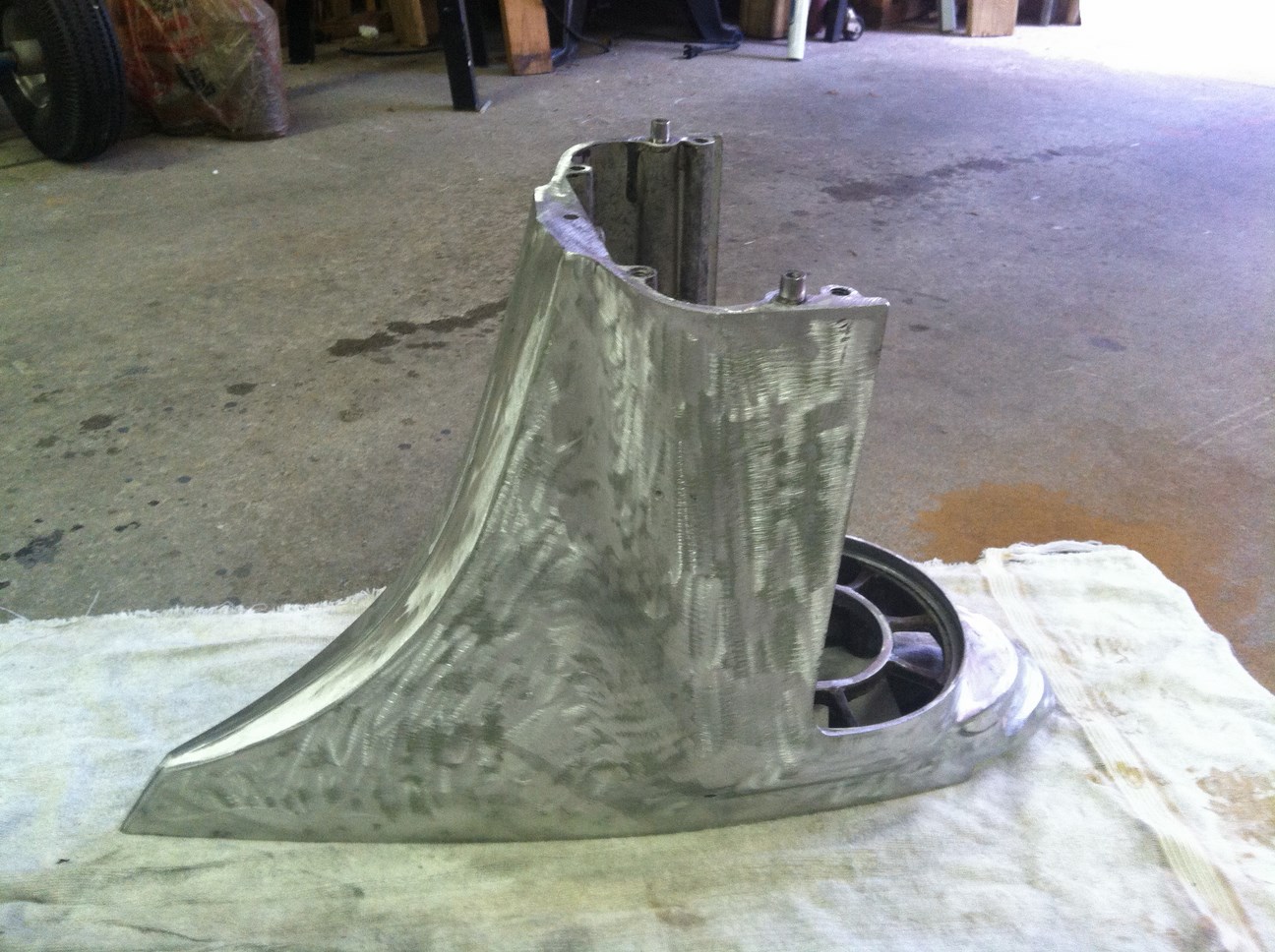

Update: Cleaned and primed the exhaust housing. Assembled with the upper gear housing.







Attachments:

Please Log in to join the conversation.

Re:1964 Johnson Deluxe Resto-Mod 4 years 1 month ago #90777

  • agleason
  • agleason's Avatar Topic Author
  • Offline
  • Expert Boarder
  • Expert Boarder
  • Posts: 314
  • Karma: 25
  • Thank you received: 1
The lower gear case rebuild continues...

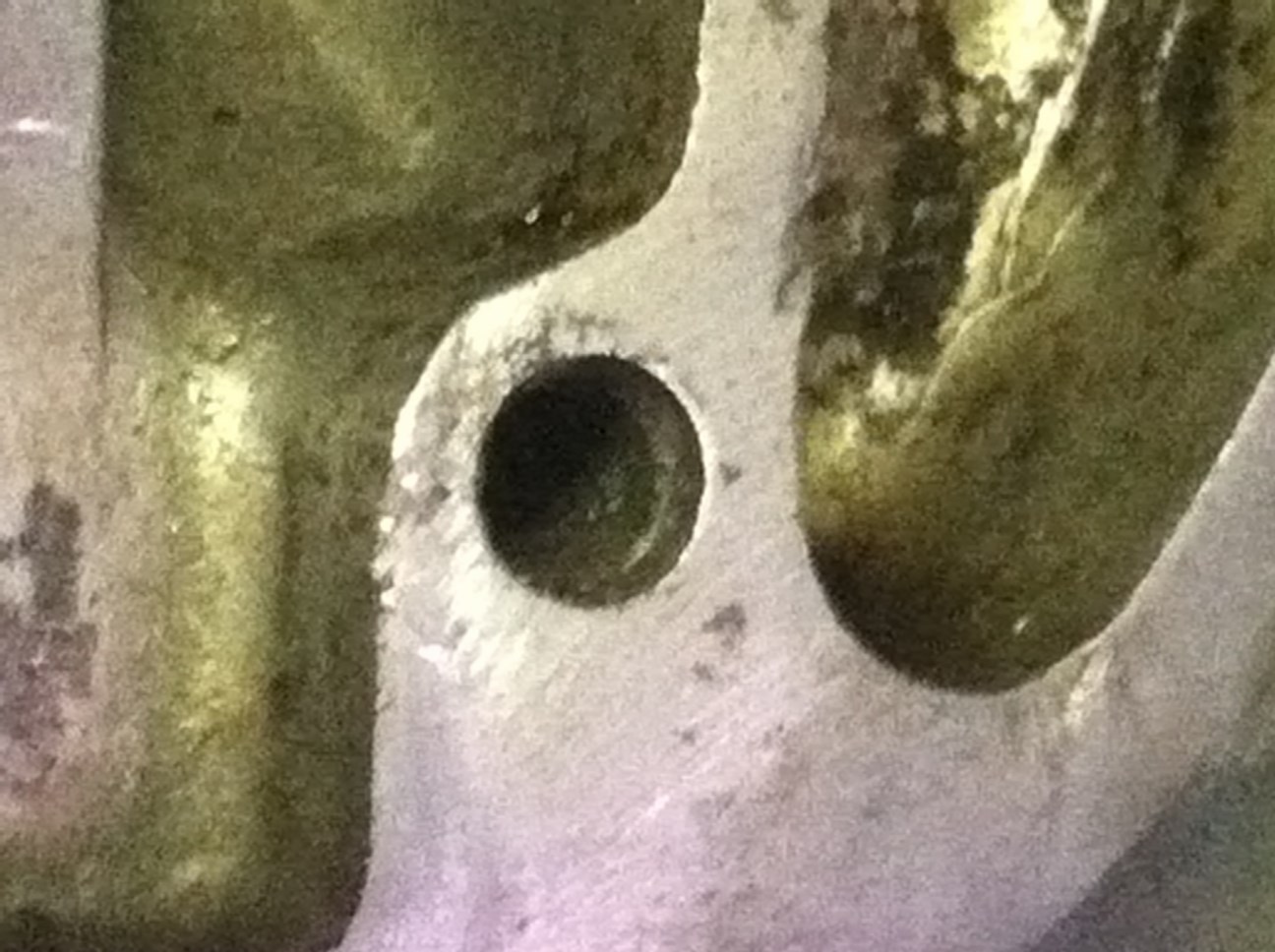

Stripped out threads

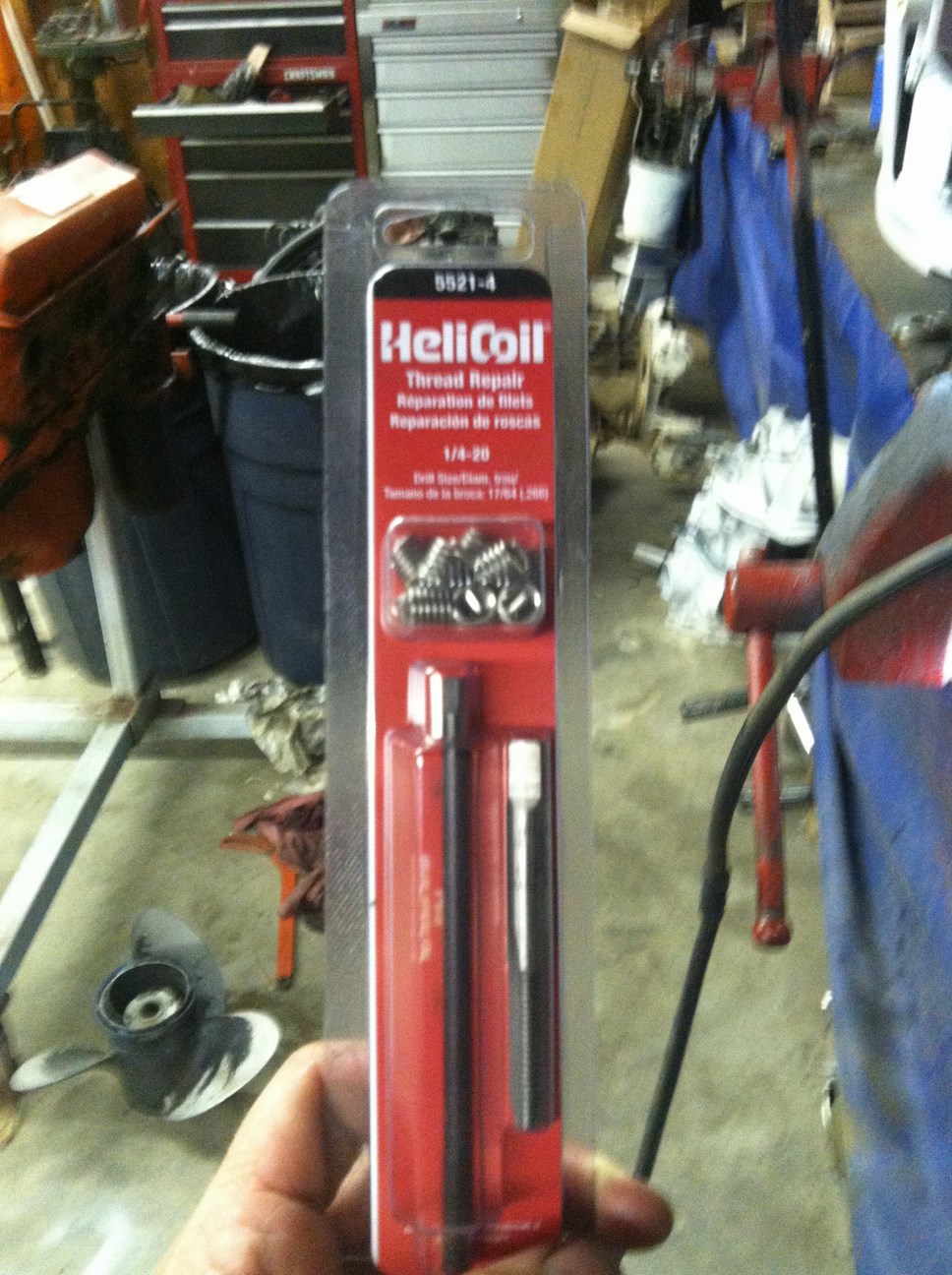

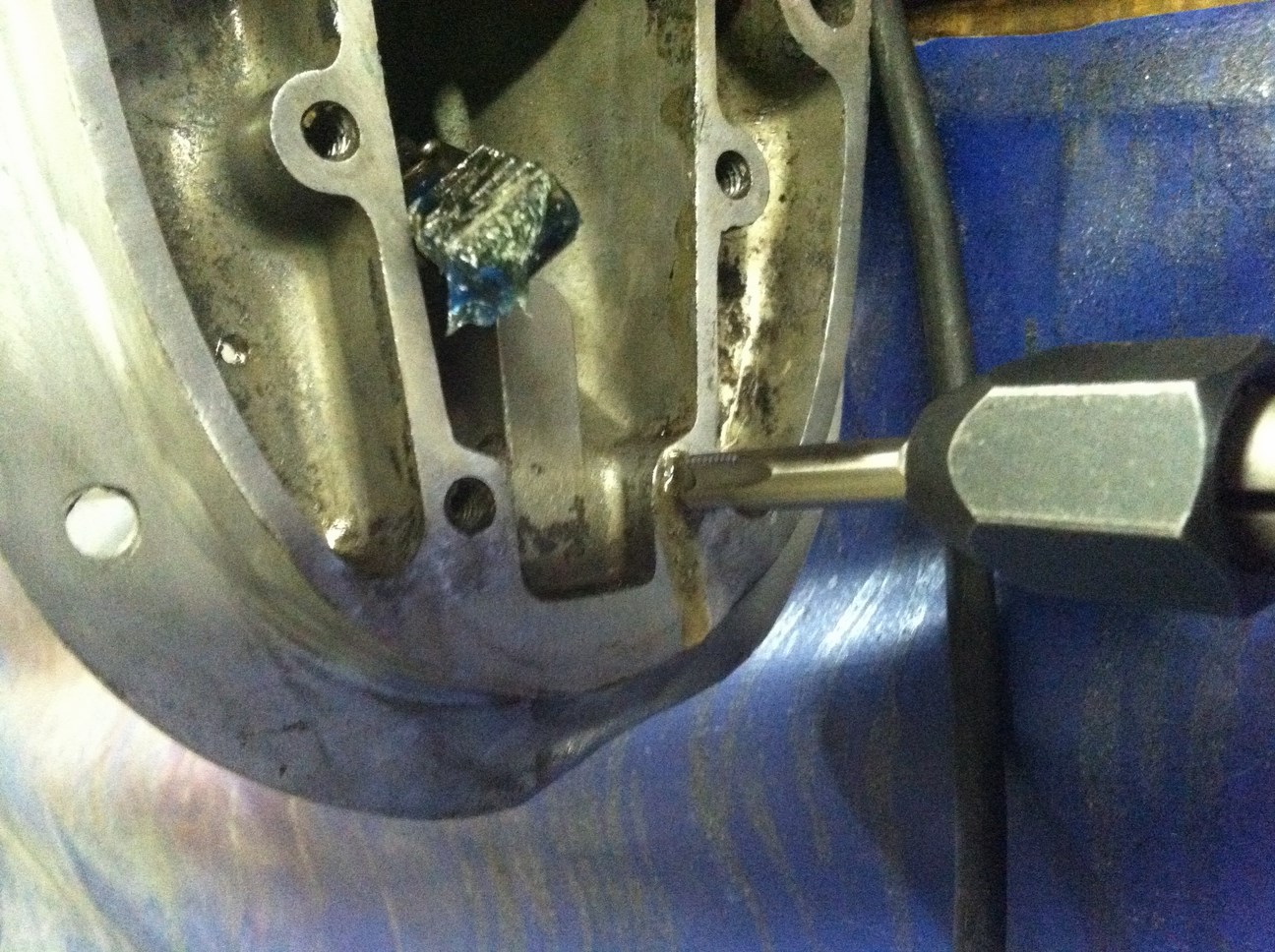

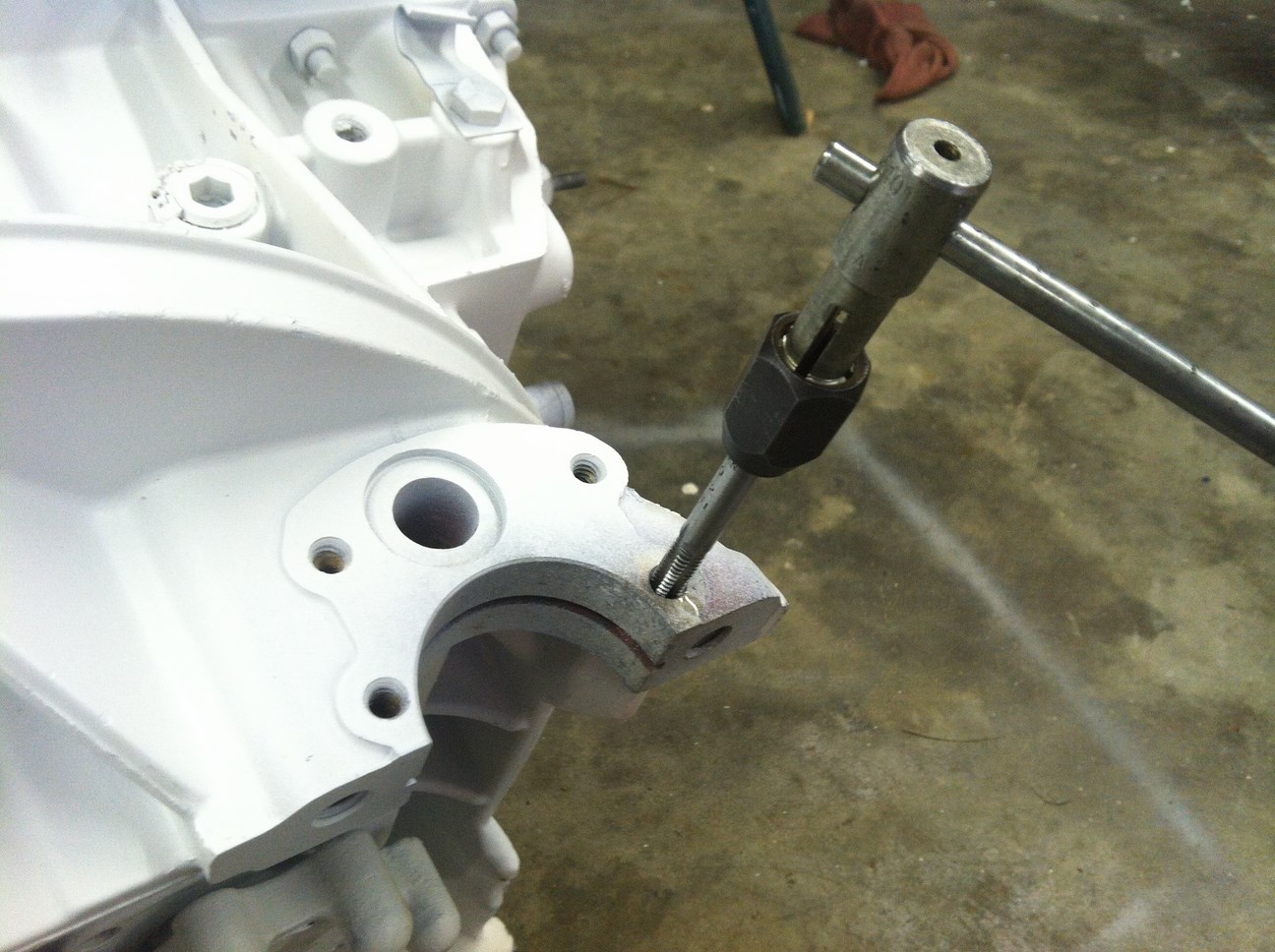

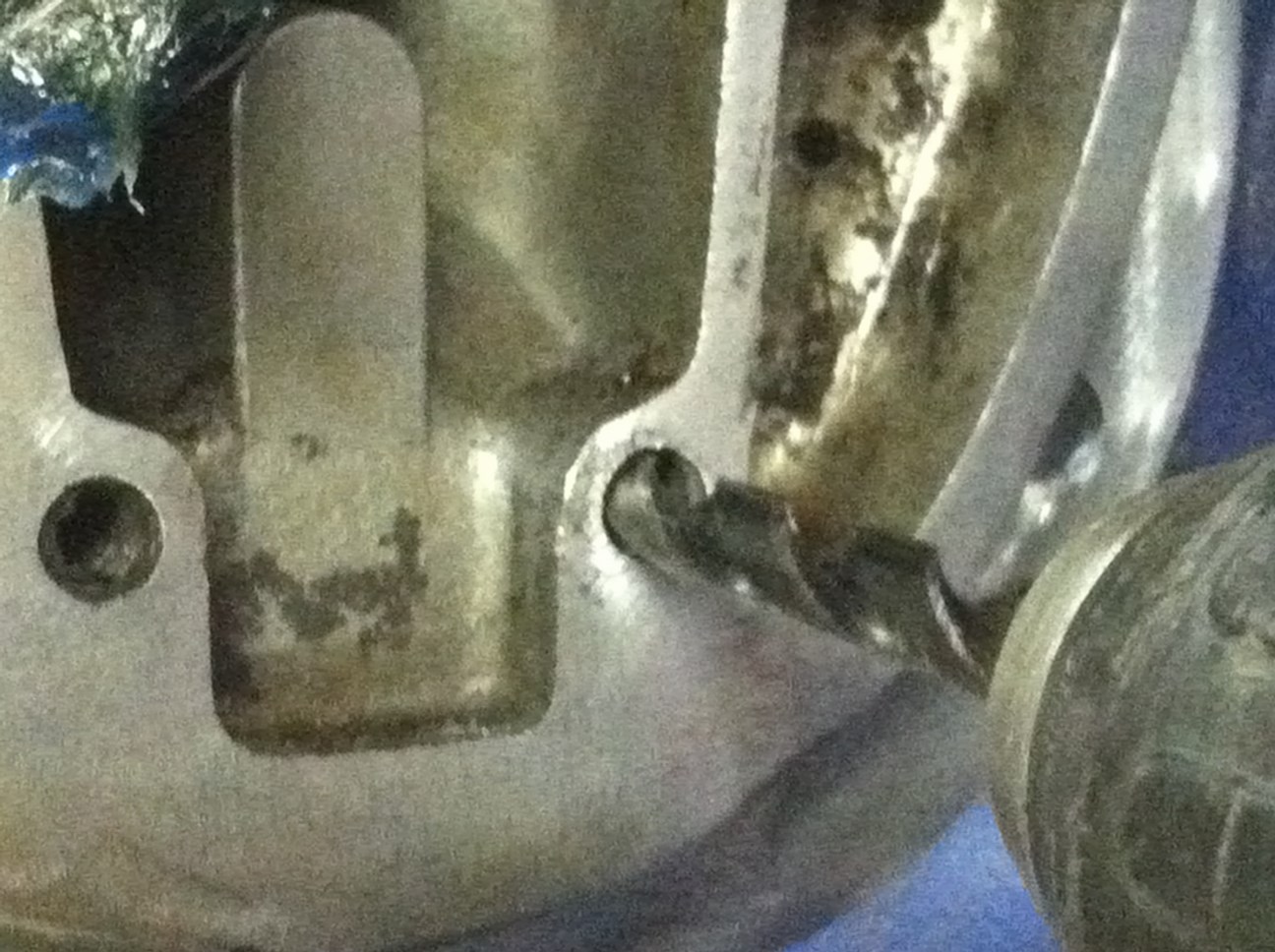

Drill to correct size for Heli-coil repair

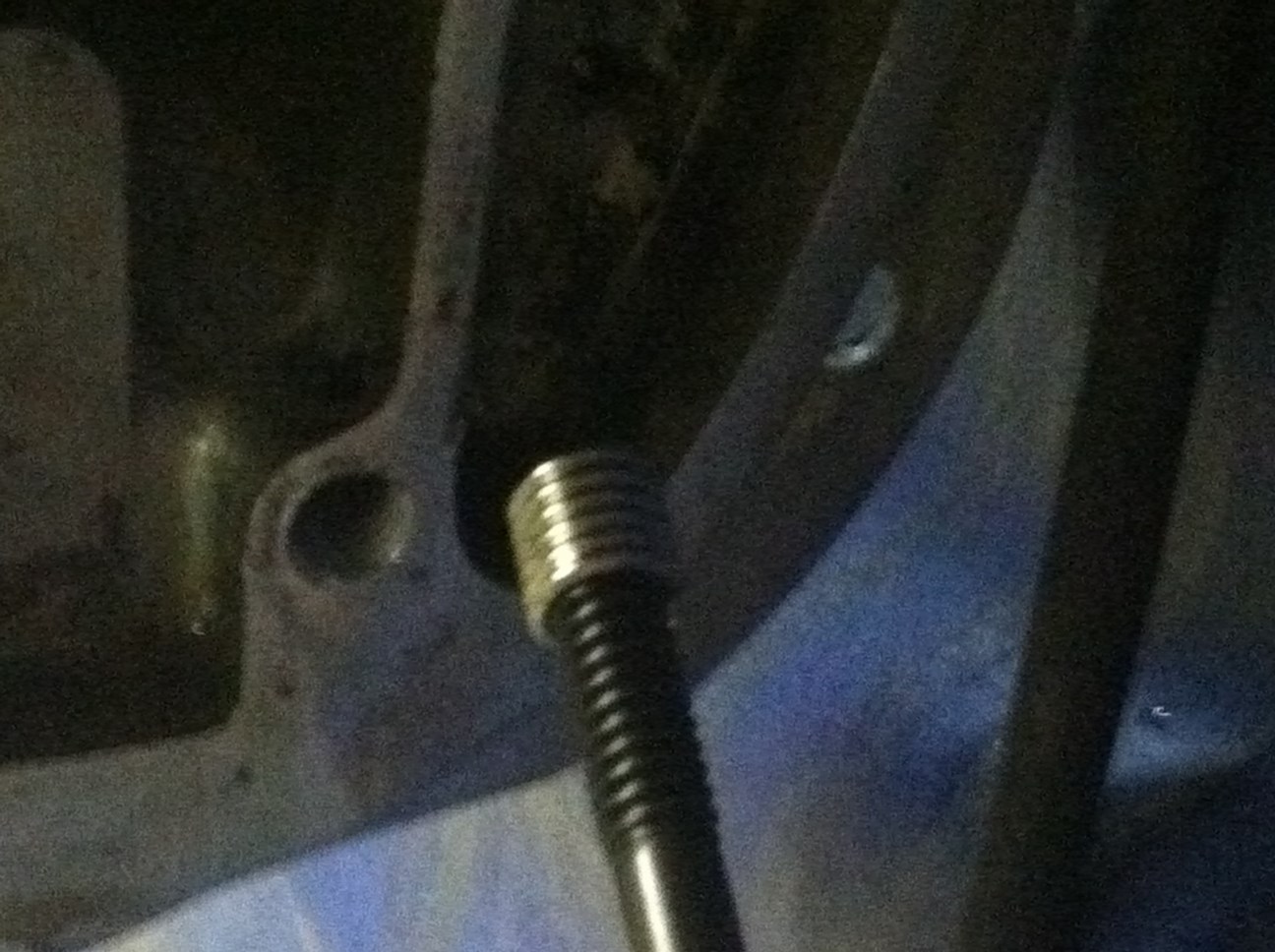

Tap out hole

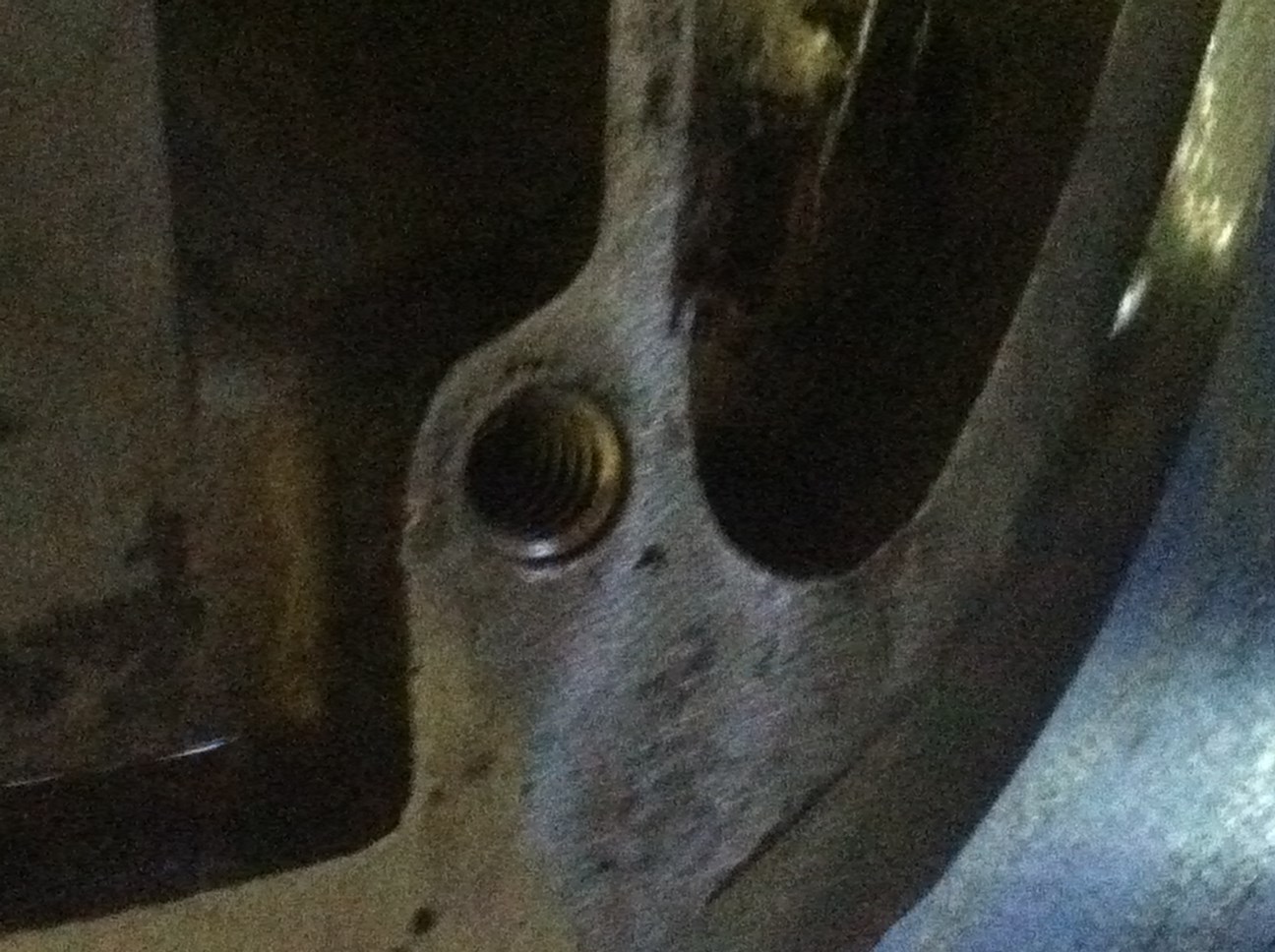

insert heli-coil

problem solved

Please Log in to join the conversation.

Re:1964 Johnson Deluxe Resto-Mod 4 years 1 month ago #90819

Excellent work it's looking great so far.

Bob

Please Log in to join the conversation.

Re:1964 Johnson Deluxe Resto-Mod 4 years 1 month ago #90829

  • agleason
  • agleason's Avatar Topic Author
  • Offline
  • Expert Boarder
  • Expert Boarder
  • Posts: 314
  • Karma: 25
  • Thank you received: 1
Waterwings wrote:

Excellent work it's looking great so far.

Bob


Thanks Bob! keep checking in for more to come

Please Log in to join the conversation.

Re:1964 Johnson Deluxe Resto-Mod 4 years 1 month ago #90858

  • agleason
  • agleason's Avatar Topic Author
  • Offline
  • Expert Boarder
  • Expert Boarder
  • Posts: 314
  • Karma: 25
  • Thank you received: 1

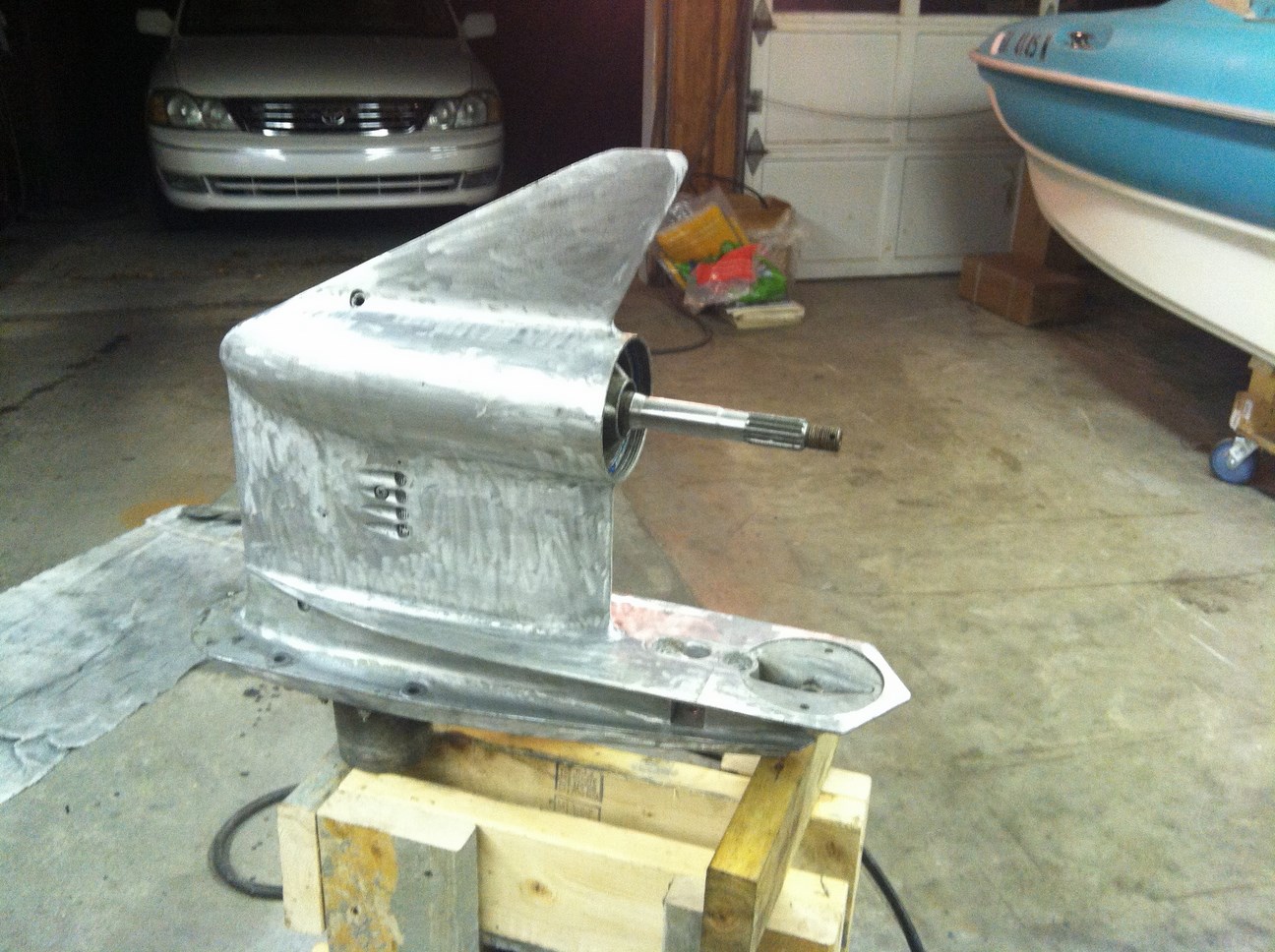

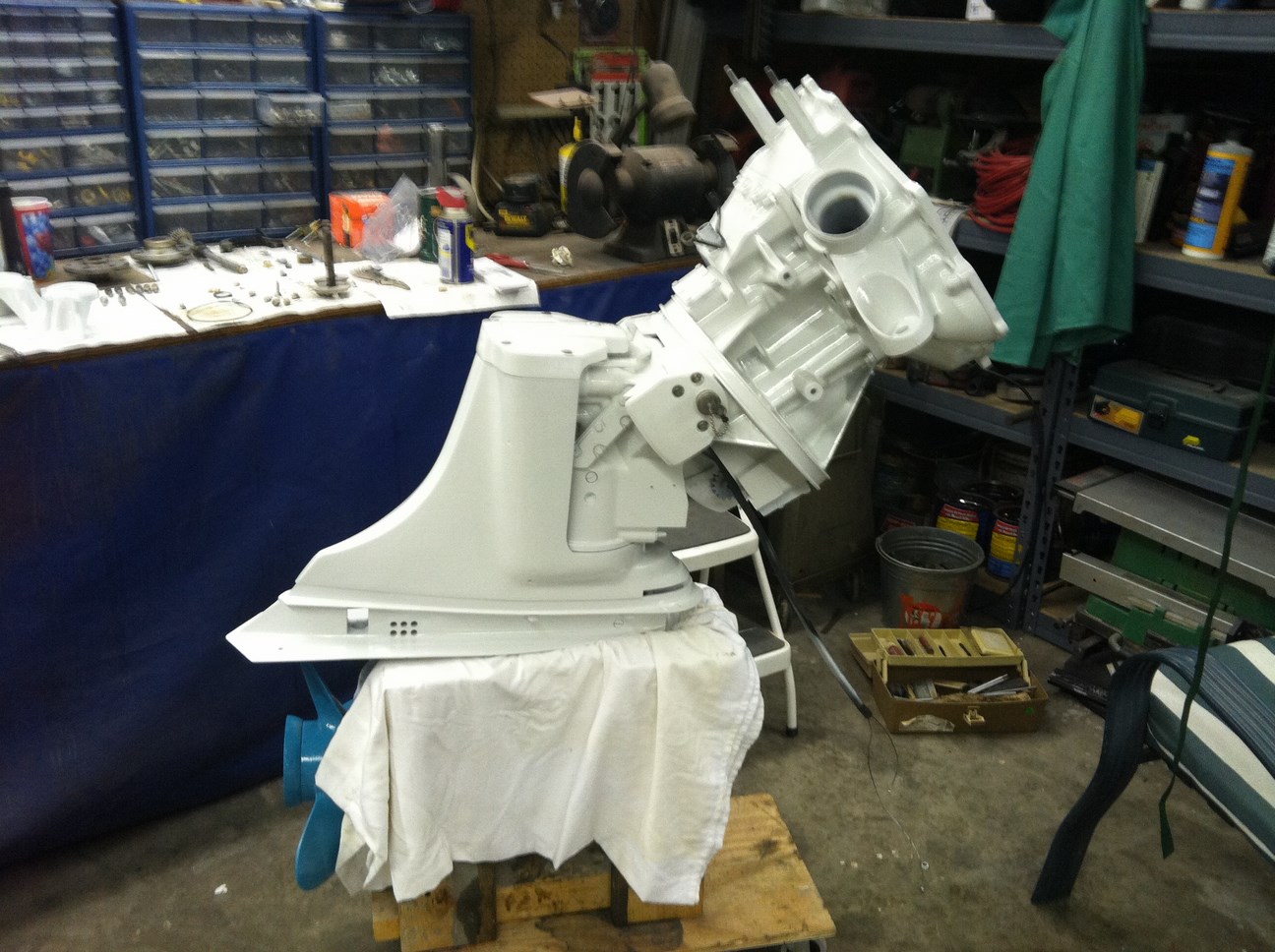

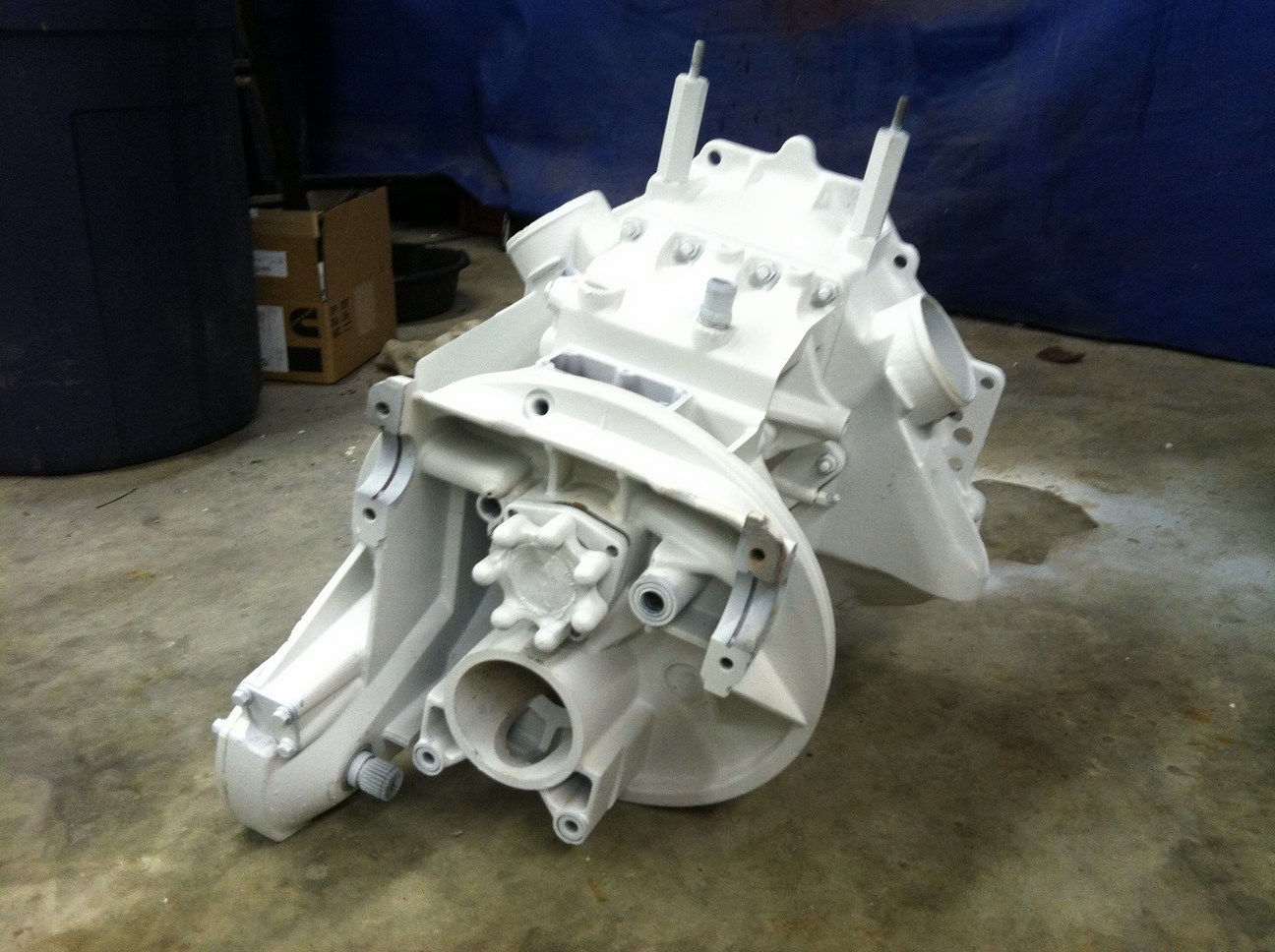

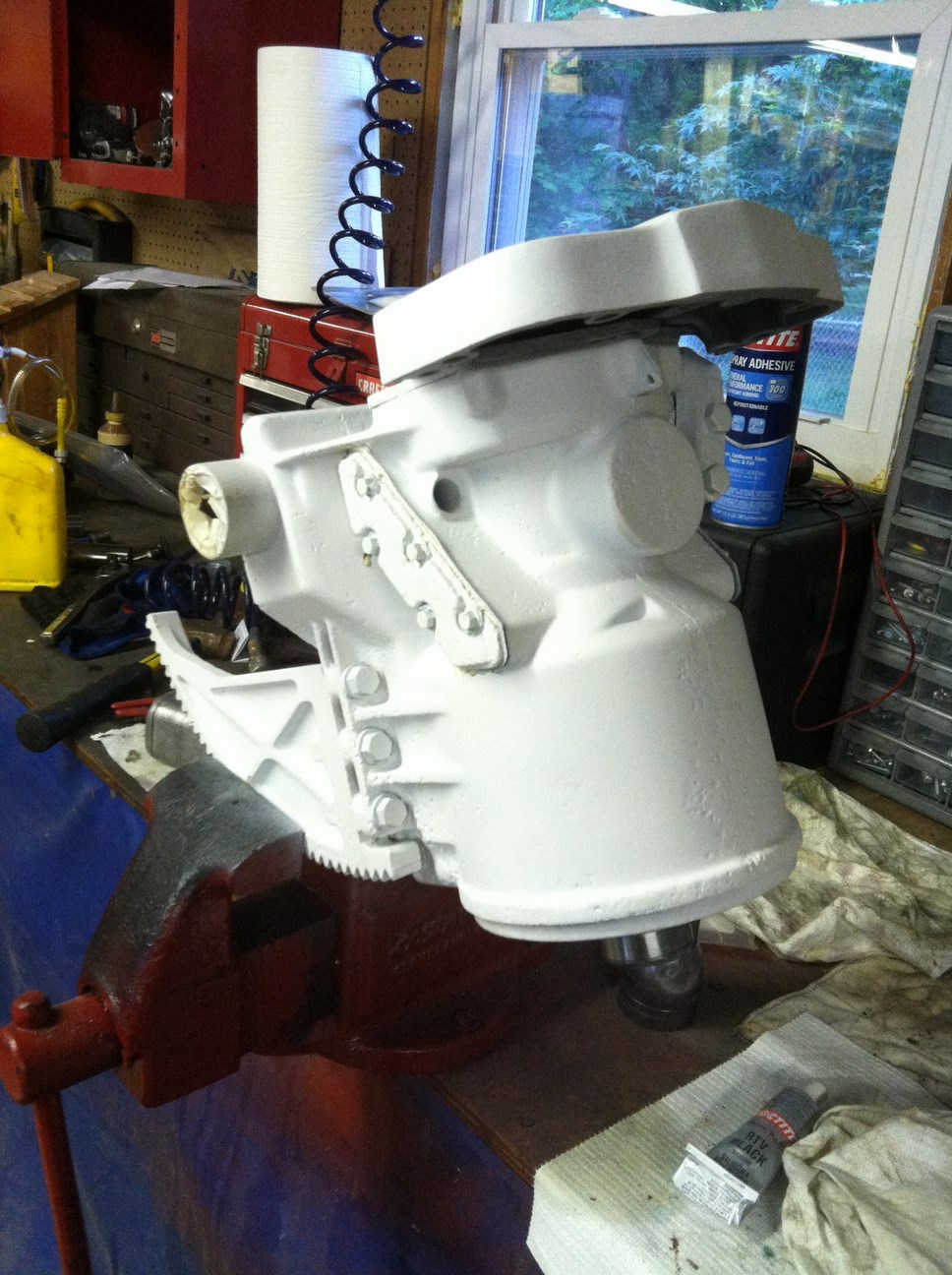

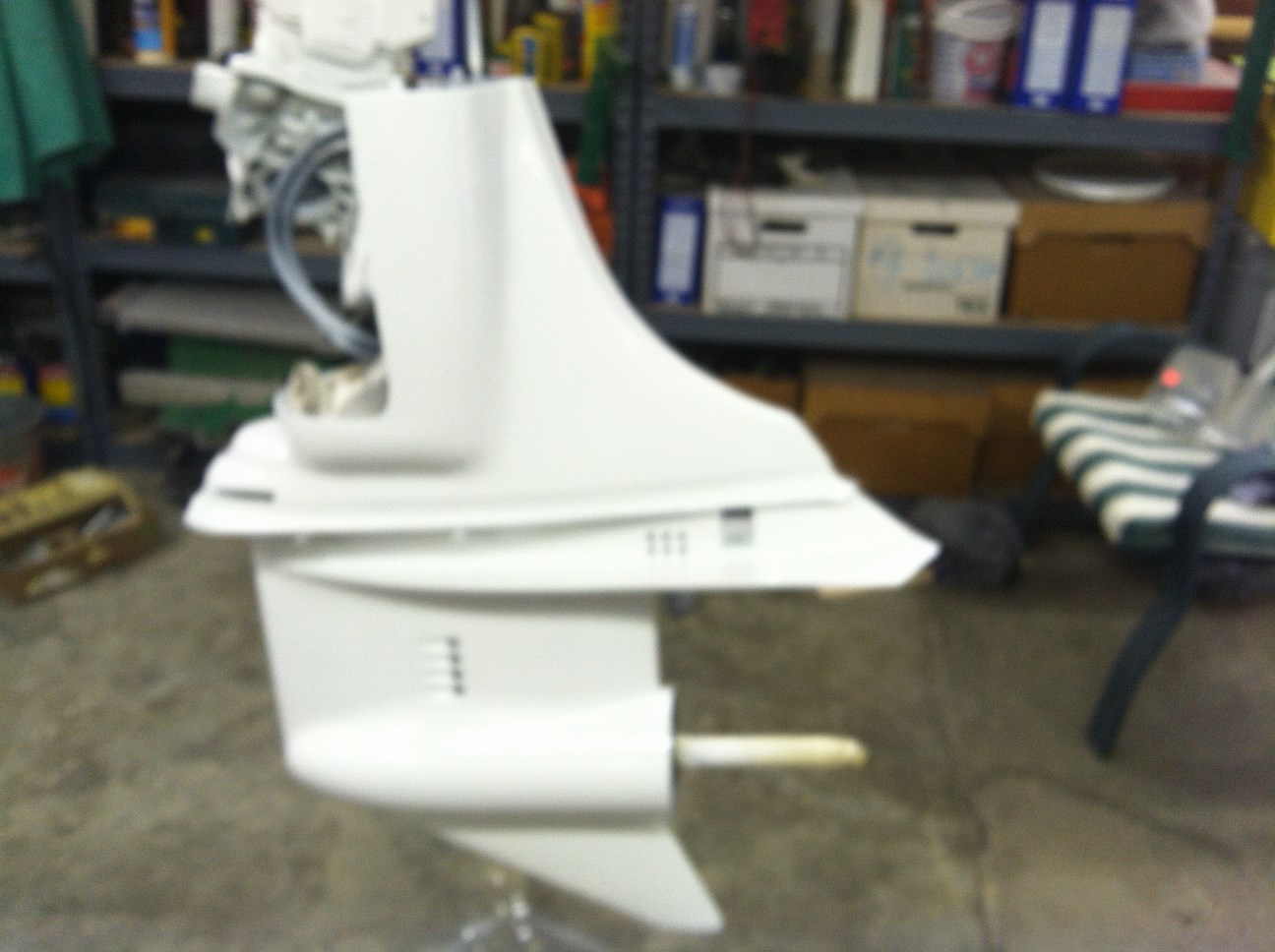

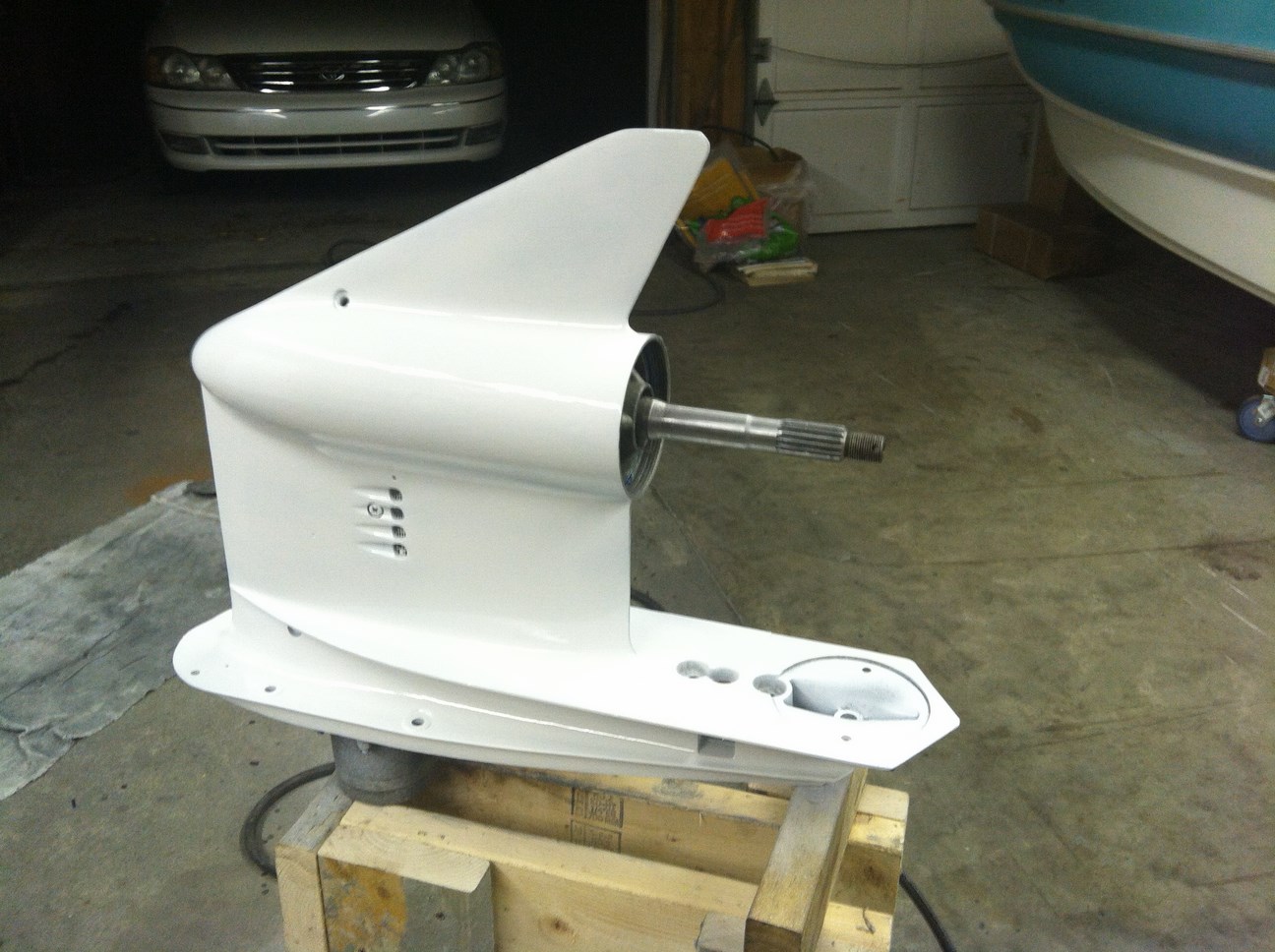

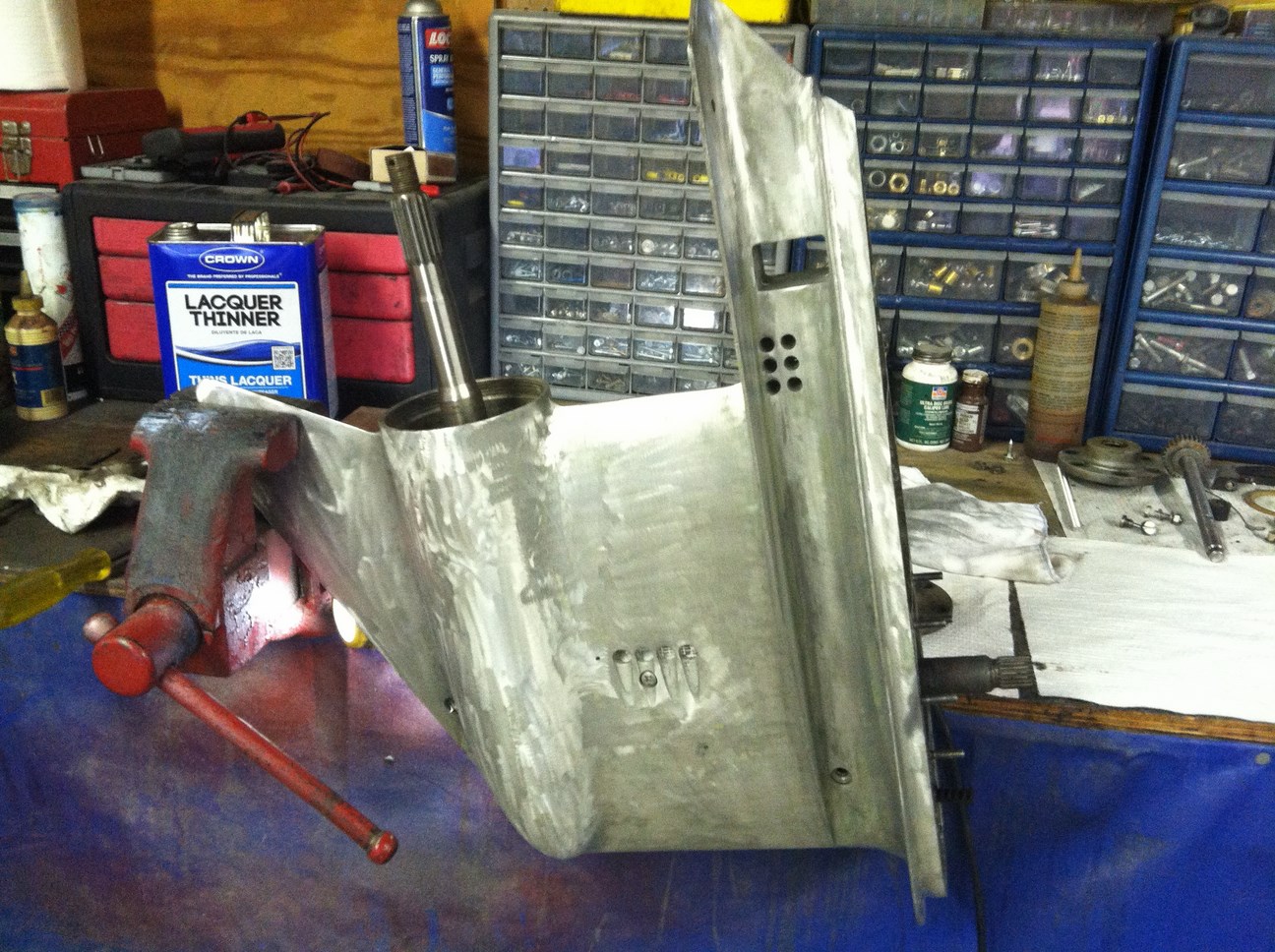

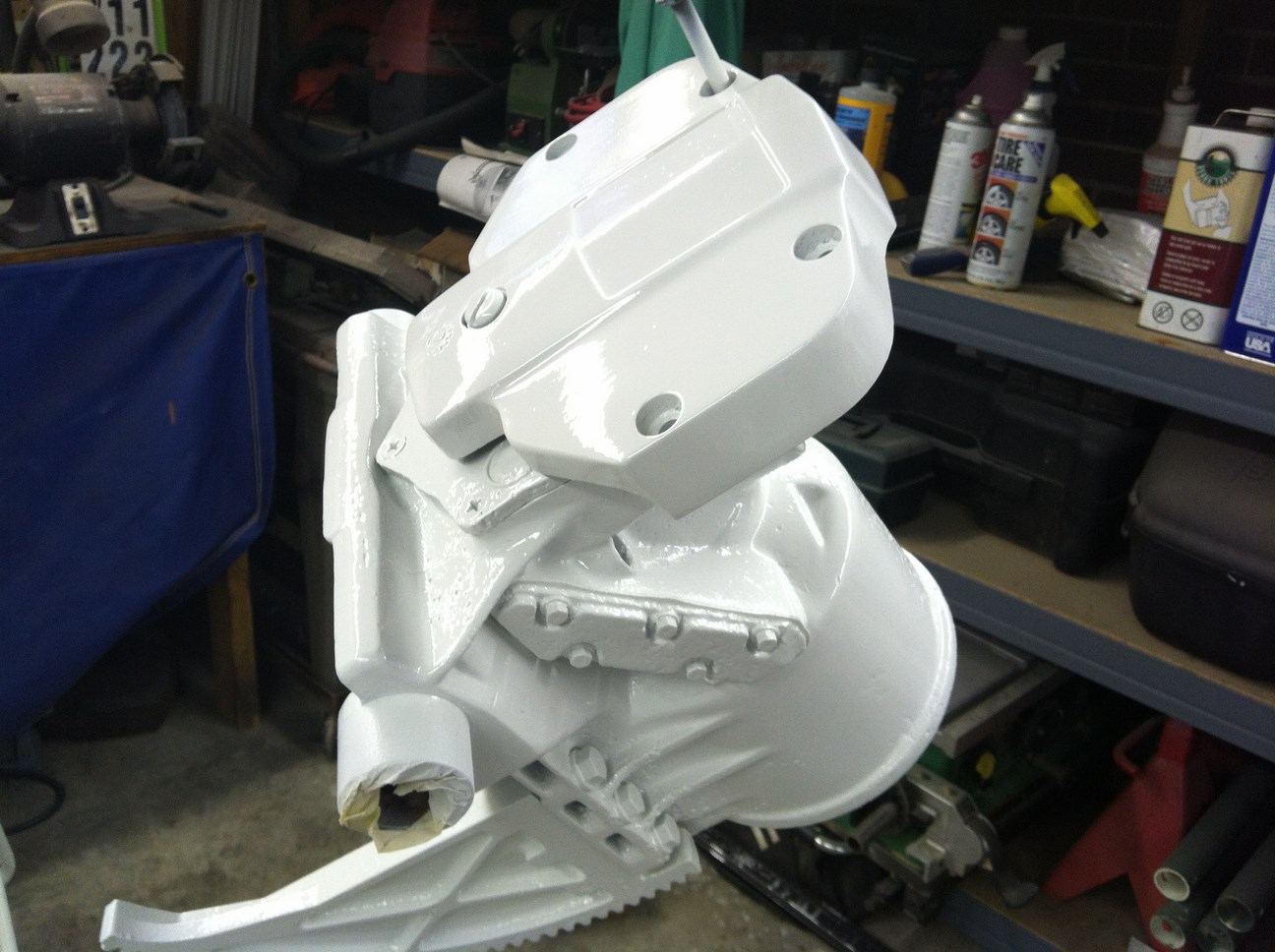

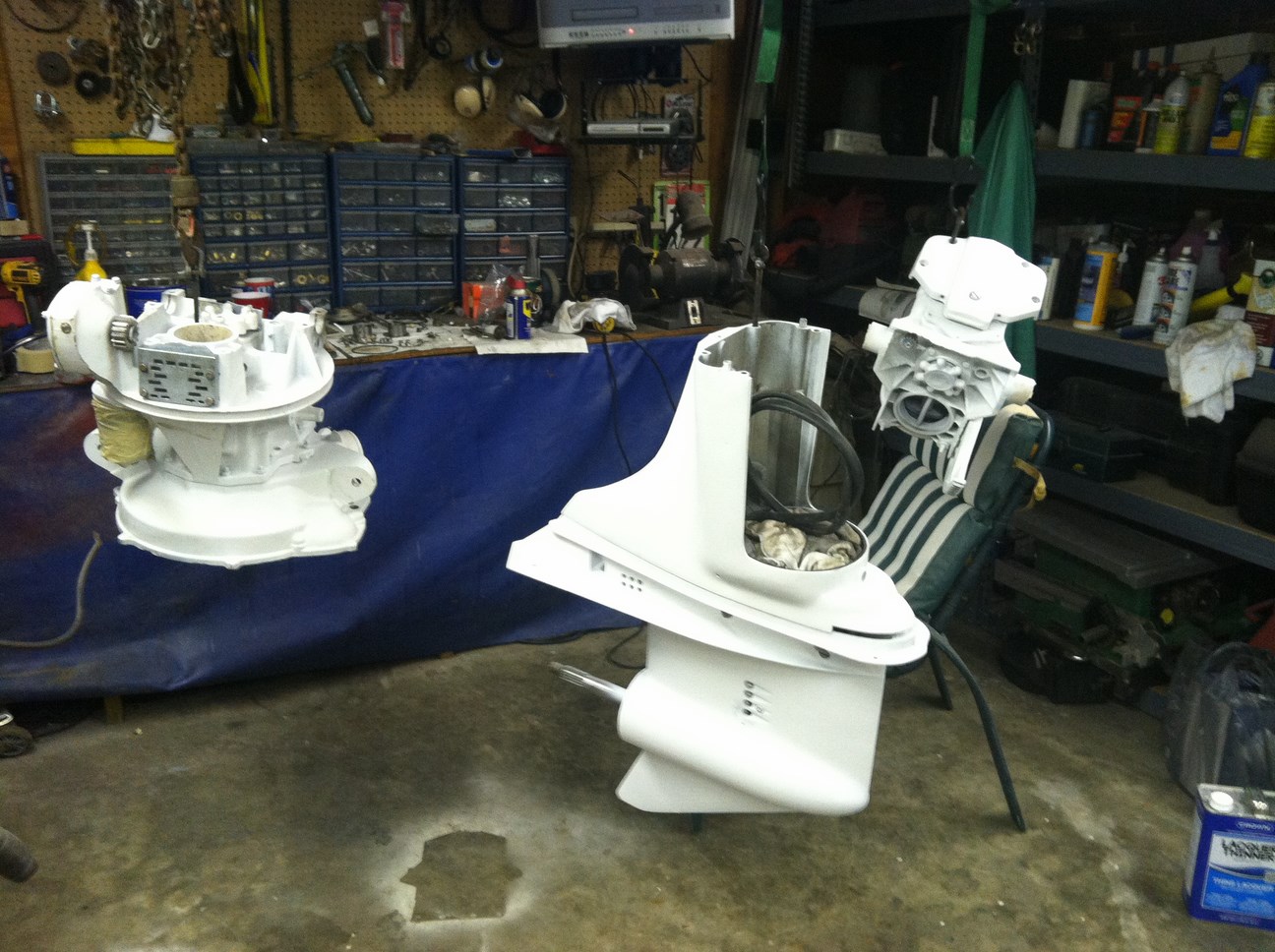

Update: Re-assembled the lower unit with new seals and primed.







Attachments:

Please Log in to join the conversation.

Re:1964 Johnson Deluxe Resto-Mod 4 years 1 month ago #90871

Nicely done!

Bob

Please Log in to join the conversation.

Re:1964 Johnson Deluxe Resto-Mod 4 years 1 month ago #91026

Looking great Andy

Please Log in to join the conversation.

Re:1964 Johnson Deluxe Resto-Mod 4 years 1 month ago #91094

  • Shake
  • Shake's Avatar
  • Offline
  • Gold Boarder
  • Gold Boarder
  • Posts: 864
  • Karma: 29
  • Thank you received: 1
looking Really good here so far.... This boat is going to be a sleeeeeeeepppper!!!! we want to see videos of your victums!! When you got to that of coarse..

Please Log in to join the conversation.

Golden Rule number one; While working in the bilge, absolutely under no circumstances, NO FARTING!!!! Captn Shake aka Joe.

Re:1964 Johnson Deluxe Resto-Mod 4 years 1 month ago #91113

  • agleason
  • agleason's Avatar Topic Author
  • Offline
  • Expert Boarder
  • Expert Boarder
  • Posts: 314
  • Karma: 25
  • Thank you received: 1
Shake wrote:

looking Really good here so far.... This boat is going to be a sleeeeeeeepppper!!!! we want to see videos of your victums!! When you got to that of coarse..


Thanks for the compliments Captain Shake! So far, my wallet is it's only victim. haha

Please Log in to join the conversation.

Re:1964 Johnson Deluxe Resto-Mod 4 years 1 month ago #91125

  • agleason
  • agleason's Avatar Topic Author
  • Offline
  • Expert Boarder
  • Expert Boarder
  • Posts: 314
  • Karma: 25
  • Thank you received: 1

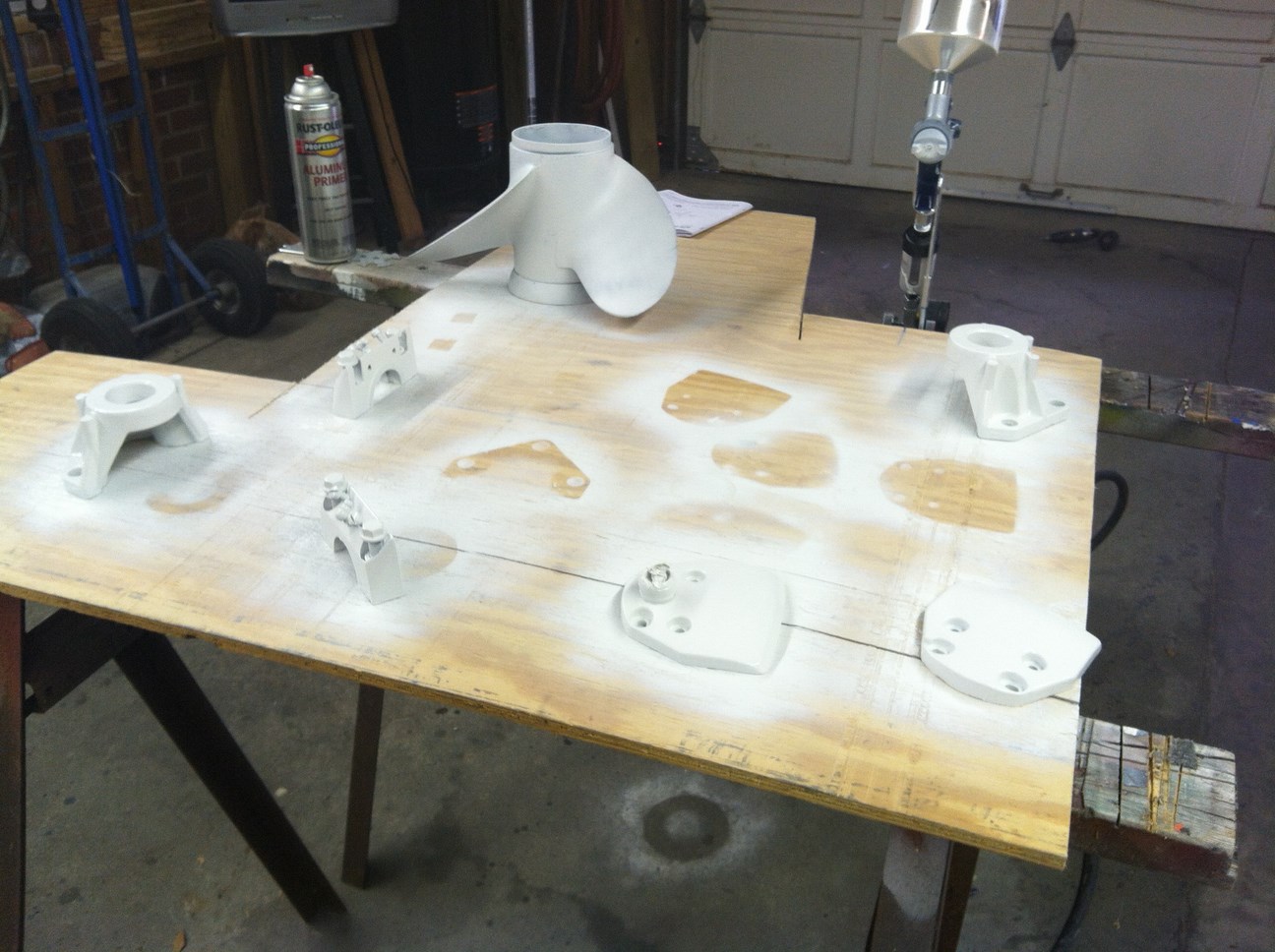

Update: base coat and clear coat then reassemble.















Please Log in to join the conversation.

Re:1964 Johnson Deluxe Resto-Mod 4 years 1 month ago #91146

  • MarkS
  • MarkS's Avatar
  • Offline
  • Moderator
  • Moderator
  • Posts: 5319
  • Karma: 118
  • Thank you received: 0
Looking really good Andrew, nice work!

Please Log in to join the conversation.

Mark

Re:1964 Johnson Deluxe Resto-Mod 4 years 1 month ago #91151

  • agleason
  • agleason's Avatar Topic Author
  • Offline
  • Expert Boarder
  • Expert Boarder
  • Posts: 314
  • Karma: 25
  • Thank you received: 1
MarkS wrote:

Looking really good Andrew, nice work!

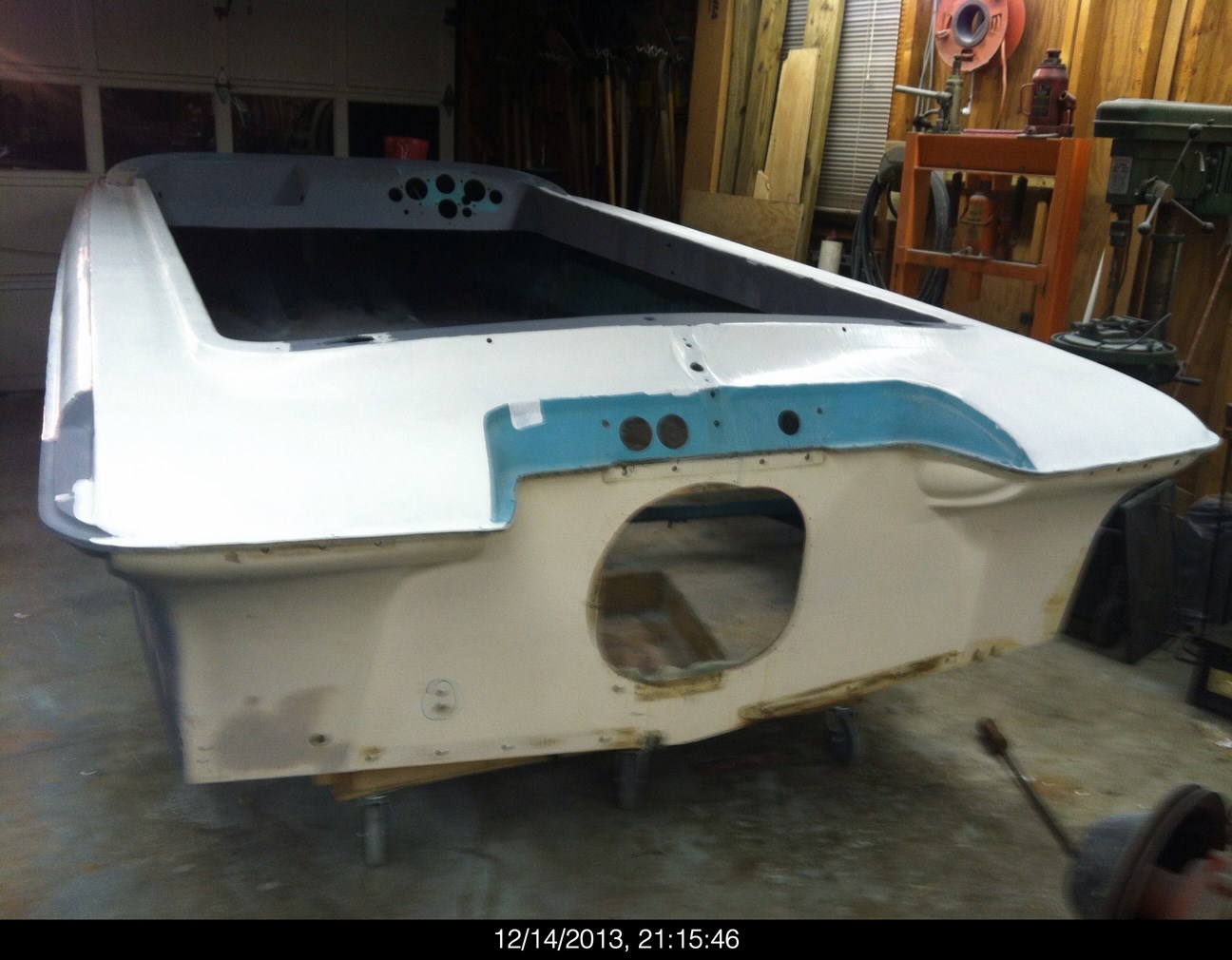

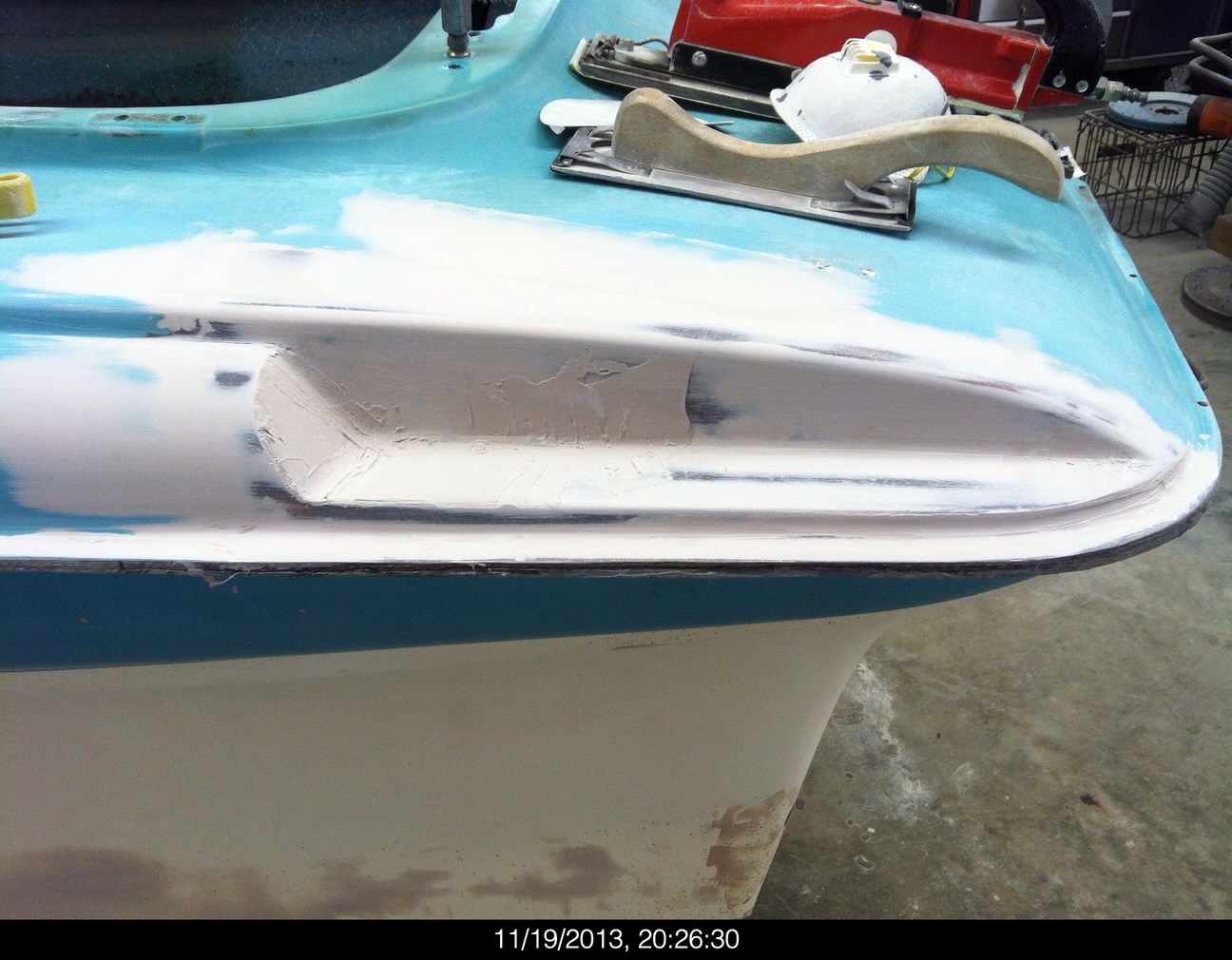

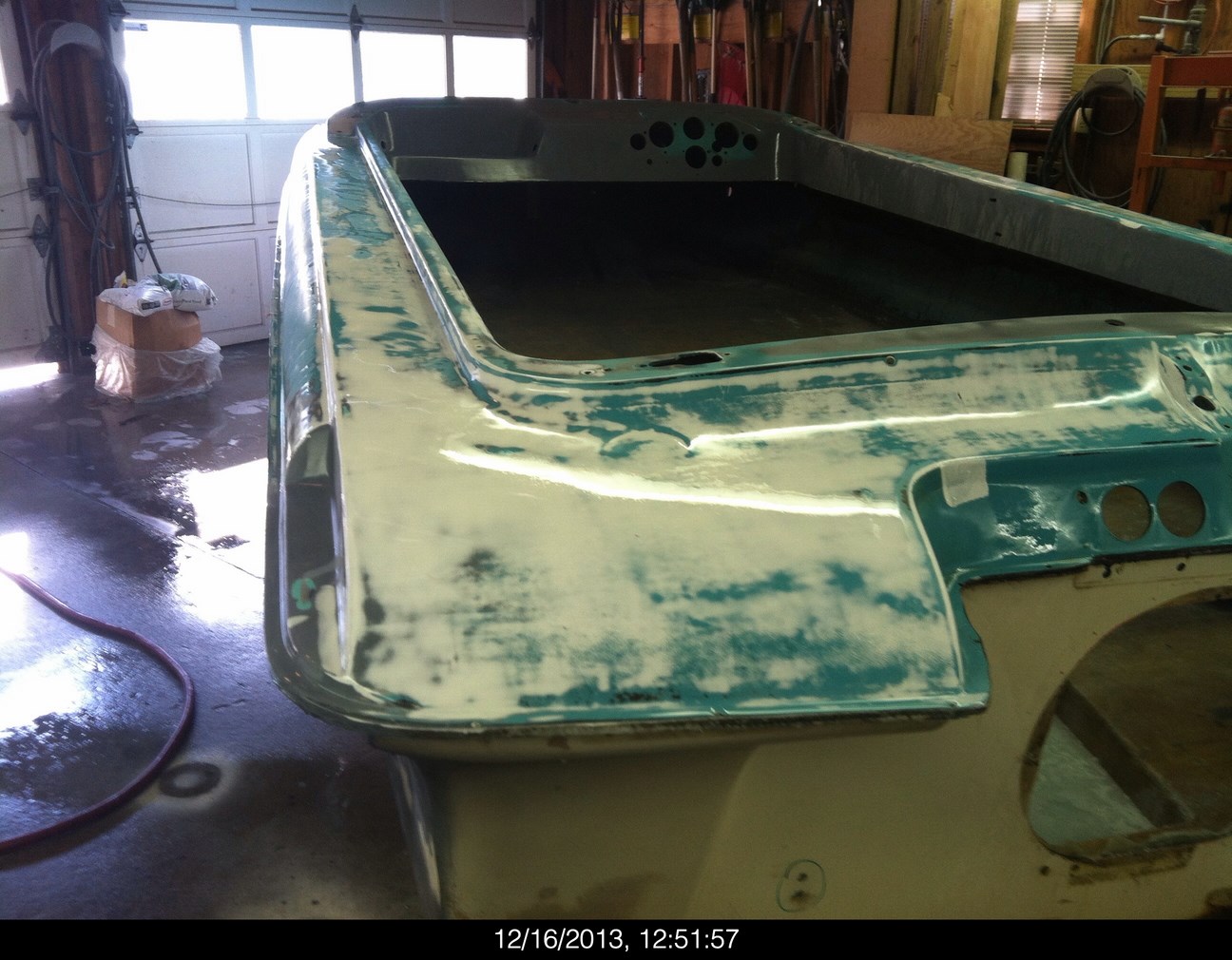

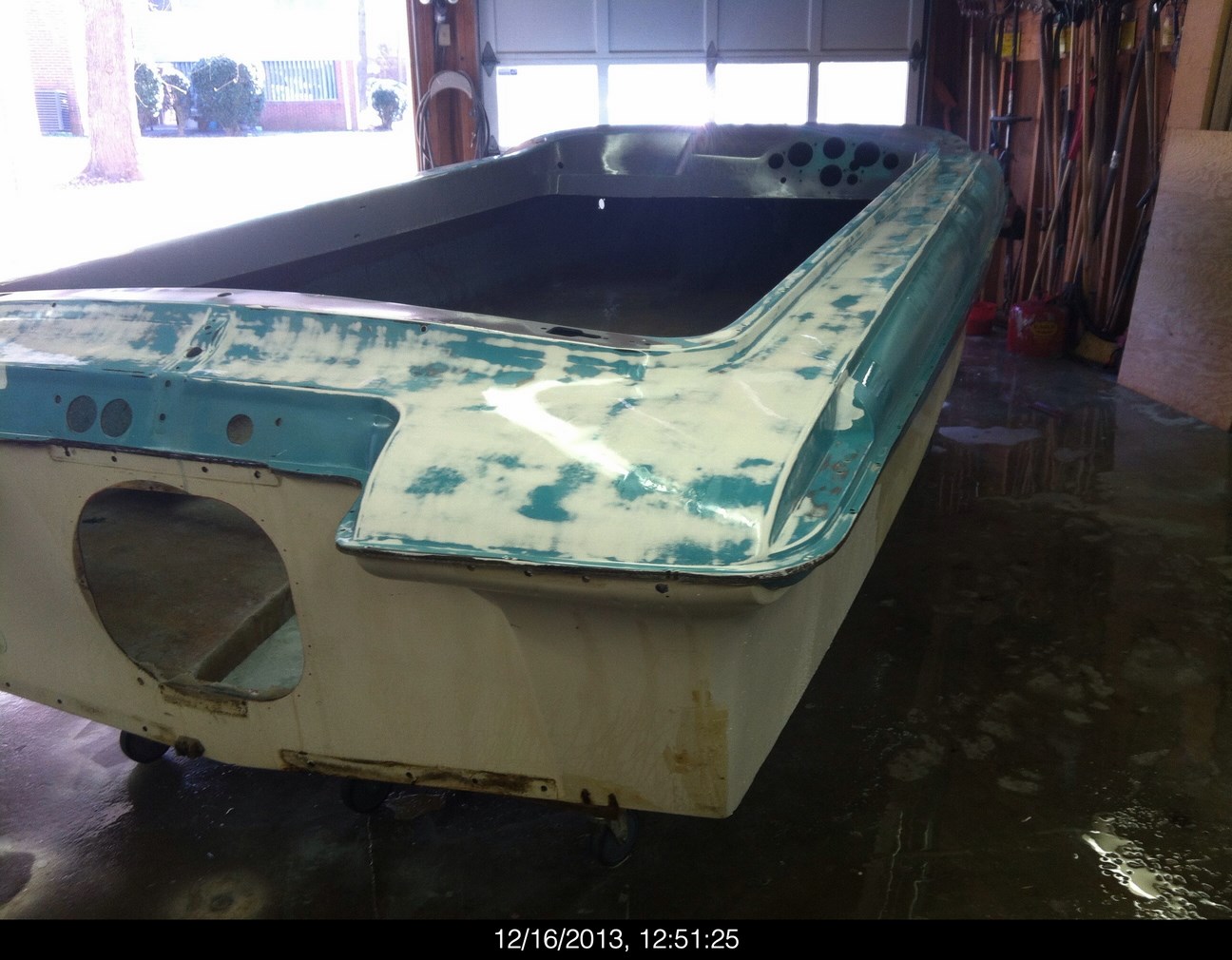

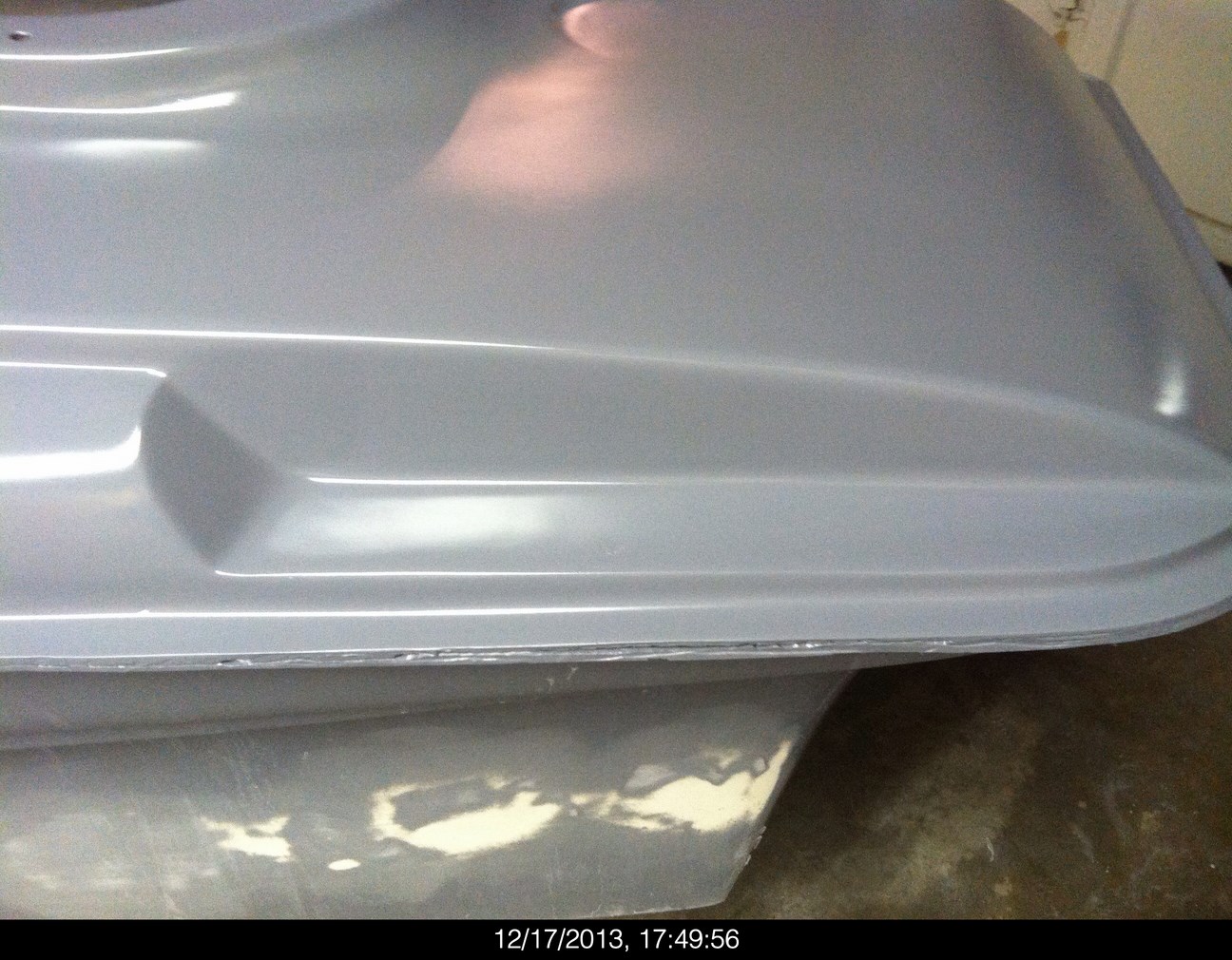

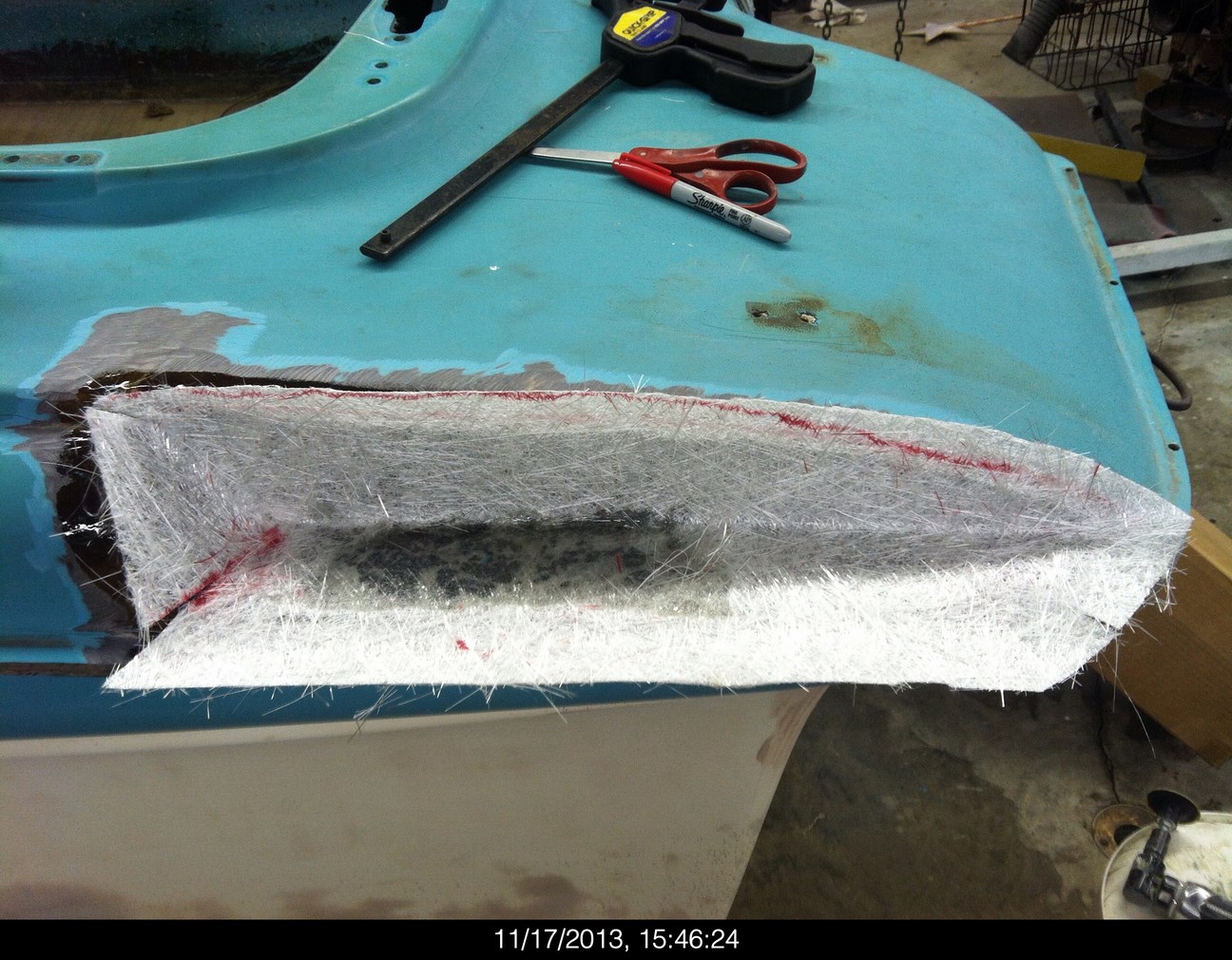

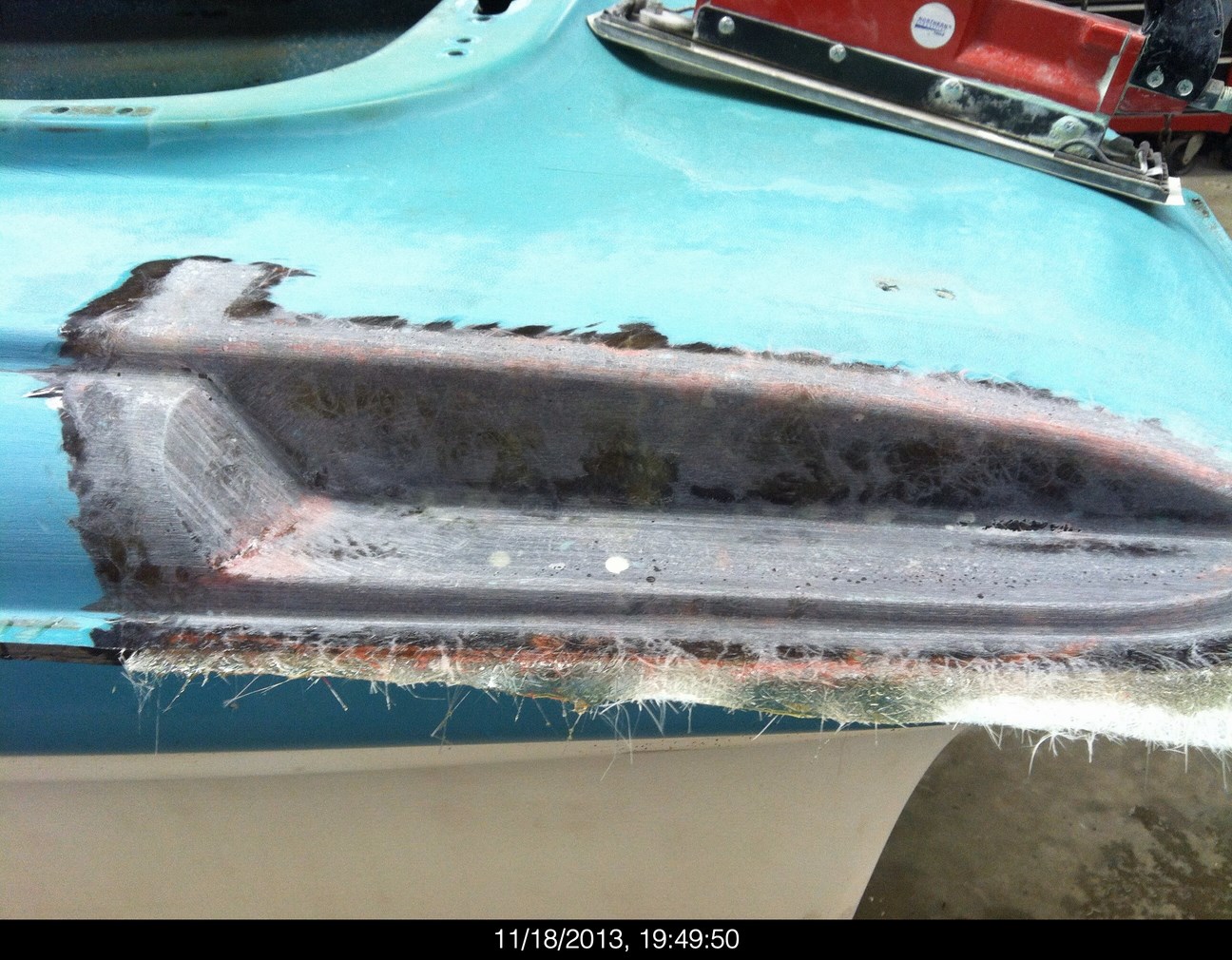

Thanks Mark! The really hard work is about to start... the body work!

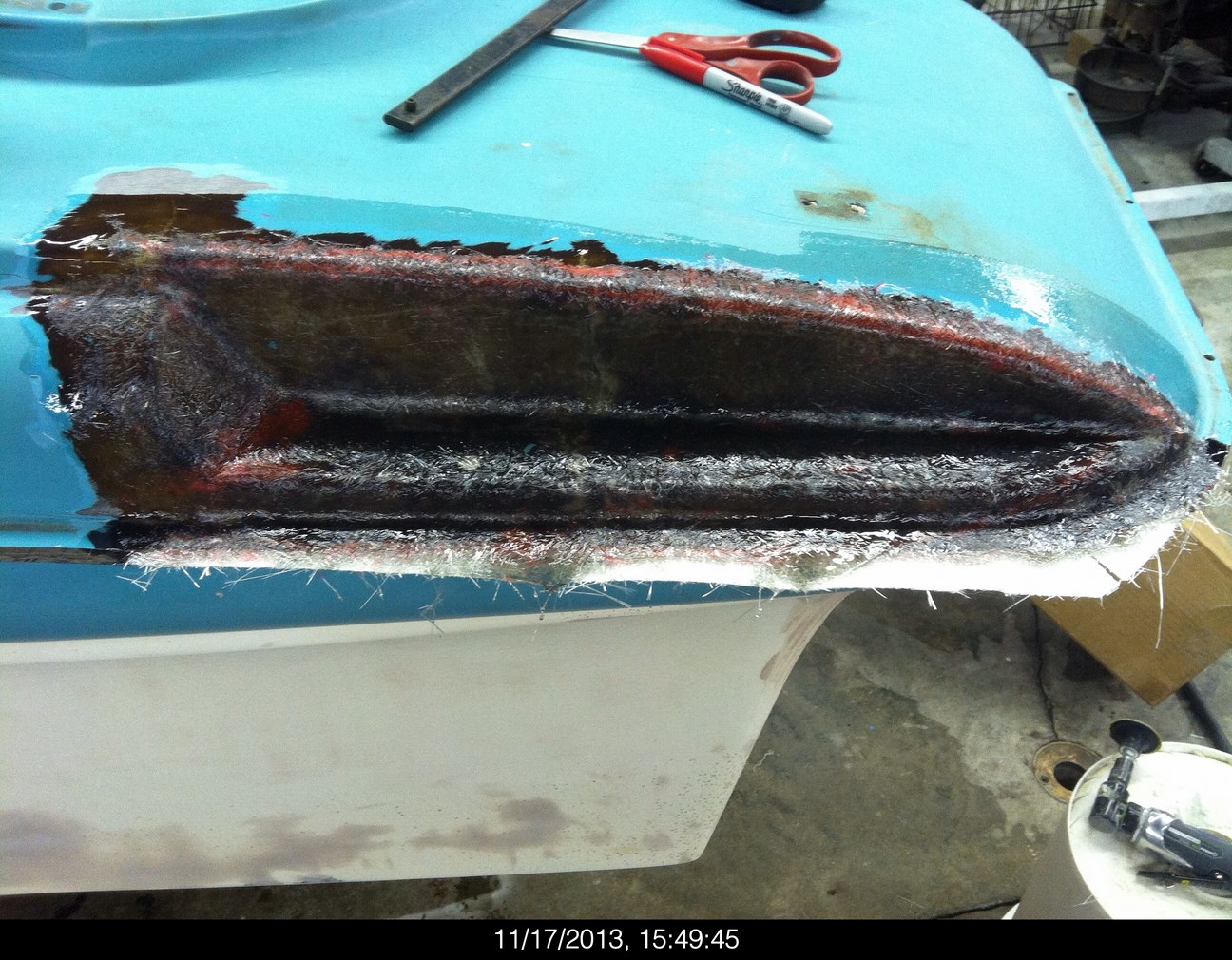

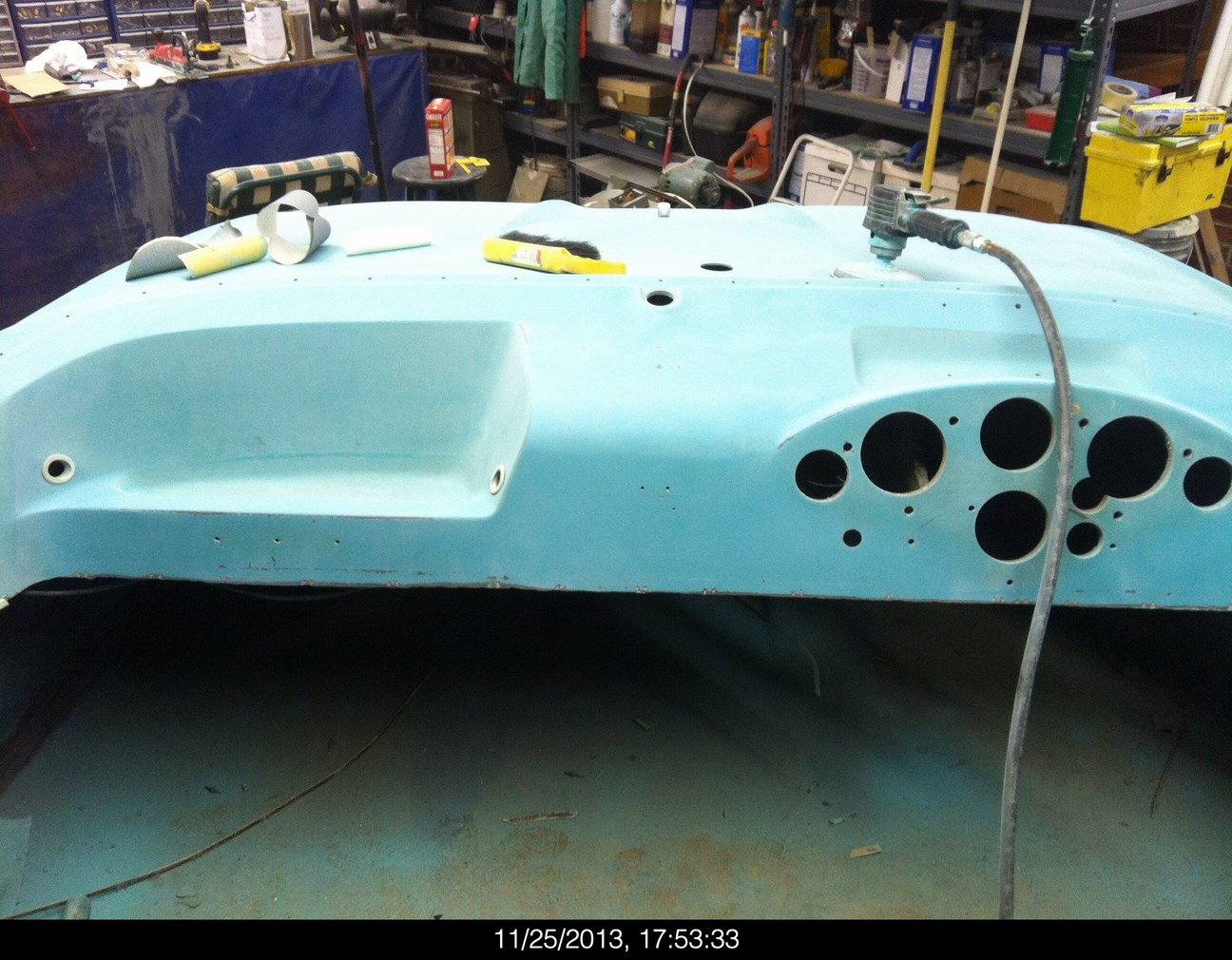

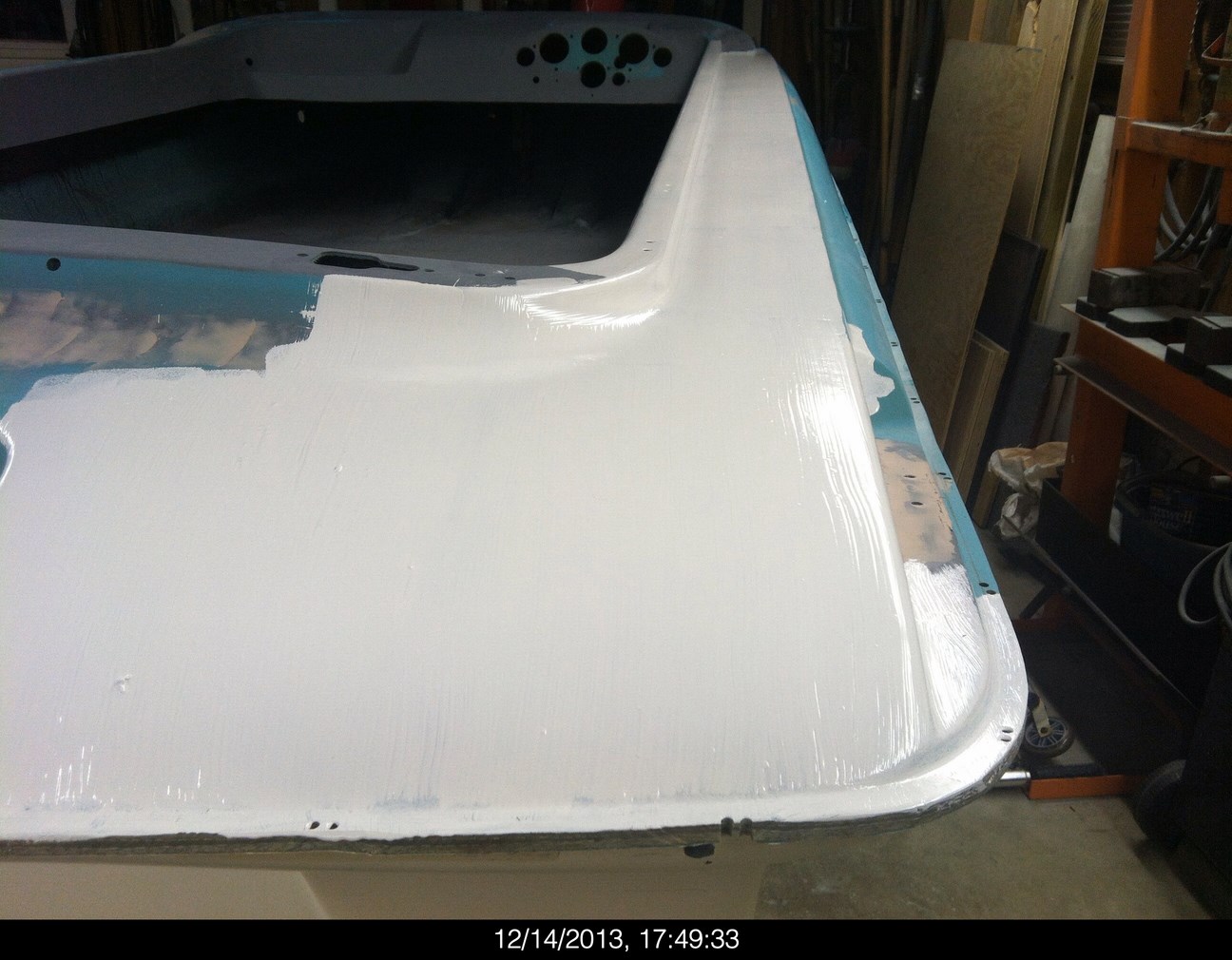

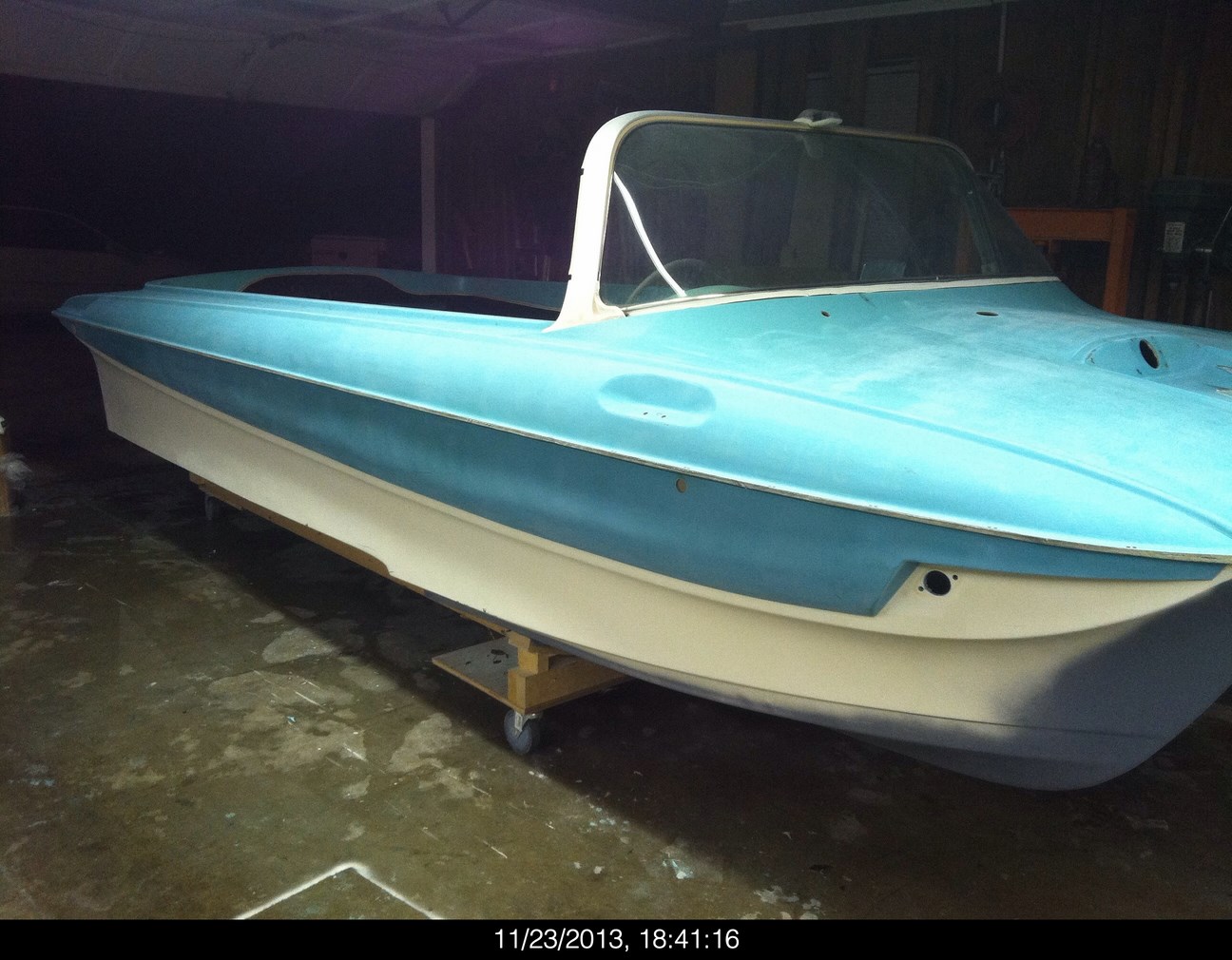

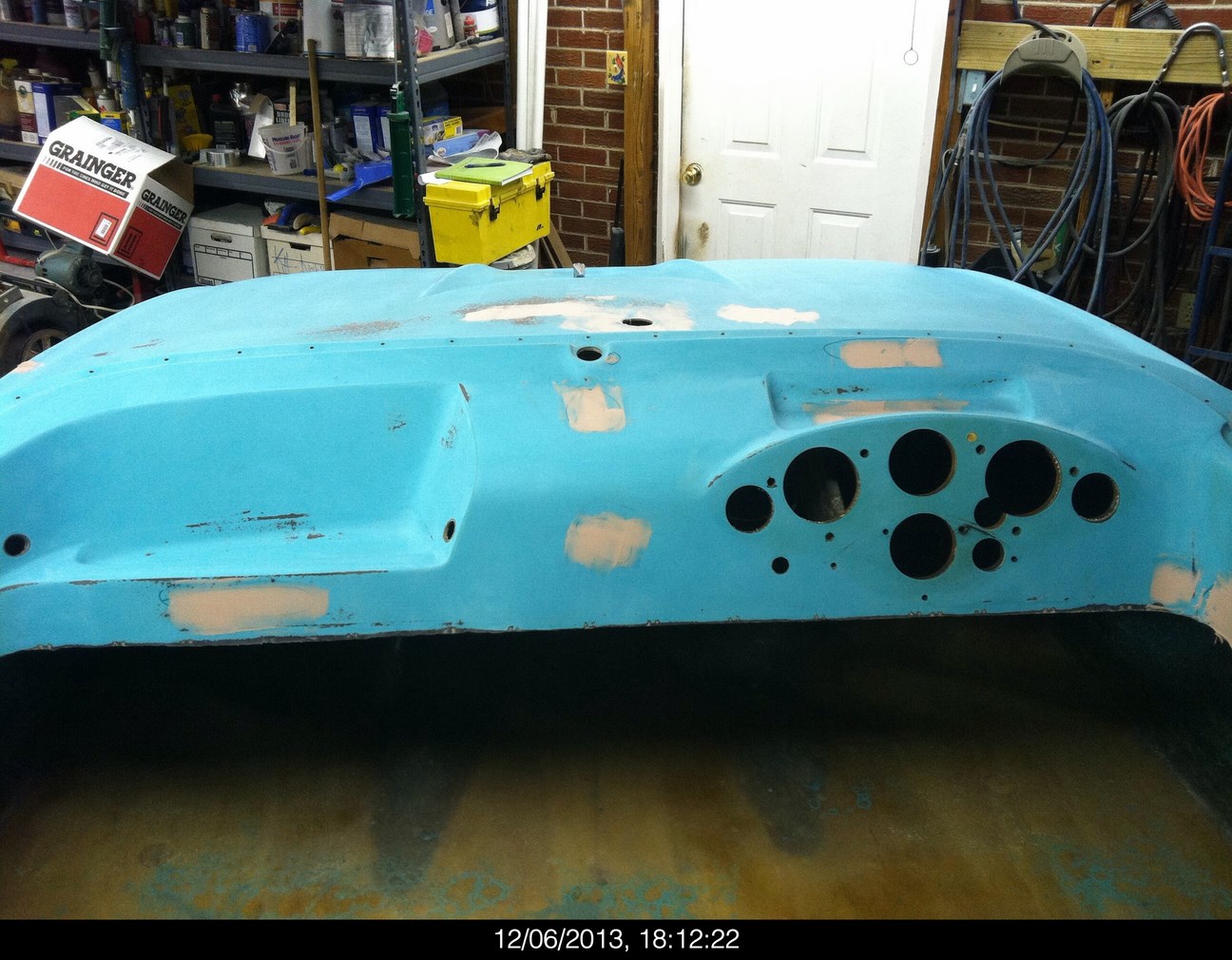

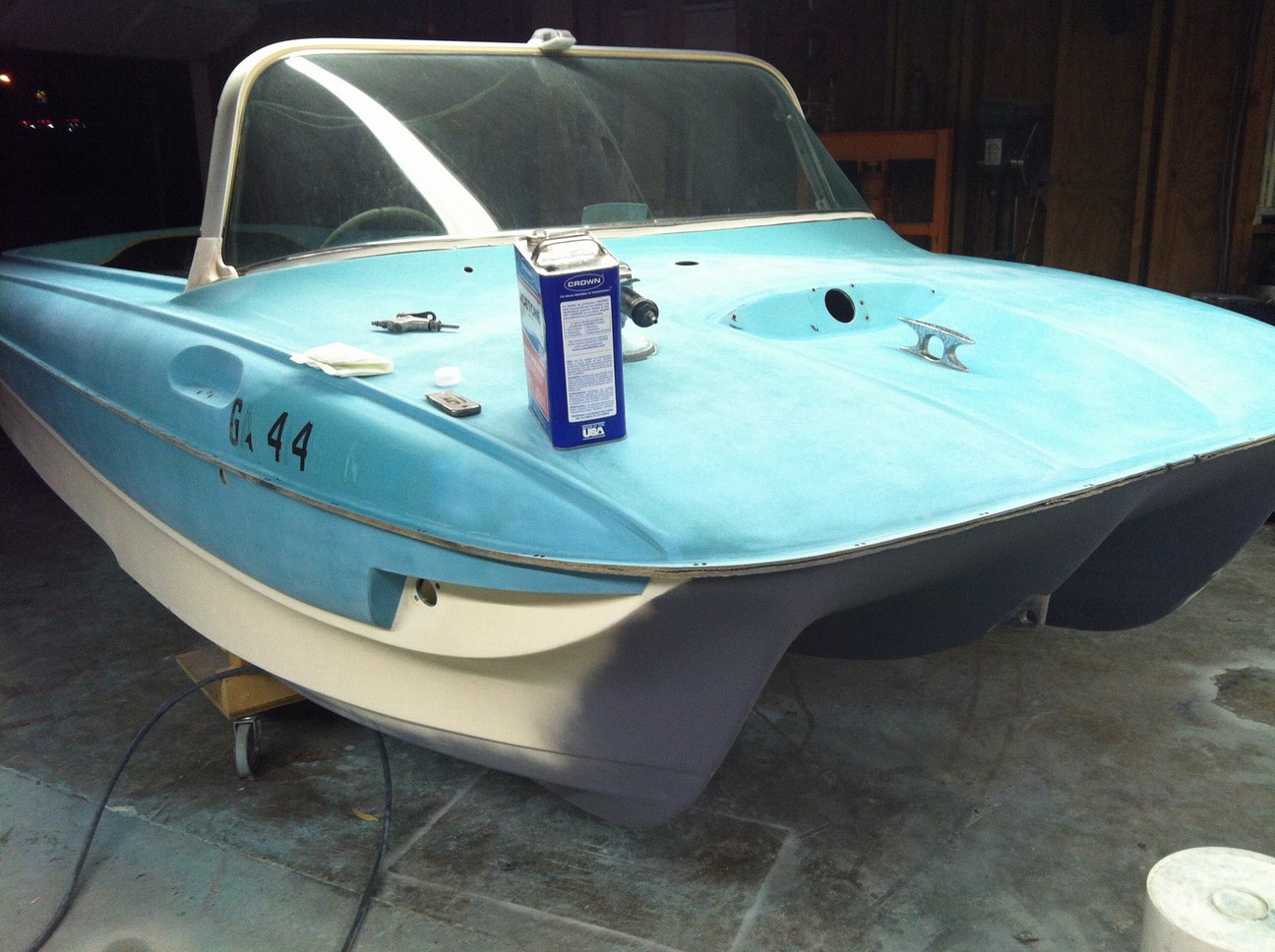

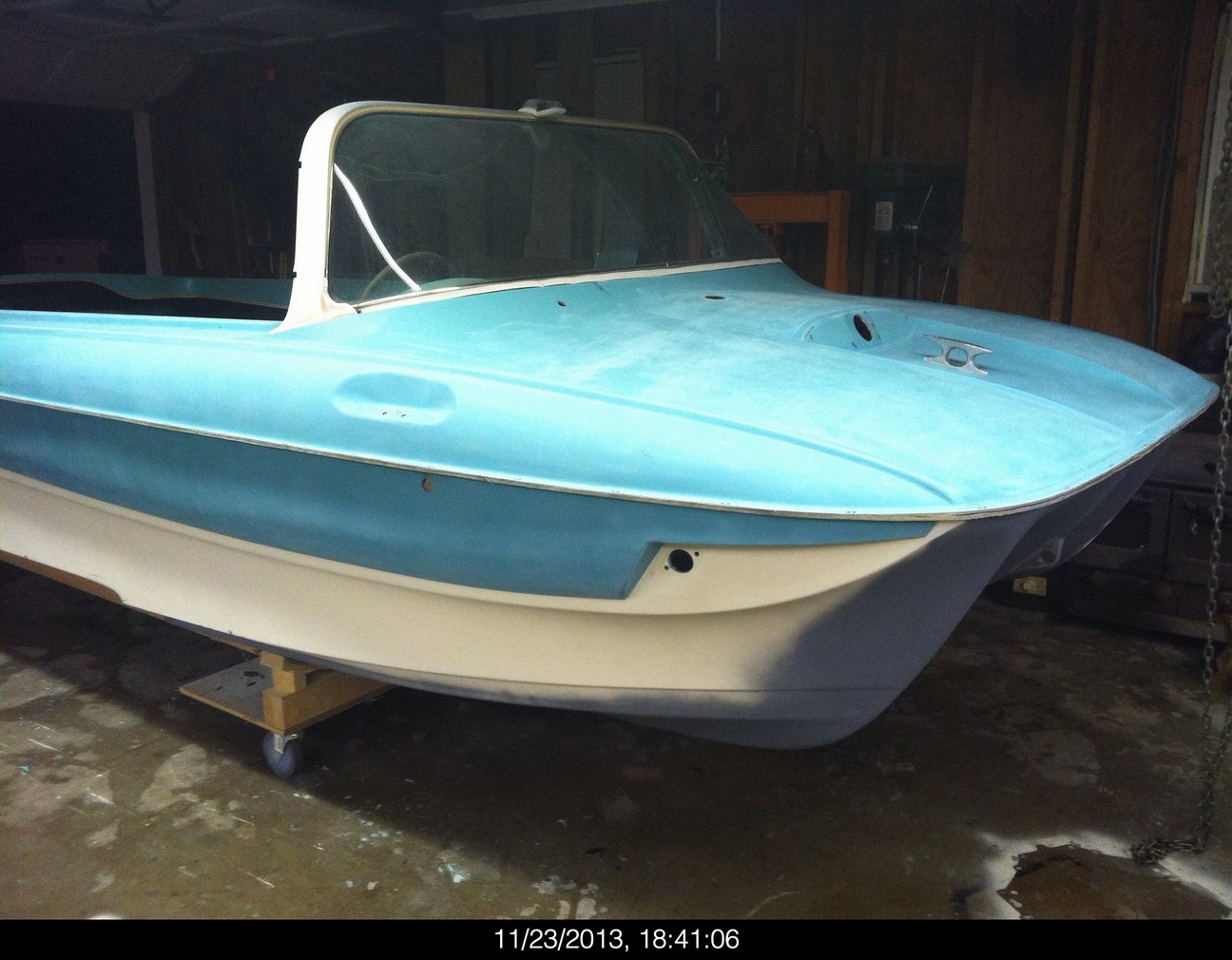

Here is what I'm up to right this minute..
Attachments:

Please Log in to join the conversation.

Re:1964 Johnson Deluxe Resto-Mod 4 years 1 month ago #91153

  • l98tpi
  • l98tpi's Avatar
  • Offline
  • Senior Boarder
  • Senior Boarder
  • Posts: 223
  • Karma: 16
  • Thank you received: 0
I'm still keeping an eye on ya. Looks good. That is some serious steep pitch on that prop. What is the ratio of that drive?
mark

Please Log in to join the conversation.

Boats: 76 Chrysler Conqueror S3, 61 Larson Playmate. Outboards: 76 Chrysler 105, 70 Chrysler 70, 57 Evinrude Bigtwin 35, 80 Johnson 35 looper, 74 Chrysler 45, 67 Mercury 650SS, and others.

Re:1964 Johnson Deluxe Resto-Mod 4 years 1 month ago #91238

  • agleason
  • agleason's Avatar Topic Author
  • Offline
  • Expert Boarder
  • Expert Boarder
  • Posts: 314
  • Karma: 25
  • Thank you received: 1
l98tpi wrote:

I'm still keeping an eye on ya. Looks good. That is some serious steep pitch on that prop. What is the ratio of that drive?
mark

The gear ratio is 21:16, that's the gear set for either a Chevy 350 or Ford 351

Please Log in to join the conversation.

Re:1964 Johnson Deluxe Resto-Mod 4 years 2 weeks ago #92116

  • agleason
  • agleason's Avatar Topic Author
  • Offline
  • Expert Boarder
  • Expert Boarder
  • Posts: 314
  • Karma: 25
  • Thank you received: 1
Next up... months and months of body work.

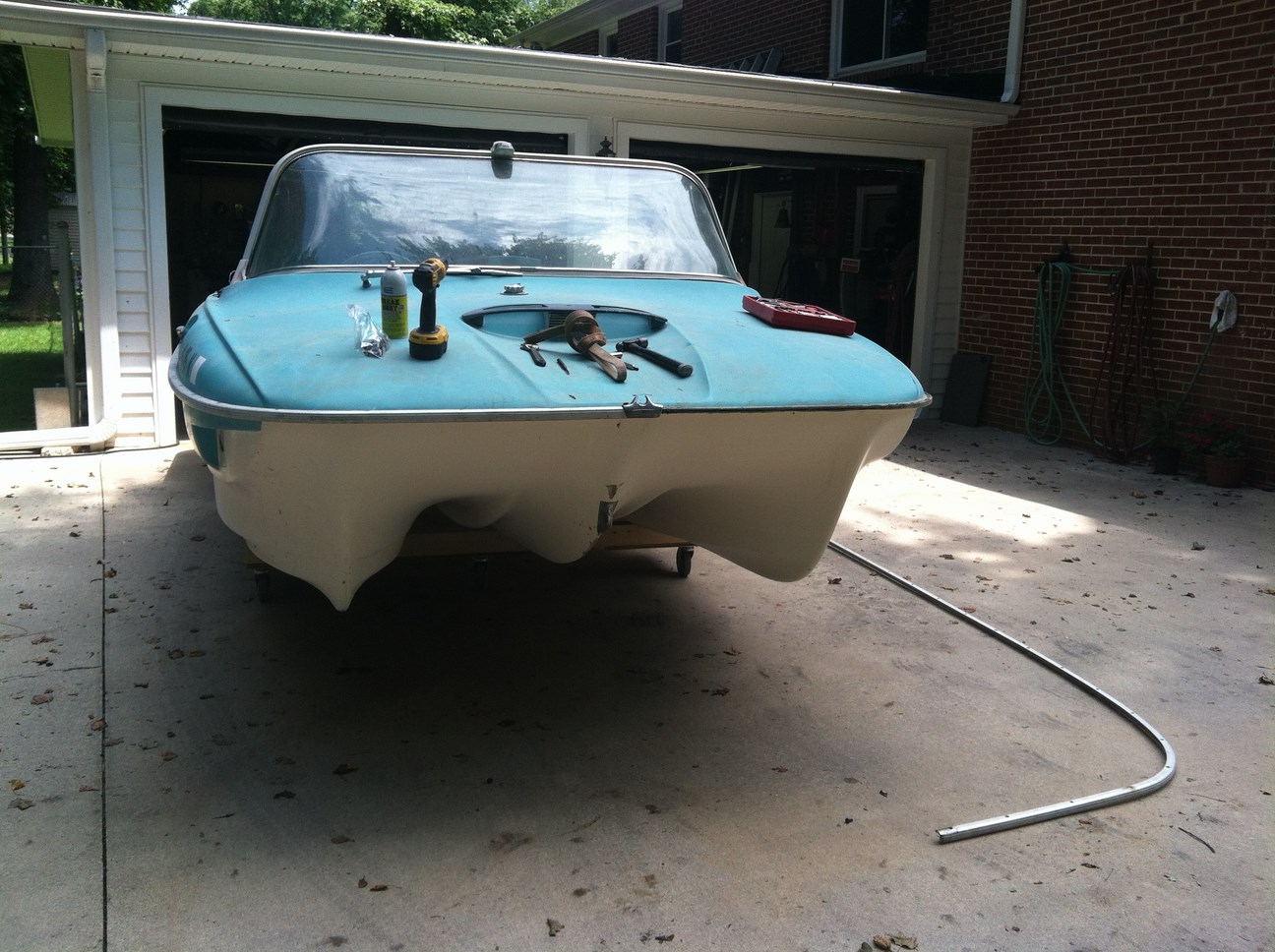

I started out by stripping the hull...






At this point, I had no idea I would be able to flip the deluxe over to work on the bottom. So I thought I could work on the bottom from underneath...DUH!
Attachments:

Please Log in to join the conversation.

Re:1964 Johnson Deluxe Resto-Mod 4 years 2 weeks ago #92118

Since I started tagging along your rebuild of this Deluxe, I've noticed 2 w/in minutes of my house & each other, locally. Had only ever seen pix of 2 others before yours and now there's 2 around locally. hmmmm seemed odd enough to mention it.

1 seems about the same as yours, in need of some attention, but the other's condition is only a 1/2 step from really sad....

Looking forward to the AFV/YouTube video of the flip of this wide body craft...........

Please Log in to join the conversation.

Re:1964 Johnson Deluxe Resto-Mod 4 years 2 weeks ago #92119

  • agleason
  • agleason's Avatar Topic Author
  • Offline
  • Expert Boarder
  • Expert Boarder
  • Posts: 314
  • Karma: 25
  • Thank you received: 1
jbcurt00 wrote:

Looking forward to the AFV/YouTube video of the flip of this wide body craft...........

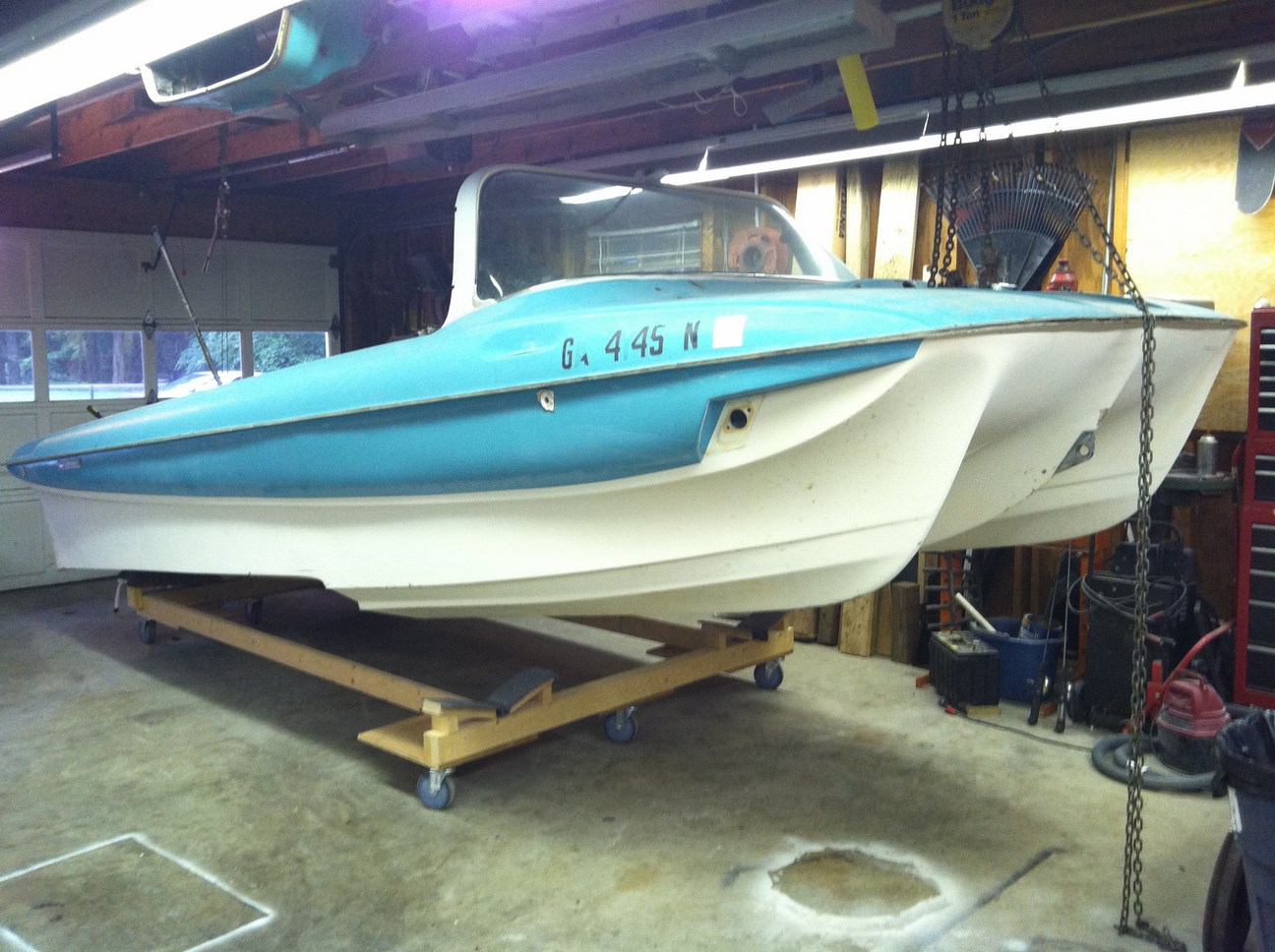

Let me tell ya...I flipped this thing over TWICE! By my self! Maybe I should say she flipped herself over... Stay tuned for that!
Attachments:

Please Log in to join the conversation.

Re:1964 Johnson Deluxe Resto-Mod 4 years 2 weeks ago #92134

Yeah once they get going over, watch out if you don't have enough peeps, as you probably found out. Looks like your came out ok though. ;)

Bob

Please Log in to join the conversation.

Re:1964 Johnson Deluxe Resto-Mod 3 years 11 months ago #94306

  • agleason
  • agleason's Avatar Topic Author
  • Offline
  • Expert Boarder
  • Expert Boarder
  • Posts: 314
  • Karma: 25
  • Thank you received: 1

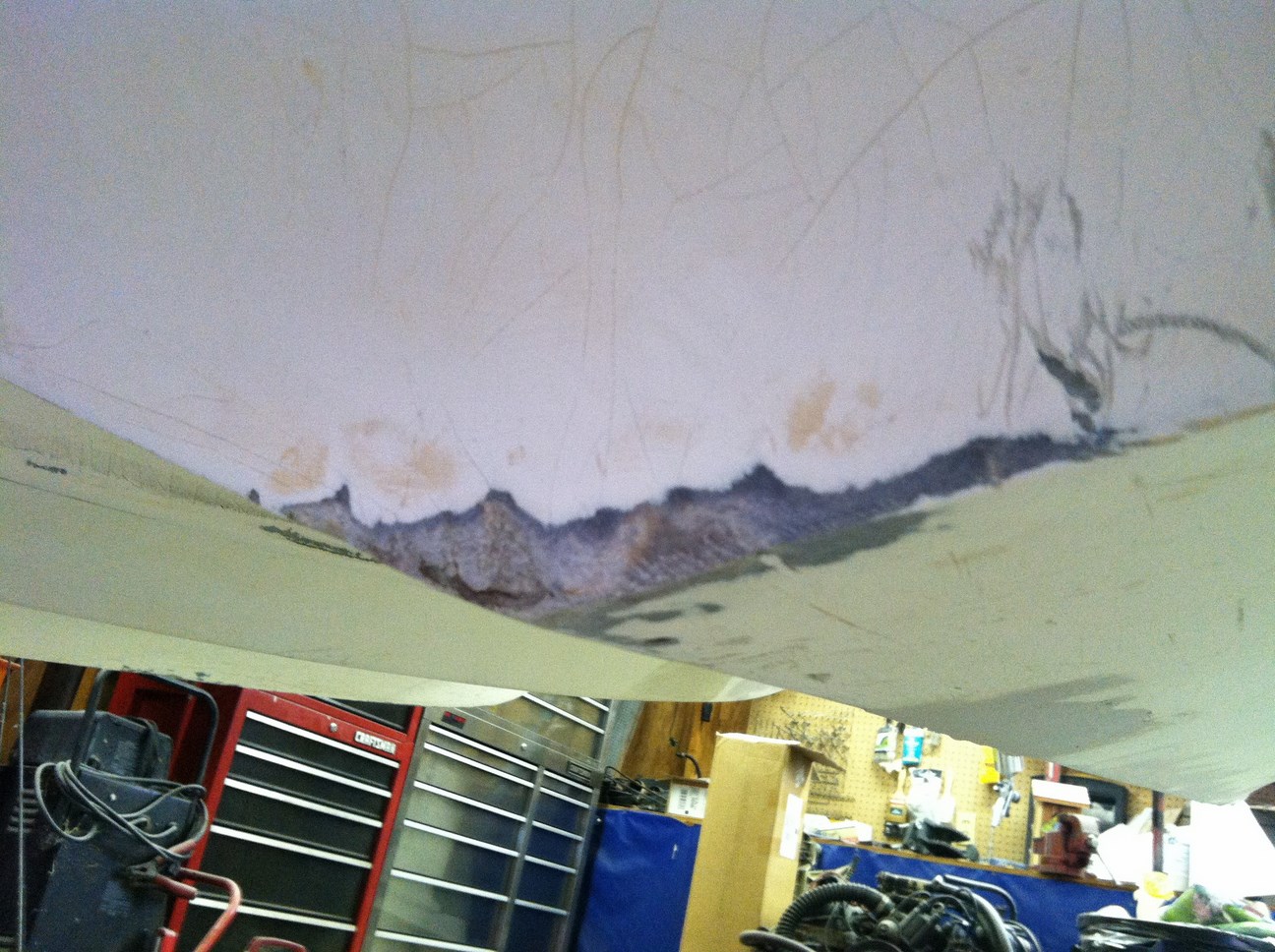

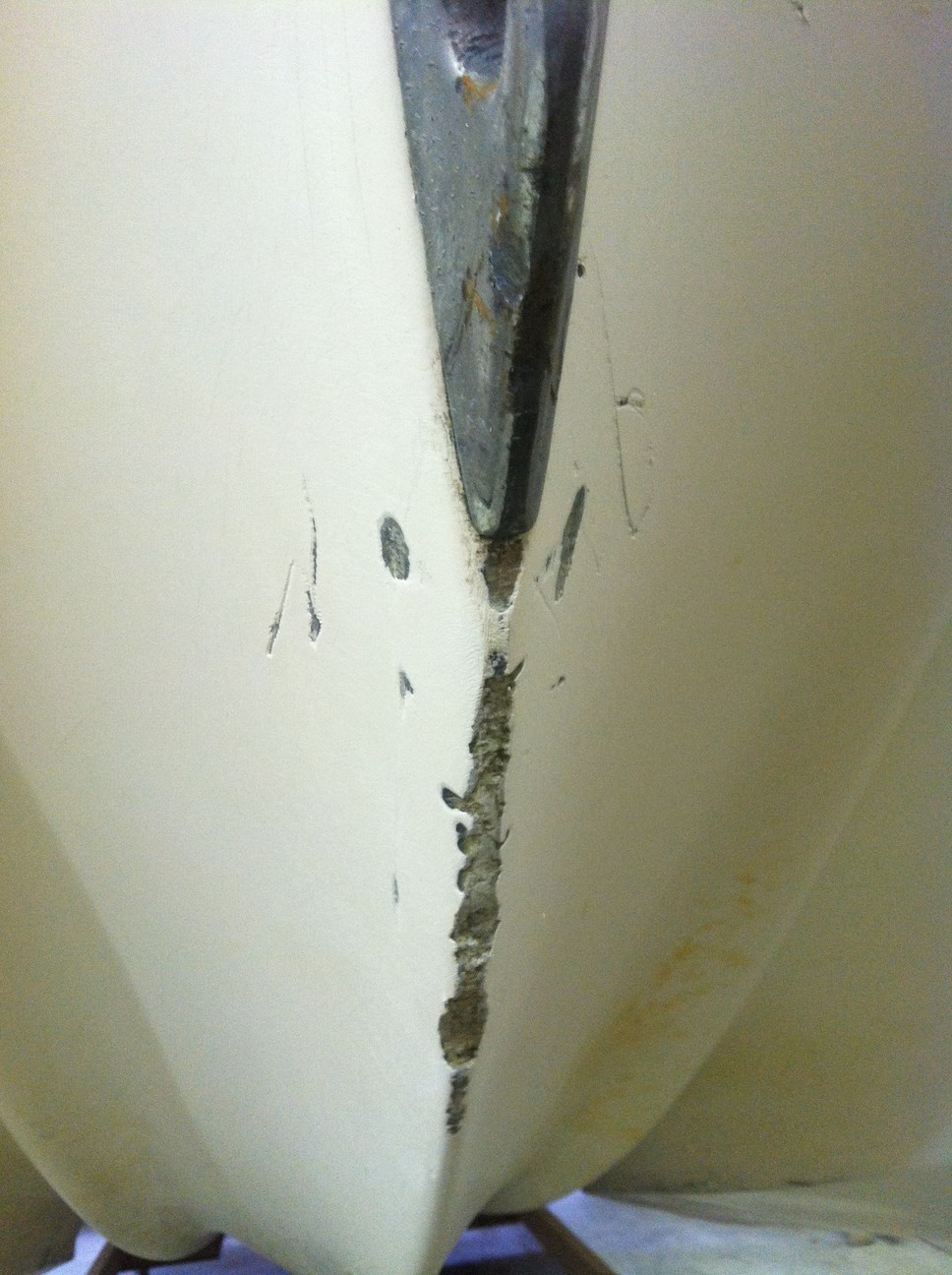

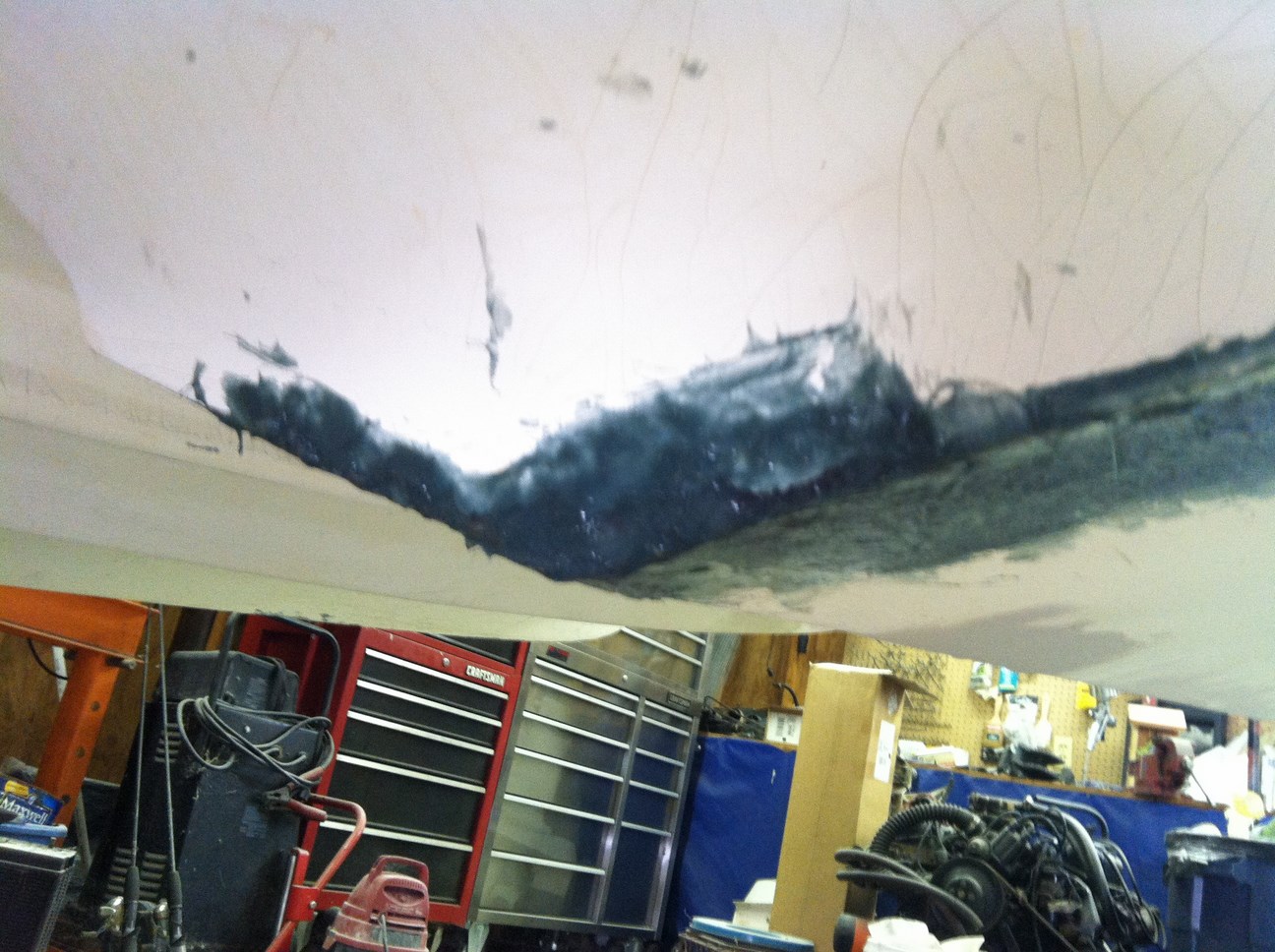

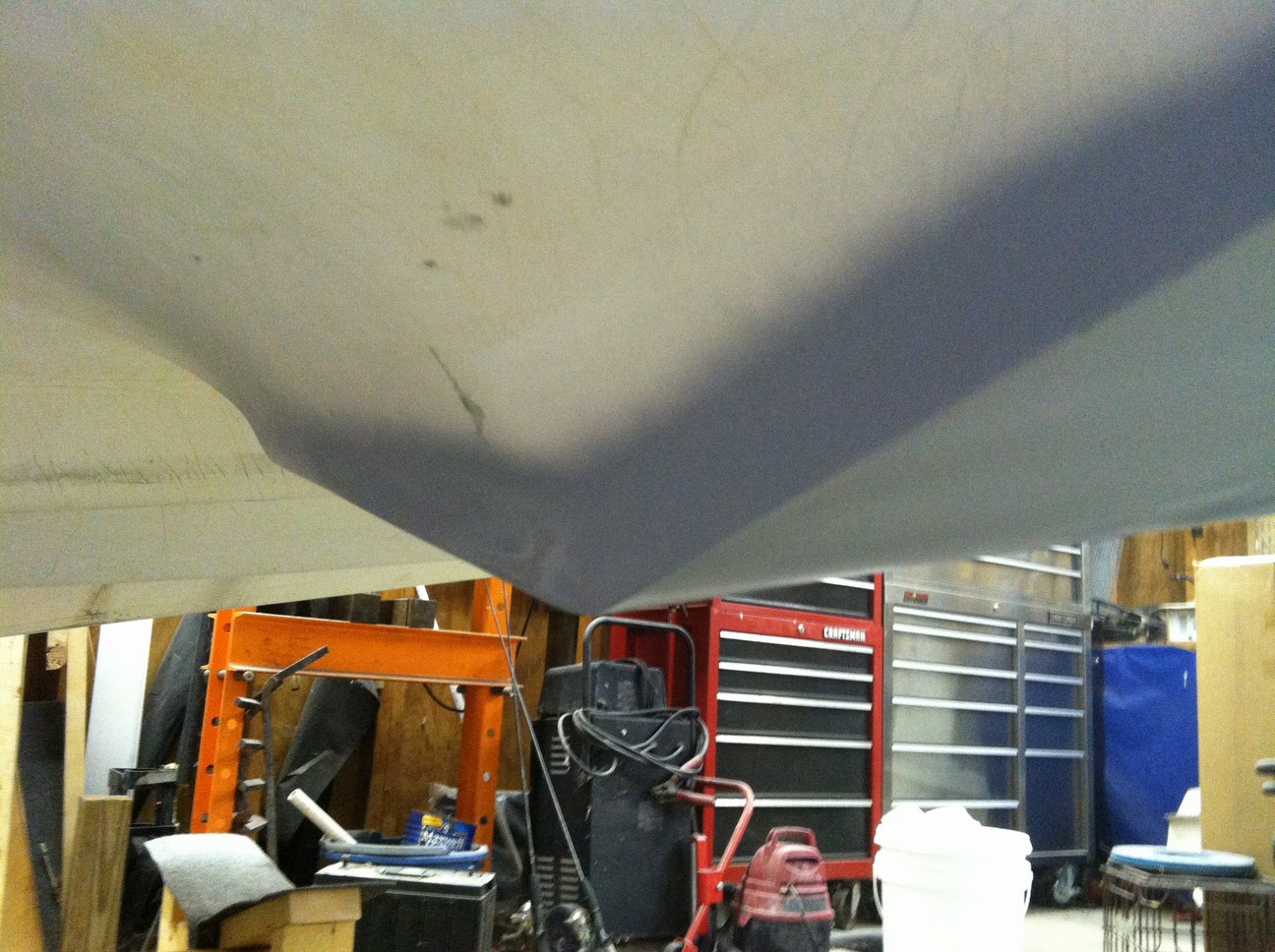

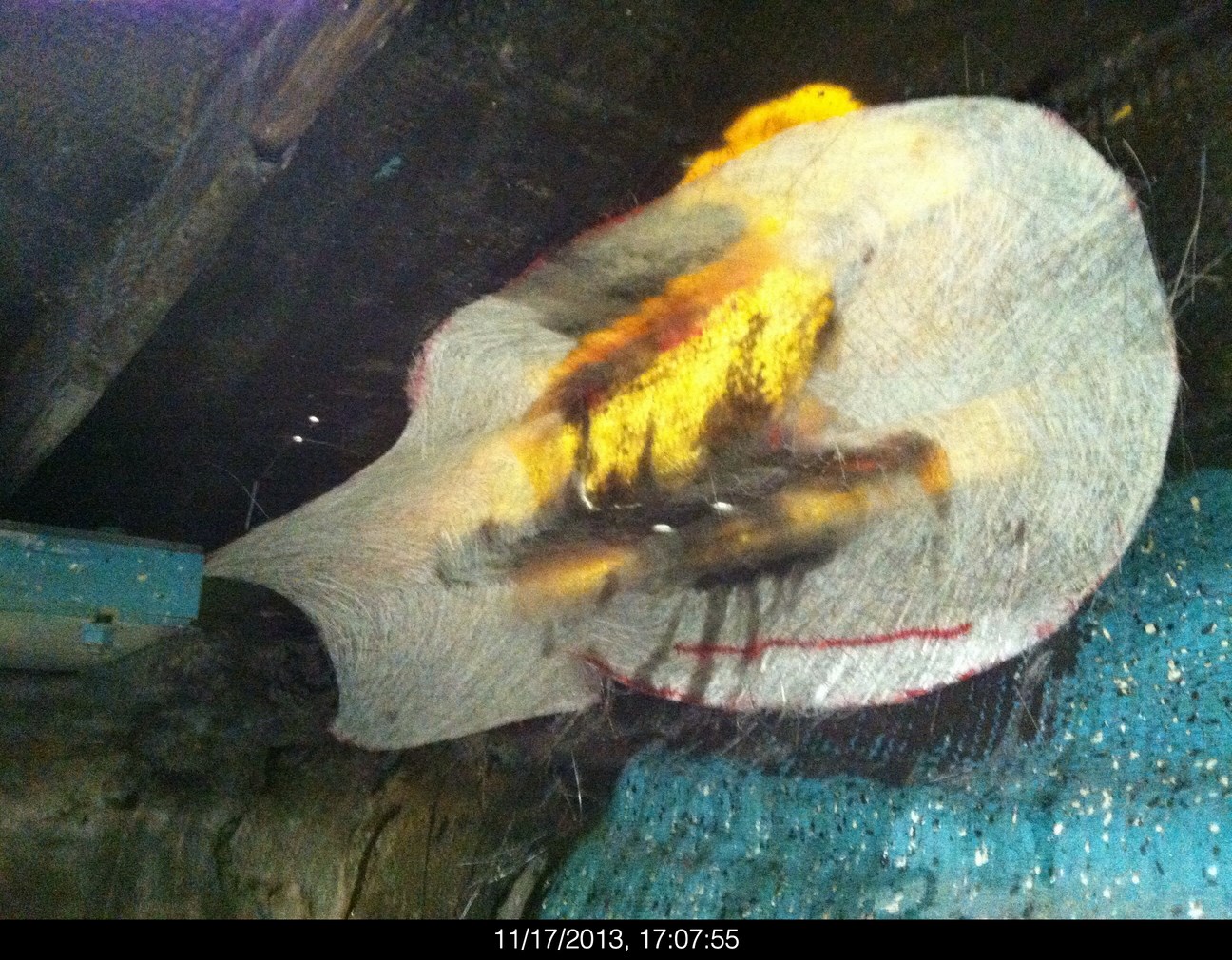

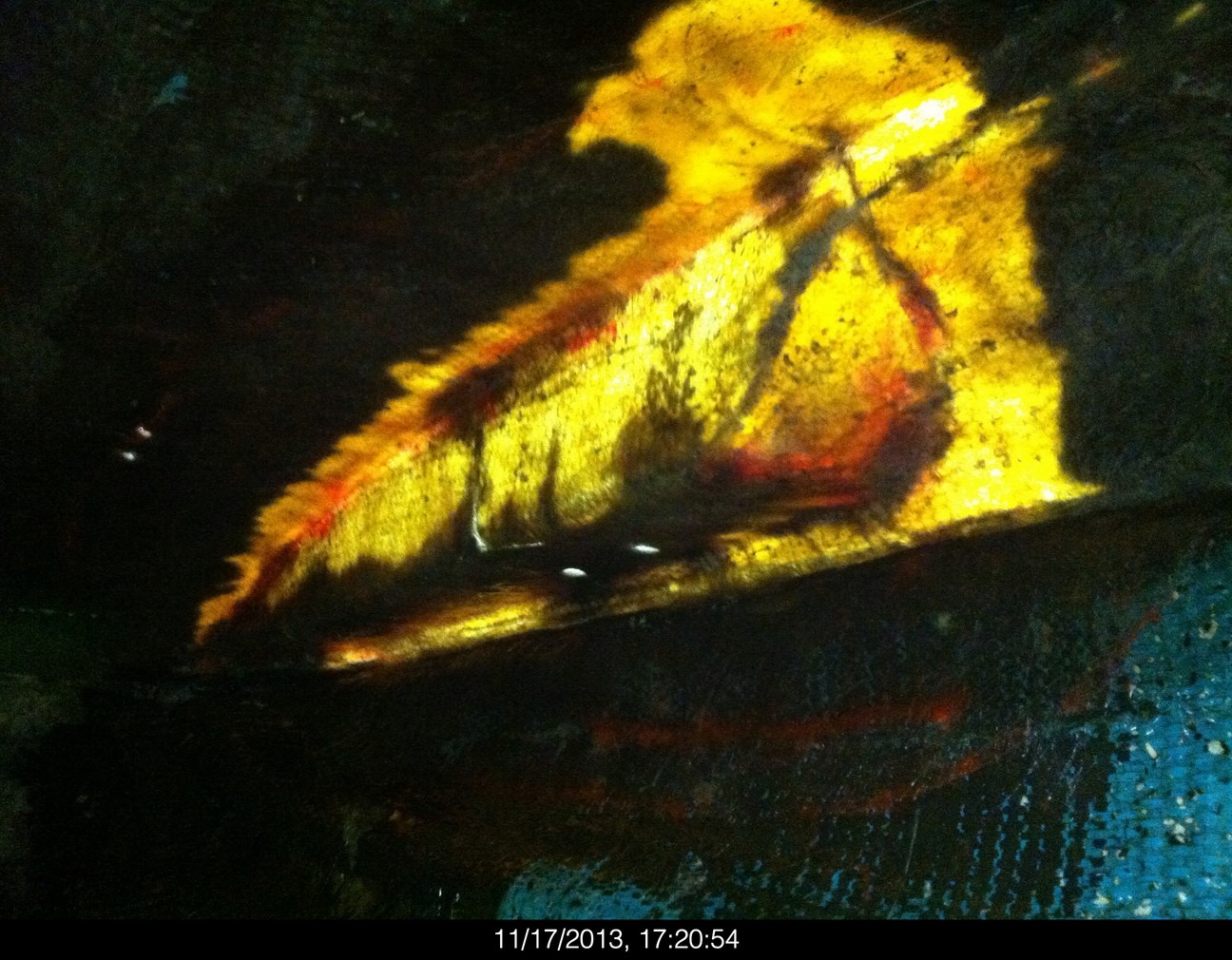

Update: Before I figured out how to flip this monster over I spent a few months working on my back repairing some of the worst damage...









Please Log in to join the conversation.

Re:1964 Johnson Deluxe Resto-Mod 3 years 11 months ago #94309

  • agleason
  • agleason's Avatar Topic Author
  • Offline
  • Expert Boarder
  • Expert Boarder
  • Posts: 314
  • Karma: 25
  • Thank you received: 1
I gave up working on my back and worked on the top side...




















Please Log in to join the conversation.

Re:1964 Johnson Deluxe Resto-Mod 3 years 11 months ago #94436

  • agleason
  • agleason's Avatar Topic Author
  • Offline
  • Expert Boarder
  • Expert Boarder
  • Posts: 314
  • Karma: 25
  • Thank you received: 1

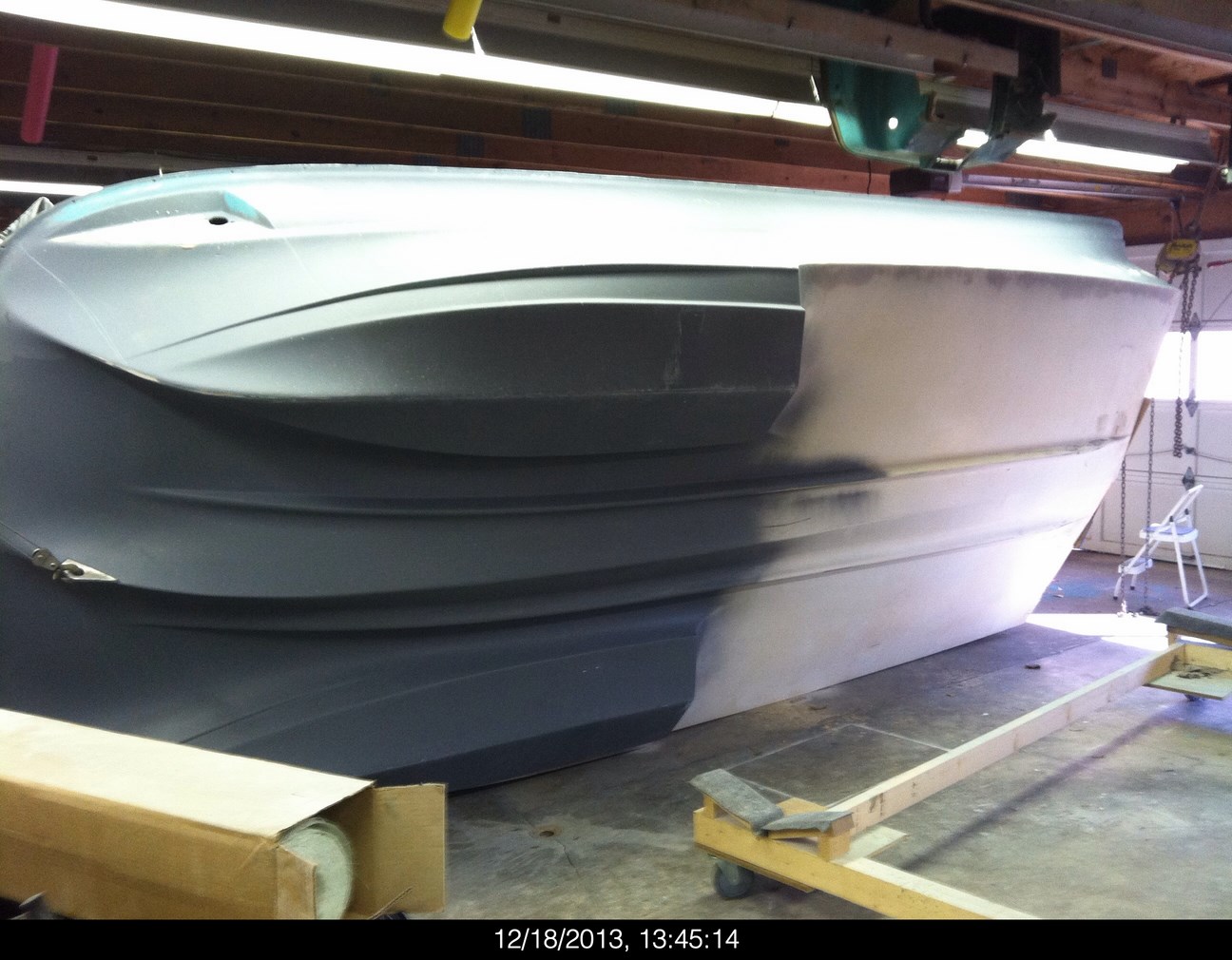

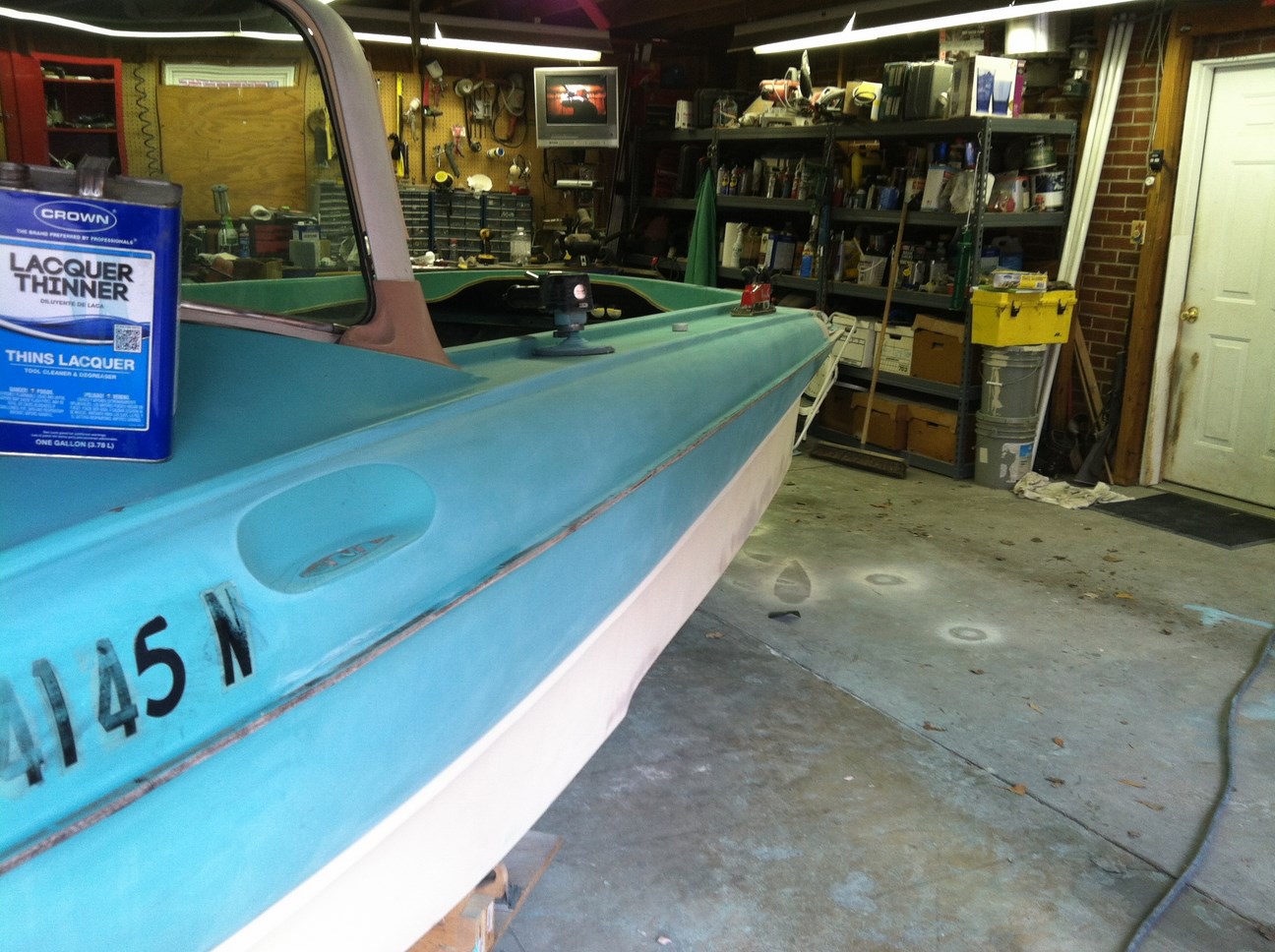

Update: started the endless sanding process and removed the last of her old identity.









Please Log in to join the conversation.

Re:1964 Johnson Deluxe Resto-Mod 3 years 11 months ago #94788

  • agleason
  • agleason's Avatar Topic Author
  • Offline
  • Expert Boarder
  • Expert Boarder
  • Posts: 314
  • Karma: 25
  • Thank you received: 1

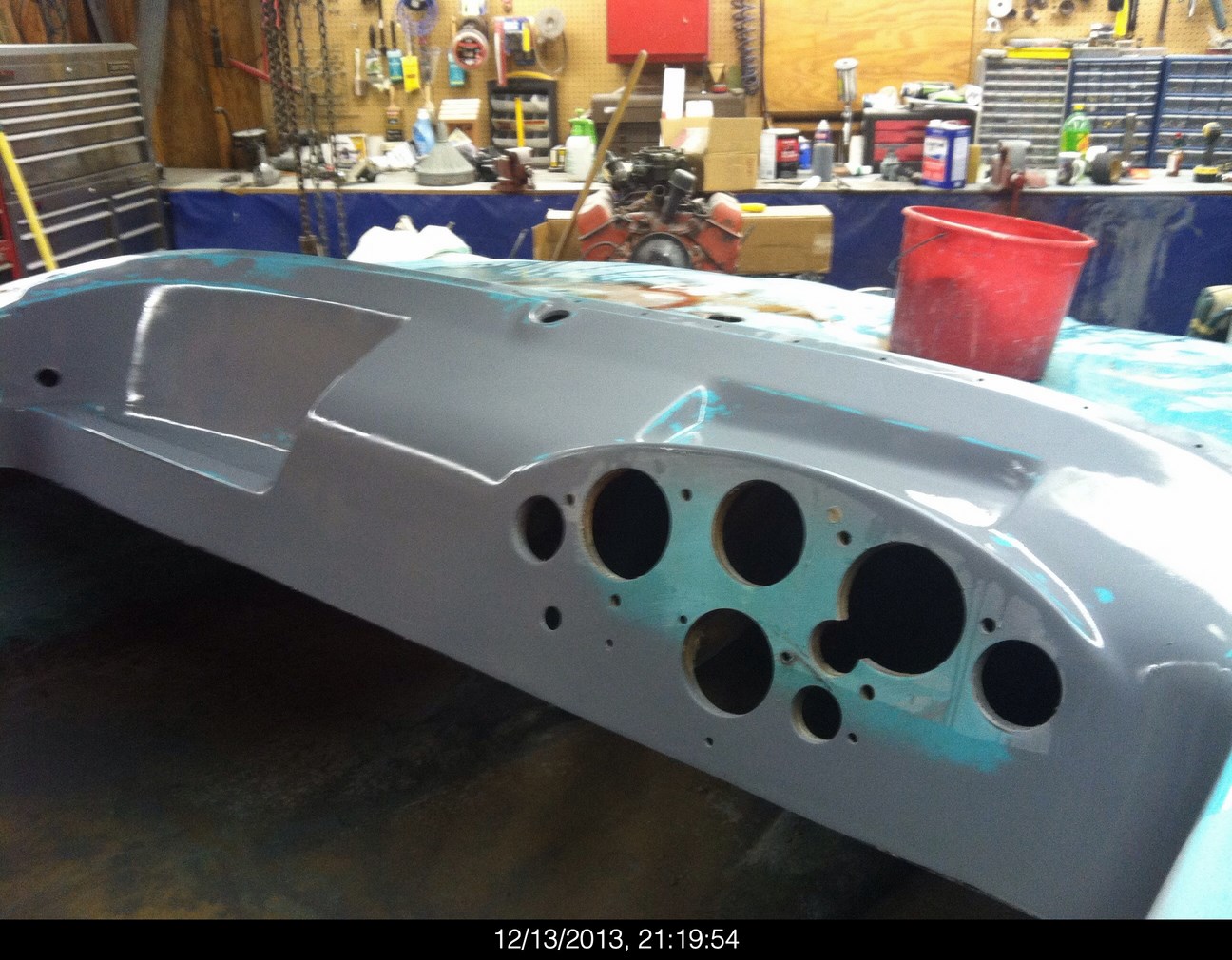

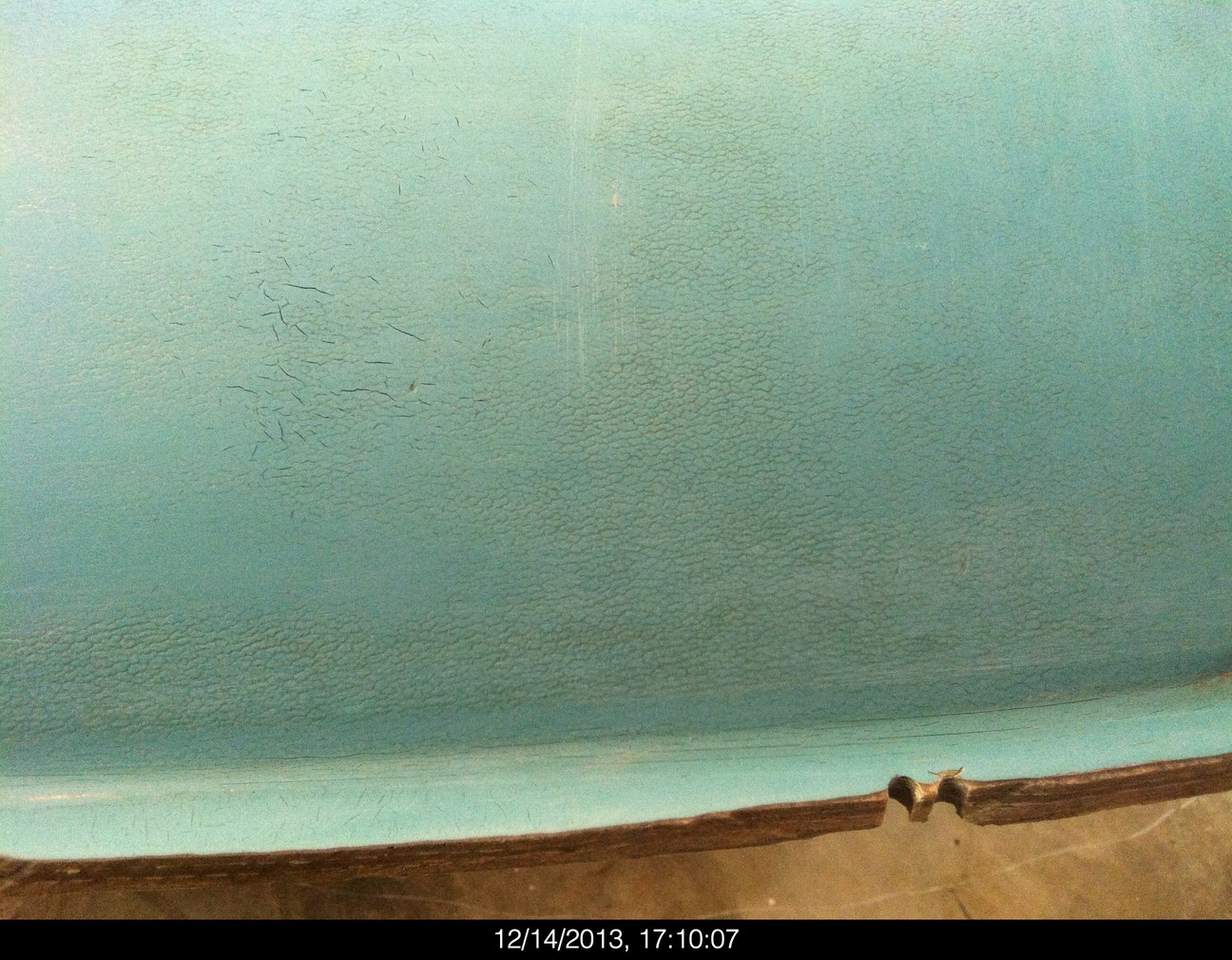

Update: Body work continues, I focused on filling all the old holes in the dash and removing that ugly "elephant hide" texture.









Please Log in to join the conversation.

Re:1964 Johnson Deluxe Resto-Mod 3 years 11 months ago #94791

Its all about the prep brotha!

Bob

Please Log in to join the conversation.

Re:1964 Johnson Deluxe Resto-Mod 3 years 10 months ago #95073

  • agleason
  • agleason's Avatar Topic Author
  • Offline
  • Expert Boarder
  • Expert Boarder
  • Posts: 314
  • Karma: 25
  • Thank you received: 1

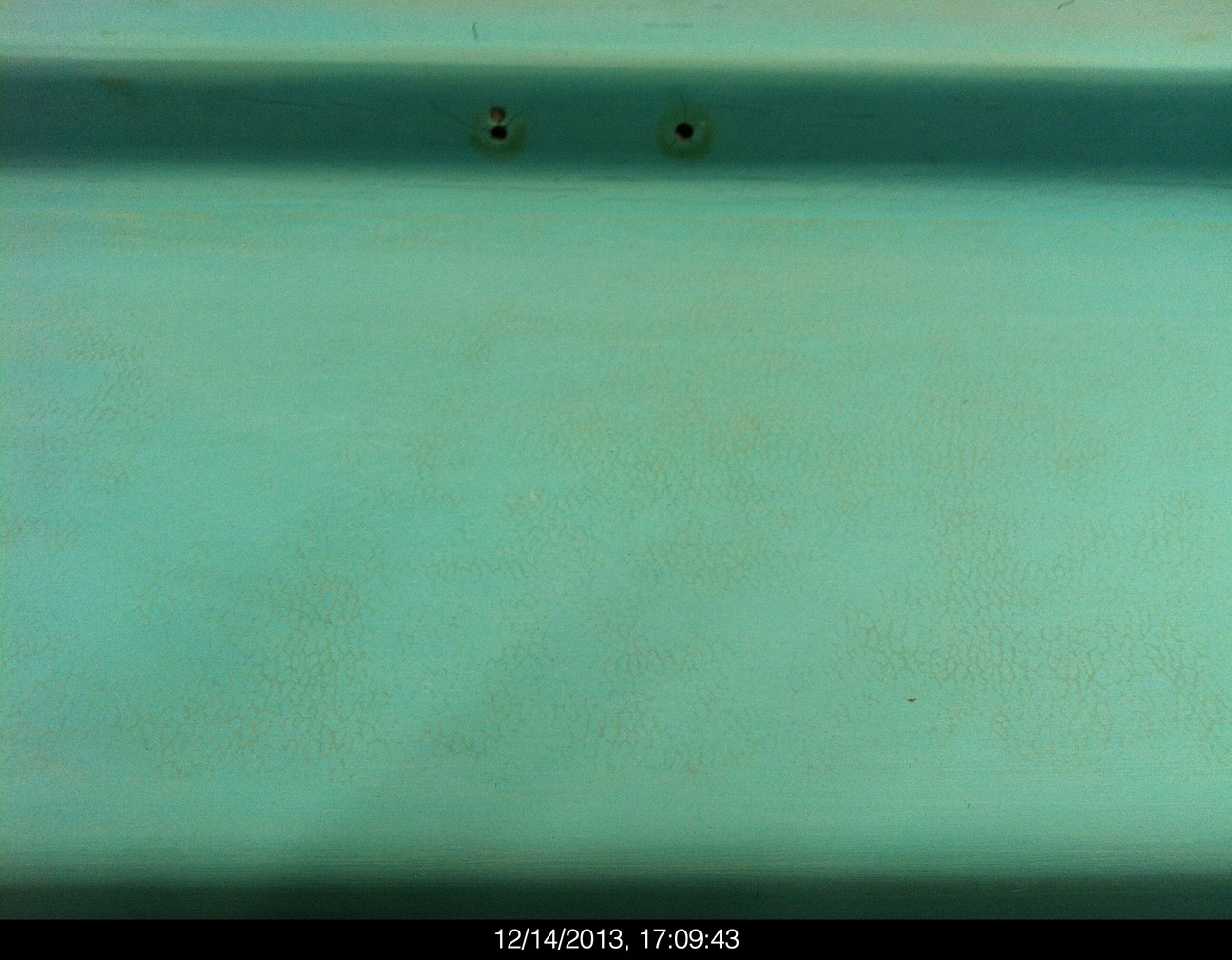

Update: Jan Hadley recommended using gel coat as a body filler to get rid of the elephant hide texture and the 10,000 cracks and imperfections.

Let me tell you, that stuff is amazing! You can cover a large area, it sets up quick, and sands away easily leaving a smooth surface.













Please Log in to join the conversation.

Time to create page: 0.265 seconds

FG Login

Donate

Please consider supporting our efforts.

Glassified Ads

Merc 800E
( / Engines)

Merc 800E
04-22-2018

1966 IMP Oceanic Deep V 18' day cruiser 300 Buick V8
( / Boats)

1966 IMP Oceanic Deep V 18' day cruiser 300 Buick V8
04-22-2018

wtb-Thunderbird Navajo
( / Wanted)

noimage
04-21-2018

FiberGoogle

Quick Search

Who's Online

We have 2243 guests and 12 members online
