TOPIC: ‘56 valco royal

‘56 valco royal 5 years 2 months ago #138627

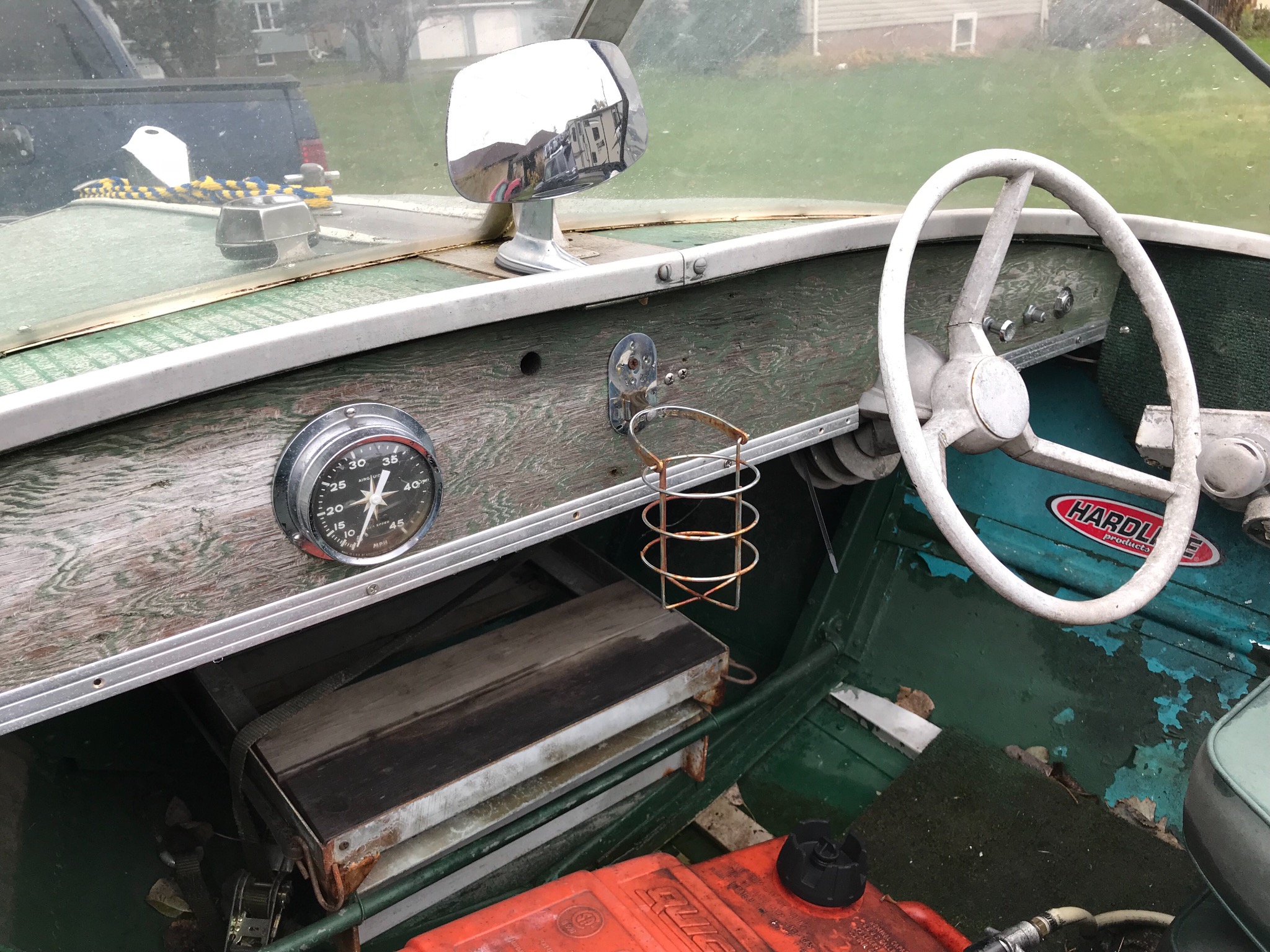

While working this year I found a second boat that I couldn’t live without in northern Minnesota. My brother in law checked it out for me then brought it home later for me to pick up after I was done working for the year. It’s a 1956 valco royal. The interior has seen better days but I won’t feel bad bringing her back with a newer 4 stroke hanging off the back.

Attachments:

Please Log in or Create an account to join the conversation.

‘56 valco royal 5 years 2 months ago #138638

Very cool I can see why you wanted it!

Bob

Please Log in or Create an account to join the conversation.

‘56 valco royal 5 years 2 months ago #138643

Finished tear down this week before a little vacation.

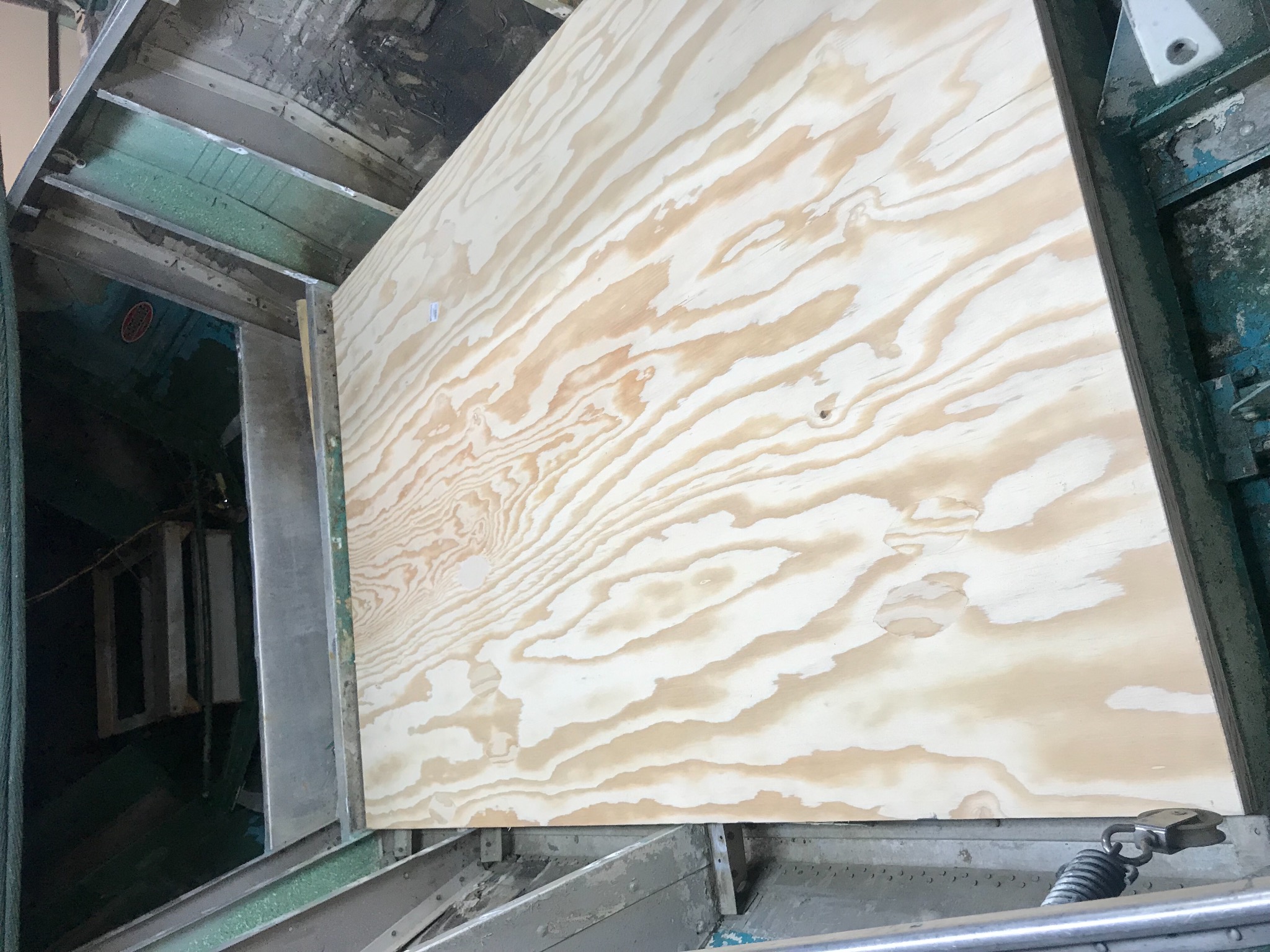

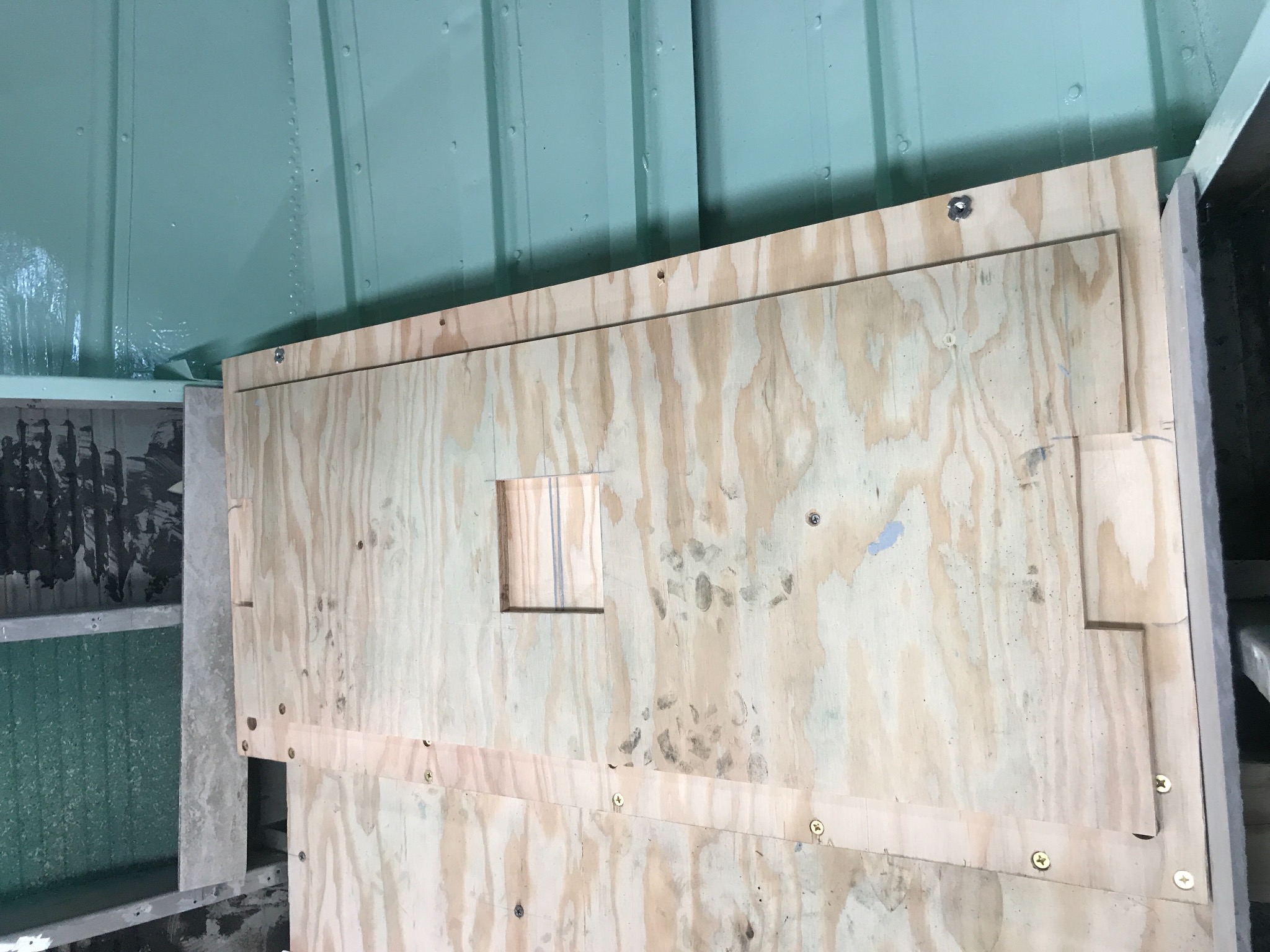

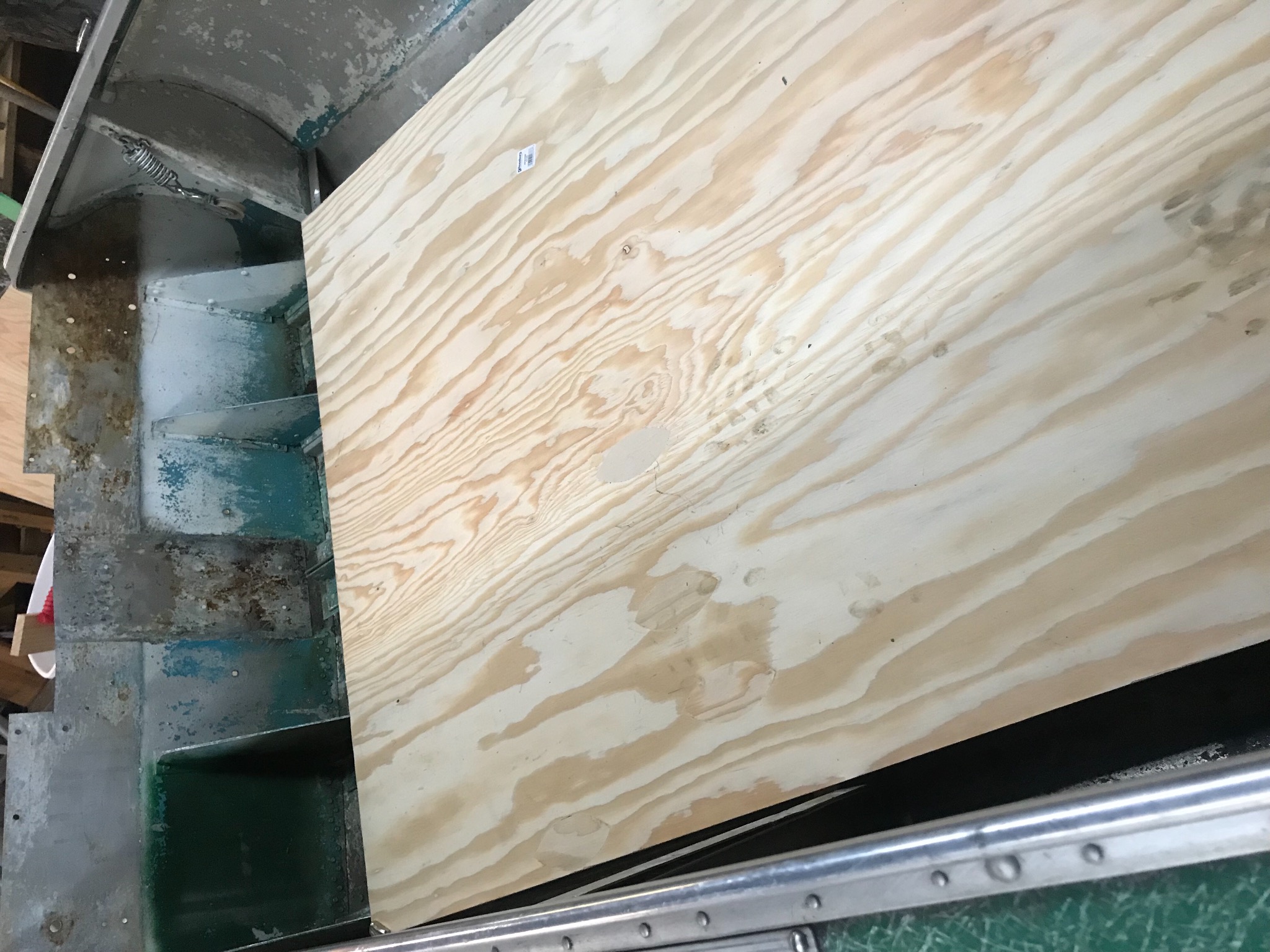

New 3/4 marine floor before it gets sealed

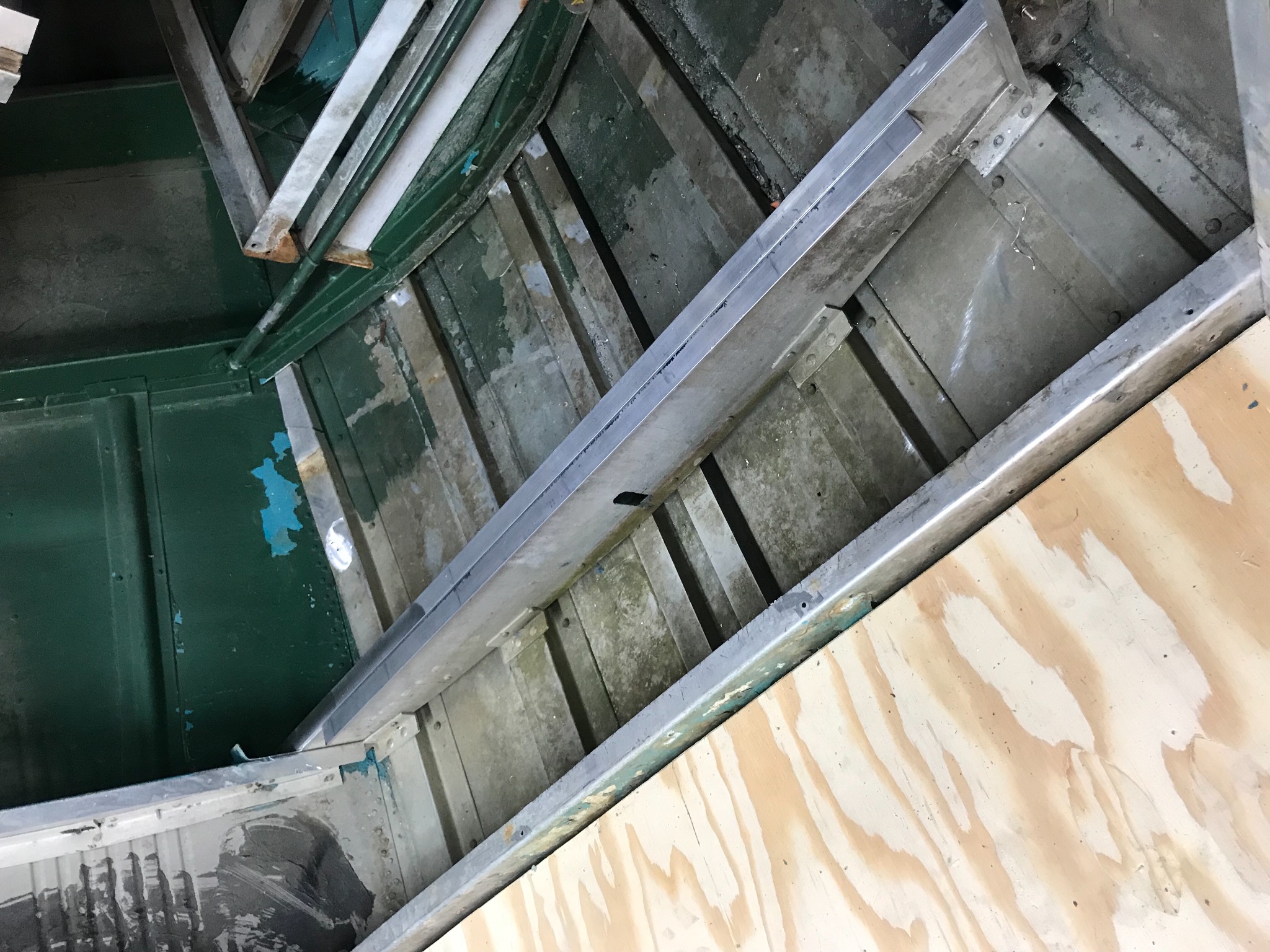

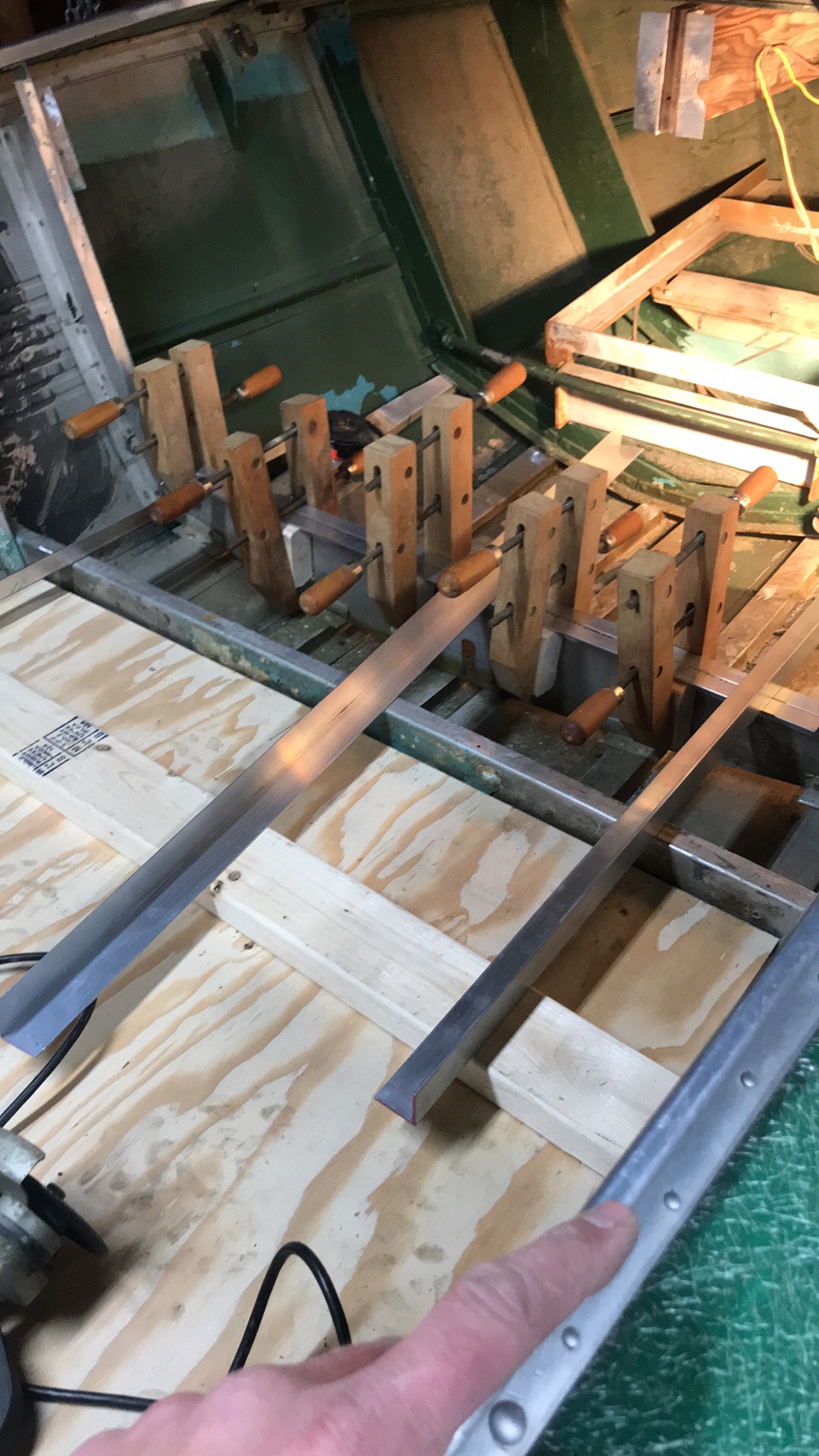

Straightening out the angle aluminum getting it ready as part of the seat base.

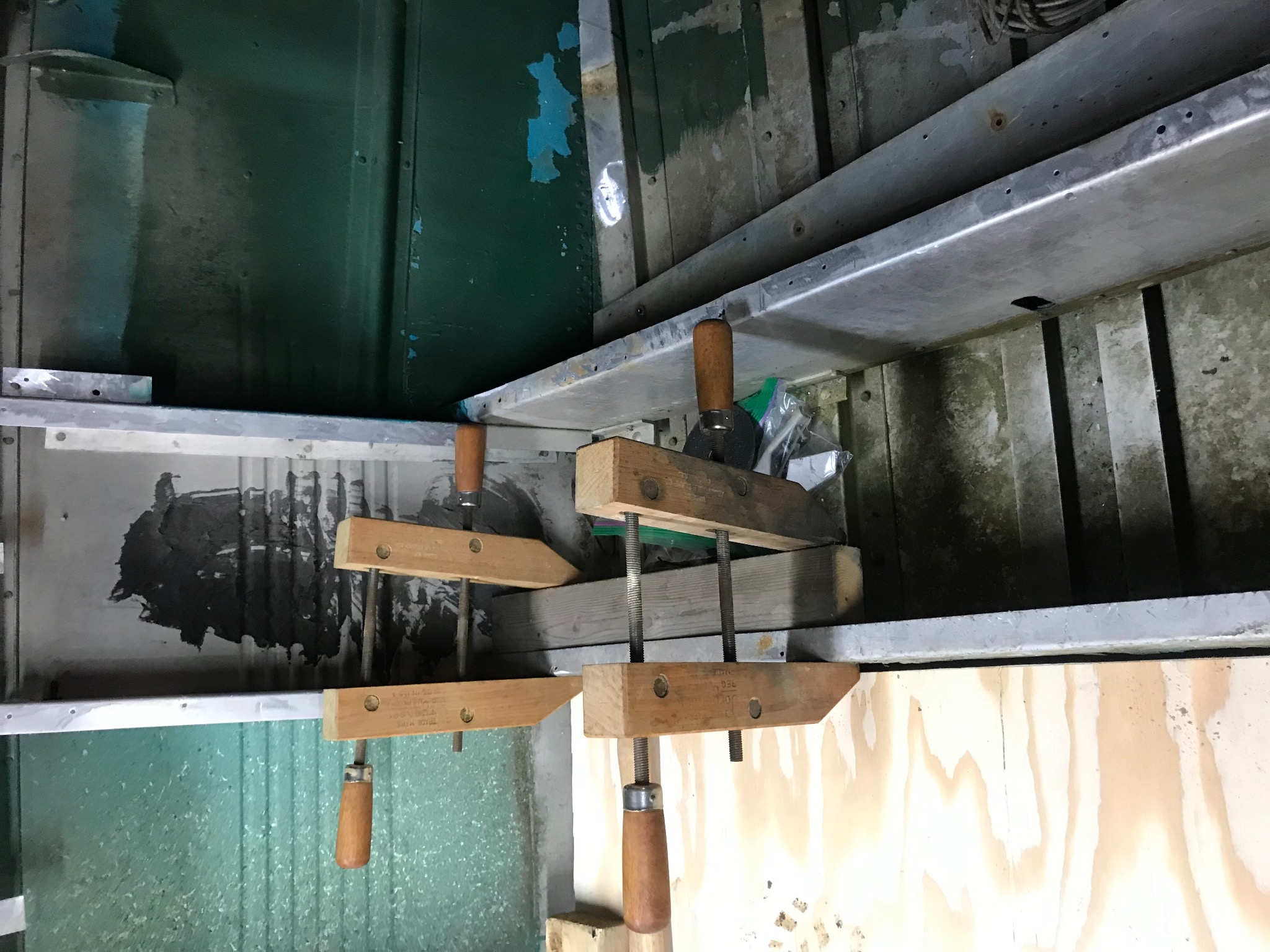

Had to cut down the original front mount for the new seating location. I’m 6’-2 and wouldn’t have a comfortable ride in their previous placement. New angle and box in place ready for a bolt in setup.

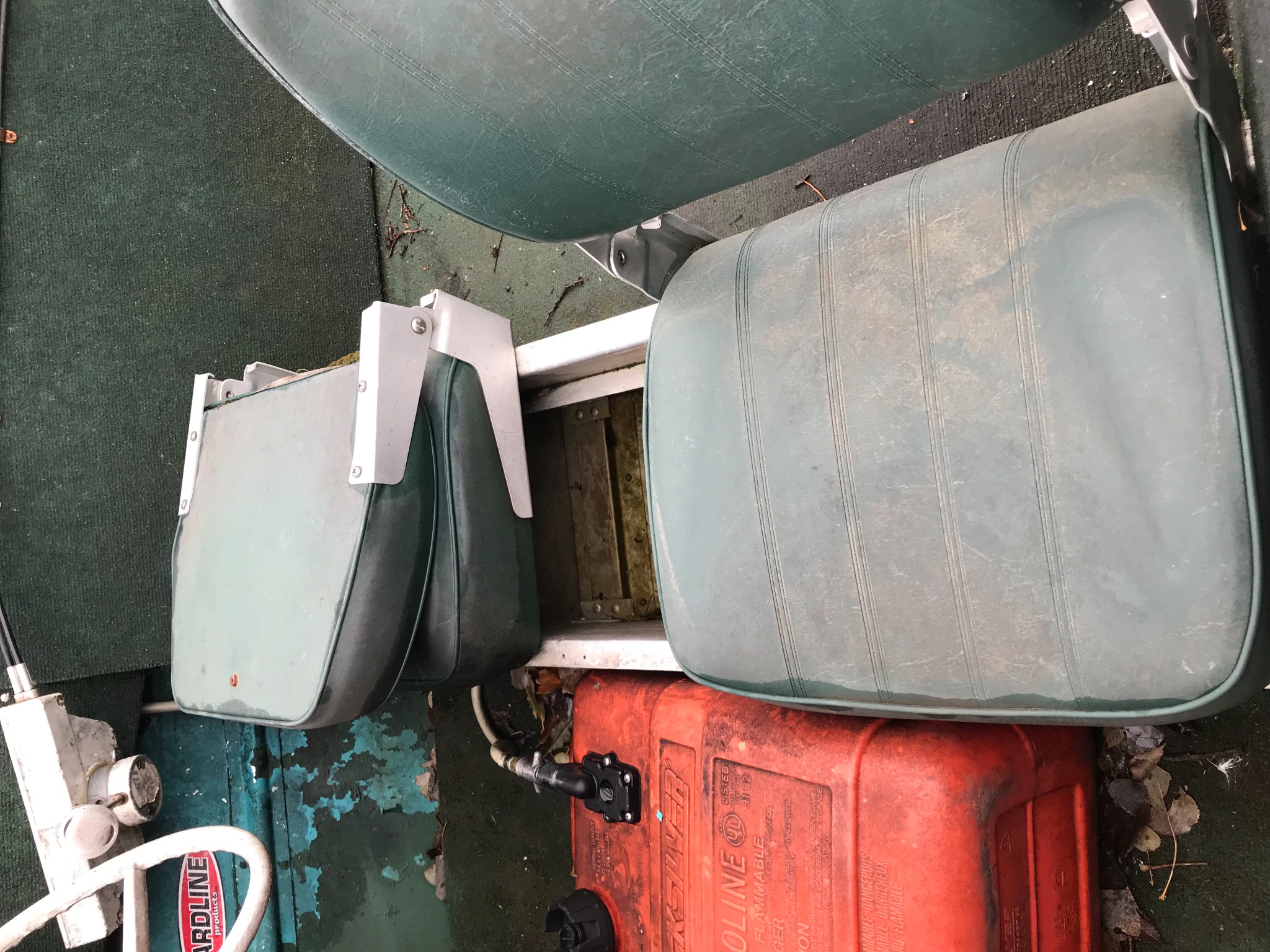

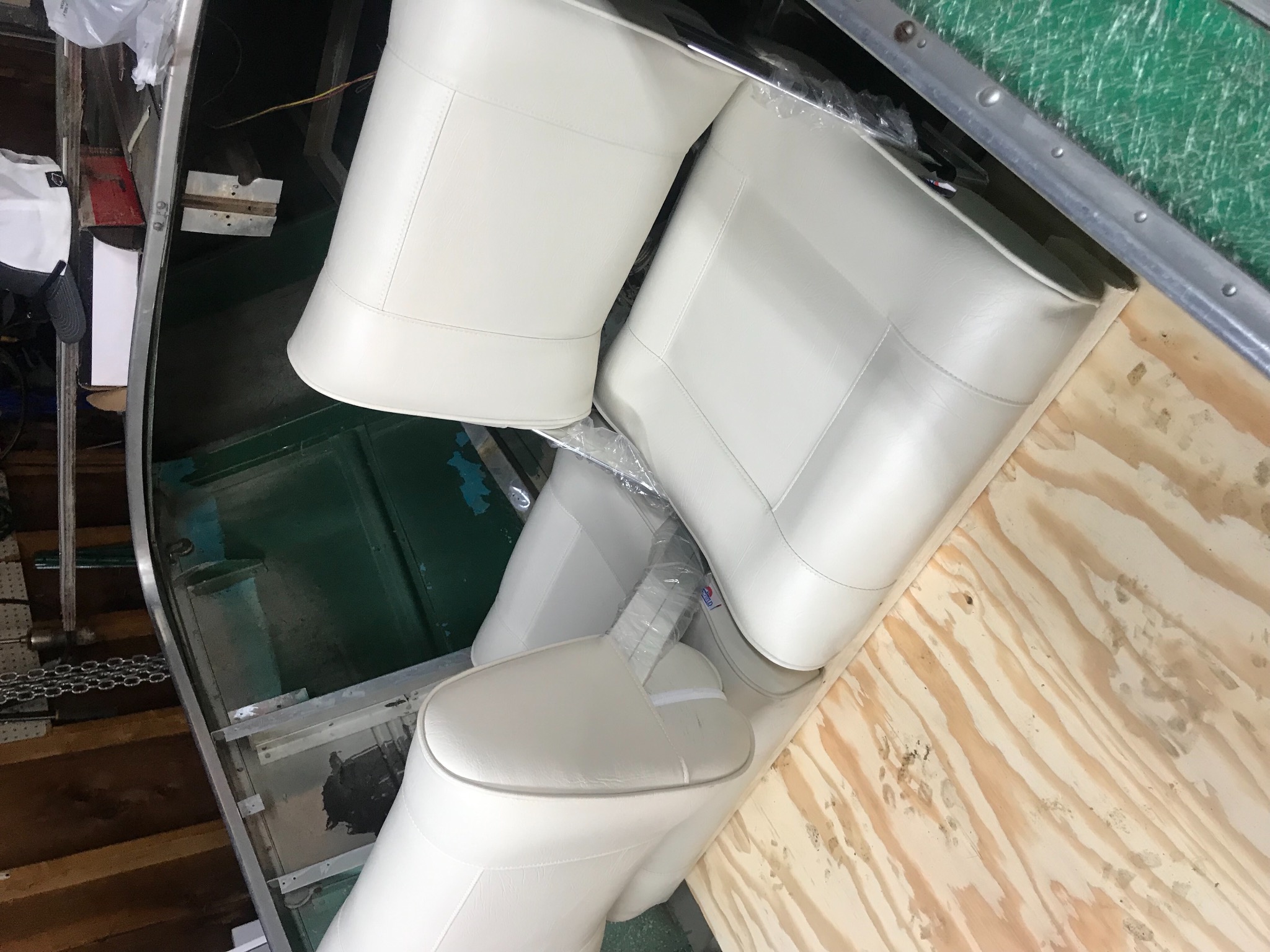

Flip back buckets were the right fit for how I’ll use this boat. Start back up next week with making some more progress.

Please Log in or Create an account to join the conversation.

‘56 valco royal 5 years 1 month ago #138965

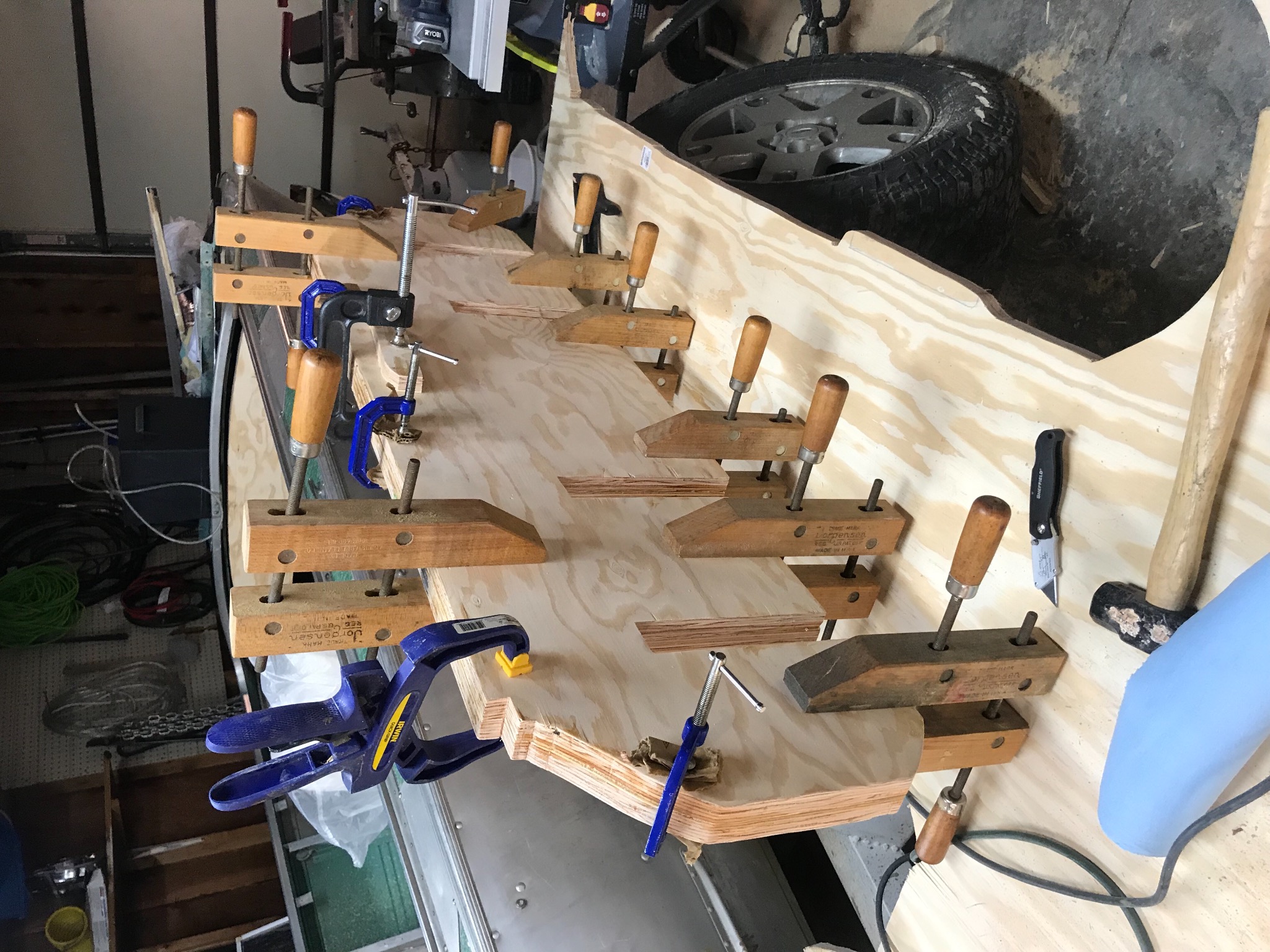

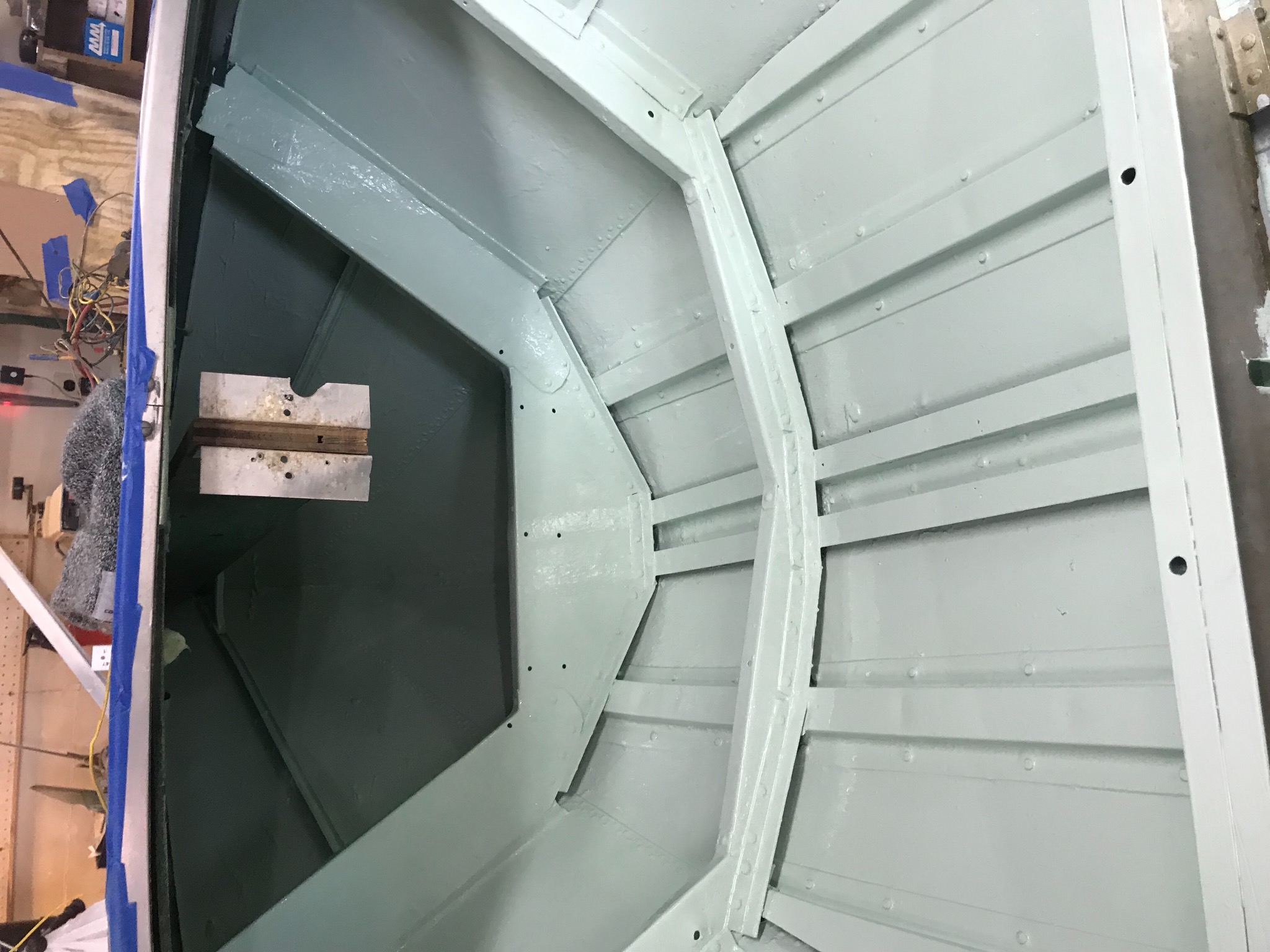

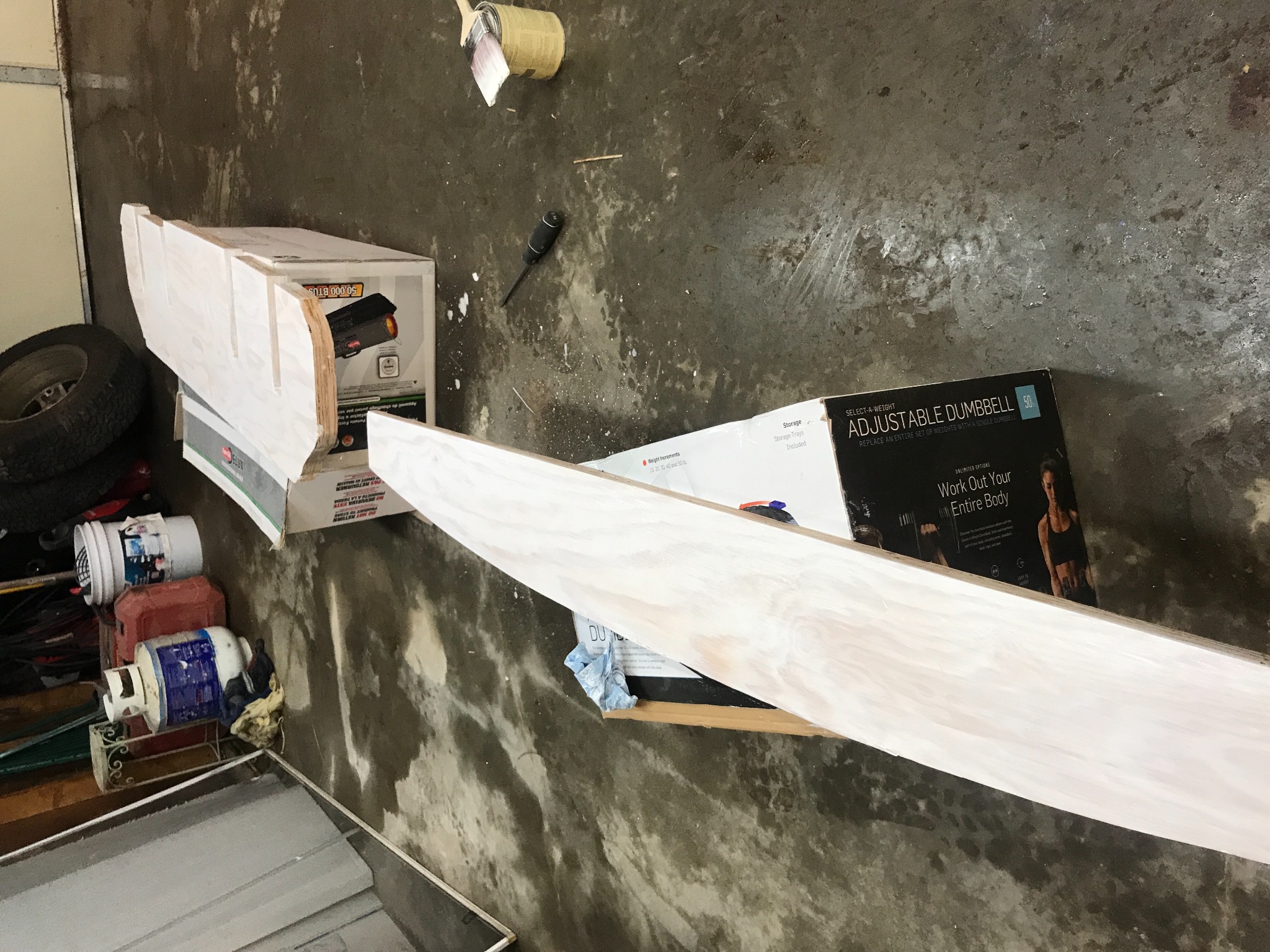

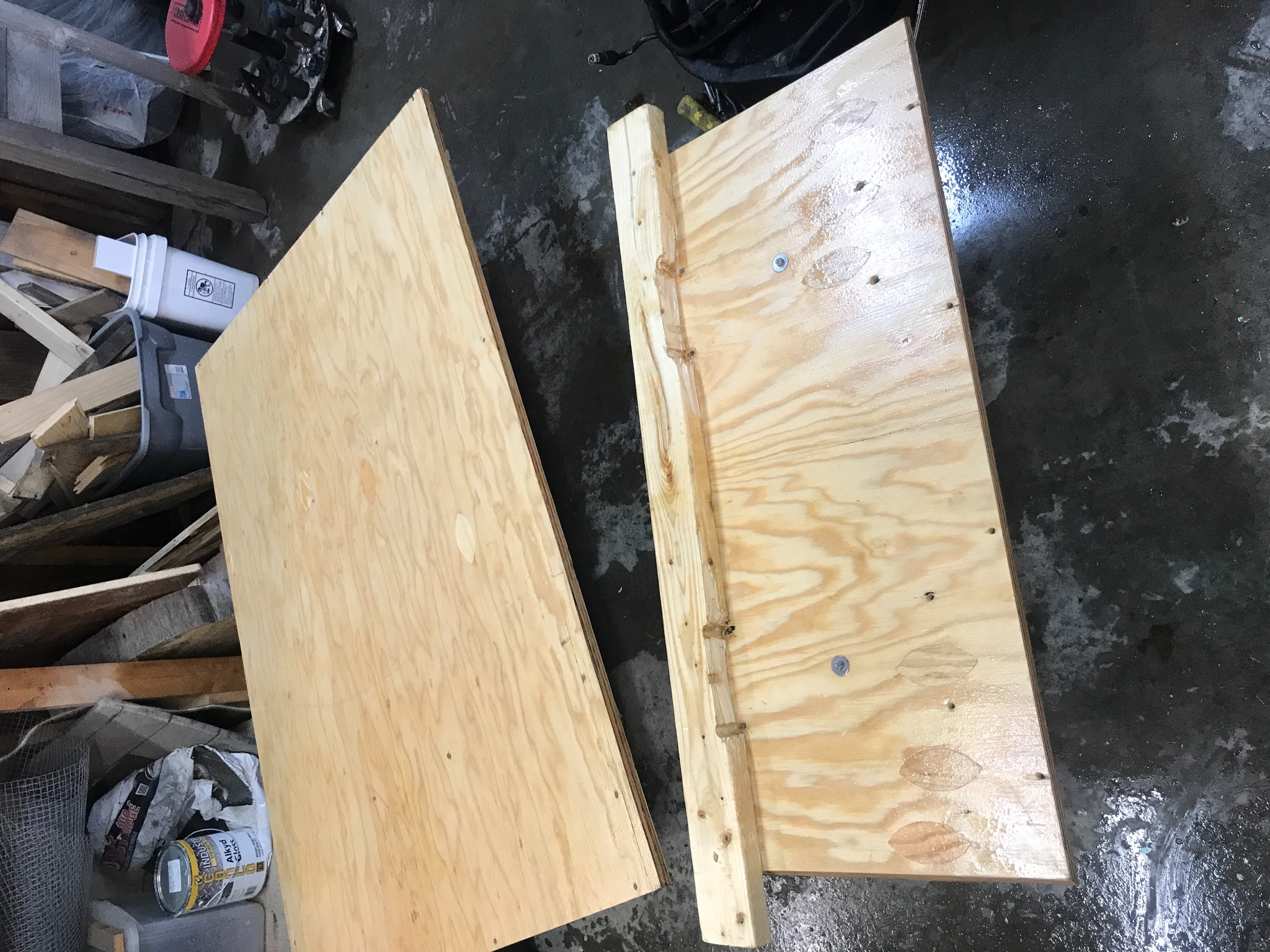

Finished the seat base. Made a new transom amd dash before dying the wood and sealing it. Started painting the inside of the bow seafoam and laid a coat of epoxy resin before some sanding and fairing compound on the topside. .

Please Log in or Create an account to join the conversation.

‘56 valco royal 5 years 3 days ago #139107

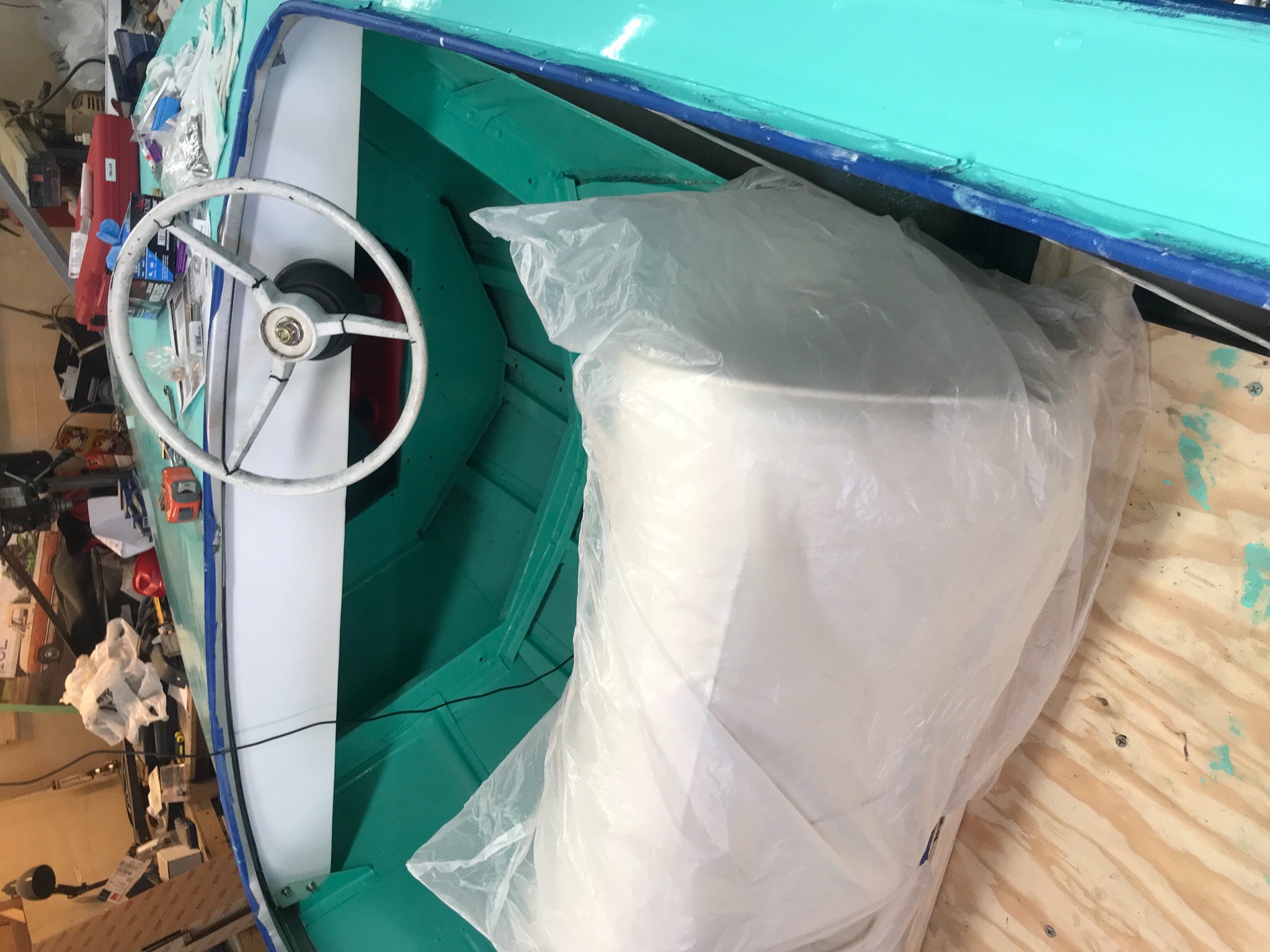

Mounted the new tilt steering wheel on the finished dash. Time to refinish the steering wheel.

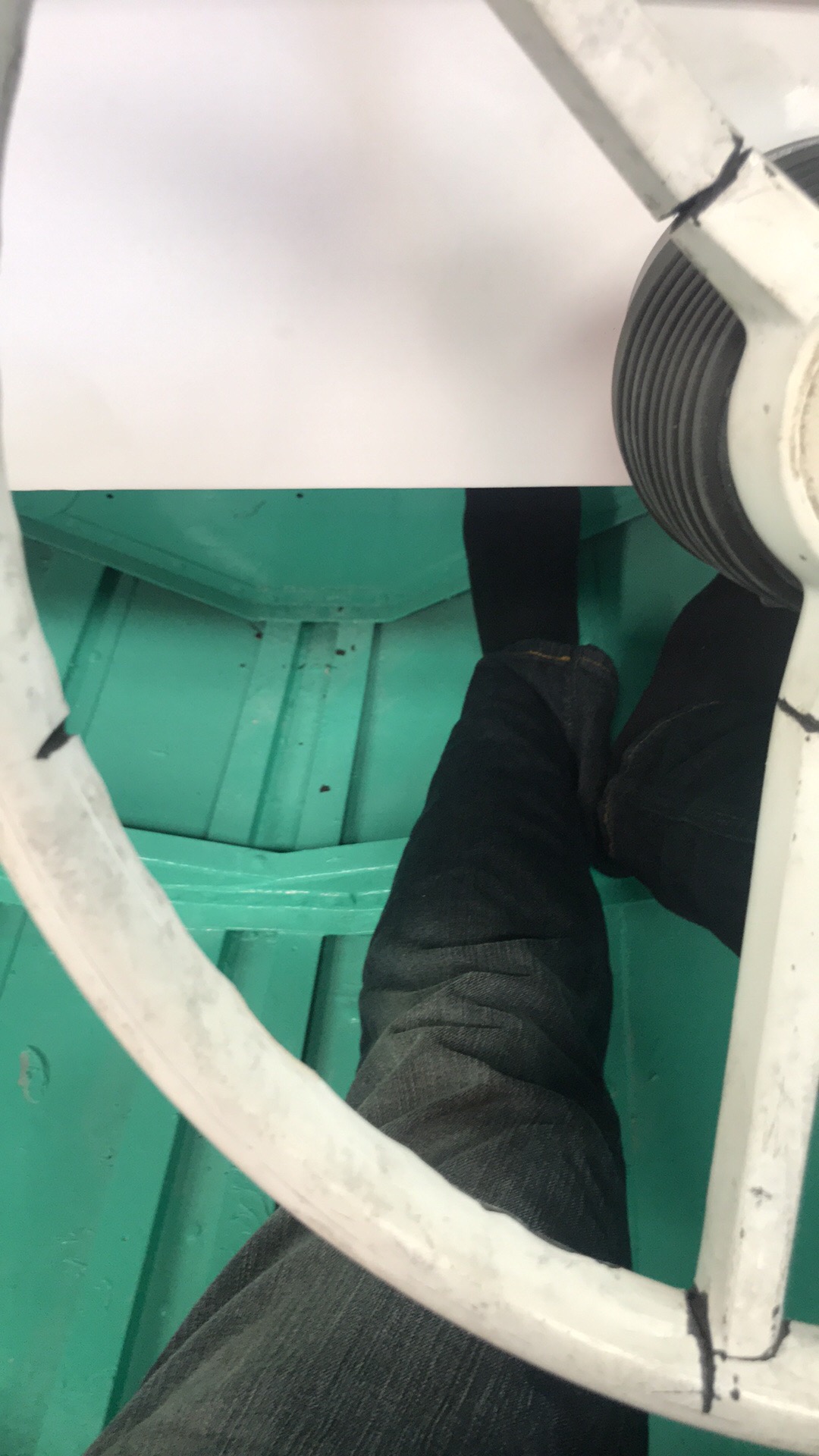

Have plenty of leg room even at 6’-2 thanks to a bow fuel tank.


Ready to final mount the transom and finish painting the rear of the boat.


A layer of epoxy resin made it on the floor and seat mount.
Attachments:

Please Log in or Create an account to join the conversation.

‘56 valco royal 5 years 2 days ago #139124

She's coming along great!

Bob

Please Log in or Create an account to join the conversation.

‘56 valco royal 4 years 11 months ago #139177

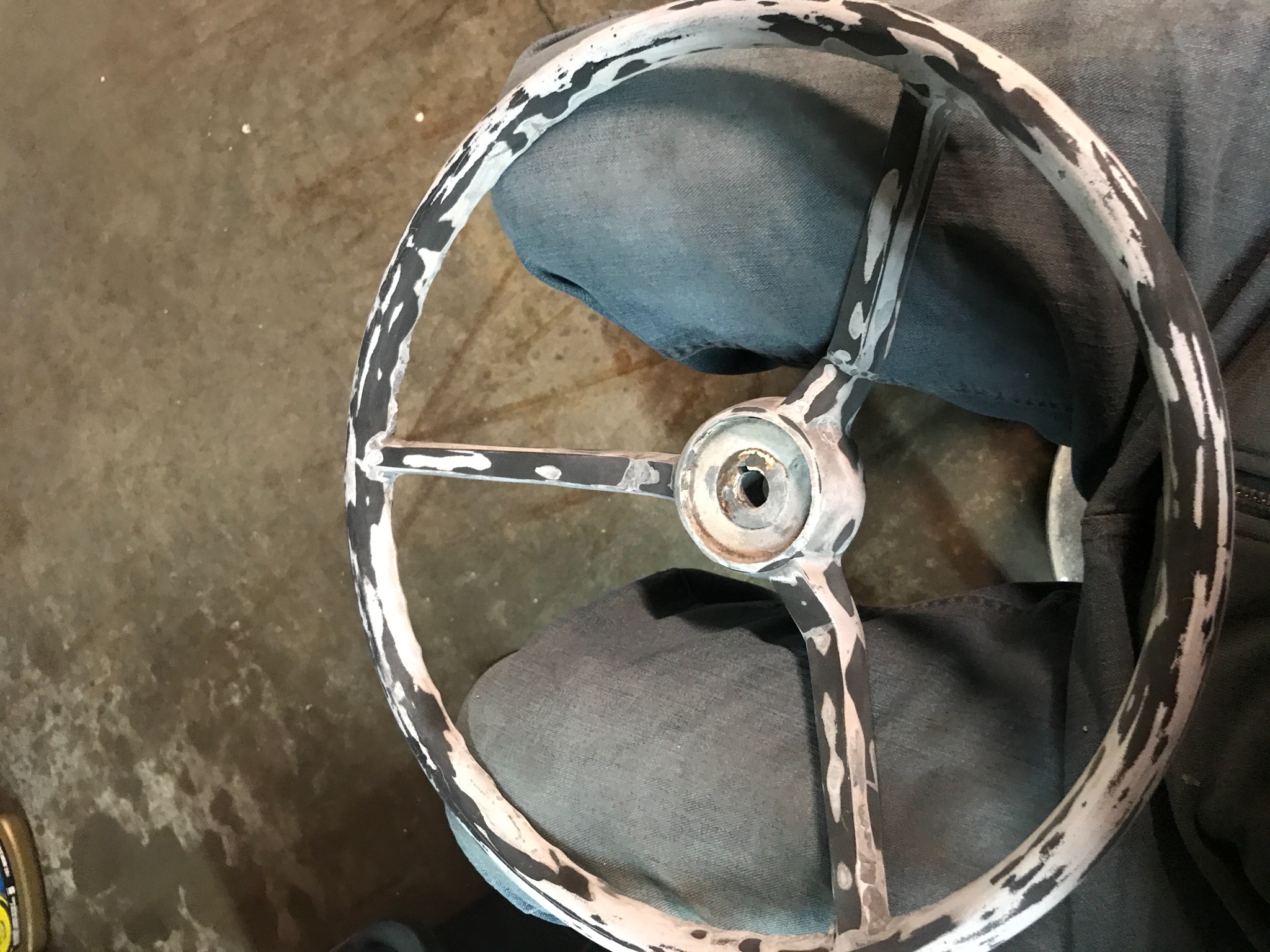

Started the steering wheel back to life. All the cracks have been filled and sanded

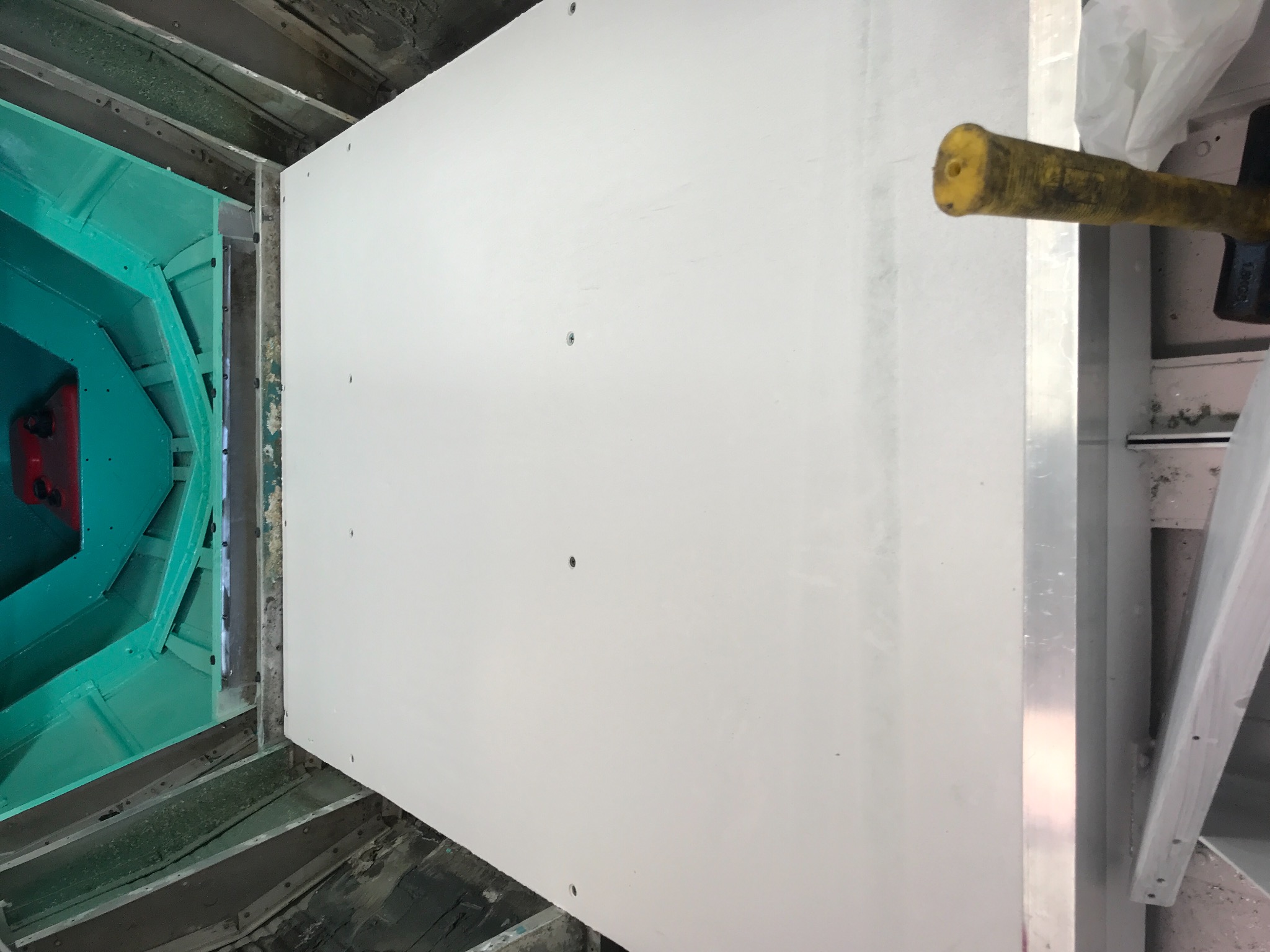

Floor is done with its non slip and final installation complete.
Attachments:

Please Log in or Create an account to join the conversation.

‘56 valco royal 4 years 11 months ago #139227

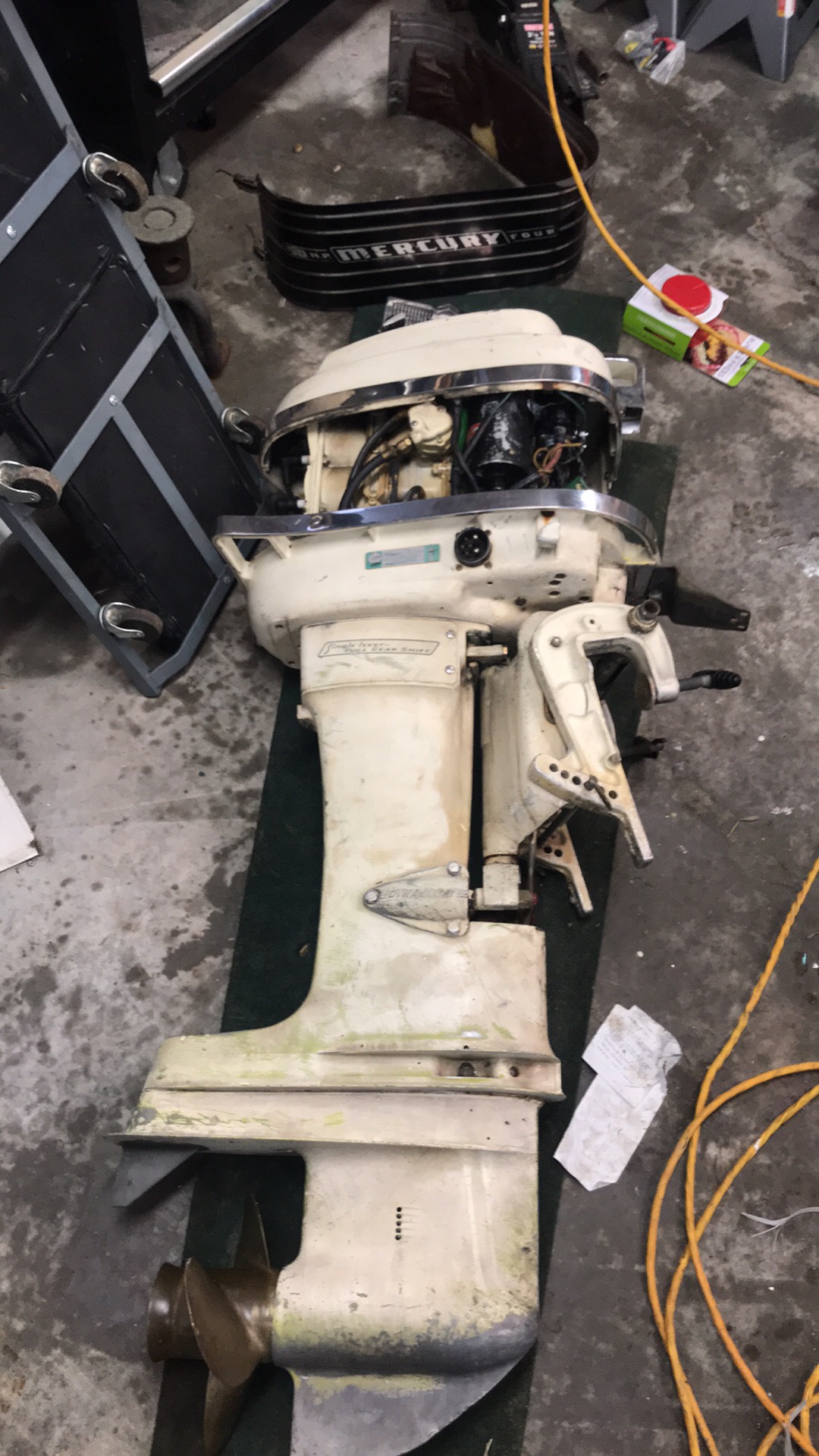

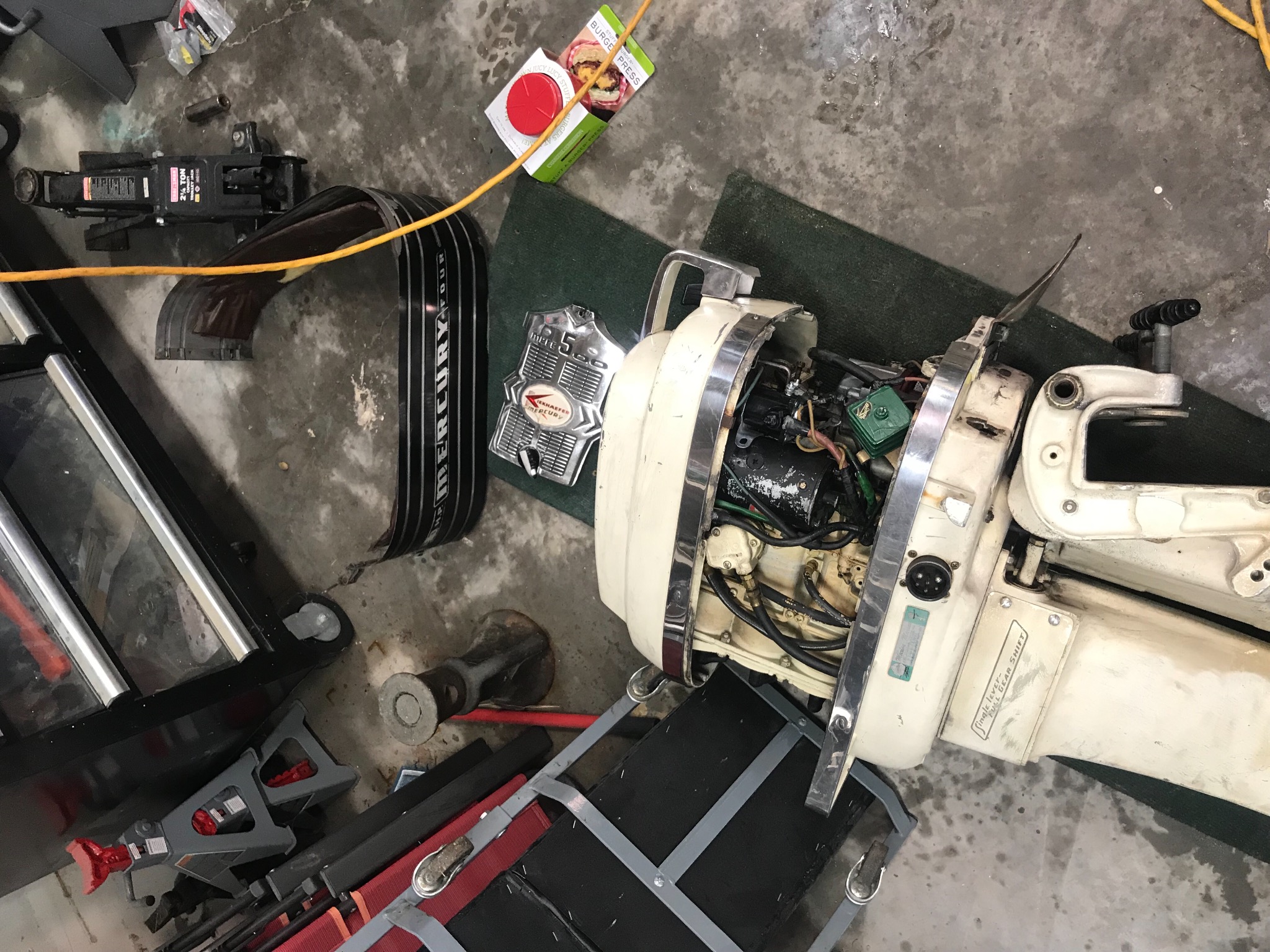

Found a new outboard for it locally today. It gets dropped off at the mechanic to check it over and freshen up some things before getting mounted. 1963 mercury 500el
Attachments:

Please Log in or Create an account to join the conversation.

‘56 valco royal 4 years 11 months ago #139232

Nice!!!!

Bob

Please Log in or Create an account to join the conversation.

‘56 valco royal 4 years 10 months ago #139500

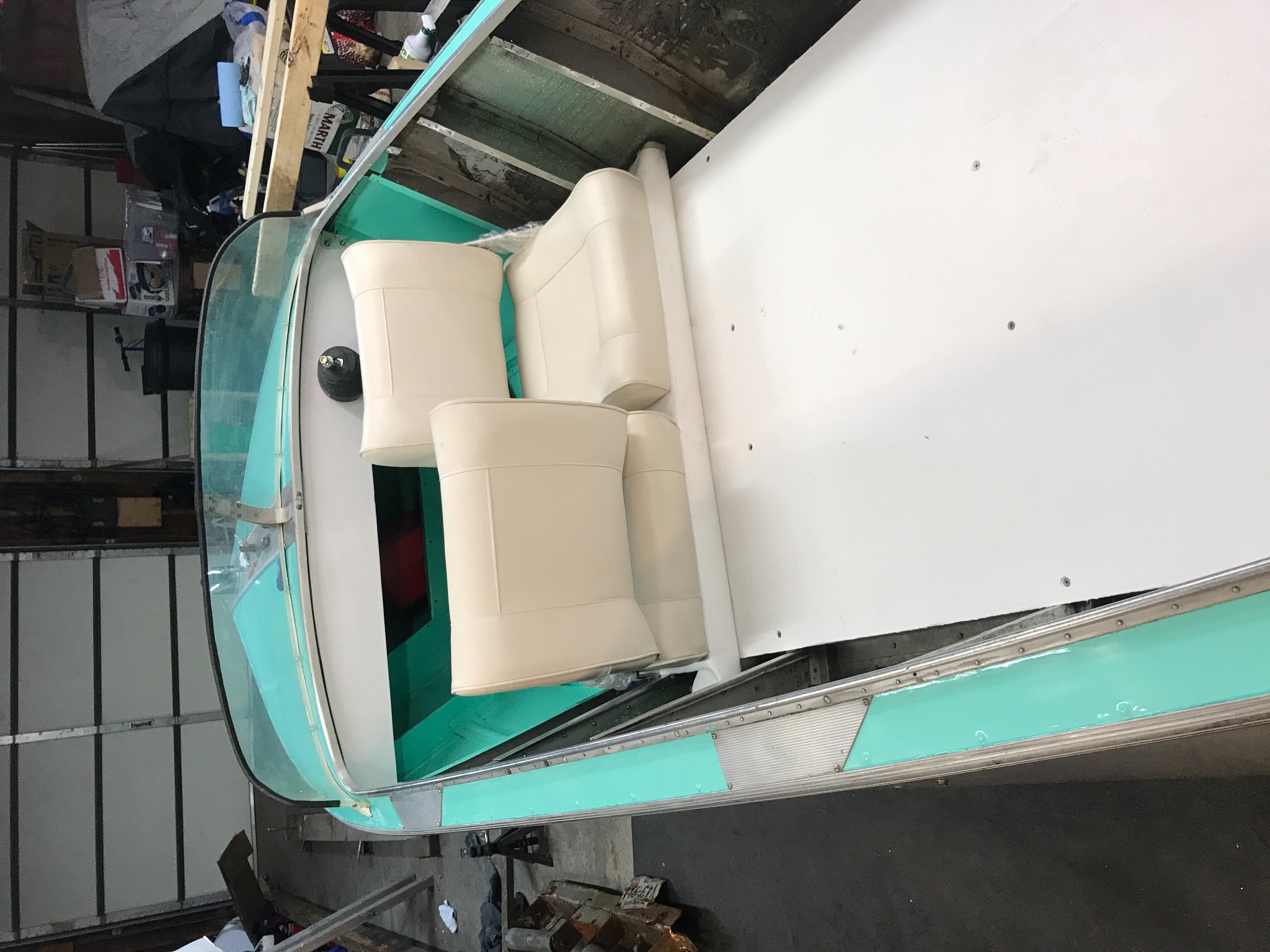

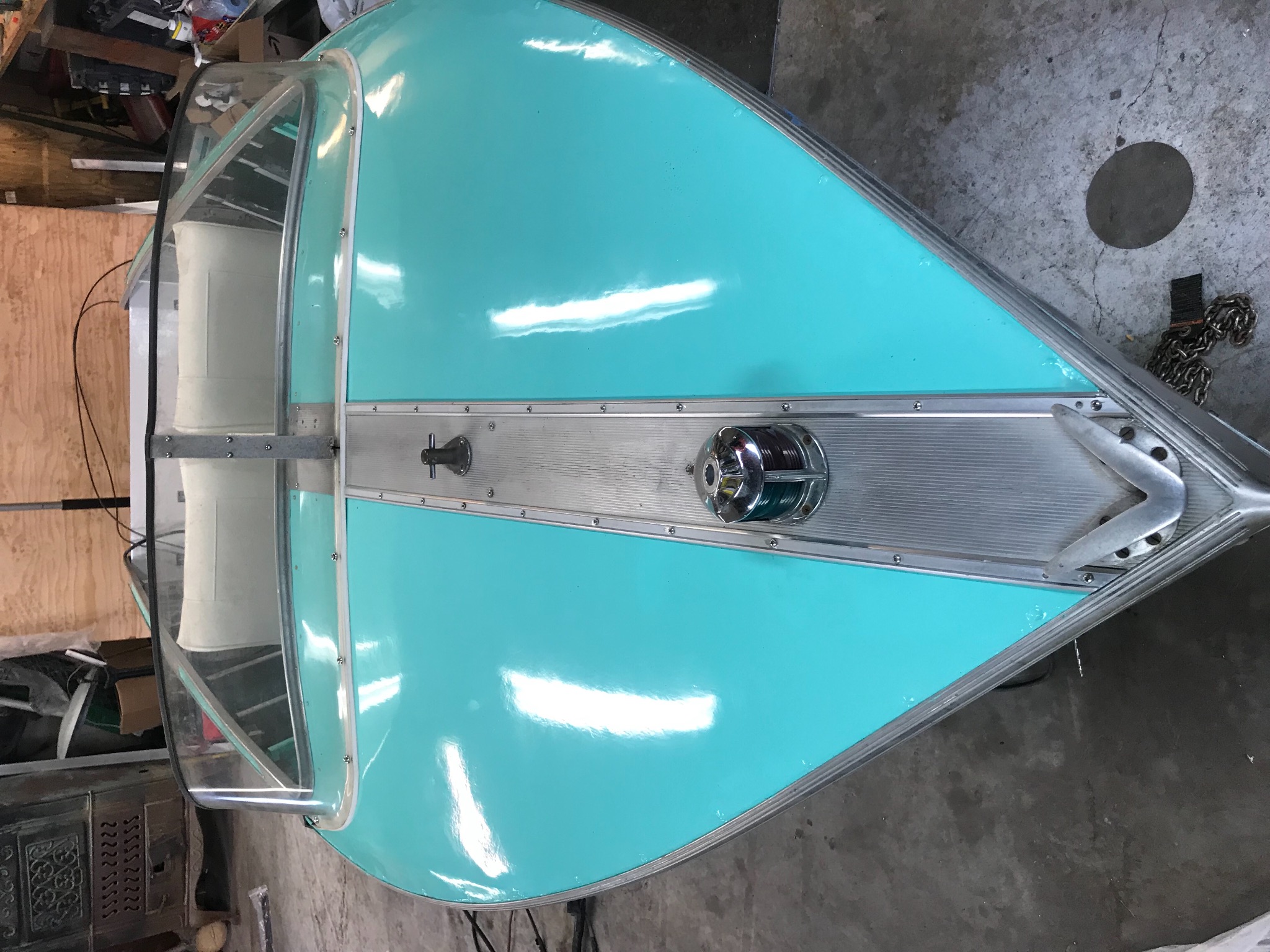

Fired up the polisher to wrap up this round of paint. Mounted all the topside trim and windshield is in place.

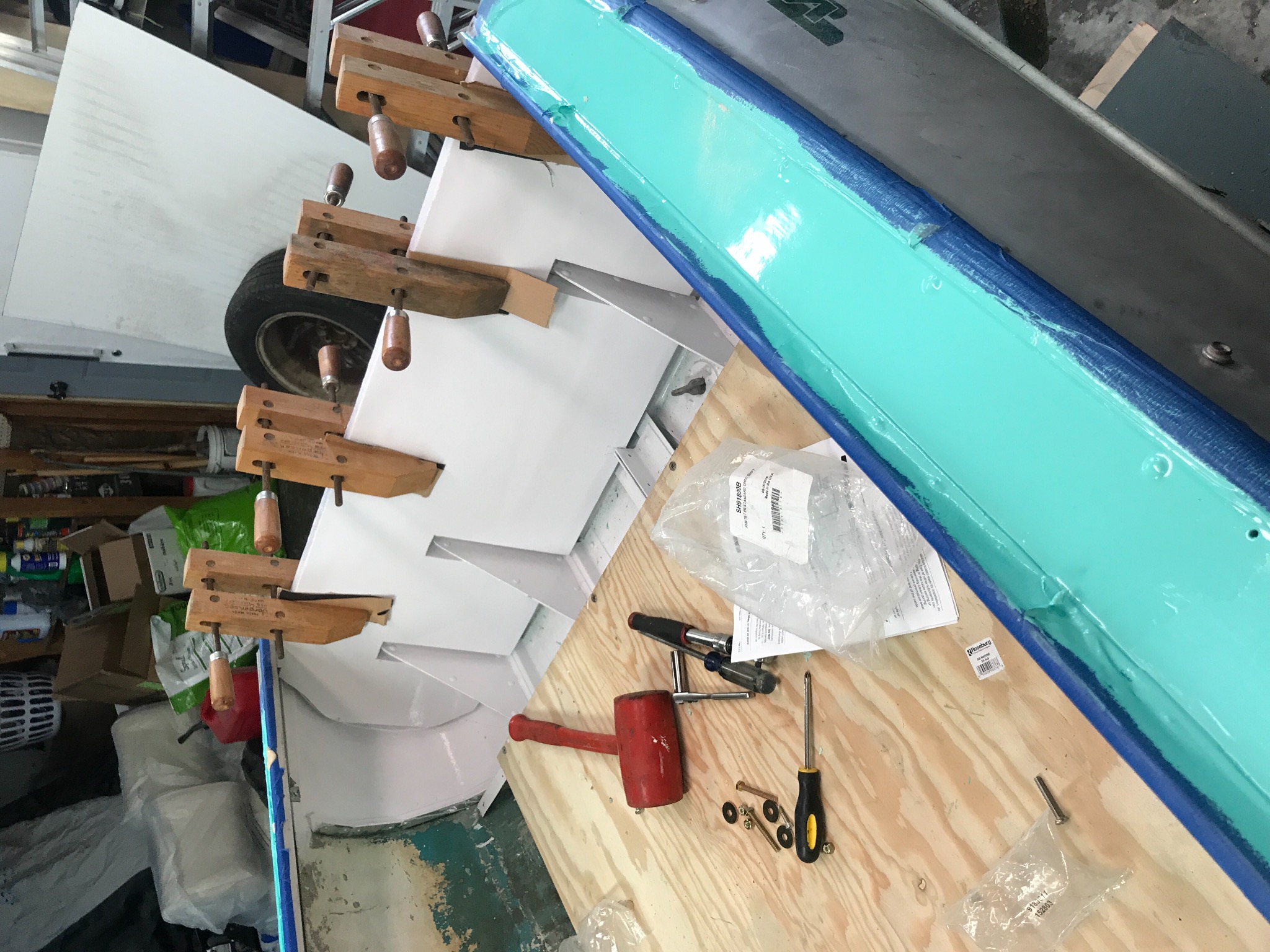

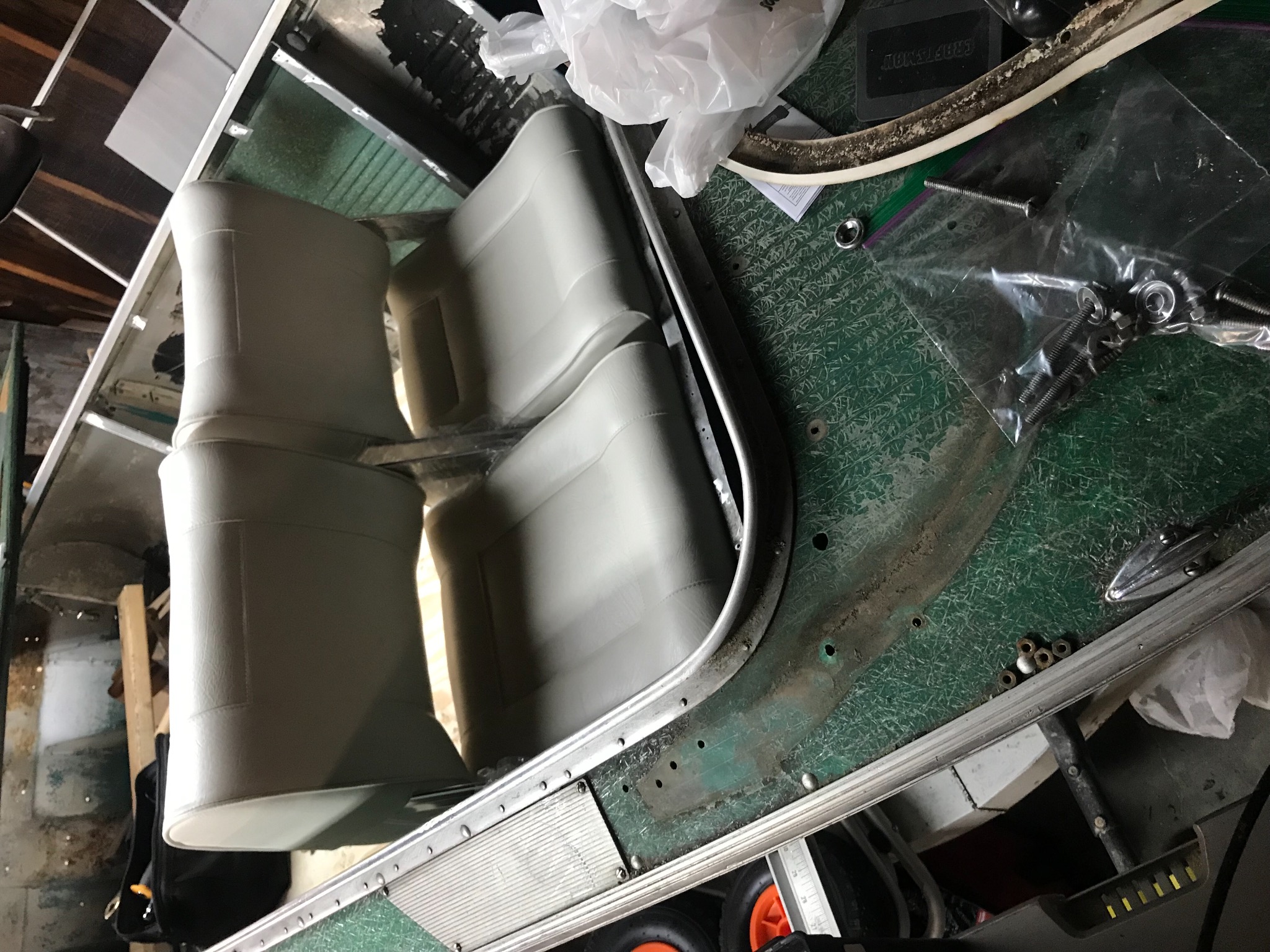

The seat is mounted. Wrapping up the side panels and mounting controls is all that’s left on the interior.

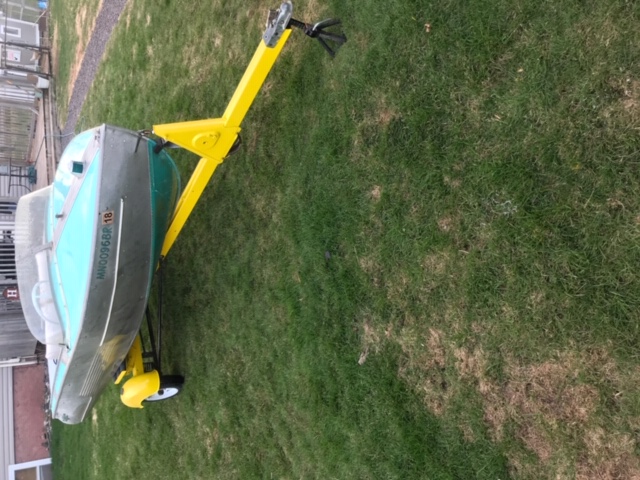

Been busy running around the state. Wound up picking up a short shaft merc 500, 3 tee nee trailers, and a boat. Within 2 days sold 3 trailers and the boat leaving a pile of tee nee parts to make one trailer with the enclosed winch stand and an extra set of fenders for the other boat. If someone has a set of the transom rollers with the stands available for purchase I’m looking for a set. A quick coat of paint will have to do for now until I’m done working for the year.
Attachments:

Please Log in or Create an account to join the conversation.

‘56 valco royal 4 years 10 months ago #139506

  • Dr.Go!
  • Dr.Go!'s Avatar
  • Offline
  • Contributing Member
  • Contributing Member
  • Posts: 1719
  • Karma: 19
  • Thank you received: 125
Excellent! How do you prep a trailer for painting? Sandblasting or one of those liquid brush on rust removers or ??? Do you still sand before priming and painting? How many coats of each? I am new to trailer painting and have 2 trailers to freshen up. One has black paint flaking off over original cream/ yellow paint. The other is that Mustang yellow chrome talked about somewhere. Previous owner made it 2 separate shades of yellow. I want it one color and want it fair looking, but not show quality. Neither of my trailers don’t show any real rust other than exposed bolt threads.

Please Log in or Create an account to join the conversation.

Dr.Go!

‘56 valco royal 4 years 10 months ago #139518

I just used a variety of wire wheels on an angle grinder before priming and a couple coats of paint brushed on for now.
The following user(s) said Thank You: Dr.Go!

Please Log in or Create an account to join the conversation.

‘56 valco royal 4 years 10 months ago #139520

  • Dr.Go!
  • Dr.Go!'s Avatar
  • Offline
  • Contributing Member
  • Contributing Member
  • Posts: 1719
  • Karma: 19
  • Thank you received: 125
Thanks. Looks nice.

Please Log in or Create an account to join the conversation.

Dr.Go!

‘56 valco royal 4 years 10 months ago #139534

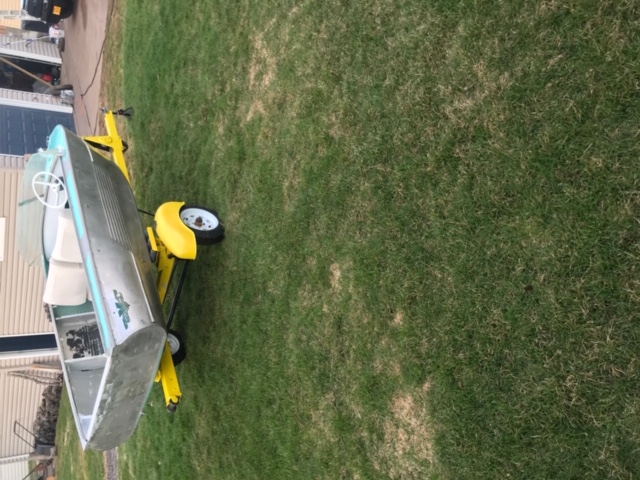

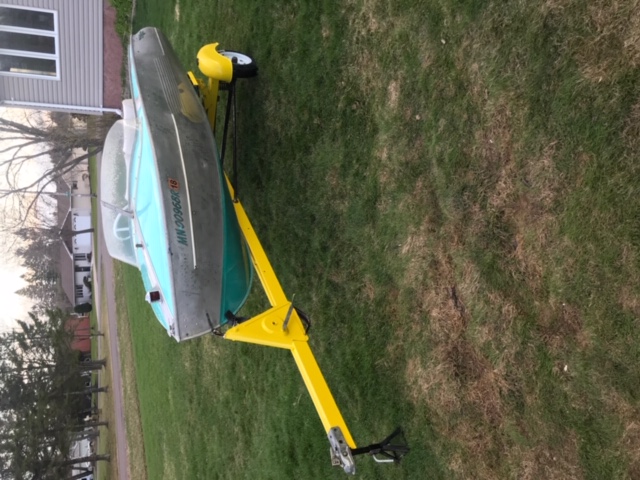

Well I’m back to work so this is as far as it’s going to get until I’m done working for the year. I dropped the other boat off and I’ll enjoy that one this year.

Attachments:

Please Log in or Create an account to join the conversation.

‘56 valco royal 4 years 10 months ago #139535

Excellent progress she's looking great!

Bob

Please Log in or Create an account to join the conversation.

‘56 valco royal 4 years 2 months ago #141645

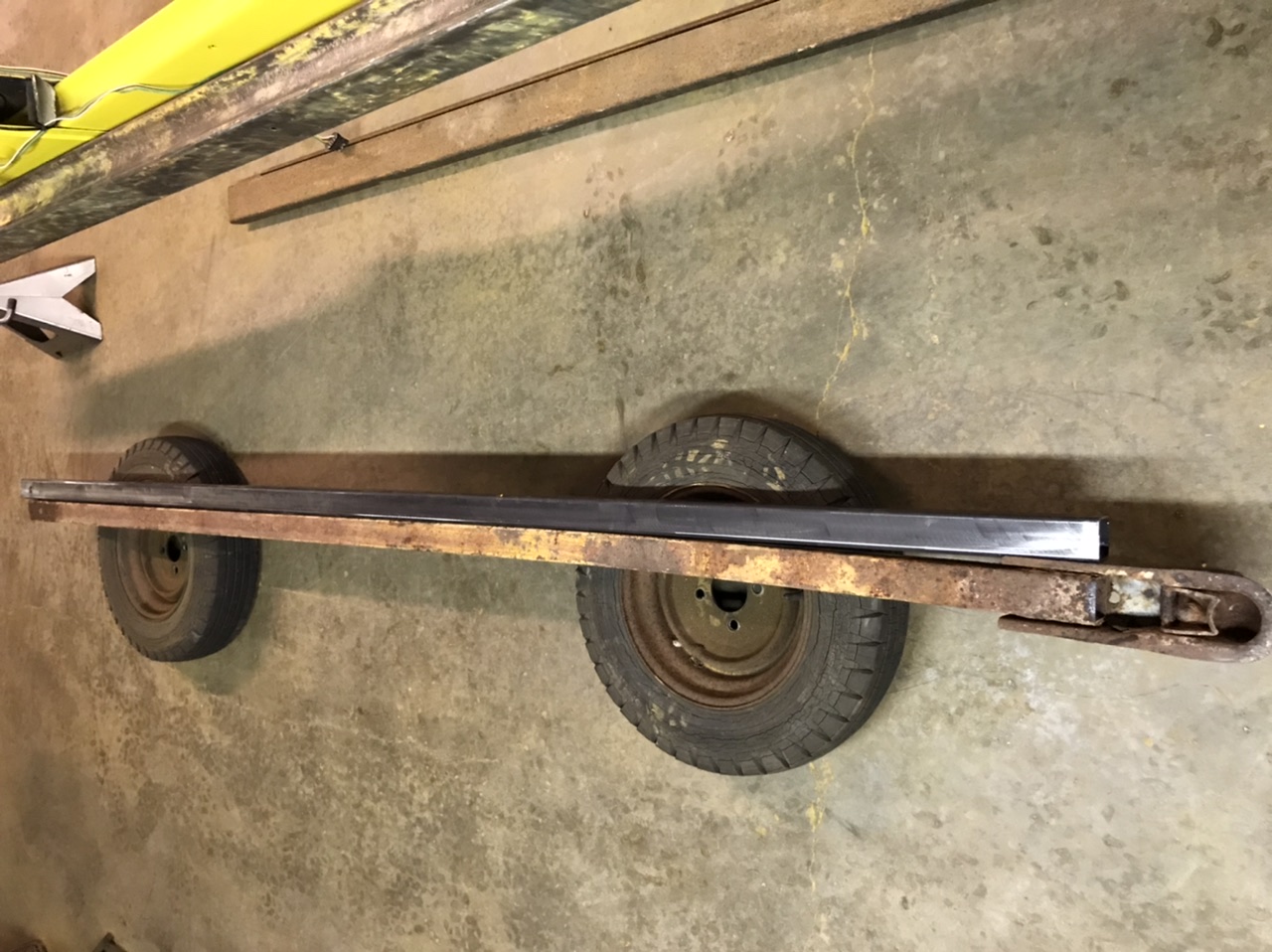

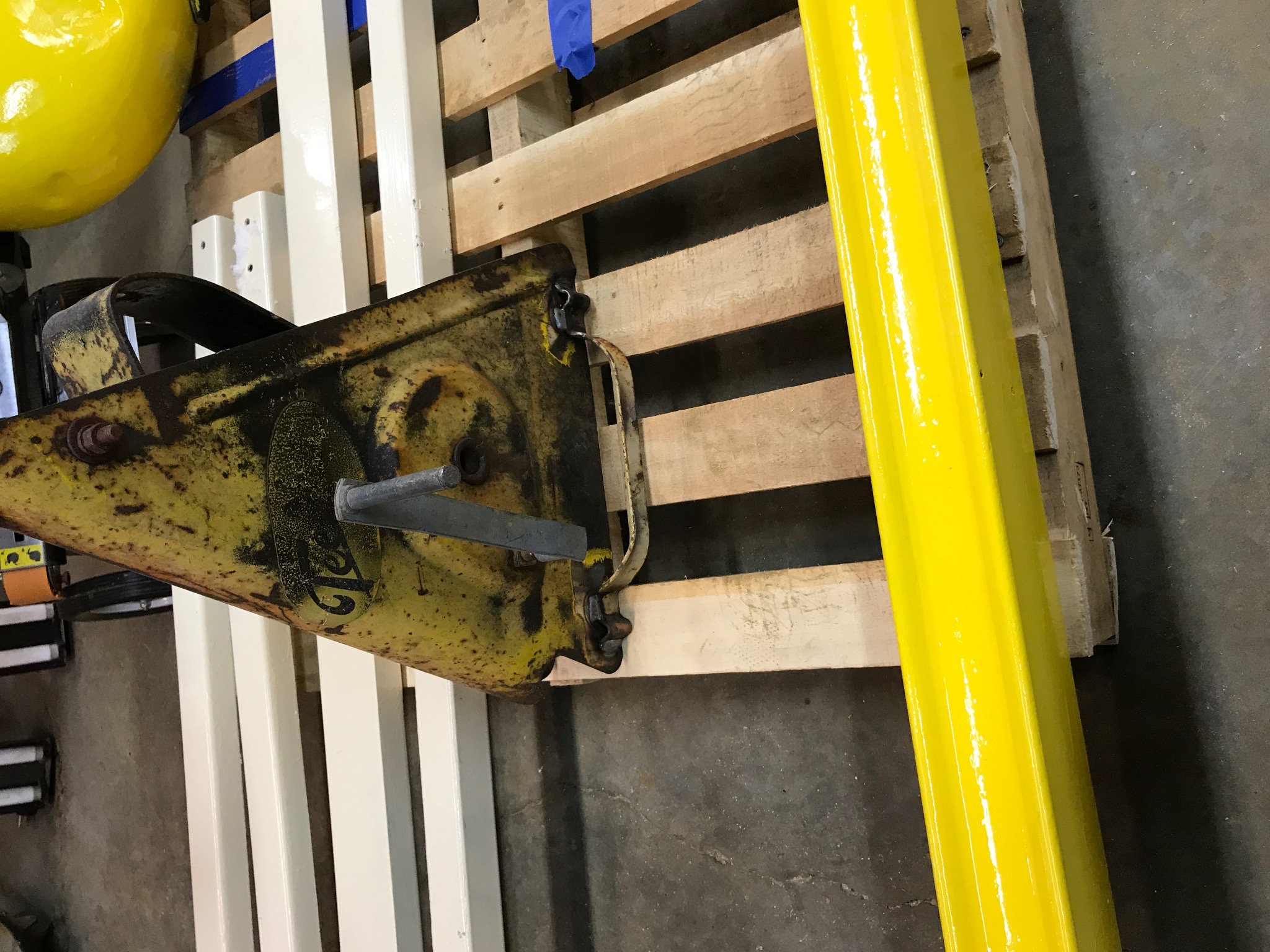

Back at again. I picked up a ‘56 tee nee trailer with the tip and turn on it. After taking it apart I found the bar is bent so it upgraded from the original 14 gauge to a new 3/16 piece that shouldn’t bend for years to come. Also prepping some more trailer parts for paint.
Attachments:

Please Log in or Create an account to join the conversation.

‘56 valco royal 4 years 2 months ago #141652

Nice!

Please Log in or Create an account to join the conversation.

‘56 valco royal 4 years 2 months ago #141737

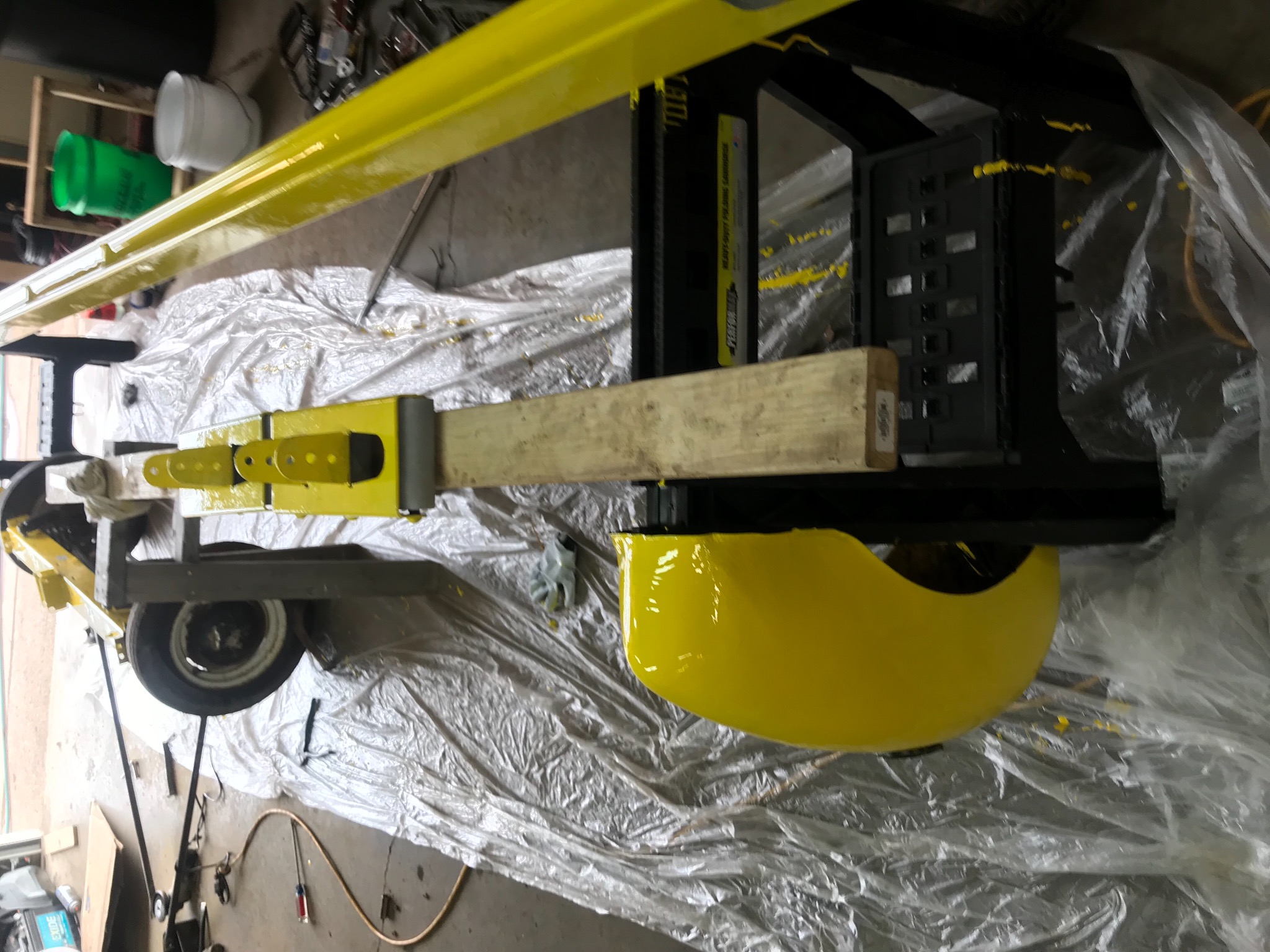

Got a little more time to get the trailer where I’d like it. Wanted the closed winch with the tip n turn and my brother made it happen with his welder.

Attachments:

Please Log in or Create an account to join the conversation.

‘56 valco royal 4 years 1 month ago #141774

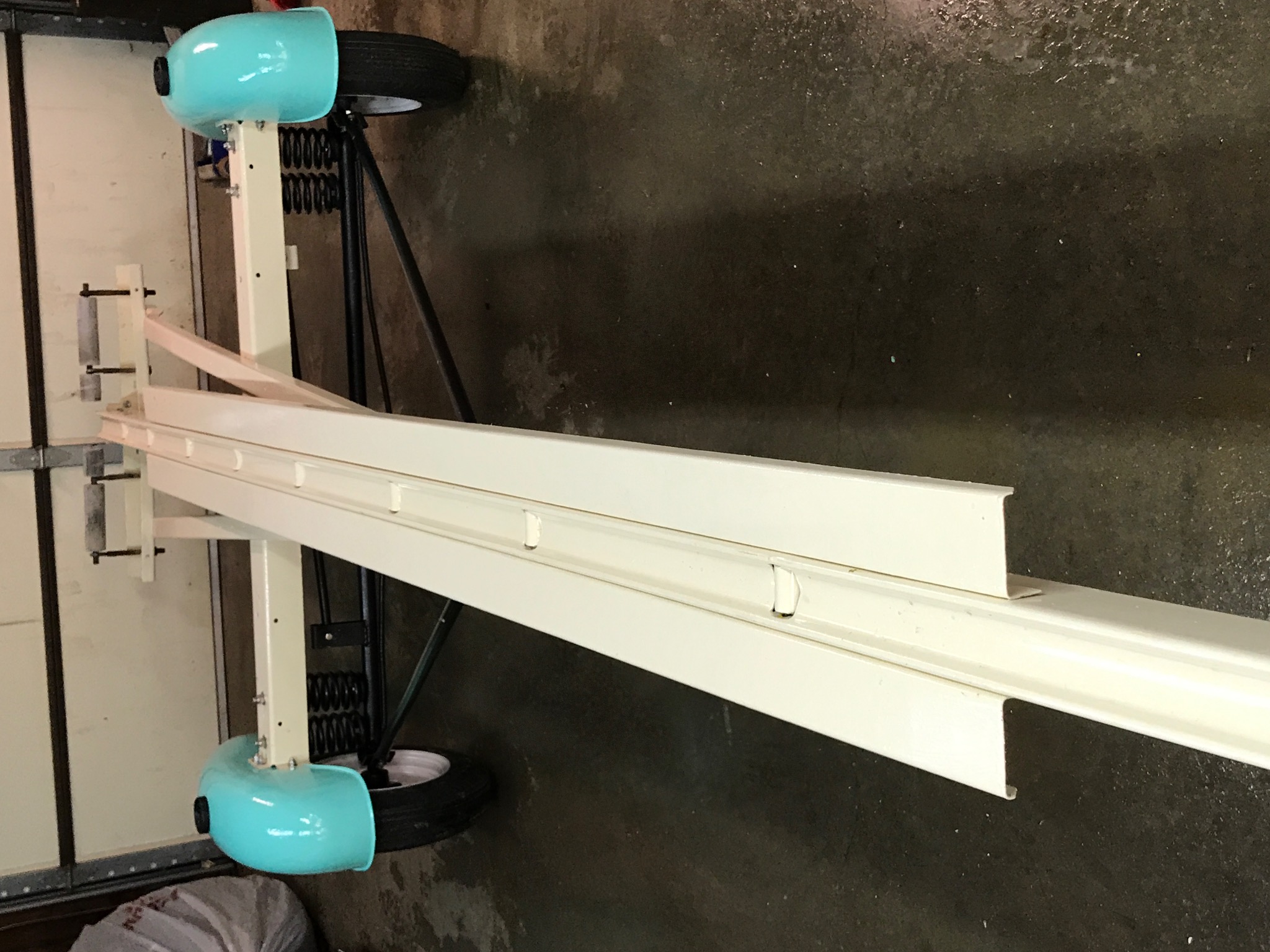

Had some time to get most of the trailer put together. Almost time to get the boat back on it.
Attachments:

Please Log in or Create an account to join the conversation.

‘56 valco royal 4 years 1 month ago #141784

Excellent!!!

Bob

Please Log in or Create an account to join the conversation.

‘56 valco royal 4 years 1 month ago #141806

Time to get back to work on the interior. Almost ready for power and to add water.

Attachments:

Please Log in or Create an account to join the conversation.
