TOPIC: evinrude e60elcea power trim and tilt retrofit

evinrude e60elcea power trim and tilt retrofit 9 months 2 weeks ago #132677

I just purchased a power trim and tilt unit for my 89 evinrude 60 hp triple.
I am wondering if anyone has experience in wiring up this tilt and trim unit?
Any wiring diagrams would be very helpful.
I do not have the trim switch on my controls, so, I would like to put a switch on my dashboard.
The trim and tilt is a two wire system,

Thanks for your help,

Chris

Please Log in to join the conversation.

evinrude e60elcea power trim and tilt retrofit 9 months 2 weeks ago #132682

  • 63 Sabre
  • 63 Sabre's Avatar
  • Away
  • Contributing Member
  • Contributing Member
  • Posts: 3542
  • Karma: 142
  • Thank you received: 35

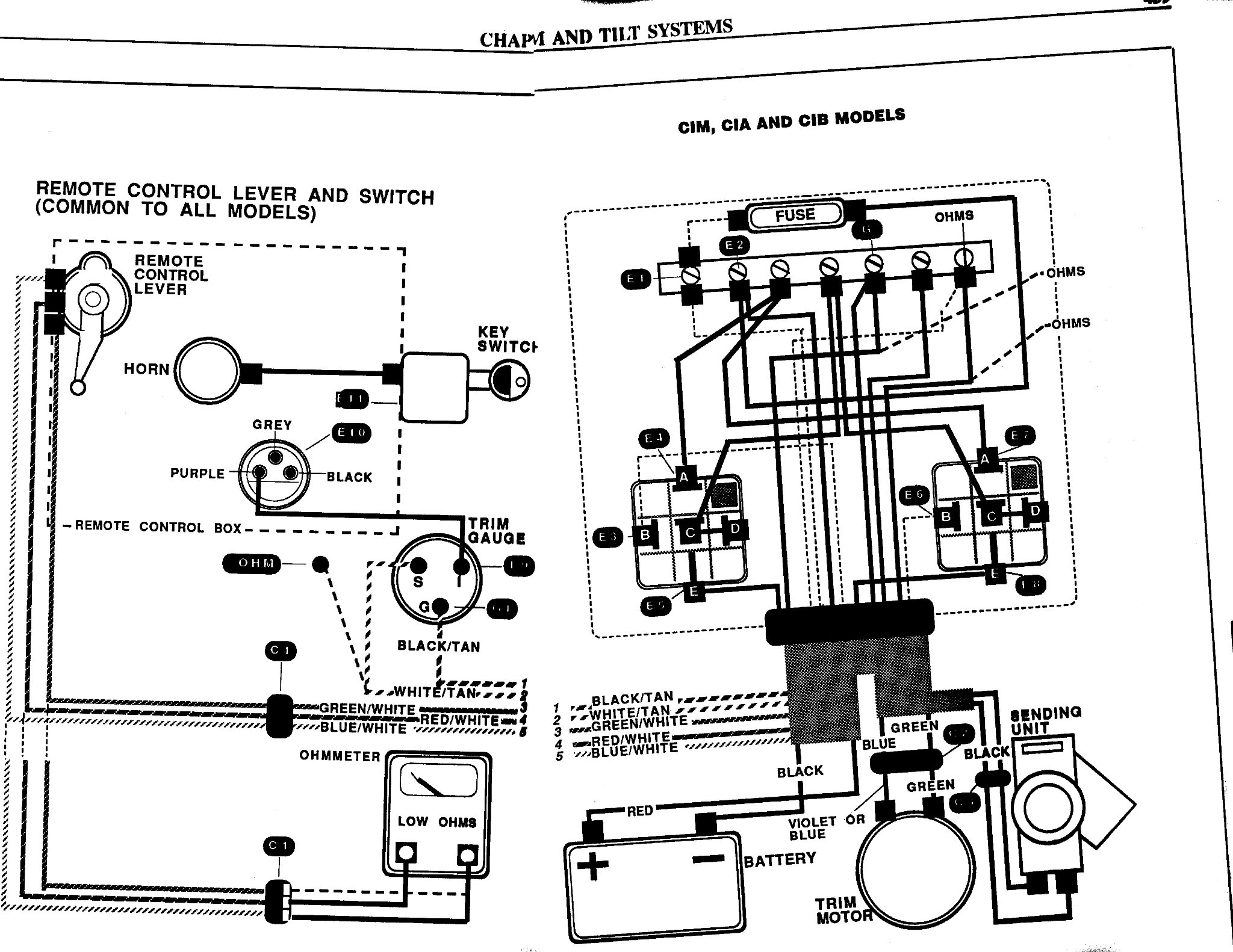

According to some of my diagrams there were three different types but all are very similar. Some were for the V6's. Here is a general diagram that might be of some help. Just take the switch portions and adapt them to your remote dash.
Hope this helps
Attachments:
The following user(s) said Thank You: mvislander01

Please Log in to join the conversation.

evinrude e60elcea power trim and tilt retrofit 9 months 4 days ago #132920

Do you have the solenoid/relay box that goes with it? There is an up relay and a down relay. Best to get all of the proper harnesses to go with your trim unit, as they all plug into one another easy-peasy. Much easier than trying to cut & splice something together....
