TOPIC: Need help identifying a part - 59 Johnson 35 hp

Need help identifying a part - 59 Johnson 35 hp 8 years 2 months ago #118784

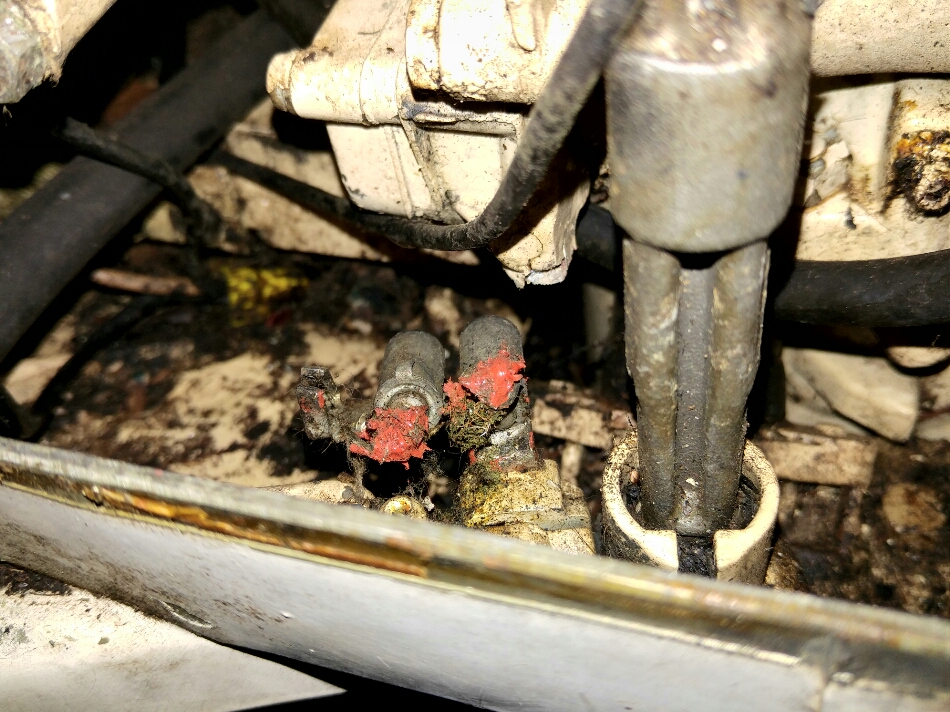

I think these are electrical connections, but I don't see anything that looks like this in my manual. There's a mercury cutout switch listed in the schematic, is this it? PO had bypassed this, is it important to reconnect it?
These are located near the throttle linkage.
Attachments:

Please Log in or Create an account to join the conversation.

Re:Need help identifying a part - 59 Johnson 35 hp 8 years 2 months ago #118785

Please Log in or Create an account to join the conversation.

Re:Need help identifying a part - 59 Johnson 35 hp 8 years 2 months ago #118786

Hard to tell from the illustration, but it looks like it might be. If so, for $10 I'll definitely replace it. Thanks.

Please Log in or Create an account to join the conversation.

Re:Need help identifying a part - 59 Johnson 35 hp 8 years 2 months ago #118805

  • 63 Sabre
  • 63 Sabre's Avatar
  • Offline
  • Contributing Member
  • Contributing Member
  • Posts: 4676
  • Karma: 147
  • Thank you received: 167
Dave, that's a merc switch. You're right. It's a safety switch connected to the vacuum cutoff switch. The cutoff switch prevents the motor from over revving when in neutral causing damage. It shorts out one of the magnetos. I have several close up pictures of the engine if you need some help.
Cal
Attachments:

Please Log in or Create an account to join the conversation.

Re:Need help identifying a part - 59 Johnson 35 hp 8 years 2 months ago #118806

  • 63 Sabre
  • 63 Sabre's Avatar
  • Offline
  • Contributing Member
  • Contributing Member
  • Posts: 4676
  • Karma: 147
  • Thank you received: 167
Dave, that's a merc switch. You're right. It's a safety switch connected to the vacuum cutoff switch. The cutoff switch prevents the motor from over revving when in neutral causing damage. It shorts out one of the magnetos. I have several close up pictures of the engine if you need some help.
Cal

Please Log in or Create an account to join the conversation.

Re:Need help identifying a part - 59 Johnson 35 hp 8 years 2 months ago #118807

Thanks, Cal. PO has the vacuum switch hooked up, but bypassed the mercury switch. Do you know if that is #42 in the illustration? Are they easy to replace?

Please Log in or Create an account to join the conversation.

Re:Need help identifying a part - 59 Johnson 35 hp 8 years 2 months ago #118816

  • 63 Sabre
  • 63 Sabre's Avatar
  • Offline
  • Contributing Member
  • Contributing Member
  • Posts: 4676
  • Karma: 147
  • Thank you received: 167
Probably the same switch. The motor I had was a '57 RDS-20 that's what the wiring diagram is from but looks like they are almost the same. The ebay link that in the previous posting looks like a good buy and free shipping. It's just a bolt/screw on part, very easy to change out.

Please Log in or Create an account to join the conversation.

Re:Need help identifying a part - 59 Johnson 35 hp 8 years 2 months ago #118818

Just placed the order. Thanks!

Please Log in or Create an account to join the conversation.

Re:Need help identifying a part - 59 Johnson 35 hp 8 years 2 months ago #118921

So, I bought the part off of ebay. Great vendor, not really sure how he made any money off of the part.
Anyway, after I got it I realized that it's a single mercury switch, and mine's a double. Apparently, manual start used the single switch and electric start used a double. If I understand it correctly, one keeps the high vac cutout switch from kicking in at full throttle. The other keeps you from being able to start it at full throttle.
I think I can remember not to start it at full throttle, especially since you can't even go full throttle in neutral. So I'll probably just go ahead and wire this one in for the cutout switch. Am I missing anything?

Please Log in or Create an account to join the conversation.

Re:Need help identifying a part - 59 Johnson 35 hp 8 years 2 months ago #118927

  • 63 Sabre
  • 63 Sabre's Avatar
  • Offline
  • Contributing Member
  • Contributing Member
  • Posts: 4676
  • Karma: 147
  • Thank you received: 167
Sounds like you have your ducks lined up. It's a safety thing. Good luck.

Please Log in or Create an account to join the conversation.

Re:Need help identifying a part - 59 Johnson 35 hp 8 years 2 months ago #118968

i just looked up a 58 35hp electric start motor and it uses the same switch.. my next chance i get to visit my parents house.. i have a 58 35hp i'm planing on parting out.. and i check the condition of the switch ..
