Re:New To Glassics 6 years 2 months ago #59976

  • 4stroke
  • 4stroke's Avatar
  • Offline
  • Expert Boarder
  • Expert Boarder
  • Posts: 285
  • Karma: 16
  • Thank you received: 1
Biggest problem I see with 6010 or 11 is people set the machine to hot and keyhole the weld. I've always ran mine colder than most that way I don't have to move much from the puddle and I can see where I've been so I can stack in the next "dime". At one time I ran that rod great.

Pretty sure looking at your engine it was at the same shop one of mine was at and my wiring was a mess also, wire nuts etc. I cleaned it all up too.

Lifted mine off the bench yesterday and set it on the floor for the final outfitting of the alternator, flywheel and starter. The engine is all white but the manifolds I have setup are blue, all my white one's have issues. Might have to paint one white. I'm hoping, weather permiting to possibly lighting this off this weekend.

Please Log in to join the conversation.

Dick Johnson

1989 16ft Sylvan

'57 Evinrude 18 (finally found a decent one)
'58 Johnson 5.5
'72 Johnson 6.0
'61 Homelite
'64 Johnson 18
'65 Homelite 55
'66 Homelite 55
'68 Bearcat 55 (3)
'70 Bearcat 55 (2)
'71 Bearcat 85 (Sold)

Re:New To Glassics 6 years 2 months ago #60024

  • CraigLam
  • CraigLam's Avatar Topic Author
  • Offline
  • Expert Boarder
  • Expert Boarder
  • Posts: 267
  • Karma: 1
  • Thank you received: 0
Good advice on the welding. Our groove weld test is Monday. Verticle up.

I finally primed all the parts today. Tomorrow, I'll take photos of the parts and post them. I called Proline and they have that appliance white color. It's that off white color that most outboards have. I have a sample of that exact color in a spray can. I can't tell you how exciting it is to fire up a motor for the first time, after it's been rebuilt. The sound that it makes when all the parts are new and working together in sync. I still gotta ways to go before I get there.

Please Log in to join the conversation.

Re:New To Glassics 6 years 2 months ago #60113

  • CraigLam
  • CraigLam's Avatar Topic Author
  • Offline
  • Expert Boarder
  • Expert Boarder
  • Posts: 267
  • Karma: 1
  • Thank you received: 0
Like I promised, here are the photos of the primed parts.



Now, here is my next Bearcat project. Like I said before, this motor is hodge podged. This cowling is a real mess. It has to be completely sanded, Bondo'd and repainted. On this hood, I think I won't use epoxy. I'll just use a good quality paint.


I can't figure out why they put some sort of screen on the top and over hung it, then filled it with Bondo. Poorly thought out and executed. Good thing they make a replacement part.

Your advice on welding was great. Any on the verticle up? Smiley face, sad face, saw tooth, zig zag? Or just drag? We're using 7018 so it shouldn't be too hard. I made my own test pad using propylene. That was fun.

Please Log in to join the conversation.

Re:New To Glassics 6 years 2 months ago #60119

  • 4stroke
  • 4stroke's Avatar
  • Offline
  • Expert Boarder
  • Expert Boarder
  • Posts: 285
  • Karma: 16
  • Thank you received: 1
Looking good Craig! Boy that hood is messed up but very repairable. I painted the manifold yesterday and will bolt it on shortly. Hopefully at some point this weekend I can move the boat to where I can get at it and replace the existing powerhead with this one and then fire it off.

Best advice I can give you is watch the puddle. Have the amps set so it's not too hot but hot enough to burn in and fill. 7018 takes some getting used to, you need to read what is slag rolling off and what is the actual metal which needs to stay put. I weave it side to side. If your groove butt has a backing strip you need to watch the puddle to make sure you burn into all three plates connecting them. I think the biggest mistake most people make is too much heat. Cooler and hold it longer gives you control.

Please Log in to join the conversation.

Dick Johnson

1989 16ft Sylvan

'57 Evinrude 18 (finally found a decent one)
'58 Johnson 5.5
'72 Johnson 6.0
'61 Homelite
'64 Johnson 18
'65 Homelite 55
'66 Homelite 55
'68 Bearcat 55 (3)
'70 Bearcat 55 (2)
'71 Bearcat 85 (Sold)

Re:New To Glassics 6 years 2 months ago #60132

  • CraigLam
  • CraigLam's Avatar Topic Author
  • Offline
  • Expert Boarder
  • Expert Boarder
  • Posts: 267
  • Karma: 1
  • Thank you received: 0
Good thing I've worked with fiberglass alot. I'm gonna have to use my experience on this one.

Yes, there is a backup strip. It's a standard groove angle (75*) and the test plates are 3/4" apart. Turning the amps down sounds like a good idea and watching the puddle is critical. The tab extends beyond the test plate about an inch, so, there is a starting factor which helps alot. Anyway, the written final is the 9th and there is one more test and that is the mig test, which I'm good at. After this, I'm gonna finish the Bearcat, then start my trailer. I'll probably have to switch over to my trailer thread on that subject. Thanks for the good advice, 4 stroke.

Please Log in to join the conversation.

Re:New To Glassics 6 years 2 months ago #60709

  • CraigLam
  • CraigLam's Avatar Topic Author
  • Offline
  • Expert Boarder
  • Expert Boarder
  • Posts: 267
  • Karma: 1
  • Thank you received: 0
I'm back! What a night mare. My computer crashed a couple of days ago. after I rebooted, I was using my correct username and password, but, I couldn't log on. Anyway, I'm sure Ken Sikora fixed it. Big thanks to Ken for helping me.
I went to the garage and saw the parts after the paint dried. You can see small imperfections in the surface. I took some 400 grit and smoothed it out. Also, the paint was a little orange peely. The primer didn't even show thru. Tomorrow, I'll post some photos. The color is very light beige. I didn't want that light brown color. All I need is some seals and it's assembly time!

Please Log in to join the conversation.

Re:New To Glassics 6 years 2 months ago #60750

  • CraigLam
  • CraigLam's Avatar Topic Author
  • Offline
  • Expert Boarder
  • Expert Boarder
  • Posts: 267
  • Karma: 1
  • Thank you received: 0
I went to the shop, took the upper leg part, sanded with 400, then 600, then 1500, then McGuire's #2 and polished. The transome support has the primer and the leg is the marine top coat. I didn't want Swiss coffee. I just wanted to cut the brightness down. Shiny?

Please Log in to join the conversation.

Re:New To Glassics 6 years 2 months ago #60925

  • CraigLam
  • CraigLam's Avatar Topic Author
  • Offline
  • Expert Boarder
  • Expert Boarder
  • Posts: 267
  • Karma: 1
  • Thank you received: 0

The final exam was a freakin' nightmare. But, as you can see, I passed. Actually, I did well.
"For an NS-3M FCAW, what would the ESO be"?

Please Log in to join the conversation.

Re:New To Glassics 6 years 2 months ago #61484

  • CraigLam
  • CraigLam's Avatar Topic Author
  • Offline
  • Expert Boarder
  • Expert Boarder
  • Posts: 267
  • Karma: 1
  • Thank you received: 0

I set the needle bearing and put the seals in.

I put the water pump housing on the gear box and torqued it down.

I didn't have the proper woodruff key, so I bought one that's close. I'll grind it to fit.

I put the heat protective cloth in and will put another layer tomorrow.

Here is the aluminized pipe I told you about. The guy I bought it from cut the angle for me from the old one. Tomorrow I will drill holes in it and then stick a metal dowel and bend the hole as to create a baffle. I'll post more photos tomorrow. I still need to trim the pipe to fit.

Please Log in to join the conversation.

Re:New To Glassics 6 years 2 months ago #61576

  • CraigLam
  • CraigLam's Avatar Topic Author
  • Offline
  • Expert Boarder
  • Expert Boarder
  • Posts: 267
  • Karma: 1
  • Thank you received: 0


As you can see, I've been working on the Bearcat. The exhaust pipe is finished and fitted to the manifold and the baffle holes are in. I found some oil base enamel and had it matched. The paint that was on there was metallic. I'm not sure, but, metallic paint wasn't used much in the 50's and 60's. I really like this color, too. Tomorrow, I'll put another coat on and nextweek, will start to re-assemble. After the leg and transome are together, I'll start on the motor. That's another chapter.

Please Log in to join the conversation.

Re:New To Glassics 6 years 1 month ago #61910

  • CraigLam
  • CraigLam's Avatar Topic Author
  • Offline
  • Expert Boarder
  • Expert Boarder
  • Posts: 267
  • Karma: 1
  • Thank you received: 0


I thought about it for awhile and decided to alter the color pattern a little. I wanted to carry the scheme from the upper leg to the motor pan. Somehow, the motorpan being a different color than the outboard leg seemed dull. The transome unit is finished and the yoke is, too. I will probably leave the yoke blue with the rest, I'm not sure. I was thinking of dividing the yoke in half. The part the touches the leg, white, and the rest blue, I'm not sure. I can turn the shafy by hand and the shifter works fine. I was a little worried about it locking up.

Please Log in to join the conversation.

Re:New To Glassics 6 years 1 month ago #62119

  • CraigLam
  • CraigLam's Avatar Topic Author
  • Offline
  • Expert Boarder
  • Expert Boarder
  • Posts: 267
  • Karma: 1
  • Thank you received: 0


This is where I'm at now. The motor mount I made worked out great. I'll start working on the motor now.

Please Log in to join the conversation.

Re:New To Glassics 6 years 1 month ago #62205

  • 4stroke
  • 4stroke's Avatar
  • Offline
  • Expert Boarder
  • Expert Boarder
  • Posts: 285
  • Karma: 16
  • Thank you received: 1
Looking good Craig! I stuck with the original "F model" blue, it's original paint except the lower gearcase housing which I painted. The hood came from the last purchased parts engine, was painted by Tim McCrain with new decals, and as you know the powerhead itself is white. Not perfect, not original but it looks decent and is clean. Not a ton of $$ into cosmetics on this one.
Attachments:

Please Log in to join the conversation.

Dick Johnson

1989 16ft Sylvan

'57 Evinrude 18 (finally found a decent one)
'58 Johnson 5.5
'72 Johnson 6.0
'61 Homelite
'64 Johnson 18
'65 Homelite 55
'66 Homelite 55
'68 Bearcat 55 (3)
'70 Bearcat 55 (2)
'71 Bearcat 85 (Sold)

Re:New To Glassics 6 years 1 month ago #62213

  • CraigLam
  • CraigLam's Avatar Topic Author
  • Offline
  • Expert Boarder
  • Expert Boarder
  • Posts: 267
  • Karma: 1
  • Thank you received: 0
That engine you have, is exactly the way I want mine to look. However, I didn't want the leg unit blue. I tore into the motor today. The valve arrangement is different than a regular motor.

As you can see from right to left, the 2nd port is intake for no. 1 & 2 cyl. The 5th port is for no. 3 & 4 cyl. Unusual layout, but, consider this. Each two cyl's., has it's own carburator. I busted some screws taking off the exhaust muffler. Good thing I have the tap for that size thread. When I'm done with this motor, I'll fire it up and then set it aside and start the trailer.

Please Log in to join the conversation.

Re:New To Glassics 6 years 1 month ago #62248

  • 4stroke
  • 4stroke's Avatar
  • Offline
  • Expert Boarder
  • Expert Boarder
  • Posts: 285
  • Karma: 16
  • Thank you received: 1
Not uncommon to break the two middle long bolts on the manifold, I'm batting about .500 on those. Been never siezing the crap out of them on reassembly. If you pull the water jacket covers be prepared to bust some of them too. Go slow and easy working them out then back in and you might get lucky. I did on most of them. :)

Please Log in to join the conversation.

Dick Johnson

1989 16ft Sylvan

'57 Evinrude 18 (finally found a decent one)
'58 Johnson 5.5
'72 Johnson 6.0
'61 Homelite
'64 Johnson 18
'65 Homelite 55
'66 Homelite 55
'68 Bearcat 55 (3)
'70 Bearcat 55 (2)
'71 Bearcat 85 (Sold)

Re:New To Glassics 6 years 1 month ago #62317

  • CraigLam
  • CraigLam's Avatar Topic Author
  • Offline
  • Expert Boarder
  • Expert Boarder
  • Posts: 267
  • Karma: 1
  • Thank you received: 0
Deja Vu! That'a what I did today. I pulled the manifold off and broke 4 bolts. They're already repaired. 1/4-20. I picked up the tap and drill Sunday. The two large manifold bolts came out, no problem. Actually the bolts that broke were the water jacket bolts. Most of the paint is starting to peel of, so, I'm gonna wire wheel the the motor and spray it with the same color engine paint you used. I was thinking about two things. One, is to remove the flywheel to clean and paint it. And the other is to re-wire the motor. It's probably not necessary to take the flywheel off, since I don't have a puller and the stater works fine. The wiring was a joke. The solenoid was actually mounted to the motor and if I'm correct, should be in the harness box inside the boat. Anyway, I'll be back at it tomorrow, wire brushing the motor and painting it.

Please Log in to join the conversation.

Re:New To Glassics 6 years 1 month ago #62324

  • 4stroke
  • 4stroke's Avatar
  • Offline
  • Expert Boarder
  • Expert Boarder
  • Posts: 285
  • Karma: 16
  • Thank you received: 1
CraigLam wrote:

The wiring was a joke. The solenoid was actually mounted to the motor and if I'm correct, should be in the harness box inside the boat.


My second Bearcat's wiring was also a joke, wires hanging out all over and splices with wire nuts. Somewhere I have pictures of before and after. The solenoids are mounted on the block on all of them. Mounted on the water jacket cover with the exception of the first year which mounts on plate that is mounted on the block. There is no harness box outside of the engine.

Please Log in to join the conversation.

Dick Johnson

1989 16ft Sylvan

'57 Evinrude 18 (finally found a decent one)
'58 Johnson 5.5
'72 Johnson 6.0
'61 Homelite
'64 Johnson 18
'65 Homelite 55
'66 Homelite 55
'68 Bearcat 55 (3)
'70 Bearcat 55 (2)
'71 Bearcat 85 (Sold)

Re:New To Glassics 6 years 1 month ago #62333

  • CraigLam
  • CraigLam's Avatar Topic Author
  • Offline
  • Expert Boarder
  • Expert Boarder
  • Posts: 267
  • Karma: 1
  • Thank you received: 0
I had and old 59 Merlin where there was a harness box on the inside mounted on the transome. The solenoid was where you said it was, on the water jacket. The rectifier is the after market one, it doesn't look like the one in the manual. However, it does work and I'm making a special bracket to mount it on the two long thin studs on the water jacket. Other than that, it's pretty much just getting all the old paint off and re-painting. The cowling is gonna need some serious work. Your motor is looks very nice. I gotta a ways to go before i get there.

Please Log in to join the conversation.

Re:New To Glassics 6 years 1 month ago #62336

  • 4stroke
  • 4stroke's Avatar
  • Offline
  • Expert Boarder
  • Expert Boarder
  • Posts: 285
  • Karma: 16
  • Thank you received: 1
CraigLam wrote:

I had and old 59 Merlin where there was a harness box on the inside mounted on the transom.

Your motor is looks very nice. I gotta a ways to go before i get there.


Some have a harness box, but these don't. just hook the harness from the controls to the terminal strip and you're good to go.

Thanks for the compliment, it's not perfect but looks clean.

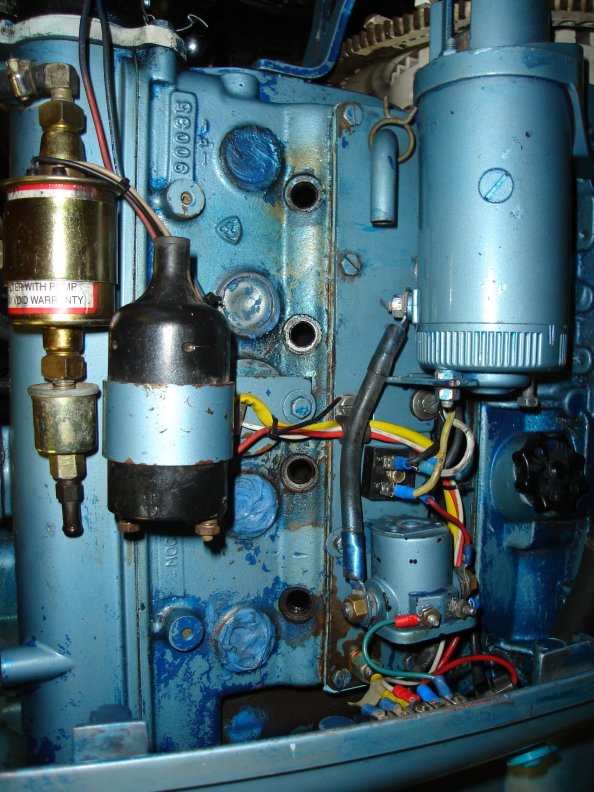

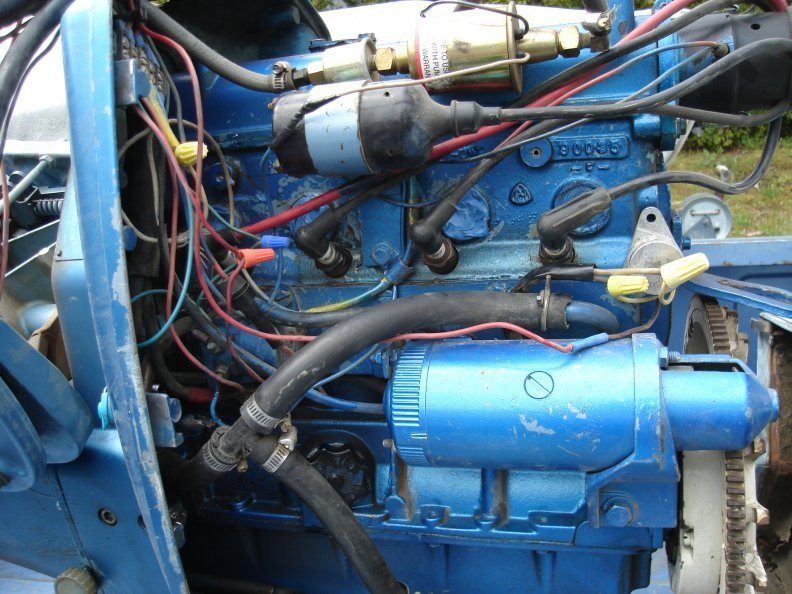

Found pictures of the "F" engine before and after I cleaned up the wiring. Also found a picture of my '61 with the solenoid mounted on the plate attached to the block.
