TOPIC: west bend, points cam.

west bend, points cam. 2 years 3 months ago #115651

  • 57owens
  • 57owens's Avatar Topic Author
  • Offline
  • Fresh Boarder
  • Fresh Boarder
  • Posts: 27
  • Karma: 1
  • Thank you received: 0
Hi looking for help with the points cam, it looks like the cam as moved on the crankshaft, the cam is very hard to remove so I do not want to make work if the cam is in the right place.
points set at 020 thou but they are opening late after DTC.
Attachments:

Please Log in to join the conversation.

Re:west bend, points cam. 2 years 3 months ago #115652

  • 57owens
  • 57owens's Avatar Topic Author
  • Offline
  • Fresh Boarder
  • Fresh Boarder
  • Posts: 27
  • Karma: 1
  • Thank you received: 0
more pics
Attachments:

Please Log in to join the conversation.

Re:west bend, points cam. 2 years 3 months ago #115653

  • 57owens
  • 57owens's Avatar Topic Author
  • Offline
  • Fresh Boarder
  • Fresh Boarder
  • Posts: 27
  • Karma: 1
  • Thank you received: 0

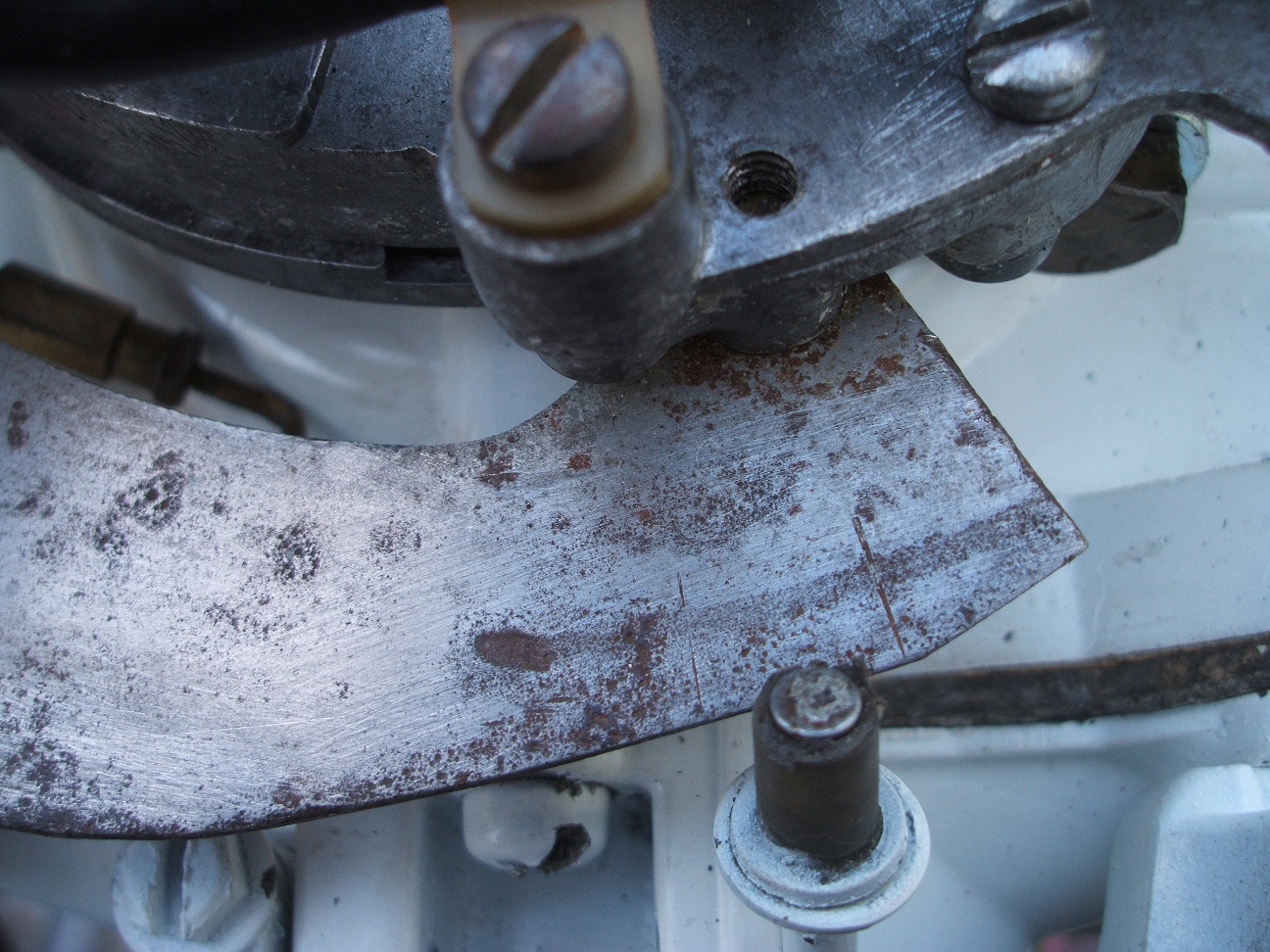

more pics just before DTC
Attachments:

Please Log in to join the conversation.

Re:west bend, points cam. 2 years 3 months ago #115654

  • 57owens
  • 57owens's Avatar Topic Author
  • Offline
  • Fresh Boarder
  • Fresh Boarder
  • Posts: 27
  • Karma: 1
  • Thank you received: 0

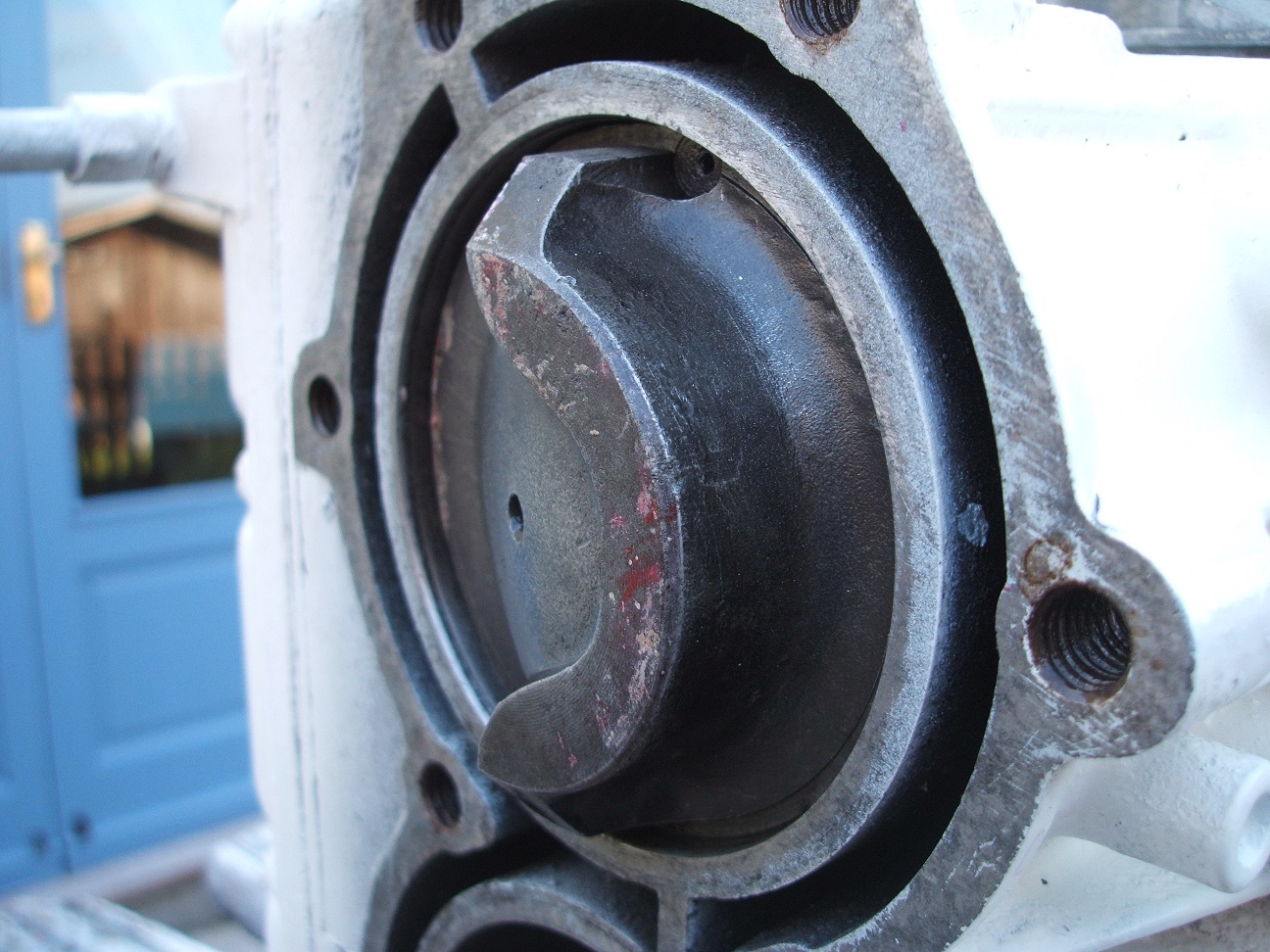

more cam at just before DTC and points a long way before opening.
Attachments:

Please Log in to join the conversation.

Re:west bend, points cam. 2 years 3 months ago #115757

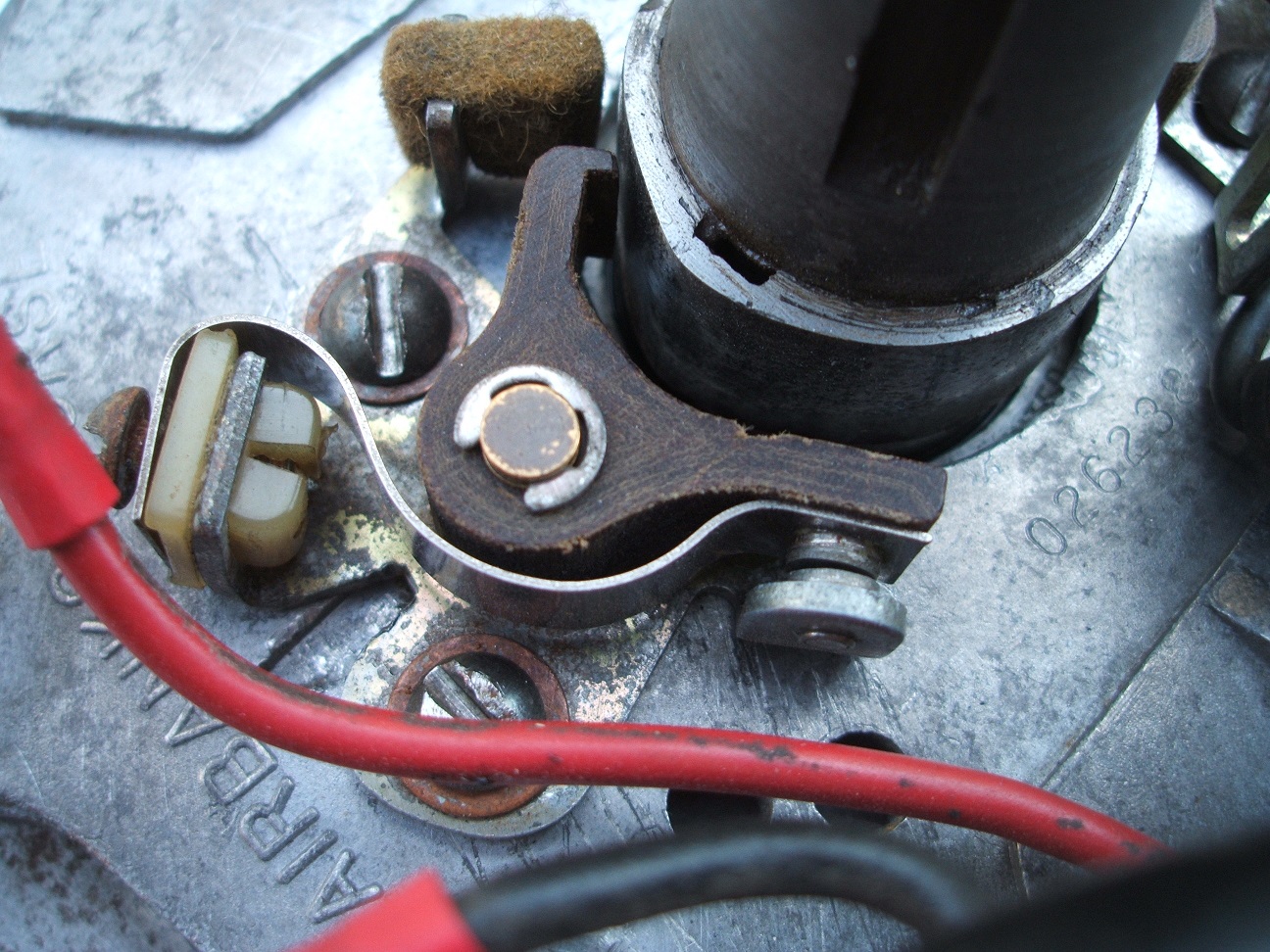

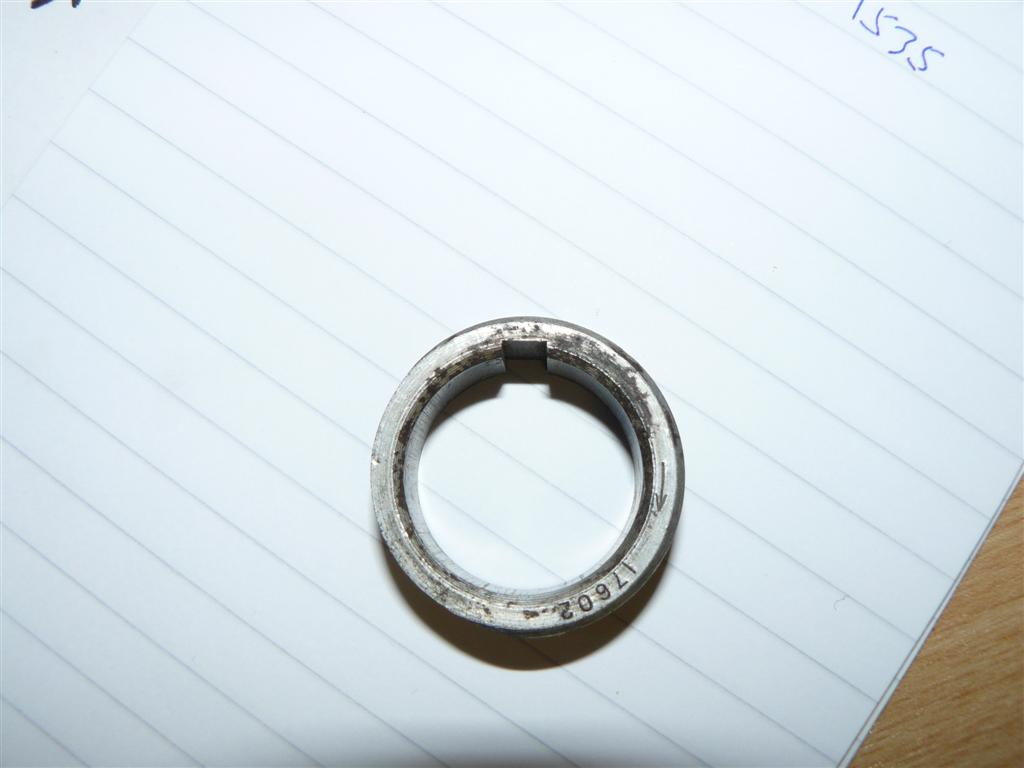

It's just possible the cam is upside down? Given the clockwise flywheel rotation I'd assume that the points would open slowly and drop off the high point of the cam quickly. See this pic of the 55 cam..it's marked in direction of rotation, like the 'top' in some OMCs...yours may not have this, so don't go on my say so. The pic of the armature plate shows how mine was before I twigged...Also check your cam position in relation to the flywheel keyway. I'd again assume that this motor (even if early generation West Bend) would have had a single key that fitted down into the cam inline with the keyway on the flywheel. They are known to break keys, if the flywheel is not properly torqued.
Attachments:

Please Log in to join the conversation.

Re:west bend, points cam. 2 years 3 months ago #115760

  • 57owens
  • 57owens's Avatar Topic Author
  • Offline
  • Fresh Boarder
  • Fresh Boarder
  • Posts: 27
  • Karma: 1
  • Thank you received: 0
Hi
In my parts book it shows a peg for the points cam and its drawn in line with the flywheel key but that would make the points open later, the cam is very very tight so I do not what to damage it, if it in the right place on the crankshaft, I will try to see if there any marks on the cam.
Thanks.

Please Log in to join the conversation.

Re:west bend, points cam. 2 years 3 months ago #115762

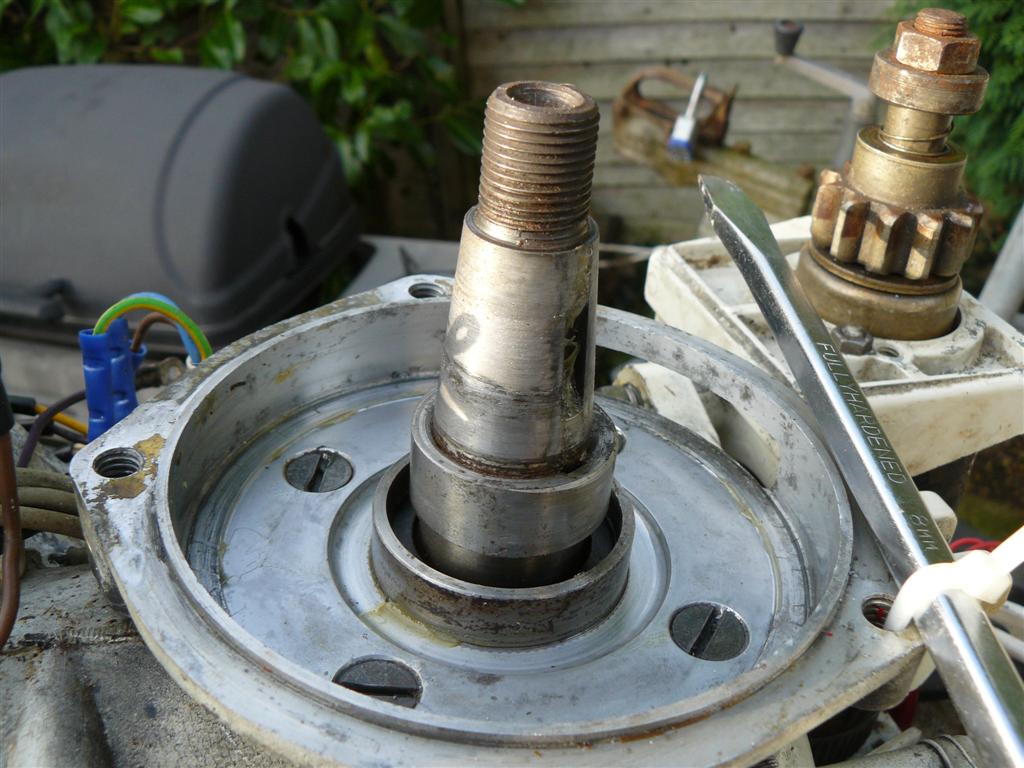

Mine was very tight too, you can see was rusted in position, but it had to be done. I used a puller in the end as I couldn't get enough height or leverage on the stator plate.
Attachments:

Please Log in to join the conversation.

Re:west bend, points cam. 2 years 3 months ago #115764

i have the fairbanks magneto on my engine too.... im pretty sure the flywheel key has a long tab going down to locate the cam. ill look through my parts stash and see i can get a photo.....

Please Log in to join the conversation.

Re:west bend, points cam. 2 years 2 months ago #116677

  • l98tpi
  • l98tpi's Avatar
  • Offline
  • Senior Boarder
  • Senior Boarder
  • Posts: 223
  • Karma: 16
  • Thank you received: 0

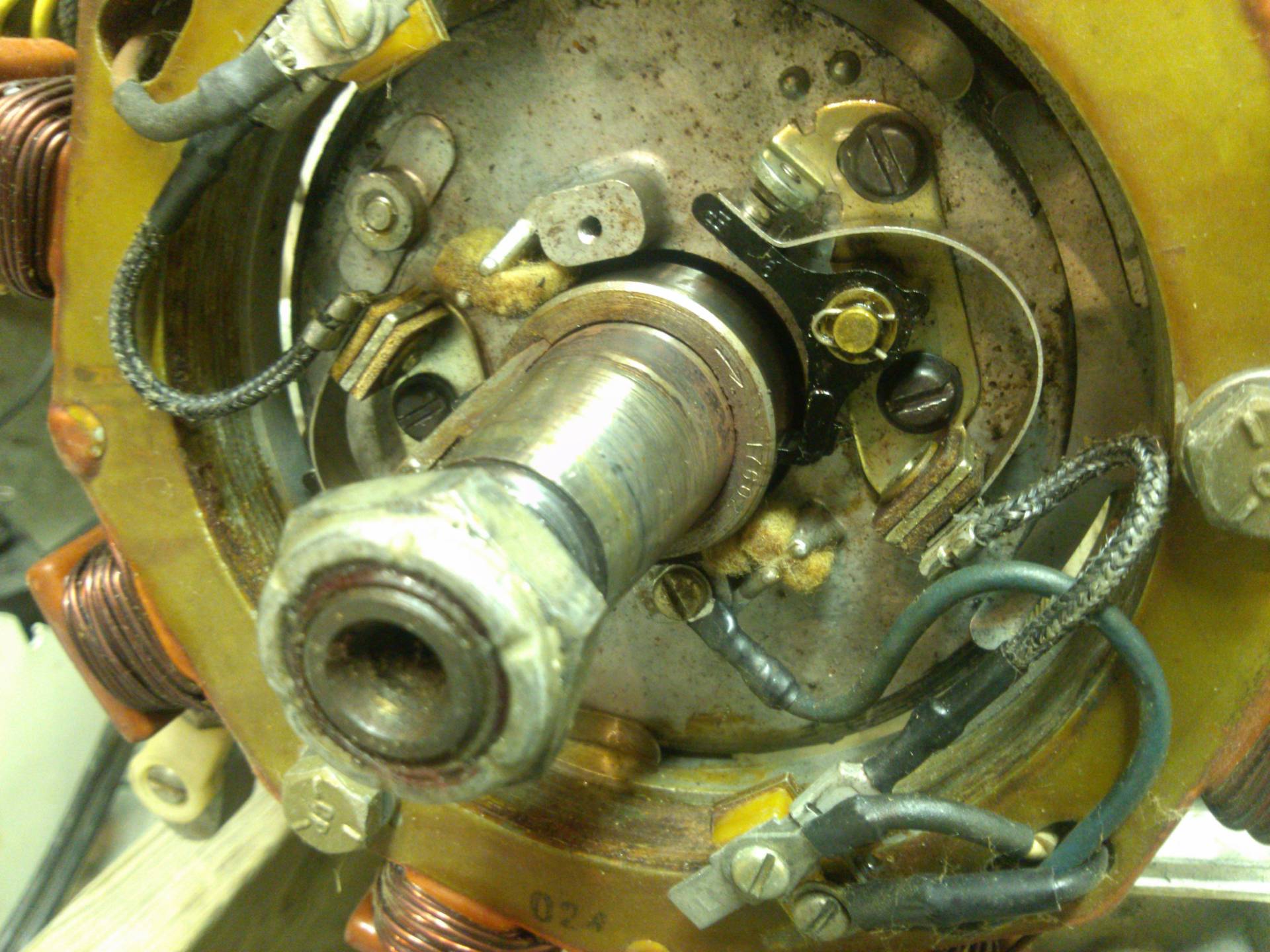

Notice the tang on the long key picking up the cam slot.
Attachments:

Please Log in to join the conversation.

Boats: 76 Chrysler Conqueror S3, 61 Larson Playmate. Outboards: 76 Chrysler 105, 70 Chrysler 70, 57 Evinrude Bigtwin 35, 80 Johnson 35 looper, 74 Chrysler 45, 67 Mercury 650SS, and others.
